Haldex Oil Change: VW's Official Stance & Why It Matters

When it comes to maintaining your Volkswagen, particularly models equipped with the renowned 4MOTION all-wheel-drive system, one question frequently surfaces among owners and enthusiasts alike: does VW recommend a Haldex oil change? The short answer is a resounding yes, and understanding why this service is so critical can save you from costly repairs and ensure your vehicle's optimal performance for years to come.

The Haldex system is a sophisticated piece of engineering designed to provide on-demand all-wheel drive, seamlessly distributing power between the front and rear axles as traction demands. Unlike traditional permanent AWD systems, Haldex operates intelligently, engaging the rear wheels only when necessary, which contributes to better fuel economy without sacrificing grip when you need it most. Found in a wide array of VW models, from the Golf R and Tiguan to the Passat and Arteon, it's a vital component that relies heavily on proper lubrication and a clean operating environment.

Understanding the Haldex System in Your VW

At its core, the Haldex unit is an electronically controlled, hydraulically actuated multi-plate clutch system. It sits between the driveshaft and the rear differential, acting as the brain for power distribution to the rear wheels. When the front wheels begin to slip, the Haldex control unit activates an electric pump, which pressurises oil to engage the clutch pack. This engagement then transfers torque to the rear axle, providing the necessary traction. This rapid and intelligent response is what makes the VW 4MOTION system so effective in varying driving conditions, from slippery roads to spirited cornering.

Over time, the oil within the Haldex unit performs a dual role: it lubricates the moving parts, including the clutch plates, and acts as the hydraulic medium for the clutch engagement. As the clutch plates engage and disengage, microscopic particles of friction material are inevitably shed into the oil. This, combined with the extreme pressures and temperatures the oil is subjected to, leads to its degradation and contamination.

VW's Official Recommendation for Haldex Oil Changes

Volkswagen, along with the manufacturers of the Haldex unit (now BorgWarner), unequivocally recommends regular servicing of the Haldex system. For most modern VW models equipped with a Haldex Gen 4 or Gen 5 system, the recommended service interval for the oil change is typically every 3 years or 30,000 miles (approximately 48,000 kilometres), whichever comes first. It is crucial to consult your vehicle's specific owner's manual or service schedule, as recommendations can vary slightly by model year and region.

This recommendation isn't merely a suggestion; it's a critical aspect of preventative maintenance designed to safeguard one of your vehicle's most sophisticated and hard-working components. Failing to adhere to this schedule can lead to a cascade of problems, significantly impacting your vehicle's AWD capabilities and potentially leading to very expensive repairs.

Why a Haldex Oil Change is Absolutely Necessary

1. Oil Degradation and Lubrication Breakdown

The specialised oil used in the Haldex unit is formulated to withstand high pressures and temperatures, providing optimal lubrication for the clutch plates and other internal components. However, like all oils, it breaks down over time. Heat, friction, and sheer forces cause the oil to lose its viscosity and lubricating properties. Degraded oil cannot effectively lubricate the clutch pack, leading to increased wear on the friction plates and other moving parts. This accelerated wear can compromise the Haldex unit's ability to engage smoothly and effectively.

2. Contamination and Filter Clogging

As mentioned, the constant engagement and disengagement of the multi-plate clutch pack within the Haldex unit naturally produces wear particles. These microscopic fragments of friction material, along with other contaminants, circulate within the oil. Many Haldex generations (particularly Gen 2, 3, and 4) incorporate an external filter, while Gen 5 systems often have an internal mesh filter designed to protect the electric oil pump. Regardless of its location, this filter becomes clogged over time by these contaminants. A blocked filter restricts oil flow, reducing the pressure available to engage the clutches properly. This can lead to a noticeable decrease in AWD performance, or even complete failure of the system.

3. Protection of Critical Components

The Haldex unit comprises several vital components, including the electric oil pump, the control valve, and the clutch pack itself. The pump is particularly susceptible to damage from contaminated or degraded oil. If the oil is dirty or the filter is clogged, the pump has to work harder to generate the necessary pressure, leading to premature wear and potential failure. A failed Haldex pump is a common and costly repair, often running into hundreds of pounds, and is almost always a direct consequence of neglected oil and filter changes.

4. Maintaining Optimal AWD Performance

Ultimately, the primary reason for regular Haldex servicing is to ensure your 4MOTION system operates as intended. With fresh, clean oil and an unobstructed filter, the Haldex unit can react quickly and precisely, delivering power to the rear wheels exactly when needed. Neglecting this service can result in delayed engagement, reduced torque transfer, or in severe cases, the complete inability of the rear wheels to receive power. This means your sophisticated AWD vehicle could effectively become a front-wheel-drive car, compromising safety and handling, especially in adverse conditions.

The Haldex Service Process: What to Expect

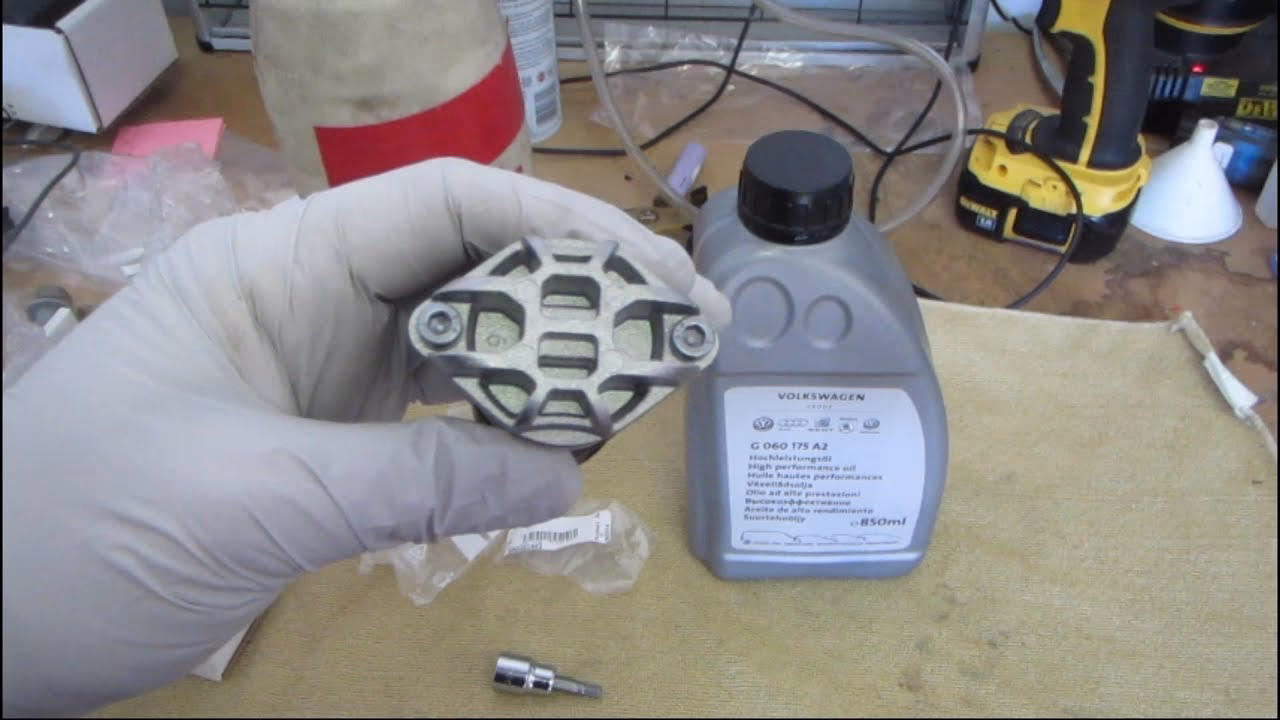

A typical Haldex service involves draining the old, contaminated oil from the unit and refilling it with fresh, specified Haldex fluid. For many generations, particularly Gen 4 and older, replacing the Haldex filter is also a crucial step. Even for Gen 5 units, where a separate filter replacement isn't officially listed, many independent specialists recommend removing and cleaning the internal mesh filter that protects the pump, as this is a common point of failure due to clogging.

The process often includes:

• Safely lifting the vehicle.
• Locating the Haldex unit, typically at the rear of the car, just in front of the rear differential.
• Draining the old fluid.
• Removing and replacing the Haldex filter (if applicable to your generation).
• Cleaning the internal mesh filter for the pump (recommended for Gen 5).
• Refilling the unit with the correct specification of Haldex fluid.
• In some cases, a diagnostic tool may be used to cycle the Haldex pump after refilling to ensure proper bleeding and fill levels.

It is paramount to use the manufacturer-specified Haldex oil. These are highly specialised fluids, and using incorrect oil can cause irreparable damage to the system. Always opt for genuine VW parts or equivalent OEM quality components for the best results.

Haldex Generations and Service Nuances

The Haldex system has evolved through several generations, from Gen 1 to Gen 5, each with slight differences in design and service requirements. While the core principle remains the same, the specifics of the service can vary:

• Gen 1-3: Often feature a more accessible external filter.
• Gen 4: Widely used in many popular VW models (e.g., Golf R Mk6, Tiguan), these units typically have an external filter that is part of the recommended service.
• Gen 5: Found in newer VWs (e.g., Golf R Mk7/7.5, Arteon), these often do not have a separate, replaceable external filter listed in VW's service schedule. However, they still have an internal mesh filter for the pump. It is highly recommended to have this internal filter inspected and cleaned during the oil change, as it’s a common point of blockage leading to pump failure.

Regardless of the generation, the need for regular oil changes remains universal to ensure the longevity and performance of your Haldex system.

Consequences of Neglecting Haldex Maintenance

Ignoring VW's recommendation for Haldex servicing can lead to a range of undesirable and often expensive outcomes:

• Reduced AWD Capability: The most immediate effect is a degradation in your 4MOTION system's ability to transfer power to the rear wheels. This can manifest as wheel spin, poor traction in slippery conditions, or a general feeling of instability.
• Haldex Pump Failure: This is perhaps the most common and costly consequence. Contaminated oil and a clogged filter force the electric pump to work harder, leading to premature wear and eventual failure. A replacement pump, plus labour, can easily run into hundreds of pounds.
• Clutch Pack Wear: Degraded oil provides inadequate lubrication, causing accelerated wear on the multi-plate clutch pack. If the clutches wear out, the entire Haldex unit may require replacement or a complex rebuild.
• Control Unit Errors: Issues with oil pressure or pump function can trigger diagnostic trouble codes (DTCs) and illuminate warning lights on your dashboard, indicating a fault with the AWD system.
• Complete Haldex Unit Failure: In severe cases of neglect, the entire Haldex unit can fail, necessitating a complete replacement, which is a significantly more expensive repair than a routine oil change.

Cost of a Haldex Oil Change

The cost of a Haldex oil change is relatively modest, especially when compared to the potential repair costs of a neglected system. Typically, you can expect to pay anywhere from £100 to £250 for the service at a reputable garage, depending on the specific model, generation, and whether the filter is also replaced/cleaned. This small investment provides substantial protection against much larger expenses down the line.

Haldex Oil Change vs. Regular Differential Oil Change

It's important to differentiate the Haldex oil change from a regular differential oil change. While both relate to the drivetrain, they are distinct services for different components.

Frequently Asked Questions (FAQs)

Q1: What is the typical service interval for a Haldex oil change on a VW?

A1: For most modern VW models, the recommended interval is every 3 years or 30,000 miles (approximately 48,000 kilometres), whichever comes first. Always check your specific vehicle's service schedule as this can vary slightly.

Q2: Can I perform a Haldex oil change myself?

A2: While it's technically possible for an experienced DIY mechanic with the right tools and knowledge, it's generally recommended to have this service performed by a qualified technician. Correct fluid specification, proper filling levels, and the potential need for diagnostic tools (for pump cycling/bleeding) make it a job best left to professionals to ensure it's done correctly.

Q3: What type of oil is needed for a Haldex system?

A3: Only use the manufacturer-specified Haldex fluid. These are highly specialised oils (e.g., VW Part No. G060175A2 for Gen 5, or G055175A2 for earlier generations). Generic gear oils or other fluids are not suitable and can cause severe damage.

Q4: Do all VW 4MOTION cars have a Haldex system?

A4: Most transverse-engine VW models (e.g., Golf, Tiguan, Passat, Arteon) that feature 4MOTION utilise the Haldex system. However, some larger, longitudinal-engine models (e.g., Touareg, or older Passat B5) may use a different, Torsen-based permanent AWD system. If in doubt, check your owner's manual or consult a VW specialist.

Q5: What are the symptoms of a failing Haldex system?

A5: Symptoms can include a noticeable loss of traction in slippery conditions, a grinding or clunking noise from the rear of the vehicle, a delay in AWD engagement, or dashboard warning lights related to the AWD system (e.g., a 4MOTION fault message). If you experience any of these, it's crucial to have your Haldex system inspected immediately.

Conclusion

The answer to whether VW recommends a Haldex oil change is unequivocally yes. This critical preventative maintenance is not merely an optional extra but a fundamental requirement for the long-term health and optimal performance of your VW's 4MOTION system. By adhering to the recommended service intervals and using the correct fluids and filters, you can ensure your Haldex unit continues to operate flawlessly, providing reliable all-wheel drive capability and saving you from potentially expensive repairs down the line. Don't overlook this vital service – it's an investment in your vehicle's longevity and your driving confidence.
