Bringing a Rusty Tiger Cub Back to Life

Few sights are as disheartening to a classic motorcycle enthusiast as a beloved machine consumed by the creeping tendrils of rust. Whether it's a venerable 1961 Tiger Cub, like the one that lay dormant in a family garage for 35 years, or any other vintage bike, rust is an almost inevitable adversary. The story of a neglected machine, its paint faded, its components seized, is a common one, yet it also sets the stage for a profoundly rewarding restoration journey. This article delves into the challenges and triumphs of reviving a classic motorcycle from the clutches of extensive corrosion, offering insights into the 'hows' and 'whys' of rust, and practical advice on bringing a piece of automotive history back to its former glory.

The Inevitable March of Rust on Vintage Motorcycles

Rust, or iron oxide, is the result of iron or its alloys (like steel) reacting with oxygen and water. For a motorcycle, especially one from 1961, made primarily of steel components and often stored in less-than-ideal conditions, rust is a persistent threat. Bikes like the Triumph Tiger Cub, designed and built in an era before advanced rust-proofing techniques were commonplace, are particularly susceptible. Thirty-five years in a garage, even if seemingly dry, can provide ample opportunity for moisture to work its insidious magic. Humidity fluctuations, condensation, and even airborne pollutants can create the perfect environment for rust to flourish, leading to the kind of severe damage described, where a piston rusts solid in the bore.

Why Old Bikes Rust So Profoundly

• Material Composition: Older bikes rely heavily on mild steel for frames, tanks, and many engine components. This material is highly reactive to oxygen and moisture.
• Lack of Modern Protection: Unlike contemporary vehicles with sophisticated anti-corrosion treatments, electrophoretic deposition (EPD) coatings, and extensive use of stainless steel or composites, vintage bikes had simpler paint, chrome plating, and very basic internal coatings.
• Storage Conditions: Garages, sheds, or even outdoor covers can trap moisture. Fluctuating temperatures cause condensation, which is a prime driver of rust. Poor ventilation exacerbates the problem.
• Neglect: Long periods of inactivity mean protective oil films dry out, moisture settles in crevices, and small surface rust spots are left unchecked, allowing them to escalate into deep pitting and structural damage.

Identifying and Assessing Rust Damage

Before any restoration work begins, a thorough assessment of the rust damage is crucial. Rust isn't uniform; it can range from superficial surface rust to deep, structural pitting that compromises the integrity of components.

Common Rust Hotspots on a Tiger Cub:

• Fuel Tank: Internal rust is common due to condensation from old fuel or an empty tank. External rust often appears along seams or where paint has chipped.
• Frame: Especially around welds, beneath paint chips, or where mud and water accumulate (e.g., swingarm pivot, headstock).
• Exhaust System: Mufflers and headers are highly prone due to heat cycling and exposure to moisture.
• Engine Internals: As experienced, pistons can seize in bores, valves can stick, and crankshaft bearings can corrode due to moisture ingress through carburetors or exhaust ports.
• Chrome Components: Rims, handlebars, mudguards, and headlight surrounds often show bubbling or flaking chrome, indicating rust beneath.
• Fasteners: Bolts, nuts, and screws can seize solid.
• Wiring Harness: While not steel, copper wires can corrode, especially at connections, due to moisture.

Levels of Rust Damage:

1. Surface Rust: A light, reddish-brown film that can often be removed with light abrasion or chemical treatment.
2. Flaking/Scaling Rust: Thicker layers of rust that flake off, indicating more advanced corrosion.
3. Pitting Rust: Small, deep craters formed where rust has eaten into the metal. This reduces the material's thickness and strength.
4. Perforating Rust: Rust has eaten completely through the metal, creating holes. This indicates severe structural damage.
5. Seized Components: Rust has bonded moving parts together, such as a piston in a bore, or rusted bearings.

Rust Removal Techniques: Bringing Metal Back to Life

The approach to rust removal depends heavily on the component, the type of metal, and the severity of the rust. Safety precautions, including eye protection, gloves, and adequate ventilation, are paramount.

Mechanical Rust Removal:

• Wire Brushing/Sanding: Effective for surface rust on larger components. Use wire wheels on angle grinders or drill attachments. Sanding with various grits can smooth surfaces.
• Sandblasting/Media Blasting: Highly effective for removing rust, old paint, and grime from frames, engine cases, and other large components. Different media (sand, glass beads, walnut shells, plastic) offer varying degrees of abrasion. For delicate parts or precision surfaces, soda blasting might be preferred.
• Grinding: For very heavy, localized rust or welds, grinding can be used, but care must be taken not to remove too much parent metal.

Chemical Rust Removal:

• Phosphoric Acid-based Converters: These chemicals react with rust (iron oxide) to form iron phosphate, a black, stable compound that can be painted over. Ideal for surface rust on components that are difficult to blast.
• Oxalic Acid: A milder acid, good for removing rust stains and light rust without damaging underlying metal as aggressively as stronger acids. Often used for chrome or delicate parts.
• Rust Removers (e.g., Evapo-Rust): Non-toxic, biodegradable solutions that chelate (bind to) rust, lifting it from the metal. Parts are simply submerged. Excellent for intricate parts or those where blasting isn't feasible.

Electrolytic Rust Removal:

This method uses an electrical current to reverse the rusting process, pulling rust off the metal and depositing it on a sacrificial anode. It's excellent for heavily rusted parts, especially complex shapes like engine cases or fuel tanks, as it only removes the rust and leaves the base metal intact, without needing harsh chemicals or abrasives. It requires a power supply, a container, an electrolyte solution (e.g., washing soda and water), and sacrificial steel anodes.

Here's a comparison of common rust removal methods:

Reviving Specific Rusted Components

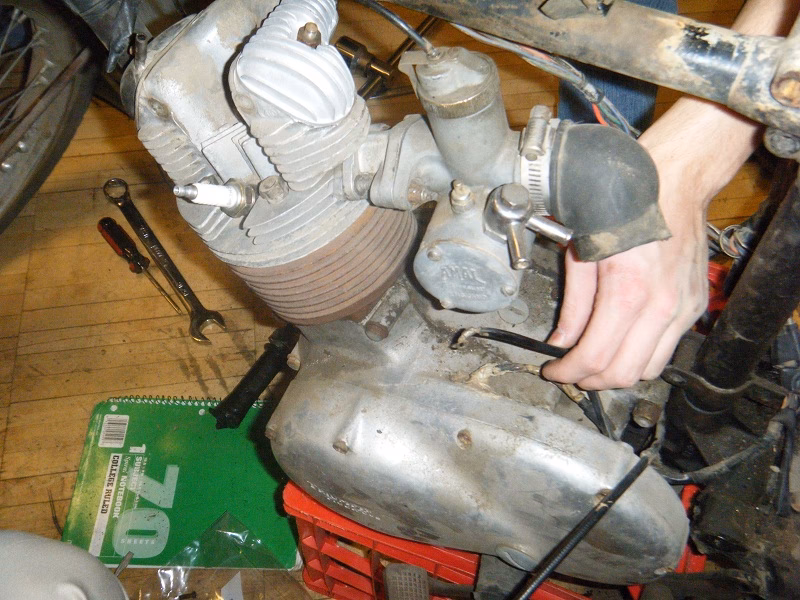

Seized Engine Internals (e.g., Piston in Bore):

A piston rusted in the bore, as experienced with your Tiger Cub, is a common but challenging problem. Patience is key:

1. Penetrating Oil: Liberally apply high-quality penetrating oil (e.g., PlusGas, PB Blaster) down the spark plug hole and around the piston skirt. Let it soak for days, or even weeks, reapplying regularly.
2. Gentle Persuasion: After soaking, try to gently rock the crankshaft back and forth. Avoid excessive force, as this can bend connecting rods or damage bearings.
3. Heat: Carefully apply heat to the cylinder barrel, avoiding the piston itself, to expand the bore slightly. A heat gun or propane torch can be used cautiously.
4. Hydraulic Pressure: For stubborn cases, fill the bore above the piston with penetrating oil or diesel fuel, then use a wooden dowel slightly smaller than the bore and a hammer to create hydraulic pressure. This is a last resort and requires extreme care.
5. Disassembly: If all else fails, the engine must be fully disassembled. The cylinder might need to be pressed off the piston, or in severe cases, the cylinder bored out or replaced. The crankcases will need a thorough cleaning and inspection for rust in bearings.

Fuel Tank Restoration:

Internal rust in a fuel tank is a recipe for blocked fuel lines and carburetor issues. Methods include:

• Chemical Treatment: Using a phosphoric acid solution (often found in dedicated tank repair kits) or electrolysis to dissolve and convert rust.
• Tank Sealing: After rust removal, apply a fuel-resistant epoxy sealer to the tank's interior to prevent future rust and seal small pinholes.

Chrome Parts:

If chrome is flaking or deeply pitted, re-chroming is often the best solution for a show-quality finish. This involves stripping the old chrome and nickel, polishing the base metal, and then reapplying layers of copper, nickel, and chrome. For light surface rust on chrome, fine steel wool (0000 grade) with chrome polish or WD-40 can sometimes gently remove it.

Frame and Bodywork:

After rust removal, inspect the frame for any structural damage, especially around welds or stress points. Repairs may involve welding new sections. Once clean, apply a high-quality epoxy primer, followed by filler for imperfections, and then topcoats of paint. For body panels, careful sanding and filling are essential before painting.

Preventing Future Rust: A Lasting Legacy

Once the painstaking work of restoration is complete, protecting your revived Tiger Cub from future rust is paramount. Prevention is far easier than cure.

Key Prevention Strategies:

• Optimal Storage: Store the motorcycle in a dry, well-ventilated area. Consider a dehumidifier in humid environments. A breathable motorcycle cover is better than a non-breathable one, which can trap moisture.
• Regular Riding: Regular use helps keep components lubricated and prevents moisture from settling.
• Protective Coatings: Apply a good quality wax or sealant to painted and chrome surfaces. Use anti-corrosion sprays (e.g., ACF-50, WD-40 Specialist Anti-Corrosion) on exposed metal, electrical connections, and inside frame tubes.
• Fuel Stabiliser: If storing for more than a month, use a fuel stabiliser to prevent fuel degradation and internal tank rust.
• Battery Maintainer: A trickle charger keeps the battery healthy and reduces the risk of electrical corrosion.
• Tyre Pressure: Keep tyres inflated to prevent flat spots during storage.

The Rewarding Journey of Classic Bike Restoration

The journey of restoring a severely rusted classic motorcycle, like a 1961 Tiger Cub that has sat for decades, is not for the faint of heart. It demands patience, perseverance, and a willingness to learn new skills. However, the satisfaction of seeing a once-decrepit machine brought back to life, gleaming and running as it once did, is immense. It's more than just fixing a bike; it's preserving history, honouring craftsmanship, and creating a tangible link to the past. The initial heartbreak of seeing a piston rusted solid transforms into the triumph of hearing the engine roar once more. It's a testament to dedication and the enduring appeal of these magnificent machines.

Frequently Asked Questions About Rusty Classic Bikes

Q1: Is it always worth restoring a very rusty classic motorcycle?

A1: It depends on several factors: sentimental value (as in your case with your father's Tiger Cub), rarity of the model, and the extent of structural damage. If the frame is severely compromised or key components are irreplaceable, it might be more challenging. However, with enough dedication and resources, almost anything can be restored. The value often lies in the personal satisfaction and historical preservation rather than purely financial return.

Q2: How long does rust removal typically take?

A2: This varies widely. Light surface rust on small parts might take minutes or hours. A fully rusted frame requiring blasting could be a day's work. For seized engine components requiring soaking, it could be weeks of patient application. Electrolytic baths can take several days for heavily rusted parts. Factor in preparation and post-treatment.

Q3: Can I paint over rust?

A3: Generally, no. Painting over active rust is a temporary fix at best. The rust will continue to grow beneath the paint, eventually causing it to bubble and flake off. For a lasting finish, all rust must be thoroughly removed or converted with a high-quality rust converter before priming and painting.

Q4: What's the best way to prevent a seized piston from happening again?

A4: For long-term storage, drain the fuel tank (or fill it with stabilised fuel), remove the spark plug, and squirt about a tablespoon of engine oil into the cylinder. Rotate the engine a few times by hand (without the spark plug) to distribute the oil, then reinstall the plug. Store the bike in a dry, stable environment and ideally run it for a short period every few months.

Q5: Is it possible to restore pitted chrome?

A5: Light pitting can sometimes be disguised with careful polishing, but deep pitting cannot be "filled in." For a proper restoration, pitted chrome parts need to be re-chromed. This involves stripping the old chrome, copper plating, polishing, nickel plating, and finally, re-chroming. It's often one of the more expensive parts of a restoration.
