Peugeot/Citroën Throttle Body Explained

Many modern vehicles, including those from French manufacturers Peugeot and Citroën, utilise sophisticated fuel injection systems to precisely control the amount of air entering the engine. A crucial component in this system is the throttle body. If you've been asking yourself, "Does Peugeot/Citroën offer fuel injection throttle bodies?" the answer is a resounding yes. These vehicles, known for their innovative engineering, rely heavily on these units to manage engine performance and efficiency. This article will delve into the intricacies of Peugeot and Citroën throttle bodies, covering their function, common problems, diagnosis, and essential maintenance advice.

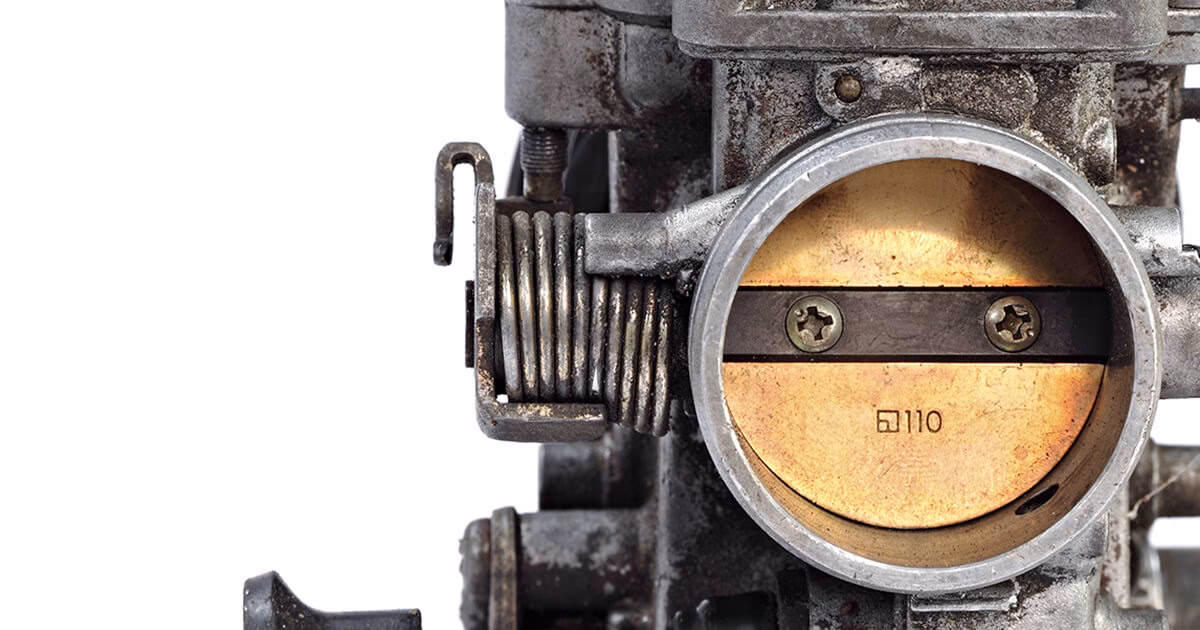

What is a Throttle Body?

At its core, a throttle body is an essential part of the internal combustion engine's air intake system. It's essentially a valve that controls the amount of air flowing into the engine, thereby regulating the engine's speed and power. In fuel-injected engines, the throttle body is typically located between the air intake manifold and the air filter housing. It houses a butterfly valve (or throttle plate) that is controlled by the driver's accelerator pedal, either directly via a cable or, more commonly in modern vehicles like Peugeots and Citroëns, electronically through a drive-by-wire system.

How it Works in Peugeot and Citroën Vehicles

In a Peugeot or Citroën equipped with a fuel injection system, the throttle body plays a pivotal role. When you press the accelerator pedal, a signal is sent to the engine control unit (ECU). For electronic throttle bodies (ETB), the ECU then commands an electric motor within the throttle body to open or close the throttle plate. The ECU uses this information, along with data from other sensors (like the mass airflow sensor and oxygen sensors), to calculate the precise amount of fuel to inject into the cylinders for optimal combustion. This ensures a smooth and responsive driving experience, contributing to better fuel economy and lower emissions. Older models might still utilise a mechanical throttle body, where a cable directly links the accelerator pedal to the throttle plate, but the electronic version has become the standard for enhanced control and integration with other vehicle systems.

Types of Throttle Bodies Found in Peugeot and Citroën

Peugeot and Citroën have employed both mechanical and electronic throttle bodies throughout their model ranges. Understanding the difference is key to diagnosing potential issues.

Mechanical Throttle Bodies

These are the older, more traditional type. They use a direct cable connection between the accelerator pedal and the throttle plate. When you press the pedal, the cable pulls the plate open. While simpler in design, they offer less precise control compared to their electronic counterparts.

Electronic Throttle Bodies (ETB) / Drive-by-Wire

This is the prevalent technology in most modern Peugeots and Citroëns. Instead of a physical cable, an electronic throttle control (ETC) system is used. This involves:

• Accelerator Pedal Position (APP) Sensor: This sensor measures how far the accelerator pedal is pressed.
• Throttle Body Motor: An electric motor within the throttle body directly controls the opening and closing of the throttle plate.
• Throttle Position Sensor (TPS): Located within the throttle body, this sensor tells the ECU the exact position of the throttle plate.

The ECU constantly processes information from these components to optimise engine performance. This system allows for features like cruise control, traction control, and stability control to be more seamlessly integrated.

Common Throttle Body Problems in Peugeot and Citroën

Like any automotive component, throttle bodies can develop issues over time. Here are some common problems experienced by Peugeot and Citroën owners:

1. Carbon Buildup

Over time, a buildup of carbon deposits can accumulate on the throttle plate and the bore of the throttle body. This is a natural process, especially in engines that are primarily used for short journeys. This buildup can restrict airflow, leading to erratic idling, poor acceleration, and reduced engine power. The carbon can prevent the throttle plate from closing fully, causing a higher idle speed, or it can impede its opening, leading to sluggish performance.

2. Faulty Throttle Position Sensor (TPS)

The TPS is crucial for telling the ECU the position of the throttle plate. If this sensor malfunctions, it can send incorrect signals, leading to a variety of drivability issues. Symptoms include:

• Hesitation during acceleration
• Rough idling
• Stalling
• Illumination of the engine warning light (check engine light)
• Inconsistent engine performance

3. Failing Throttle Body Motor (ETB)

In electronic throttle bodies, the electric motor that actuates the throttle plate can fail. This can result in the throttle plate getting stuck in a certain position, or the motor becoming unresponsive. Symptoms often include:

• Sudden loss of power (limp mode)
• Inability to accelerate
• Struggling to start the engine
• Throttle warning light illuminated

4. Electronic Throttle Control (ETC) System Malfunctions

Issues can also arise from the electronic control system itself, including problems with the APP sensor or wiring faults. These can manifest similarly to a faulty TPS or motor failure.

5. Vacuum Leaks

While not directly a throttle body failure, a vacuum leak in the intake system, potentially near the throttle body gasket, can cause similar symptoms like rough idling and poor performance.

Diagnosing Throttle Body Issues

Diagnosing a faulty throttle body in a Peugeot or Citroën requires a systematic approach. Here’s how it’s typically done:

1. Visual Inspection

A visual check can reveal obvious signs of damage, loose connections, or significant carbon buildup. It's also a good time to check for any obvious vacuum leaks around the throttle body and associated hoses.

2. Scanning for Diagnostic Trouble Codes (DTCs)

The most common starting point is using an OBD-II scanner. The ECU will store fault codes related to the throttle body system if it detects a problem. Common codes include P2101 (Throttle Actuator Control Motor Circuit Range/Performance), P2106 (Throttle Actuator Control System - Forced Limited Power), P2112 (Throttle Actuator Control System - Stuck Closed), and codes related to the TPS or APP sensor.

3. Checking Throttle Body Operation

With an electronic throttle body, a diagnostic tool can often be used to command the throttle plate to open and close. This allows a mechanic to check if the motor is responding correctly and if the throttle plate is moving smoothly.

4. Testing Sensors

The TPS and APP sensors can be tested for their electrical resistance and voltage output using a multimeter. This helps determine if they are providing accurate readings to the ECU.

5. Checking for Carbon Buildup

Removing the intake hose connected to the throttle body allows for a direct inspection of the throttle plate and bore for carbon deposits. If significant buildup is present, cleaning is usually the first step.

Cleaning and Maintenance

Regular cleaning and proper maintenance can significantly extend the life of your Peugeot or Citroën's throttle body and prevent many common issues.

Throttle Body Cleaning Procedure

Important Note: Always consult your vehicle’s service manual for specific instructions and recommended cleaning agents. For electronic throttle bodies, it's crucial to avoid excessive force or cleaning agents that could damage the electronic components. In some cases, the battery may need to be disconnected, or specific procedures followed to avoid damaging the ECU.

Generally, the process involves:

1. Accessing the Throttle Body: This usually means removing the air intake hose connected to it.
2. Cleaning the Throttle Plate and Bore: Use a dedicated throttle body cleaner spray. Spray the cleaner onto a lint-free cloth or a soft brush and carefully clean the throttle plate (both sides) and the inside bore of the throttle body. Do not spray cleaner directly into the throttle body, especially if it's an electronic unit, as this can damage the motor and sensors.
3. Manual Manipulation (with caution): For electronic throttle bodies, you might need to gently push the throttle plate open with your finger to clean the edges. Be very careful not to force it or damage the internal mechanism. Some recommend having a second person turn the ignition on and off (without starting the engine) to allow the throttle plate to move slightly, but this should only be done if you are confident in the procedure.
4. Allow to Dry: Let the throttle body air dry completely.
5. Reassembly: Reconnect the air intake hose and ensure all connections are secure.
6. Throttle Relearn Procedure: After cleaning or replacing a throttle body, an ECU relearn procedure might be necessary for the system to adapt to the new settings and ensure proper idling. This often involves starting the engine and letting it idle for a specific period, or following a sequence of ignition on/off and pedal movements. Consult your vehicle's manual or a professional for the correct procedure.

Preventative Maintenance

• Use Quality Fuel: High-quality fuel can help reduce carbon deposits.
• Regular Servicing: Ensure your vehicle is serviced according to the manufacturer's recommendations.
• Avoid Excessive Idling: While sometimes unavoidable, prolonged idling can contribute to carbon buildup.
• Address Engine Issues Promptly: Any issues with engine misfires or fuel mixture can exacerbate carbon buildup in the throttle body.

Replacement vs. Repair

In many cases, a dirty throttle body can be resolved with a thorough cleaning. However, if diagnostic tests reveal a faulty sensor, a malfunctioning motor, or irreparable damage, replacement of the entire throttle body unit will be necessary. Throttle bodies are complex integrated units, and often, individual components like the TPS or motor are not designed to be replaced separately. When replacing a throttle body, it's crucial to use high-quality parts, preferably OEM (Original Equipment Manufacturer) or reputable aftermarket brands, to ensure compatibility and longevity. After installation, the throttle relearn procedure is almost always mandatory for the new unit to function correctly.

Comparison: Mechanical vs. Electronic Throttle Bodies

Here's a brief comparison to highlight the key differences:

Frequently Asked Questions (FAQs)

Q1: Can I drive my Peugeot/Citroën with a faulty throttle body?
It depends on the severity of the fault. If the throttle body is stuck closed or the system has gone into limp mode, driving may be severely restricted or impossible. Driving with erratic symptoms like stalling or severe hesitation can also be dangerous. It's best to have the vehicle inspected by a qualified mechanic as soon as possible.

Q2: How often should a throttle body be cleaned?
There isn't a fixed interval. Cleaning is usually recommended when symptoms of buildup appear, or as part of a major service if deemed necessary by a mechanic. For many drivers, especially those with shorter commutes, a check and potential clean every 30,000-50,000 miles might be appropriate.

Q3: Is throttle body cleaning a DIY job?
Cleaning the throttle body can be a DIY job for those with some mechanical experience and the right tools. However, caution is advised, especially with electronic throttle bodies, due to the risk of damaging sensitive components. If you're unsure, it's always best to entrust the job to a professional mechanic.

Q4: What happens if the throttle relearn procedure isn't done after cleaning or replacement?
If the relearn procedure isn't performed, the ECU won't know the correct idle parameters for the throttle body. This can lead to unstable idling, stalling, or the engine running too fast or too slow.

Q5: Are Peugeot and Citroën throttle bodies interchangeable?
While some models might share parts, it's not guaranteed. Throttle bodies are specific to the engine and ECU configuration of a particular vehicle model and year. Always check the part number and consult with a parts specialist to ensure compatibility before purchasing.

Conclusion

Yes, Peugeot and Citroën vehicles extensively use fuel injection throttle bodies, predominantly the electronic (drive-by-wire) type in modern models. These components are vital for managing engine performance, fuel efficiency, and emissions. Understanding their function, common failure points like carbon buildup and sensor issues, and the importance of proper diagnosis and maintenance, including cleaning and potential relearn procedures, will help keep your Peugeot or Citroën running optimally. If you suspect a throttle body issue, prompt attention from a qualified mechanic is the best course of action to ensure safety and prevent further damage.
