DIY Brake Pad Replacement: Essential UK Guide

Maintaining your vehicle's braking system is paramount for safety on the road. Worn brake pads not only compromise your stopping power but can also lead to more costly repairs if left unattended. While the thought of replacing brake pads might seem daunting, it's a manageable task for the keen DIY enthusiast with the right tools and knowledge. This guide will walk you through the process, incorporating crucial inspection techniques to ensure your entire braking system is in top condition.

Understanding Your Braking System

Before diving into replacement, it's helpful to understand the basic components of your car's disc braking system. When you press the brake pedal, hydraulic pressure forces a piston inside the caliper, which in turn squeezes the brake pads against the spinning brake disc (or rotor). This friction slows your vehicle down. Over time, the friction material on the pads wears away, necessitating replacement.

Signs Your Brake Pads Need Attention

• Squealing or Grinding Noise: Often, a high-pitched squeal indicates the wear indicator on your pads is contacting the disc. A grinding noise suggests severe wear, where the metal backing plate of the pad is grinding against the disc.
• Reduced Braking Performance: Your car takes longer to stop, or you need to press the pedal harder than usual.
• Brake Pedal Pulsation: A vibrating or pulsating feeling through the brake pedal can indicate uneven disc wear, often referred to as brake judder.
• Visual Inspection: If you can see that the friction material on your pads is less than a few millimetres thick, it's time for replacement.
• Warning Light: Some modern vehicles have electronic wear sensors that trigger a dashboard warning light when pads are low.

Tackling Brake Judder: Diagnosis and Prevention

Brake judder is a common issue that can significantly diminish driving comfort and safety. It manifests as vibrations felt through the steering wheel, vehicle floor, or brake pedal when braking. Understanding its causes is key to effective repair, not just simple pad replacement.

Characteristics of Brake Judder

• Steering Wheel Vibration: The steering wheel vibrates rotationally, most noticeable at higher speeds (e.g., 100—140 km/h).
• Floor Vibration: The vehicle body shakes back and forth, irrespective of vehicle speed.
• Brake Pedal Vibration: A pulsating force pushes back against the brake pedal when applied.

Primary Causes of Brake Judder

1. Excessive Disc Plate Runout: This refers to the side-to-side wobble of the brake disc. If the runout exceeds a specified limit (e.g., 0.05 mm), it causes uneven contact with the pad, leading to uneven wear and thickness variation.
2. Disc Plate Deformation by Heat: Repeated heavy braking, such as panic stops, can cause localised heating of the disc plate, leading to deformation and uneven surfaces. Temperatures can reach extreme levels (e.g., 1,000 °C).
3. Corrosion: If a vehicle is left parked in damp conditions for extended periods, corrosion can build up unevenly on the disc's friction surface. This alters the friction coefficient and creates a reaction force during braking.

Detailed Inspection Procedures for Discs

Before simply replacing pads when judder is present, a thorough inspection of your brake discs is crucial. The following procedures, while specific examples from a Mazda 3 manual, illustrate the general principles for any vehicle.

Lateral Runout Inspection

This measures the side-to-side wobble of the disc. To perform this:

1. Secure the disc plate to the hub. This often involves using washers between the hub bolts and nuts, then tightening all hub nuts to specification. This simulates the wheel being installed, ensuring the disc is properly seated.
2. Mount a dial gauge on the friction surface of the disc, typically about 10 mm from the edge.
3. Rotate the disc plate slowly by hand, observing the dial gauge. The maximum variation observed is the lateral runout.

Front Disc Plate Runout Limit: Typically, 0.05 mm (0.002 in). Exceeding this limit often necessitates disc replacement or machining.

Thickness Variation Inspection

This measures the consistency of the disc's thickness around its circumference.

1. Clean the disc plate friction surface thoroughly with a brake cleaner.
2. Using a micrometer or caliper, measure the disc thickness at several points around the disc (e.g., 8-12 evenly spaced points).
3. Subtract the minimum measured value from the maximum measured value.

Thickness Variation Limit: Often around 0.015 mm (0.00059 in). If this limit is exceeded, the disc should be machined (on-vehicle if possible) or replaced.

Disc Plate Thickness Inspection

Measure the overall thickness of the disc plate.

• Minimum Front Disc Plate Thickness: For example, 23 mm (0.91 in).
• Minimum Front Disc Plate Thickness After Machining: For example, 23.8 mm (0.937 in).

If the disc thickness is at or below the minimum specification, even after potential machining, the disc plate must be replaced for safety.

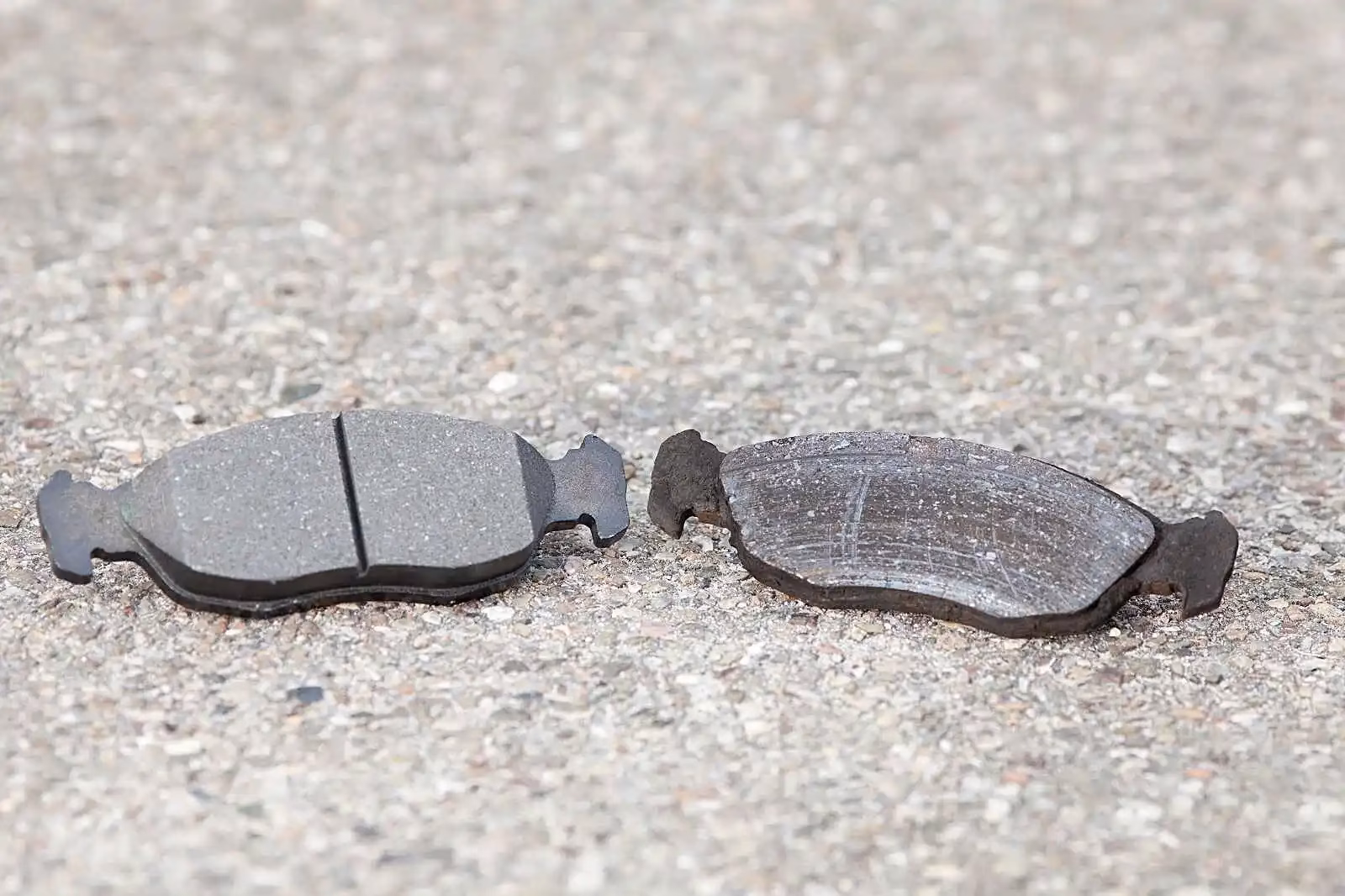

Disc Pad Thickness Inspection

This is a direct check of your current pads.

1. Lift and support the vehicle safely.
2. Remove the wheels.
3. Visually inspect and measure the remaining thickness of the friction material on the pads.

Minimum Front Disc Pad Thickness: Typically 2.0 mm (0.079 in). If any pad on an axle is at or below this limit, both pads on that axle (left and right) must be replaced as a set.

Tools and Materials You'll Need

• New brake pads (ensure they are correct for your vehicle)
• Jack and jack stands
• Wheel chocks
• Lug wrench
• Caliper piston compression tool
• Ratchet and socket set (for caliper bolts)
• Torque wrench
• Brake cleaner
• Wire brush
• Grease (high-temperature, synthetic brake grease)
• Gloves and eye protection
• Drain pan (if bleeding brakes)
• Brake fluid (if topping up or bleeding)

Step-by-Step Brake Pad Replacement

Always work on one wheel at a time, keeping the other side assembled for reference if needed. Remember, safety is paramount.

1. Prepare Your Vehicle

Park your car on a flat, level surface. Engage the parking brake firmly and place wheel chocks behind the rear wheels (if working on the front) or in front of the front wheels (if working on the rear). Loosen the wheel lug nuts slightly while the car is still on the ground – this makes removal easier later.

2. Jack Up and Secure

Using your jack, lift the front (or rear) of the vehicle until the wheel is off the ground. Place sturdy jack stands under the vehicle's frame at designated support points. Never rely solely on the jack. Lower the vehicle gently onto the jack stands.

3. Remove the Wheel

Fully remove the lug nuts and carefully take off the wheel, setting it aside safely. You now have clear access to the brake assembly.

4. Access the Caliper

Your brake caliper will be visible. Depending on your vehicle, it may be held by two bolts at the rear (sliding calipers) or more (fixed calipers). Observe how the brake line is routed and ensure it won't be strained during the process.

5. Remove Caliper Bolts and Old Pads

Using the appropriate socket, loosen and remove the two guide pin bolts that hold the caliper in place. You might need a wrench to hold the guide pins still while unscrewing. Once the bolts are out, gently wiggle the caliper to slide it off the disc. Do not let the caliper hang by the brake hose, as this can damage the line. Support it with a bungee cord or place it on a sturdy surface like the suspension arm.

Carefully remove the old brake pads from their mounting brackets. Note their orientation, especially if they have wear indicators or specific inner/outer designs. Remove any shims or anti-rattle clips.

6. Clean and Lubricate

With the old pads and caliper off, use a wire brush to clean any rust and brake dust from the caliper mounting bracket and the guide pins. Apply a thin layer of high-temperature synthetic brake grease to the guide pins (if applicable) and the contact points where the new pads will sit within the bracket. This helps prevent sticking and squealing.

7. Compress the Caliper Piston

Before installing new, thicker pads, the caliper piston (or pistons) must be pushed back into the caliper body. This is crucial. Use a dedicated caliper piston compression tool for this. Slowly and steadily push the piston back until it is flush with the caliper body. Be mindful that pushing the piston back will push brake fluid back into the master cylinder reservoir. Check the fluid level and remove some if it's close to overflowing.

Warning: Never use excessive force or improper tools (like a C-clamp directly on the piston) as this can damage the piston or rubber boot.

8. Install New Pads

Install any new shims or anti-rattle clips that came with your new pads onto the caliper bracket. Then, carefully slide the new brake pads into the caliper mounting bracket. Ensure they fit snugly but can still move freely. Double-check their orientation.

9. Reinstall Caliper

Carefully slide the caliper back over the new pads and brake disc. Align the caliper with the mounting bracket and reinstall the guide pin bolts. Tighten these bolts to your vehicle manufacturer's specified torque using a torque wrench. This is a critical safety step.

10. Reinstall Wheel and Final Checks

Reinstall the wheel, hand-tightening the lug nuts. Lower the vehicle until the wheel just touches the ground, then fully tighten the lug nuts in a star pattern to the manufacturer's specified torque. Lower the vehicle completely and remove the jack and stands.

11. Pump the Brake Pedal

Before driving, get into the car and pump the brake pedal several times until it feels firm. This repositions the caliper pistons against the new pads. Check the brake fluid reservoir level and top up if necessary, but do not overfill.

12. Bedding In New Pads

This is a crucial step for optimal performance and longevity. Drive your vehicle cautiously, avoiding hard braking for the first 100-200 miles (160-320 km). Perform several moderate stops from around 60 mph (96 km/h) down to 10 mph (16 km/h), allowing the brakes to cool between each stop. Avoid coming to a complete stop during this process if possible, as it can imprint pad material unevenly onto the disc. This process helps transfer a uniform layer of pad material onto the disc, improving braking efficiency and reducing the chance of judder.

When to Consider Disc Replacement

As detailed in the inspection section, your brake discs also have wear limits. If your discs show excessive runout, thickness variation, or are below the minimum thickness specification, they should be replaced along with the pads. Machining (or 'skimming') discs on-vehicle can sometimes resolve minor runout or thickness variation issues, but only if they remain above the minimum thickness after machining. Always consult your vehicle's service manual for specific limits.

Comparative Table: Symptoms vs. Potential Causes

Frequently Asked Questions (FAQs)

How often should I replace my brake pads?

There's no fixed interval, as it depends heavily on your driving style, vehicle type, and environment. Generally, front pads might last 25,000-60,000 miles, while rear pads can last longer. Regular inspections (every 10,000-15,000 miles) are the best way to determine when replacement is needed.

Can I replace only one brake pad or one side of the car?

No, absolutely not. Brake pads should always be replaced as an axle set (both left and right pads on the same axle). This ensures even braking force and prevents uneven wear, which could lead to pulling or instability during braking.

What is 'bedding in' new brake pads, and why is it important?

Bedding in, also known as 'burnishing,' is the process of gently heating and cooling your new brake pads and discs. It transfers a thin, even layer of friction material from the pad onto the disc surface, optimising braking performance, reducing noise, and extending the life of your pads and discs. Skipping this step can lead to uneven pad material deposits, causing judder and reduced braking efficiency.

How do I know if my brake discs need replacing too?

You should replace your brake discs if they are below the manufacturer's minimum thickness specification, show excessive lateral runout (wobble), have deep grooves, cracks, or significant heat spots/warping. Always measure the disc thickness and inspect for visible damage when replacing pads.

Is it safe to replace brake pads myself?

Yes, for those with mechanical aptitude and the correct tools, replacing brake pads can be a safe and rewarding DIY task. However, it's a safety-critical component. If you're unsure at any point, lack the proper tools, or feel uncomfortable, it's always best to consult a qualified mechanic. Always follow your vehicle's specific service manual for torque specifications and procedures.

By following these guidelines and paying close attention to detail, you can confidently replace your car's brake pads, ensuring your vehicle remains safe and responsive on UK roads. Remember, good brakes are not just a convenience; they are a necessity for your safety and the safety of others.
