Mastering the Rear Brake Caliper Installation: A Comprehensive Guide

Replacing or installing a rear brake caliper might seem like a daunting task, but with the right knowledge and a methodical approach, it's a repair that many can undertake. This guide will walk you through the process, covering everything from preparation and removal to the crucial installation steps. Understanding the nuances of brake systems is vital for your vehicle's safety and performance. Whether you're a seasoned DIY mechanic or looking to expand your automotive repair skills, this article aims to provide a clear and detailed explanation of how to correctly install a rear brake caliper.

Understanding Your Brake System Components

Before diving into the installation, it's beneficial to have a basic understanding of the components involved. The brake caliper is a crucial part of your vehicle's braking system. It houses the brake pads and, when you press the brake pedal, hydraulic pressure forces the caliper's piston(s) to clamp down on the brake disc (rotor), slowing or stopping the vehicle. The rear brake caliper is responsible for braking on the rear wheels. Other key components include the brake fluid, brake lines, brake master cylinder, and the brake pedal itself.

Safety First: Essential Precautions

Working on your vehicle's braking system demands the utmost attention to safety. Always ensure the vehicle is securely supported on jack stands before working underneath it. Never rely solely on a jack. Wear appropriate personal protective equipment (PPE), including safety glasses and gloves, to protect yourself from brake fluid and debris. If your vehicle has a high-voltage system, exercise extreme caution and ensure you are familiar with the safety procedures for working around such components. Always disconnect the battery if instructed by your vehicle's service manual. Brake fluid is corrosive and can damage paintwork, so take precautions to protect surrounding areas.

Tools and Materials You'll Need

To successfully install a rear brake caliper, you'll require a specific set of tools and materials. Having everything ready before you start will streamline the process and prevent unnecessary delays.

Step-by-Step Installation Procedure

Follow these steps meticulously for a successful rear brake caliper installation. Remember, if you're unsure at any point, consult your vehicle's specific service manual or seek professional assistance.

1. Preparation and Wheel Removal

Begin by loosening the lug nuts on the wheel you'll be working on while the vehicle is still on the ground. Then, use your jack to lift the vehicle and securely place jack stands under the designated support points. Remove the wheel completely. This provides access to the brake caliper and rotor.

2. Accessing the Caliper

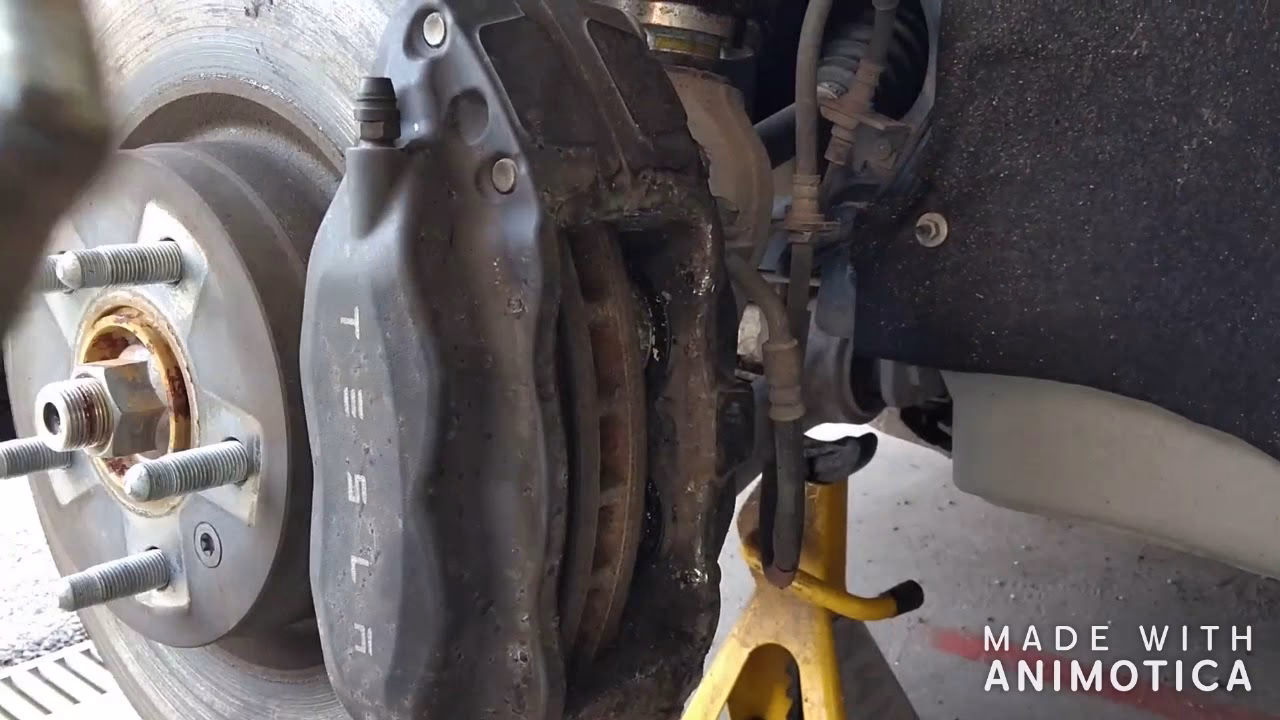

Locate the rear brake caliper. It's the component that straddles the brake rotor. You'll typically find two bolts that hold the caliper to its mounting bracket. These are often referred to as caliper guide pins or slider pins.

3. Removing the Old Caliper

Using the appropriate socket and ratchet, remove the two caliper bolts. These bolts may be covered by rubber dust caps. Once the bolts are removed, the caliper should be able to pivot or slide off the rotor. If it's stuck, a gentle tap with a rubber mallet might help. If you're replacing the caliper, you'll also need to remove the caliper mounting bracket, which is usually held on by two larger bolts. These bolts are critical for the structural integrity of the braking system and must be torqued correctly upon reinstallation.

4. Disconnecting the Brake Line

Before you can fully remove the caliper, you'll need to disconnect the brake line that supplies hydraulic fluid to it. There's a banjo bolt that secures the brake line to the caliper. Have your catch pan ready to collect any dripping brake fluid. Use the correct size wrench to loosen and remove the banjo bolt. Be prepared for some brake fluid to spill out. It's advisable to have a plug or cap ready to insert into the brake line to prevent excessive fluid loss and contamination.

5. Compressing the Caliper Piston

Before installing the new caliper, you'll need to retract its piston(s) to accommodate the thickness of new brake pads. If your new caliper doesn't come with the piston retracted, you'll need to compress it. Use a C-clamp with an old brake pad placed against the piston, or a dedicated brake caliper piston tool. Slowly and steadily apply pressure until the piston is fully retracted. Be careful not to damage the piston or the dust boot.

Important Note for Mando Calipers: For calipers of the Mando type, ensure that the caliper piston face is properly aligned before attempting to compress it. Misalignment can lead to uneven wear and potential damage to the braking system.

6. Preparing the New Caliper and Mounting Bracket

If you're replacing the mounting bracket as well, ensure it's clean. Use a wire brush to remove any rust or debris from the mounting surfaces where the caliper and bracket attach to the vehicle's hub. Lubricate the caliper guide pins (slider pins) with a high-temperature brake lubricant. These pins allow the caliper to slide freely, which is essential for even pad wear and proper brake function. Install new hardware if provided with your new brake pads or caliper.

7. Installing the New Caliper

Connect the brake line to the new caliper using a new crush washer (if applicable, check your service manual). Tighten the banjo bolt to the manufacturer's specified torque. Reattach the caliper to the mounting bracket (or the mounting bracket to the hub if you removed it), ensuring the guide pins align correctly. Tighten the caliper mounting bolts and caliper guide pin bolts to the specified torque values. Correct torque is crucial for safety.

8. Reinstalling the Wheel and Lowering the Vehicle

Once the caliper is securely installed, you can reinstall the wheel. Hand-tighten the lug nuts. Carefully lower the vehicle off the jack stands. Then, torque the lug nuts to the manufacturer's specifications in a star pattern.

9. Refilling and Bleeding the Brake System

This is a critical step. After installing the caliper and reconnecting the brake line, the brake system will have lost some fluid and may have air in it. You'll need to top up the brake fluid reservoir to the correct level with the specified type of brake fluid. Then, you must bleed the brake system to remove any air. The bleeding process involves opening a bleeder screw on the caliper while someone presses the brake pedal, then closing the screw before the pedal is released. Repeat this process until no air bubbles are seen in the fluid exiting the bleeder screw. The order of bleeding is usually from the furthest brake caliper from the master cylinder to the closest. Consult your vehicle's service manual for the specific bleeding sequence.

Brake Pedal Pumping: After bleeding, it's essential to pump the brake pedal several times until it feels firm. This action helps to reseat the caliper pistons against the brake pads and ensures proper brake pressure.

Reservoir Level Check: After pumping the pedal, recheck the brake fluid level in the reservoir and top it up if necessary. Ensure it remains between the MIN and MAX marks.

10. Brake Pad Burnishing (Bedding-in)

After a brake job, it's important to perform a brake pad burnishing procedure. This process helps to mate the new brake pads to the rotors, ensuring optimal braking performance and preventing premature wear or noise. The exact procedure can vary by pad manufacturer, but it typically involves a series of moderate stops from a moderate speed, followed by a period of cooling without coming to a complete stop. Refer to the brake pad manufacturer's instructions for the correct burnishing procedure.

Troubleshooting Common Issues

While the installation process is generally straightforward, you might encounter a few issues:

• Stuck Caliper Bolts: If caliper bolts are seized, a penetrating lubricant and patience might be needed. Avoid excessive force that could strip the threads.
• Leaking Brake Fluid: Ensure all connections, especially the banjo bolt and brake line fittings, are tightened correctly. If a leak persists, the brake line or caliper fitting might be damaged.
• Spongy Brake Pedal: This is usually an indication of air in the brake lines, meaning the bleeding process needs to be repeated.
• Brake Noise: New brake pads and calipers can sometimes cause temporary noise during the bedding-in process. However, persistent squealing or grinding could indicate improper installation or a problem with the rotor.

Frequently Asked Questions

Q1: How often should rear brake calipers be replaced?
Rear brake calipers don't have a fixed replacement interval. They are typically replaced when they become seized, leak brake fluid, or when the piston retracts improperly, affecting braking performance.

Q2: Can I reuse the old brake pads with a new caliper?

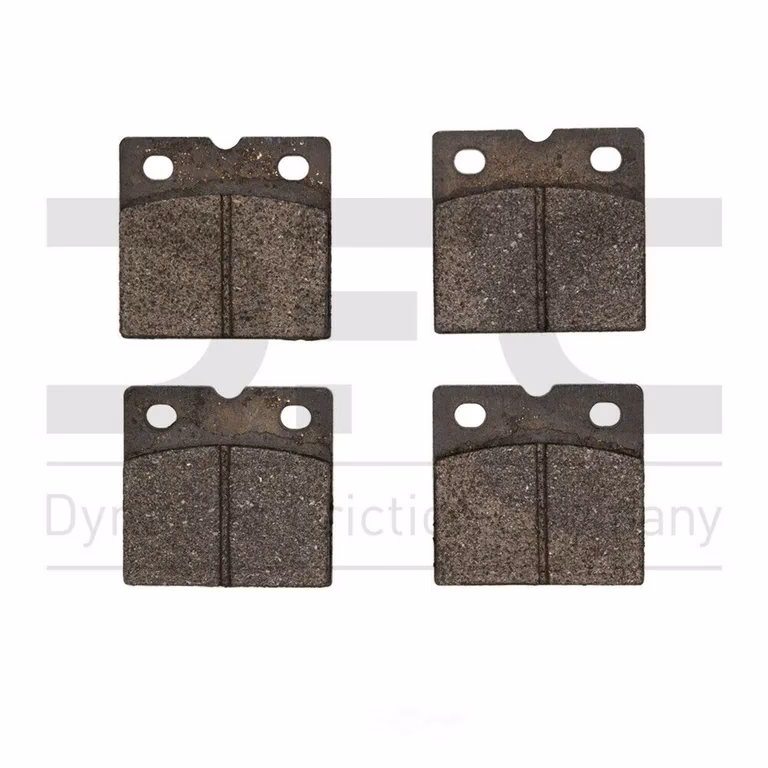

It's generally recommended to replace brake pads whenever you replace a caliper. The old pads may have already worn unevenly to the old caliper's piston, and new pads ensure optimal performance and even wear with the new caliper.

Q3: What type of brake fluid should I use?
Always use the type of brake fluid specified in your vehicle's owner's manual. Common types include DOT 3, DOT 4, and DOT 5.1. Using the wrong type can damage your braking system.

Q4: How do I know if my rear brake caliper is bad?
Signs of a bad caliper include a pulling sensation to one side when braking, a spongy brake pedal, parking brake issues (if integrated into the caliper), a burning smell, or visible fluid leaks around the caliper.

Q5: Do I need to bleed the brakes after replacing just the caliper?
Yes, whenever you disconnect a brake line, air can enter the system, so bleeding the brakes is essential to remove any air and ensure proper braking function.

Conclusion

Installing a rear brake caliper is a crucial maintenance task that directly impacts your vehicle's safety. By following this detailed guide, understanding the importance of each step, and adhering to safety protocols, you can successfully perform this repair. Remember to always refer to your vehicle's specific service manual for detailed torque specifications and procedures. Proper maintenance of your braking system is paramount for safe driving.
