Mastering the Model 3: A DIY Guide to Rear Brake Pad Replacement

While Tesla vehicles are renowned for their advanced technology and impressive regenerative braking systems, even these sophisticated machines require periodic maintenance. One crucial aspect of keeping your Tesla Model 3 performing optimally and safely is ensuring its braking system is in top condition. Replacing the rear brake pads might seem daunting, especially with the electronic parking brake, but with the right tools and a systematic approach, it's a manageable task for the home mechanic. This comprehensive guide will walk you through each step, providing the necessary information and torque specifications to successfully replace your Model 3's rear brake pads.

Understanding the Importance of Brake Pad Maintenance

Your car's brake pads are a critical safety component. They work by creating friction against the brake rotors, converting the kinetic energy of your vehicle into heat, which slows it down. While the Model 3's regenerative braking significantly reduces wear on the physical brake pads compared to traditional internal combustion engine vehicles, they are still subject to wear and tear over time. Neglecting brake pad replacement can lead to reduced braking performance, potential damage to the rotors, and, most importantly, compromised safety. It's also essential to remember Tesla's recommendation to periodically apply the mechanical brakes to prevent rust and corrosion buildup on the pads and rotors, even with strong regenerative braking.

Tools and Materials You'll Need

Before you begin, ensure you have all the necessary tools and materials to complete the job efficiently and safely. Having everything ready will prevent interruptions and ensure a smooth workflow.

Step-by-Step Guide to Replacing Rear Brake Pads

Follow these steps carefully to replace the rear brake pads on your Tesla Model 3. Safety is paramount, so always ensure the vehicle is securely supported.

Step 1: Prepare the Vehicle

Begin by loosening the lug nuts on the rear wheel you'll be working on. Turn them a few times to break them free, but do not remove them completely yet. This makes removal easier once the wheel is off the ground. For safety, place wheel chocks or blocks in front of and behind the wheels that will remain on the ground to prevent any accidental rolling, especially since you'll be disengaging the parking brake.

Step 2: Lift and Secure the Vehicle

Using your floor jack, lift the rear corner of the Model 3 from the designated jacking point. Once the wheel is off the ground, carefully position a jack stand securely under the vehicle's frame or designated support point. Never rely solely on the jack to support the vehicle while you are working on it. Ensure the jack stand is stable and the car is firmly supported.

Step 3: Remove the Wheel

With the vehicle safely supported, finish removing the lug nuts completely. Then, carefully pull the wheel off the hub. Set it aside in a safe place.

Step 4: Disengage the Electronic Parking Brake (EPB)

This is a critical step unique to vehicles with an EPB. You'll need a helper for this part.

• Partial Disconnect: Locate the wiring harness for the electronic parking brake motor attached to the caliper. You'll see a red clip; push this clip away from you to unlock the connector.
• Helper's Role: Have your helper get into the driver's seat. Instruct them to press and hold the brake pedal. While holding the brake pedal, they need to shift the car into Neutral (N) and hold the selector there for a few seconds. It is crucial that they do not touch the accelerator during this process. Placing the car in Neutral and holding the selector activates the motors that retract the parking brake calipers.
• Unplug the Harness: Once the parking brake motors have retracted, you can now unplug the parking brake motor connector.
• Return to Park: After unplugging, have your helper shift the car back into Park (P) and exit the vehicle safely.

Alternative Method: Tow Mode

You can also place the Model 3 into 'Tow Mode' via the touchscreen. This will also retract the parking brake motors. However, be aware that the Model 3 will automatically re-engage the parking brake after approximately 20 minutes. Therefore, you still need to disconnect the cable from the park brake motor before proceeding.

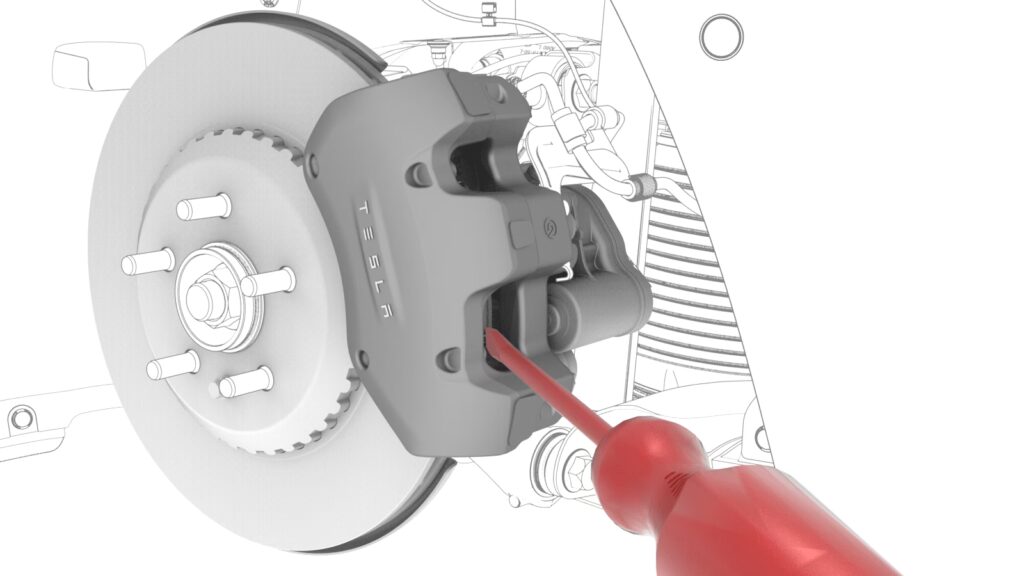

Step 5: Disassemble the Brake Caliper

Now, focus on the brake caliper itself. Use your 14mm wrench or socket to loosen and remove the two caliper slider bolts. These bolts typically hold the caliper to the mounting bracket.

Step 6: Remove the Brake Caliper

Carefully slide the brake caliper off the brake rotor and caliper bracket. Be mindful that the caliper is still connected to the car via the brake hose. Avoid putting unnecessary strain on the brake hose. You can let the caliper hang by the hose, or it's best to support it with a bungee cord or a dedicated caliper hanger to prevent damage.

Step 7: Remove the Parking Brake Motor

The electronic parking brake motor is attached to the caliper. You will need your 5mm Allen key or hex bit to remove the bolts securing the EPB motor to the caliper. Be gentle when handling the motor and ensure no dirt or debris enters the mechanism.

Step 8: Retract the Caliper Piston

This is where the EPB mechanism needs to be accounted for. The piston in the caliper needs to be retracted to accommodate the new, thicker brake pads.

• Locate the Adjuster: Insert your 6mm Allen key or hex bit into the exposed adjuster on the caliper.
• Retraction Technique: You will need to apply gentle, steady pressure to the piston while rotating the adjuster clockwise. It's often difficult to apply enough force with just your hands. While some might try channel locks, be extremely cautious not to mar or damage the piston or adjuster surfaces. The key is gentle, consistent pressure and a smooth clockwise rotation.
• Stop When Seated: Continue rotating until the piston is fully retracted and stops. Do not force it beyond this point, as this could damage the caliper or EPB mechanism.

Step 9: Replace the Brake Pads

With the piston retracted, you can now replace the old brake pads with the new ones. Remove the old pads from the caliper bracket. The new pads are usually labelled "Inside" and "Outside" to ensure correct placement. If you choose to use brake pad lubricant, apply a small amount to the contact points of the pads and the caliper hardware (not the friction material itself). However, as noted by some, this may burn off quickly, especially under track conditions.

Pad Thickness Comparison: When replacing pads, it's a good practice to compare the thickness of your old pads with the new ones. New pads typically measure around 8.5mm, while worn pads might be significantly thinner (e.g., 4mm). This gives you an indication of how much life was left in the old pads and helps confirm you have adequate pad material for your driving needs.

Step 10: Reinstall the Parking Brake Motor

The EPB motor needs to be reattached to the caliper. The motor has splines that engage with the adjuster you just used. You may need to slightly rotate the adjuster (using the 6mm Allen key) to align the splines correctly for the motor to slide on. Don't worry if it's not perfectly aligned; the motor can adjust itself once powered up. Clean any dirt from the motor and caliper mounting points, then reinstall the motor using the 5mm Allen bolts. Tighten them securely.

Step 11: Reinstall the Caliper

Slide the caliper back over the new brake pads and rotor. Ensure it sits correctly on the caliper bracket. Reinstall and tighten the two 14mm caliper slider bolts to their specified torque. The torque specification for the rear caliper mounting bolts on a Tesla Model 3 is 83 Nm.

Step 12: Reconnect the Parking Brake Wiring Harness

Plug the parking brake motor wiring harness back in. Make sure to engage the red locking tab to secure the connection. Once connected, the EPB motor will perform a self-calibration cycle, which involves a series of noises as it moves the piston to its full range of motion to adjust for the new pads. This is normal, so don't be alarmed.

Step 13: Reinstall the Wheel

Place the wheel back onto the hub. Install the lug nuts and tighten them by hand. Once the wheel is on, you can lower the vehicle off the jack stands. Then, use your torque wrench to tighten the lug nuts to the manufacturer's specified torque. For a Model 3, the lug nut torque is typically around 150 Nm (110 ft-lbs), but always confirm this in your owner's manual.

Step 14: Repeat for the Other Side

You've completed one side! Now, repeat all the steps for the opposite rear wheel to ensure balanced braking performance.

Step 15: Final Checks and Brake Pedal Pumping

After completing both sides, it's crucial to prepare the braking system for use. Get into the driver's seat and pump the brake pedal firmly at least 5-10 times. This action pushes the caliper pistons back out, ensuring the new brake pads are firmly seated against the rotors. You should feel the brake pedal become firm. Any error messages that may have appeared on the dashboard during the EPB disconnection and reconnection should automatically clear once the system recognises the pads are in place.

Important Torque Specifications Recap

Accurate torque is vital for brake system integrity and safety. Always use a calibrated torque wrench.

• Front Brake Caliper Mounting Bolts: 94 Nm
• Front Brake Line Banjo Bolt: 42 Nm
• Rear Caliper Mounting Bolts: 83 Nm

Frequently Asked Questions

Q1: Do I need to buy genuine Tesla brake pads?

A: No, you do not necessarily need to purchase brake pads directly from Tesla. Many reputable aftermarket manufacturers produce high-quality brake pads that are compatible with the Model 3. You can often find cost-effective options that perform just as well. The fundamental braking components are similar to those found in many other vehicles.

Q2: How often should I replace brake pads on a Tesla Model 3?

A: Due to the effectiveness of regenerative braking, the physical brake pads on a Model 3 are used less frequently than on traditional cars. This means they often last much longer. However, Tesla recommends periodically applying the mechanical brakes to prevent rust and corrosion. Monitor your brake pad thickness regularly, and replace them when they reach a critically low level, typically indicated by a wear sensor or a significant reduction in pad thickness (e.g., below 3mm).

Q3: What is the typical time required for this job?

A: With experience and all tools ready, replacing the rear brake pads on a Tesla Model 3 can take approximately 30-45 minutes per side, so roughly 1-1.5 hours for both sides.

Q4: Can I do this job alone?

A: While it's possible to do parts of the job alone, having a helper is highly recommended, especially for operating the brake pedal to retract the EPB mechanism. They can also assist with lifting and securing the vehicle.

Q5: What happens if I don't retract the piston correctly?

A: If the piston is not fully retracted, you won't be able to fit the new, thicker brake pads. Forcing the caliper back on can damage the piston, seals, or the caliper itself. If the piston is retracted too far or incorrectly, the EPB motor might not calibrate properly, potentially leading to parking brake errors.

Conclusion

Performing your own brake pad replacement on a Tesla Model 3 is a rewarding DIY project that can save you money and provide valuable experience. By carefully following these steps, using the correct tools, and adhering to the specified torque values, you can ensure your Model 3's braking system remains safe and effective. Remember to always prioritise safety and consult your vehicle's specific manual if you encounter any uncertainties.
