Terminator X: Nitrous Control Explained

Mastering Your Engine's Potential with Terminator X Nitrous Control

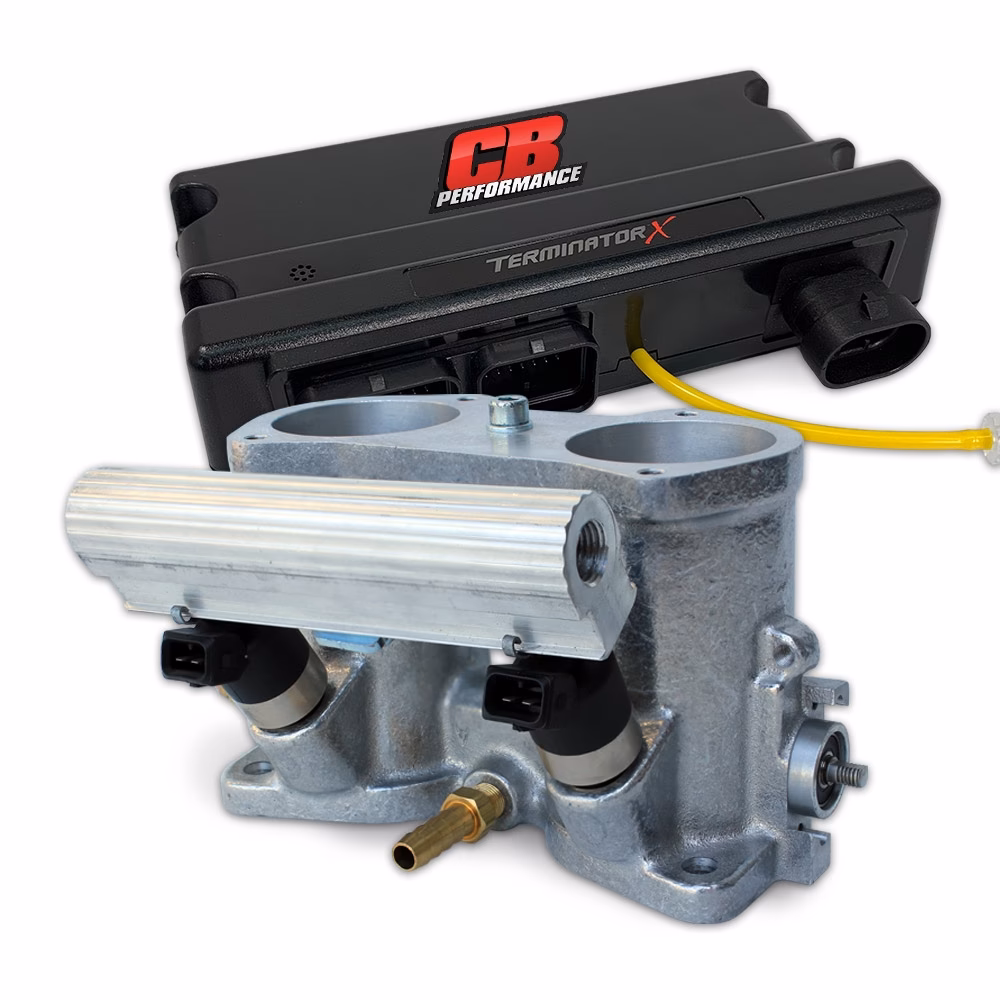

For enthusiasts seeking ultimate command over their engine's performance, particularly when it comes to power adders like nitrous oxide, the CB Performance Terminator X EFI System emerges as a compelling solution. This advanced system is designed not just for efficient fuel delivery and ignition control, but also offers sophisticated management of nitrous oxide injection. Whether you're aiming for a subtle power boost or a full-blown drag strip assault, understanding the Terminator X's nitrous capabilities is key to unlocking its full potential.

The CB Performance Terminator X EFI System represents a significant evolution in engine management technology. Building on years of experience, CB Performance has consistently delivered high-quality components, exceptional performance, and innovative features. The latest iteration is no exception, offering a comprehensive package that enhances power, low-end torque, and throttle response, while also improving emissions, fuel economy, and start-up smoothness. This all-in-one kit is designed for ease of installation and comes with invaluable technical support, both before and after your purchase.

The Terminator X Advantage: Beyond Basic EFI

The Terminator X system is engineered to provide complete control over your engine. It features self-learning fuel strategies and incorporates the race-proven technology of Holley EFI, all at an accessible price point. A standout feature is its real-time fuel learning capability, coupled with high-impedance injector drivers and an integrated 1-bar MAP sensor. Furthermore, it boasts four programmable inputs and outputs, which are crucial for managing auxiliary systems. These versatile I/O capabilities are ideally suited for controlling electric fans, boost solenoids, and, critically for this discussion, progressive nitrous control.

Nitrous Oxide Integration: A Deeper Dive

The question of whether the Terminator X offers nitrous control is a resounding yes. The system's architecture is specifically designed to accommodate and manage nitrous oxide injection effectively. This isn't a simple on/off switch; the Terminator X allows for intricate management of your nitrous system, providing granular control over its deployment.

Key Nitrous Control Features:

• Single Channel Control: Manage a single nitrous system, suitable for both wet and dry setups.
• Progressive Nitrous Control: This is where the system truly shines. You can program a custom progressive curve for your nitrous activation. This means you can dictate how quickly the nitrous is introduced into the engine, starting with a lower percentage and gradually increasing it. This smooth introduction helps prevent drivetrain shock and ensures a more consistent power delivery.
• Nitrous Activation RPM Limits: Set minimum and maximum RPM ranges for nitrous activation, ensuring it's only engaged when the engine is in its optimal operating window.
• Timing Retard/Advance: The system allows you to adjust ignition timing when the nitrous is active. Retarding timing is often necessary to prevent detonation under nitrous load, while specific applications might benefit from timing adjustments.
• Target Closed-Loop AFR: Maintain a precise air-fuel ratio (AFR) while on nitrous, crucial for both performance and engine safety. The system can actively manage fuel delivery to achieve the target AFR.
• Rich/Lean Safeties: Implement safety parameters to shut off the nitrous if the AFR deviates too far towards lean (dangerous) or rich (power-robbing).

Harnessing the Power: Handheld and Software Control

The Terminator X system provides access to these advanced nitrous control features through two primary interfaces: the handheld controller and the comprehensive Holley EFI software suite.

Handheld Controller Capabilities:

The included 3.5” handheld unit offers convenient on-the-fly adjustments. For nitrous management, this typically includes setting minimum and maximum RPM for activation, adjusting ignition timing retard, and setting the target AFR. This allows drivers to make quick modifications without needing a laptop in the car.

Holley EFI Software Suite: The Ultimate Tuning Tool

For the enthusiast who wants to delve deeper, the Windows-based Holley EFI software suite provides unparalleled control. Within this software, you can meticulously craft your progressive nitrous curves, defining the percentage of nitrous delivery at specific RPM intervals. You can also fine-tune ignition timing tables, set up detailed safeties, and create sophisticated AFR targets tailored to your specific nitrous application. This level of customization ensures that your nitrous system works in perfect harmony with your engine.

Technical Specifications and Connectivity

The Terminator X ECU features two main harness connectors:

• J1A (Input Connector): Handles sensor inputs, including wideband oxygen sensor control.
• J1B (Output Connector): Manages injector outputs and provides connections for other devices. Crucially, the four programmable outputs on the J1B connector are where you'll connect your nitrous solenoid(s) and any associated control modules or relays.

The system's four programmable inputs can also be leveraged for nitrous-related safeties, such as triggers from a wideband O2 sensor, a throttle position sensor (TPS) safety, or even a physical switch.

Comparison: Terminator X vs. Standalone Nitrous Controllers

While dedicated standalone nitrous controllers exist, the Terminator X integrates this functionality directly into the engine management system. This offers several advantages:

Frequently Asked Questions (FAQ)

Q1: Can I use a wet or dry nitrous kit with the Terminator X?

Yes, the Terminator X supports both wet and dry nitrous systems. You will need to ensure you have the appropriate solenoids and plumbing for your chosen system.

Q2: How do I connect my nitrous system to the Terminator X?

You will typically connect the nitrous system's activation signal to one of the programmable outputs on the J1B harness connector. For solenoids that require a ground trigger, a programmable output will suffice. For systems requiring a switched 12V source, you might use an input to trigger a relay controlled by a programmable output.

Q3: What is progressive nitrous control?

Progressive nitrous control allows you to gradually increase the amount of nitrous oxide being injected into the engine over a set period or RPM range, rather than a sudden surge. This provides smoother power delivery and can reduce stress on the drivetrain.

Q4: Do I need a separate ignition box for nitrous?

The Terminator X manages ignition timing directly. While some extreme nitrous applications might benefit from specialized ignition components, the Terminator X's ability to retard timing for nitrous use often negates the need for a separate ignition box solely for this purpose.

Q5: How do I set up the safeties for my nitrous system?

Safeties are configured within the Holley EFI software. You can set parameters such as minimum/maximum AFR, minimum/maximum RPM, and even TPS position to ensure the nitrous system only activates and operates under safe conditions.

Conclusion: Unleash More Power Safely

The CB Performance Terminator X EFI System is a powerful tool for any performance enthusiast, and its integrated nitrous control capabilities significantly enhance its appeal. By offering precise control over activation, progression, timing, and fuel, the Terminator X allows you to safely and effectively deploy nitrous oxide to achieve your desired performance goals. Whether you're a seasoned tuner or new to the world of EFI and nitrous, the Terminator X provides the features and flexibility to elevate your engine's performance to the next level.
