Understanding Professional 4-Wheel Alignment Systems

Maintaining your vehicle's alignment is crucial for a safe and efficient driving experience. A proper 4-wheel alignment ensures that your wheels are set to the optimal angles, which directly impacts your car's handling, tyre wear, and fuel economy. For those serious about vehicle maintenance, whether as a dedicated home mechanic, a professional workshop, or even a racing team, a dedicated 4-wheel alignment system offers a level of precision and control that surpasses basic manual checks. This article delves into what constitutes a professional 4-wheel alignment system, its key components, and the benefits it brings to the table.

What is a 4-Wheel Alignment?

Before exploring the systems, it's essential to understand what a 4-wheel alignment entails. Unlike older systems that primarily focused on the front wheels, a 4-wheel alignment adjusts the angles of all four wheels to manufacturer specifications. This comprehensive approach addresses how each wheel interacts with the road, ensuring they are all pointing in the intended direction and maintaining the correct relationship with each other and the vehicle's chassis. The primary angles adjusted are:

• Toe: This refers to the angle of the wheels when viewed from above. If the front of the wheels are pointing inwards, it's 'toe-in'; if they're pointing outwards, it's 'toe-out'.
• Camber: This is the inward or outward tilt of the top of the wheel when viewed from the front. Negative camber means the top of the wheel is tilted inwards, while positive camber means it's tilted outwards.
• Caster: This is the angle of the steering axis when viewed from the side. It affects steering stability and returnability.
• Included Angle: The sum of camber and KPI (Kingpin Inclination).
• Thrust Angle: The angle of the rear axle relative to the vehicle's centerline.

The Core Components of a Professional System

A professional 4-wheel alignment system, like the one described, is designed for accuracy and ease of use. It typically comprises two main, interconnected components:

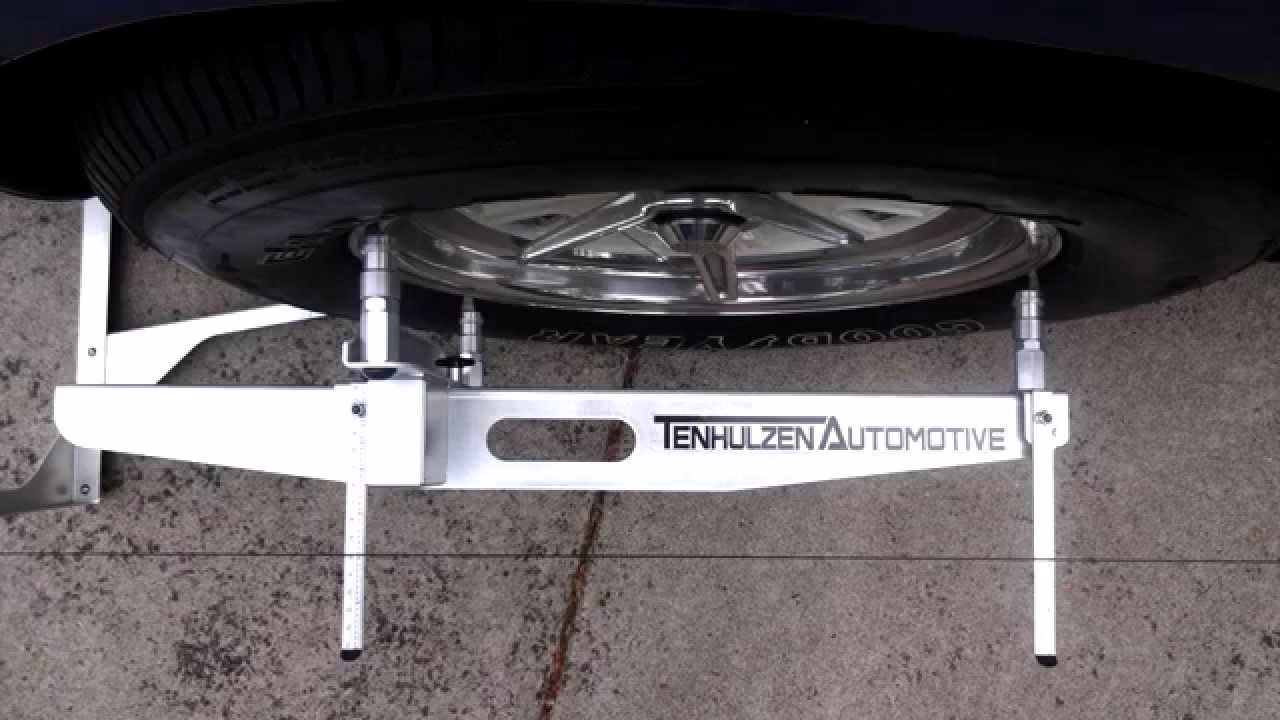

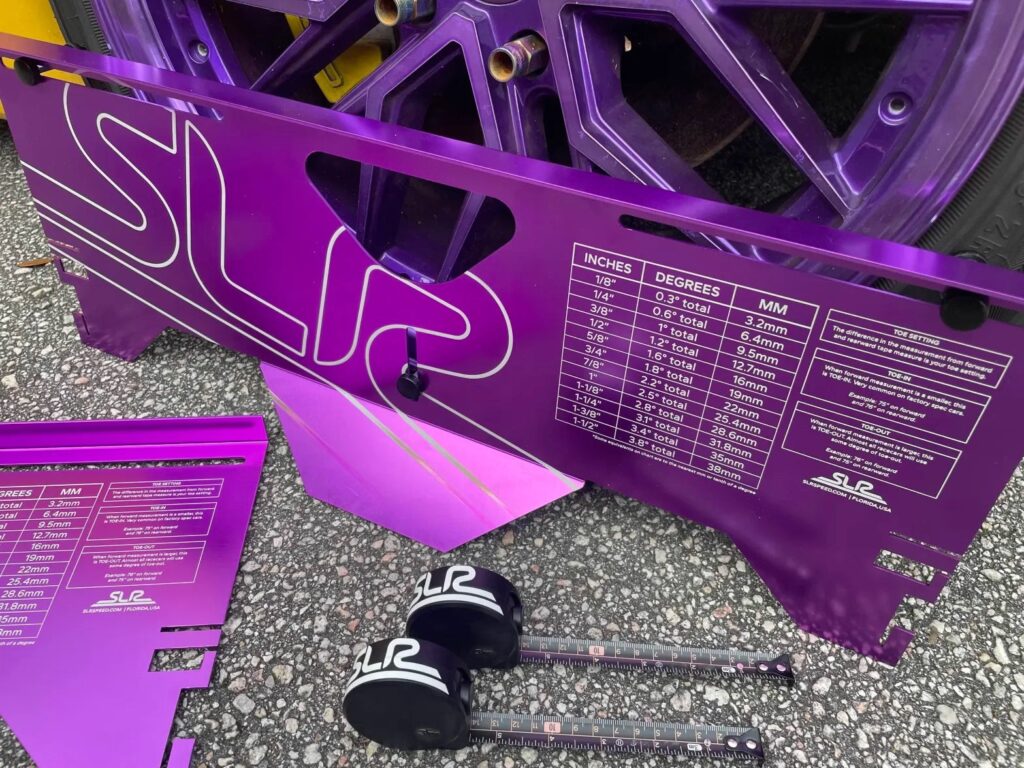

1. The Measuring Gauge

The gauge is the heart of the system, responsible for providing precise measurements of wheel angles. Professional gauges are designed to be highly accurate and versatile. Key features often include:

• Multi-Unit Measurement: The ability to measure in degrees, inches, or millimeters offers flexibility and compatibility with various specifications and user preferences.
• Simultaneous Measurement: Being able to measure camber and toe concurrently significantly speeds up the alignment process and reduces the chance of error.
• Hands-Free Operation: The attachment mechanism is designed to securely mount to the wheels, similar to those found on commercial alignment racks. This allows the user to have both hands free to make adjustments, which is vital for precision work.
• Robust Construction: Professional tools are built to withstand the rigours of a workshop environment, often made from durable materials like aluminium or steel.

2. The Alignment Frame (e.g., Easy-String Frame)

While the gauge measures the wheels, the frame establishes a reference plane for the entire vehicle. The 'Easy-String Frame' concept is an ingenious way to create measurement planes that are perfectly parallel to the vehicle's centerline. This is achieved through:

• Notched Uprights: Precision-cut notches in the aluminium uprights allow for the secure and accurate positioning of elastic cords.
• Integrated Cord Spools: Having the elastic cord spools mounted directly to the frame means they are always readily available and easy to manage, preventing tangles and fumbling.
• Elastic Cords: These cords are tensioned around the vehicle, creating a straight reference line that represents the car's centerline. This line is then used in conjunction with the wheel gauges to ensure all wheels are aligned relative to this central axis.
• Adjustable Frame: The frame needs to be adaptable to different vehicle sizes and wheelbases, allowing it to accommodate a wide range of cars and light trucks.

How the System Works Together

The synergy between the gauge and the frame is what makes a 4-wheel alignment system so effective. The process typically involves:

1. Positioning the Frame: The Easy-String Frame is set up around the vehicle, and the elastic cords are tensioned to create a precise centerline.
2. Attaching the Gauges: The measuring gauges are securely attached to each of the four wheels.
3. Initial Measurements: Readings for toe and camber are taken for each wheel, often relative to the frame's reference plane.
4. Adjustments: Based on the measurements and the vehicle's specifications, adjustments are made to the suspension components (e.g., tie rods for toe, camber bolts for camber).
5. Re-measurement: After each adjustment, the measurements are re-checked to ensure they fall within the desired range. This iterative process continues until all four wheels are correctly aligned.

Benefits of Using a Professional System

Investing in a professional 4-wheel alignment system offers significant advantages:

• Improved Tyre Life: Incorrect alignment is a primary cause of premature and uneven tyre wear. Proper alignment ensures tyres wear evenly across their tread, extending their lifespan considerably. Imagine saving hundreds of pounds on replacement tyres each year – that's the power of good alignment!
• Enhanced Handling and Stability: When wheels are misaligned, a car can pull to one side, wander, or feel unstable, especially at higher speeds or during cornering. Correct alignment results in a vehicle that tracks straight and true, offering predictable and confident handling.
• Increased Fuel Efficiency: Misaligned wheels create more rolling resistance, forcing the engine to work harder and consume more fuel. A precise alignment reduces this resistance, leading to better miles per gallon (MPG).
• Reduced Driver Fatigue: Constantly correcting for a pulling or wandering vehicle can be exhausting. A properly aligned car requires less steering input, making long journeys more comfortable.
• Cost-Effectiveness for Shops and Enthusiasts: Systems like the one described offer a cost-effective solution for shops that don't require the massive investment of a full commercial rack, or for serious home mechanics who want to perform high-quality alignments themselves.
• Versatility: The ability to measure in various units and the adaptability to different vehicle types make these systems highly versatile.

Options and Considerations

When looking at professional 4-wheel alignment systems, understanding the available options is key:

• System Components: As highlighted, the system typically consists of the gauge(s) and the frame. You might find options where the gauge is sold separately or as a set of two, with or without the string frame. This allows users to build a system tailored to their needs or upgrade existing equipment.
• Accuracy Requirements: While the described system aims for precision, consider the level of accuracy your application demands. Racing applications might require even finer tolerances than standard road use.
• Ease of Use: For busy workshops or home users, a system that is intuitive and quick to set up and use can save valuable time. Features like the Easy-String Frame's integrated spools contribute to this.
• Durability: Given the potential for knocks and bumps in a workshop, the build quality and material of both the gauges and the frame are important for long-term reliability.

Frequently Asked Questions (FAQ)

Q1: How often should I get a 4-wheel alignment?

It's recommended to get a 4-wheel alignment at least once a year, or whenever you notice symptoms like pulling to one side, uneven tyre wear, or after hitting a significant pothole or curb.

Q2: Can I perform a 4-wheel alignment at home?

Yes, with the right tools like a professional 4-wheel alignment system, it is possible for a skilled home mechanic to perform an accurate alignment. However, it requires patience, precision, and a good understanding of the process.

Q3: What is the difference between a 2-wheel and a 4-wheel alignment?

A 2-wheel alignment only adjusts the front wheels, while a 4-wheel alignment adjusts all four wheels. Modern vehicles, especially those with independent rear suspension, benefit greatly from a 4-wheel alignment to ensure proper tracking and tyre wear.

Q4: Will a 4-wheel alignment fix my car pulling to the side?

Often, yes. A pulling sensation is a common symptom of misaligned wheels. However, it can also be caused by other issues like uneven tyre pressures or suspension damage, so a thorough inspection is always advised.

Q5: How long does a 4-wheel alignment typically take?

With a professional system and an experienced technician, a 4-wheel alignment can take anywhere from 30 minutes to an hour. The time can vary depending on the complexity of the vehicle's suspension and how much adjustment is needed.

Conclusion

A professional 4-wheel alignment system is an invaluable tool for anyone serious about vehicle performance and longevity. By combining precise measuring gauges with innovative frame designs that establish accurate reference planes, these systems empower individuals and workshops to achieve optimal wheel angles. This translates directly into extended tyre life, improved handling, better fuel economy, and a safer, more enjoyable driving experience. Whether you're fine-tuning a race car or ensuring your daily driver performs at its best, the precision offered by these systems is a worthwhile investment.
