Tektro Oryx 992A Cantilever Brake Explained

The Tektro Oryx 992A cantilever brake is a popular choice among cyclists looking for a dependable and versatile braking system, particularly in the realm of cyclocross and touring. While the cycling market has seen a significant shift towards disc brakes in recent years, cantilever brakes like the Oryx 992A still hold their ground due to their simplicity, ease of maintenance, and excellent performance in specific conditions. This article delves into the intricacies of the Tektro Oryx 992A, exploring its design, advantages, disadvantages, and what makes it a relevant component for many riders.

Understanding Cantilever Brakes

Before we dive specifically into the Tektro Oryx 992A, it’s beneficial to understand what cantilever brakes are and how they function. Cantilever brakes are a type of bicycle brake that uses two arms, each with a brake pad, mounted on separate bosses on the frame or fork. When the brake lever is pulled, a cable pulls upwards on a central 'noodle', which then pushes the two arms outwards, forcing the brake pads against the wheel rim. This direct contact with the rim is what provides the braking force. Unlike V-brakes, cantilever brakes typically offer more clearance for wider tyres and mudguards, a crucial factor in disciplines like cyclocross where muddy conditions and debris are common.

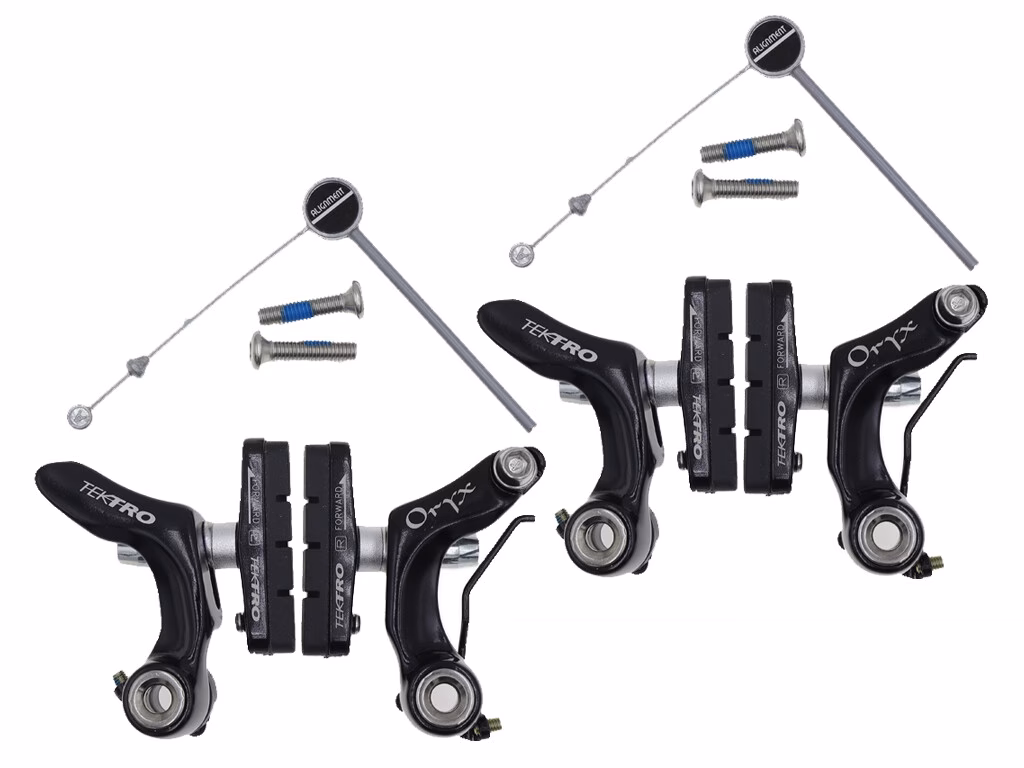

The Tektro Oryx 992A: Design and Features

The Tektro Oryx 992A is a dual-pivot cantilever brake, meaning it has two separate arms that pivot independently. This design allows for a more controlled and modulated braking feel compared to some older single-pivot designs. Key features of the Oryx 992A often include:

• Adjustable Spring Tension: This allows riders to fine-tune the return spring of the brake arms, ensuring proper pad retraction and lever feel.
• Durable Construction: Typically made from robust aluminium alloy, the Oryx 992A is built to withstand the rigours of off-road riding and varied weather conditions.
• Adjustable Pad Holders: The ability to adjust the angle and position of the brake pads is crucial for achieving optimal contact with the rim, maximising braking power and minimising wear.
• Standard Mounting: It uses the standard cantilever brake bosses found on many cyclocross, touring, and older road bikes.
• Cable Routing: The 'noodle' or cable guide is usually a curved metal tube that directs the brake cable to the centre of the braking mechanism.

Performance and Braking Power

In terms of performance, the Tektro Oryx 992A offers a balanced braking experience. While not as powerful as modern hydraulic disc brakes, they provide more than adequate stopping power for most situations, especially when paired with good quality brake pads and well-maintained rims. The modulation, or the rider's ability to control the intensity of the braking, is generally considered good with the Oryx 992A. This allows for precise speed control, which is invaluable on technical descents or in slippery conditions.

Advantages of the Tektro Oryx 992A

The enduring popularity of the Tektro Oryx 992A can be attributed to several key advantages:

• Simplicity and Ease of Maintenance: Cantilever brakes are mechanically straightforward. Adjustments, pad replacements, and cable changes are typically easy to perform with basic tools, making them ideal for riders who prefer to do their own maintenance or for touring in remote areas where specialised tools might not be available.
• Tyre and Mudguard Clearance: This is arguably the biggest advantage over many V-brakes and some disc brake setups. The open design of cantilever brakes allows for much wider tyres, essential for cyclocross, gravel riding, and touring in varied terrain. They also accommodate full-length mudguards comfortably, keeping you drier and cleaner in wet weather.
• Lightweight: Compared to many disc brake systems, cantilever brakes are generally lighter.
• Cost-Effective: The Oryx 992A is typically an affordable component, offering excellent value for money.
• Compatibility: They work with a wide range of brake levers, though specific lever types (e.g., short-pull) are required for optimal performance.

Disadvantages to Consider

While the Tektro Oryx 992A has its strengths, it's important to acknowledge its limitations:

• Braking Power: In very wet or muddy conditions, or when descending steep gradients, the braking power can be less effective than that of disc brakes. Rim wear can also impact performance over time.
• Mud and Debris Accumulation: While they offer clearance, the open design can also allow mud and debris to get caught in the mechanism, potentially affecting performance if not cleaned regularly.
• Set-up Complexity: Achieving optimal performance can sometimes require careful adjustment of cable tension, pad alignment, and spring tension. Poor setup can lead to spongy levers or uneven braking.
• Rim Dependence: The effectiveness of cantilever brakes is directly tied to the condition of the wheel rim. Worn, damaged, or dirty rims will significantly reduce braking performance.

Setting Up Your Tektro Oryx 992A

Proper setup is crucial for maximising the performance of your Tektro Oryx 992A brakes. Here’s a general guide:

1. Mounting the Arms: Ensure the brake arms are securely attached to the frame/fork bosses.
2. Attaching the Noodle: Connect the brake cable to the centre of the brake arms via the noodle. Ensure the noodle is correctly positioned.
3. Pad Alignment: Position the brake pads so they contact the rim squarely. There should be a small gap (around 1-2mm) between the pad and the rim when the brake is not applied. The pads should be aligned with the braking surface of the rim, not the tyre.
4. Spring Tension Adjustment: Use the small screws on the brake arms to adjust the spring tension. Clockwise tightens the spring (more pad retraction), counter-clockwise loosens it. Aim for a balanced feel between the two arms.
5. Cable Tension: Adjust the cable tension using the barrel adjuster on the brake lever or caliper to achieve a firm lever feel without the brake pads rubbing on the rim when released.

Tektro Oryx 992A vs. Other Braking Systems

It’s helpful to compare the Tektro Oryx 992A to other common braking systems:

Frequently Asked Questions (FAQs)

Q1: Do I need special brake levers for the Tektro Oryx 992A?

Yes, cantilever brakes are considered 'short-pull' brakes. You need to use them with brake levers designed for short-pull brake systems, which are typically found on older road bikes and some cyclocross bikes.

Q2: How do I improve the braking power of my Oryx 992A brakes?

Ensure your rims are clean and free from grease or oil. Check for rim wear; if the braking surface is worn down, replacing the wheel or the rim strip might be necessary. Using high-quality brake pads specifically designed for your rim material (e.g., aluminium or carbon) can also significantly improve stopping power. Proper adjustment of pad alignment and cable tension is paramount.

Q3: Can I use the Tektro Oryx 992A on a mountain bike?

While technically possible if your frame has cantilever bosses, it's generally not recommended for modern mountain biking. V-brakes and disc brakes offer superior stopping power and mud clearance needed for the demanding conditions of mountain biking.

Q4: How often should I replace the brake pads?

Brake pad wear depends heavily on riding conditions, frequency, and braking habits. Regularly inspect your brake pads for wear indicators (often small grooves). If the pad material is worn down to or below these indicators, or if you notice a significant decrease in braking performance, it's time for a replacement.

Conclusion

The Tektro Oryx 992A cantilever brake remains a solid and reliable choice for cyclists who value simplicity, ease of maintenance, and excellent clearance for wider tyres and mudguards. While disc brakes have become the default for many, the Oryx 992A continues to serve its purpose admirably in disciplines like cyclocross and touring, offering a dependable and cost-effective braking solution. By understanding its design, advantages, and proper setup, riders can ensure they get the most out of this classic braking system.
