It's a common scenario for many cyclists, from the absolute beginner to the seasoned rider: that dreaded metallic screech that signals worn-out brake pads. For those less inclined to delve into the mechanical intricacies of their two-wheeled steeds, the local bike shop can often feel like the only solution. However, as one user discovered, even a trip to the shop doesn't always guarantee a satisfactory outcome, and the cost can quickly add up. This guide aims to demystify the process of replacing Tektro brake pads, empowering you to tackle this essential maintenance task yourself, save money, and build confidence in your cycling abilities.
Understanding Your Tektro Brake Pads

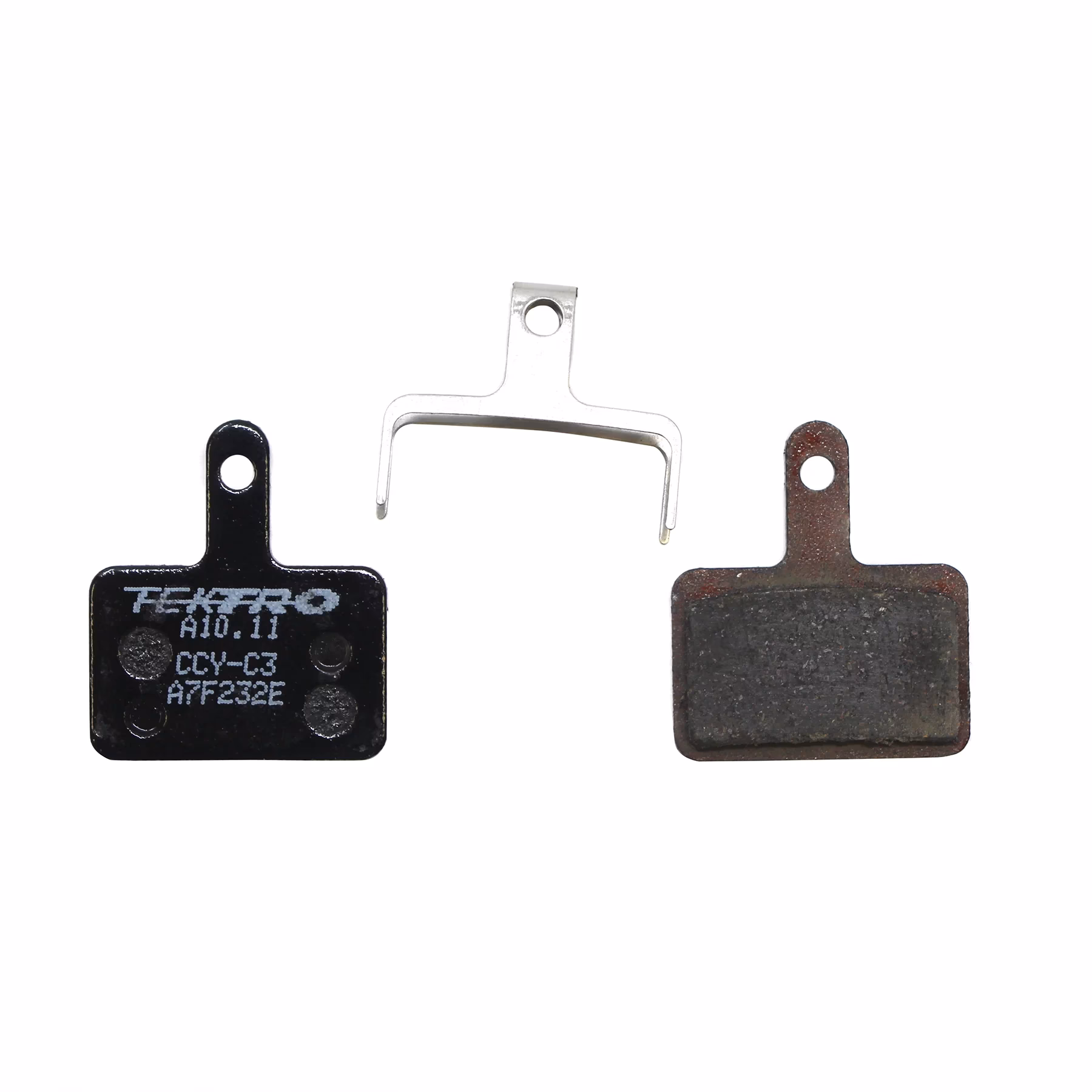

The user's query about "spring batteries" in relation to Tektro 714497203591 highlights a common point of confusion for newcomers to bike mechanics. It's important to clarify that Tektro brake pads, in the context of bicycle braking systems, do not utilise 'spring batteries' in the way one might associate with electronic devices. The "spring" element you might observe or be referring to is likely the pad retention spring, a small metal clip designed to keep the brake pad securely seated within the caliper and to ensure it retracts slightly when the brake lever is released, preventing drag. The number 714497203591 is a product code, likely identifying a specific type of brake pad manufactured by Tektro. Identifying the correct replacement pads is crucial for both safety and performance.
Common Tektro Brake Pad Types
Tektro offers a wide range of brake pads to suit various braking systems, primarily their popular V-brakes and mechanical disc brakes. While the exact model number (714497203591) might refer to a specific compound or design, understanding the general categories will help you identify what you need.
V-Brake Pads: These are the most common type for many hybrid and older mountain bikes. They consist of a rubber compound mounted on a metal post, which slots into the brake caliper arms. The retention spring is usually integrated into the pad itself or the caliper assembly.
Mechanical Disc Brake Pads: For bikes with disc brakes, the pads are typically smaller and designed to fit into a specific brake caliper housing. These often come as a pair and are secured by a pin or bolt. The user's experience of having to "carefully push the pins back" strongly suggests they were dealing with a mechanical disc brake system.
Table 1: Common Tektro Brake Pad Categories
| Brake Type | Pad Description | Retention Method |
|---|---|---|
| V-Brake | Rubber compound on a metal post | Slotted into caliper arms, often with an integrated spring |
| Mechanical Disc Brake | Smaller pad, often semi-metallic or organic compound | Secured by a pin or bolt, with a separate small spring |
When to Replace Your Brake Pads
The "metal on metal rubbing" sound described by the user is a clear and unmistakable indicator that the brake pads have worn down to their backing plate. This is not only detrimental to braking performance but can also damage your wheel rims (in the case of V-brakes) or brake rotors (for disc brakes). Here are the key signs to look out for:
- Audible Warning: The screeching or grinding noise is the most obvious sign.
- Visual Inspection: Examine the brake pad surface. If the rubber compound is significantly worn down, or if you can see the metal backing plate, it's time for a change. Many pads have wear indicator lines; if these are gone, replace them.
- Reduced Braking Power: If you find yourself squeezing the brake levers harder than usual to achieve the same stopping power, your pads may be worn.
- Rim/Rotor Damage: If you notice scoring or deep grooves on your wheel rim or brake rotor, your pads have likely been worn down to the metal.
The user's experience of their pads being "knackered" after only six months suggests either heavy usage, poor quality initial pads, or perhaps contamination (like sealant, as they mentioned) that can accelerate wear.
The DIY Brake Pad Replacement Process
The user's success in replacing their pads after watching a one-minute YouTube video, despite taking an hour, is a testament to the fact that this is a very achievable DIY task. Here's a general breakdown of how to do it, focusing on the likely mechanical disc brake scenario they encountered.
Tools You'll Need:
- New Tektro brake pads (ensure they are the correct model for your brakes).
- A suitable Allen key (often 5mm, but check your caliper).
- Gloves (to keep grease off the new pads and rotors/rims).
- A clean rag.
- Possibly a small pick or flathead screwdriver to help remove the old pads and the retention spring.
Step-by-Step Guide (Mechanical Disc Brakes):
- Identify the Pad Retention System: Look at your brake caliper. You'll usually see a small pin or bolt that goes through the caliper body and holds the brake pads in place. There will also be a small spring that pushes the pads apart.
- Remove the Retention Pin/Bolt: Using the appropriate Allen key, carefully unscrew and remove the pin or bolt that secures the pads. Be gentle, as these are often small.
- Extract the Old Pads: The old brake pads should now be loose. You might need to gently pry them out with a small screwdriver or pick. Pay attention to how the spring is oriented. The user's comment about "carefully pushed the pins back" likely refers to the difficulty in compressing the spring to align the pinhole.
- Clean the Caliper: Before inserting the new pads, take a moment to clean any dirt or debris from the caliper housing where the pads sit. A dry rag is usually sufficient.
- Install the New Pads and Spring: This is often the trickiest part. Place the new brake pads into the caliper. You'll then need to fit the new retention spring. The spring usually hooks onto one pad and then the other, or it might clip onto the caliper body and then be pushed against the pads. The user's experience of taking an hour suggests they wrestled with getting the spring in place and then aligning the pinhole. It often requires pushing the pads inward against the spring tension to line up the hole for the pin.
- Reinsert the Retention Pin/Bolt: Once the pads and spring are in place, carefully reinsert the pin or bolt and tighten it securely with your Allen key. Don't overtighten.
- Repeat for the Other Side: Follow the same procedure for the other pad in the same caliper, and then repeat the entire process for the other wheel's brake caliper.
- Bed-In the New Pads: New brake pads need to be "bedded in" to achieve optimal performance. This involves a series of firm braking applications from a moderate speed, without coming to a complete stop. Ride your bike and perform several sharp, but controlled, stops. This transfers a small amount of pad material to the rotor/rim, creating a more consistent and powerful bond.
Important Note: If you have V-brakes, the process is slightly different. You'll typically unscrew the old pad from its post, or the entire pad and post assembly. The new pad (often sold with its post) will then slot into the caliper arm, and a small spring might be visible at the top of the caliper, which helps retract the pad. Ensure the new pad is aligned correctly with the rim.
Troubleshooting Common Issues
The user's success is great, but what if things don't go so smoothly?
- Pads Misaligned: If the brake lever feels spongy or braking is weak, the pads might not be making proper contact with the rim or rotor. Re-check their alignment. For V-brakes, they should be parallel to the rim. For disc brakes, ensure they are centered within the caliper.
- Spring Tension: If the brake pads don't retract properly and the wheel spins with resistance, the retention spring might be incorrectly installed or damaged.
- Contamination: If you accidentally get grease or sealant on the new pads or rotors/rims, clean them thoroughly with isopropyl alcohol and a clean rag. This is crucial for effective braking.
- Rotor/Rim Damage: If your rotors are grooved or your rims are scored, even new pads might not provide optimal braking. Consider replacing damaged rims or having rotors resurfaced or replaced.
Cost-Benefit Analysis: DIY vs. Bike Shop
The user's example perfectly illustrates the financial advantage of DIY maintenance. They spent £14 on new pads, whereas the bike shop quoted £60 for the same job (which also included a previous unsatisfactory service). That's a saving of £46. Beyond the direct cost, there's the invaluable benefit of gaining practical skills and the confidence to perform other basic maintenance tasks. This can lead to:
- Reduced long-term servicing costs.
- A better understanding of your bicycle's mechanics.
- The ability to fix minor issues on the go.
- Increased self-reliance and a sense of accomplishment.
Frequently Asked Questions
Q1: How do I know if I have the correct Tektro brake pads?
Check the old pads for any part numbers or branding. Consult your bike's manual or the manufacturer's website. If unsure, take a photo of your current brake system and the old pads to your local bike shop for identification, or search online using the specific model of your bike's brakes (e.g., Tektro HD-M275 caliper). The number 714497203591 is likely a specific product code, so searching for this exact code or a compatible alternative is best.
Q2: What does "bedding in" brake pads mean?
It's a process of transferring a thin layer of pad material onto the braking surface (rim or rotor) to create a more uniform and effective contact area. This ensures maximum stopping power and prevents squealing.
Q3: Can I use brake pads from a different brand?
While some aftermarket pads are cross-compatible, it's always safest to use pads specifically designed for your Tektro brake model to ensure proper fit, performance, and safety. Using incompatible pads could damage your braking system.
Q4: My new pads are still noisy. What could be wrong?
Noise can be caused by various factors, including improper pad alignment, contamination (oil, grease), glazed pads (overheating), or even a slightly warped rotor or rim. Ensure proper installation, clean all braking surfaces, and consider the bedding-in procedure. If noise persists, a professional inspection might be needed.
Q5: Do Tektro brake pads have a specific orientation?
Yes, most brake pads, especially disc brake pads, are designed to be installed in a particular orientation to ensure correct contact with the rotor and proper function of the retention spring. Always refer to the instructions that come with your new pads or a reliable online tutorial for your specific brake model.
Embarking on basic bike maintenance tasks like replacing brake pads can seem daunting at first, but as the user's experience demonstrates, it's a rewarding and empowering endeavour. With the right information and a little patience, you can keep your bike in top condition and save a considerable amount of money in the process. Happy cycling!
