For anyone who relies on robust, dependable small engines for their outdoor power equipment, the name Tecumseh often brings to mind a legacy of sturdy, no-nonsense machinery. Among their impressive line-up, the Tecumseh HH100 stands out as a true workhorse. This guide delves deep into the specifics of this remarkable engine, providing UK owners and enthusiasts with a comprehensive understanding of its design, technical specifications, and crucial maintenance requirements. If you’ve ever wondered what truly powers your machinery or how to keep it running optimally, you’re in the right place.
The Tecumseh HH100 is not just any engine; it's a testament to a design philosophy that prioritises longevity and straightforward operation. Manufactured by Tecumseh, this single-cylinder, air-cooled, four-stroke internal combustion gasoline engine is engineered for demanding applications. Its robust construction and well-thought-out features make it a popular choice for a variety of heavy-duty equipment where reliability is paramount. Understanding its core characteristics is the first step towards appreciating its capabilities and ensuring its continued performance.
Understanding the HH100: A Robust Core
At its heart, the Tecumseh HH100 boasts an L-head (side valve) design. This configuration, where the intake and exhaust valves are located in the cylinder block adjacent to the cylinder bore, rather than in the cylinder head itself (as in Overhead Valve or OHV designs), offers several distinct advantages for a utility engine. L-head engines are generally simpler in design, featuring fewer moving parts in the valve train, which translates to enhanced durability and reduced manufacturing costs. This simplicity also makes them incredibly robust and relatively easy to maintain, a significant benefit for owners performing their own servicing. While they might not offer the same volumetric efficiency as modern OHV engines, their reliability and longevity in demanding conditions are undeniable.
Further contributing to its robust nature, the HH100 features a cast-iron cylinder block and a cast-iron cylinder head. This choice of material is crucial for an engine designed for heavy-duty applications. Cast iron provides superior wear resistance, excellent heat dissipation properties, and exceptional structural rigidity compared to lighter materials like aluminium. This means the engine can withstand higher operating temperatures and pressures, leading to a significantly longer operational life and better resistance to internal wear. The horizontal Power Take-Off (PTO) shaft design further enhances its versatility, allowing it to be easily integrated into a wide array of equipment, from tillers and generators to log splitters and garden tractors.
The engine’s internal combustion system is meticulously designed for efficiency and reliability. With a displacement of 389 cubic centimetres (23.7 cubic inches), it’s capable of delivering substantial power. The engine can be equipped with either a Tecumseh or Walbro carburettor, both renowned manufacturers, ensuring optimal fuel-air mixture delivery. Furthermore, its solid-state ignition system (CDI) provides a highly reliable and consistent spark, eliminating the need for traditional points and condensers. This reduces maintenance requirements and improves starting performance, especially in varying weather conditions. The breakdown of the engine code HH100 itself signifies its intended use: 'HH' for Horizontal-Heavy Duty, and '100' denoting its nominal 10.0 horsepower output.
Technical Specifications at a Glance
To truly appreciate the engineering behind the Tecumseh HH100, a detailed look at its specifications is essential. These figures not only highlight its capabilities but also provide crucial information for maintenance and troubleshooting. Below is a comprehensive table summarising the key general specifications for this dependable engine:
| Specification | Detail |
|---|---|
| Model | HH100 |
| Type | 4-stroke, L-head, single cylinder |
| Displacement | 389 cm3 (23.7 cu-in) |
| Max. Horsepower | 10.2 PS (7.5 kW; 10.0 HP) |
| Fuel System | Carburettor (Tecumseh or Walbro) |
| Cooling System | Forced-air |
| Ignition System | Solid-state ignition system (CDI) |
| Lubricating System | Splash type |
| Starting System | Recoil or electric starter |
| Fuel Used | Unleaded petrol (octane number 86 or higher) |
The Heart of the Engine: Cylinder Block & Head Details
Delving deeper into the internal mechanics, the precision engineering of the cylinder block and head is what truly defines the HH100’s performance and longevity. The bore and stroke dimensions are fundamental to an engine's displacement and power characteristics. For the Tecumseh HH100, the cylinder bore measures 84.1 mm (3.31 inches), paired with a piston stroke of 69.8 mm (2.75 inches). This combination contributes to its 389 cm3 displacement and robust power output. The compression ratio, rated at 6.70:1, is typical for an L-head engine of this era, providing reliable operation with standard unleaded petrol.

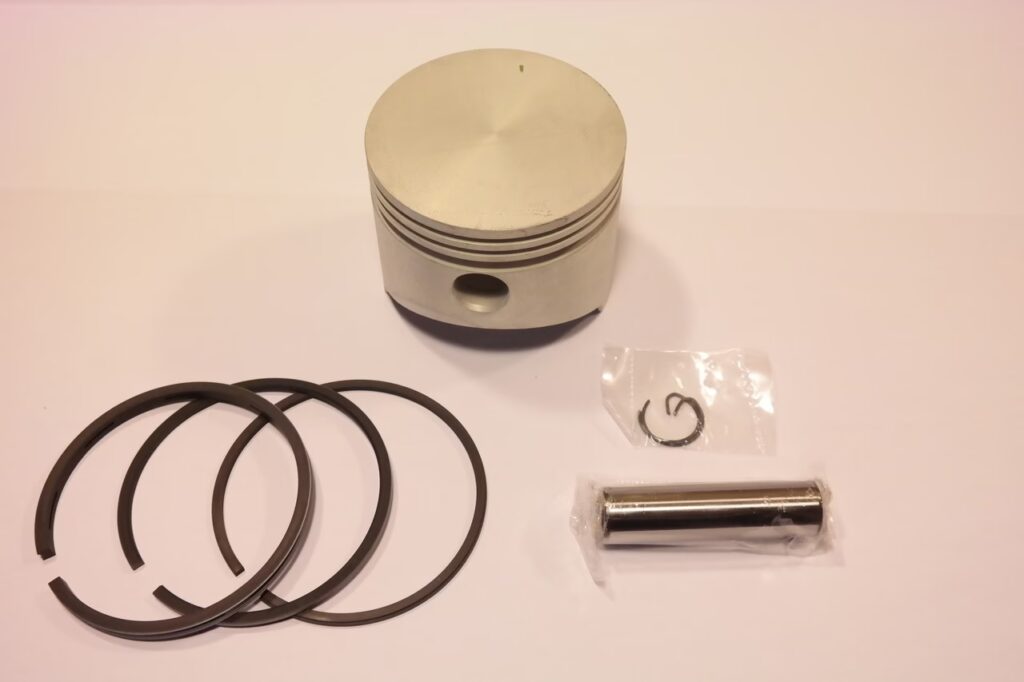

The precise tolerances within the cylinder assembly are critical for efficient operation and minimal wear. The sleeve internal diameter, for instance, is tightly controlled between 84.125-84.150 mm (3.312-3.313 inches). Correspondingly, the piston skirt outer diameter ranges from 84.023-84.074 mm (3.308-3.310 inches), ensuring a snug yet free-moving fit. The piston itself is equipped with two compression rings and one oil ring, essential for maintaining cylinder pressure and managing oil consumption. Correct ring end gap, specified at 0.178-0.508 mm (0.007-0.02 inches) for both top and second rings, is vital for proper sealing and preventing blow-by. The piston pin, with an outer diameter of 17.457-17.463 mm (0.6873-0.6875 inches), connects the piston to the connecting rod, facilitating the transfer of power to the crankshaft.
The L-head valve arrangement means the two valves (intake and exhaust) are positioned side-by-side in the engine block. The valve springs, with a free length of 47.879 mm (1.885 inches), ensure proper valve seating and prevent valve float at higher engine speeds. The camshaft, responsible for opening and closing these valves, has lobe diameters ranging from 33.134-33.236 mm (1.3045-1.3085 inches). Maintaining these precise dimensions and clearances is paramount for the engine's long-term health and consistent performance. Any deviation can lead to reduced power, increased wear, or even catastrophic failure.
Fuel and Ignition Systems: Powering Your HH100
The lifeblood of any petrol engine is its fuel and ignition system. The Tecumseh HH100 is designed to run on unleaded petrol with an octane number of 86 or higher, making it compatible with widely available fuels. As mentioned, the engine can be fitted with either a Tecumseh or Walbro carburettor. While both serve the same function – to mix air and fuel in the correct proportions for combustion – their adjustment specifics can vary slightly.
For optimal performance, the carburettor’s main and idle adjustment screws must be set correctly. These adjustments fine-tune the fuel-air mixture at different engine speeds. For Tecumseh carburettors, the main adjustment screw is typically set at 1-3/4 turns off the seat, while the idle adjustment screw is at 1-1/4 turns. For Walbro carburettors, the main adjustment is 1-1/2 turns off the seat, and the idle adjustment is also 1-1/4 turns off the seat. These settings are crucial for smooth idling, efficient power delivery, and fuel economy. Incorrect adjustments can lead to rough running, excessive fuel consumption, or a lack of power.
The solid-state ignition (CDI) system is a significant feature enhancing the HH100’s reliability. Unlike older mechanical points ignition systems that require periodic cleaning and adjustment, CDI systems have no moving parts to wear out. They generate a strong, consistent spark across the spark plug electrodes, ensuring efficient combustion even under challenging conditions. This translates to easier starting and more reliable operation throughout the engine's lifespan, reducing the need for frequent ignition system maintenance.
Keeping it Running: Essential Maintenance & Service
To ensure the continued durability and optimal performance of your Tecumseh HH100, regular and precise maintenance is indispensable. Adhering to the manufacturer’s service guidelines for fluid changes, valve adjustments, and spark plug maintenance will significantly extend the engine’s life and prevent costly repairs.
Valve Clearance: Proper valve clearance is critical for the engine’s breathing and overall efficiency. If the clearance is too tight, valves may not close completely, leading to compression loss and burnt valves. If too loose, the valves may open late or not fully, reducing power and causing excessive noise. For the HH100, the specified intake valve clearance is 0.254 mm (0.010 inches), and the exhaust valve clearance is 0.508 mm (0.020 inches). Checking and adjusting these clearances periodically, as per the service manual, is a fundamental aspect of preventative maintenance.
Oil System: The lubricating system in the HH100 is of the splash type, meaning moving parts within the crankcase splash oil onto critical components. The recommended oil type is API SF or SJ, with SAE 30 or 10W-30 being the preferred viscosities. The engine has an oil capacity of 1.4 litres (approximately 1.5 US quarts or 1.23 Imperial quarts). Regular oil changes with the correct type and quantity are arguably the most important maintenance task. Fresh oil ensures proper lubrication, cools internal components, and carries away contaminants, preventing premature wear. Always check the oil level before each use and change it according to the manufacturer's recommended intervals, typically after a certain number of operating hours or annually.
Ignition System: While the CDI system is low-maintenance, the spark plug still requires attention. The recommended spark plug for the Tecumseh HH100 is a Champion J-8. The spark plug gap is crucial for a strong, consistent spark and should be set to 0.763 mm (0.03 inches). A worn or incorrectly gapped spark plug can lead to misfires, poor fuel economy, and difficult starting. It’s good practice to inspect and clean or replace the spark plug at regular intervals, typically annually or every 100 hours of operation, depending on usage.
Precision Matters: Tightening Torque Specifications
When performing any disassembly or reassembly on your Tecumseh HH100 engine, adhering to the correct tightening torque specifications is absolutely vital. Over-tightening can strip threads or crack components, while under-tightening can lead to leaks, loosening of parts during operation, or even catastrophic failure. These specifications ensure that components are securely fastened, maintaining proper sealing and structural integrity. Always use a calibrated torque wrench for these critical fasteners.
| Component | Torque (Nm) | Torque (kg·m) | Torque (ft·lb) |
|---|---|---|---|
| Cylinder head bolt | 20.3-27.1 | 2.07-2.76 | 15-20 |
| Flywheel nut | 67.8-74.6 | 6.9-7.6 | 50-55 |
| Spark plug | 25-30 | 2.55-3.06 | 18-22 |
These values represent the recommended range for securing these components. Following them ensures the precision required for the engine to operate safely and efficiently for years to come. Never guess or rely on "feel" when tightening these crucial bolts and nuts.
Frequently Asked Questions (FAQs)
Even with detailed specifications, common questions often arise about the Tecumseh HH100 engine. Here are answers to some of the most frequent queries:
Q: What type of engine is the Tecumseh HH100?
A: The Tecumseh HH100 is a 389 cc (23.7 cu·in) single-cylinder, air-cooled, four-stroke internal combustion petrol engine. It features an L-head (side valve) design and a horizontal PTO shaft.
Q: What is an L-head (side valve) engine?
A: An L-head engine, also known as a side valve engine, has its intake and exhaust valves located in the engine block adjacent to the cylinder, rather than in the cylinder head. This design is known for its simplicity, robustness, and ease of maintenance, making it ideal for utility applications.
Q: What kind of fuel does the HH100 use?
A: The Tecumseh HH100 requires unleaded petrol with an octane number of 86 or higher. Standard unleaded petrol available at most UK fuel stations should be suitable.
Q: What type of oil should I use for my Tecumseh HH100, and how much does it hold?
A: You should use API SF or SJ grade oil, with SAE 30 or 10W-30 viscosity. The engine’s oil capacity is 1.4 litres (approximately 1.23 Imperial quarts). Always check your dipstick to ensure the correct level.
Q: What spark plug does the Tecumseh HH100 take?
A: The recommended spark plug for the HH100 is a Champion J-8. The spark plug gap should be set to 0.763 mm (0.03 inches).
Q: What is the horsepower of the Tecumseh HH100?
A: The Tecumseh HH100 engine produces 10.2 PS (7.5 kW; 10.0 HP) of horsepower.
Q: Can I use either a recoil or electric starter?
A: Yes, the Tecumseh HH100 engine can be equipped with either a manual recoil starter or an electric starter, offering flexibility depending on the specific application or user preference.
Conclusion
The Tecumseh HH100 engine stands as a testament to practical, enduring engineering. Its L-head (side valve) design, coupled with cast-iron components, provides a foundation of simplicity, reliability, and durability that has served countless owners well across various heavy-duty applications. From its robust power output of 10.0 HP to its straightforward maintenance requirements, the HH100 is designed to deliver consistent performance year after year.
By understanding its technical specifications, adhering to recommended maintenance schedules, and applying the correct tightening torques, owners can ensure their HH100 engine continues to operate at its peak efficiency. Regular oil changes, correct valve clearance adjustments, and proper spark plug maintenance are not just suggestions; they are crucial steps in preserving the engine’s health and extending its operational lifespan. The solid-state ignition (CDI) system further enhances its dependability, making starting and running a less troublesome affair.
Ultimately, the Tecumseh HH100 is more than just an engine; it’s a reliable partner for those who demand uncompromising performance from their machinery. With the insights provided in this guide, UK owners are now better equipped to maintain, troubleshoot, and appreciate the robust capabilities of this classic Tecumseh powerhouse.
