Unravelling the Tecalemit Jackson Fuel Injection

For enthusiasts of classic British performance cars, the mention of a Tecalemit Jackson Mechanical Fuel Injection system often conjures images of an era when engineering brilliance met the raw demands of motorsport. Originating in the late 1960s, this system represented a significant leap forward from conventional carburettors, offering a level of fuel delivery precision previously unattainable for many production-derived engines. To stumble upon a complete, brand new, and unused system from this period is akin to discovering a time capsule, offering a pristine glimpse into the cutting-edge technology of its day. Such a find is not merely a collection of components, but a tangible piece of automotive history, designed to unleash the full potential of iconic engines like the Ford Crossflow Kent.

What is the Tecalemit Jackson Fuel Injection System?

At its heart, the Tecalemit Jackson (TJ) system is a mechanical fuel injection setup. Unlike carburettors, which rely on the Venturi effect and engine vacuum to draw and mix fuel with air, a mechanical injection system actively meters and injects fuel into the engine under pressure. This approach offers superior control over the air-fuel mixture across varying engine speeds and loads, leading to improved throttle response, greater power output, and enhanced fuel atomisation. For its time, this was a sophisticated solution, moving away from the more rudimentary methods of fuel delivery towards a more controlled and efficient process, particularly beneficial in high-performance and competition environments.

A Glimpse into its Illustrious History and Applications

The Tecalemit Jackson system gained considerable notoriety and respect through its application in various motorsport endeavours. It was a go-to choice for performance tuners and racing teams looking to extract maximum power and reliability from their engines. Most notably, it found its home in the formidable Ford Crossflow Kent engines, which powered a host of iconic vehicles. Picture the legendary Mk1 Cortina rally cars, battling across continents in events like the arduous London to Sydney Marathon – many of these machines were equipped with TJ injection systems, testament to their robust design and performance capabilities under extreme conditions. Beyond the rally stages, the system also graced the engine bays of performance road cars such as the Lotus Europa and various modified Ford Anglia models, transforming them into more potent and responsive machines. Its presence in such diverse and demanding applications underscores its reputation for delivering consistent, high-level performance when it truly mattered.

Deconstructing the Complete System: Key Components Explained

A complete Tecalemit Jackson mechanical fuel injection system is an intricate assembly of precisely engineered components, each playing a vital role in the overall operation. Understanding these parts provides insight into the system's ingenious design:

• TJ Crossflow Kent Manifold: This is a custom-designed intake manifold specifically tailored for the Ford Crossflow Kent engine. Unlike a carburettor manifold, it features individual runners and mounting points for the throttle bodies, ensuring optimal airflow and fuel delivery to each cylinder. Its design is crucial for the system's efficiency and performance.
• TJ Throttle Bodies: Instead of a single large butterfly valve found in a carburettor, the TJ system utilises individual throttle bodies, often one per cylinder or pair of cylinders. These regulate the amount of air entering the engine. The fuel injectors, or metering points, are typically located just upstream or within these bodies, allowing for precise fuel placement directly into the airflow.
• TJ Electric Fuel Pump: This auxiliary pump is responsible for supplying fuel from the tank to the main mechanical pump under consistent pressure. While the mechanical pump does the primary work of metering and injecting, the electric pump ensures a steady, reliable supply, preventing fuel starvation, especially under high G-forces or during spirited driving.
• TJ Throttle Position Switch: An early form of engine management input, this switch provides the system with information about the throttle's position. In a mechanical injection system, this feedback might be used to adjust fuel delivery slightly or to signal other components, ensuring the correct fuel-air mixture is maintained across the throttle's range of movement.
• TJ Mechanical Pump with Kent Mount: This is the very heart of the Tecalemit Jackson system. Driven directly by the engine (often off the camshaft or a dedicated drive), this pump precisely meters and pressurises the fuel for injection. Its mechanical nature means fuel delivery is directly proportional to engine speed and load, providing a direct and immediate response. The 'Kent mount' signifies its specific design for seamless integration with the Ford Kent engine's architecture.
• Crankshaft Pulley and Tooth Belt: These components are vital for driving the mechanical fuel pump. The tooth belt ensures a precise, non-slip drive from the crankshaft to the pump, maintaining accurate timing and consistent fuel delivery relative to engine revolutions. This mechanical linkage is fundamental to the system's operation.
• TJ Black Box: While the term 'black box' can be somewhat enigmatic, in the context of a late 1960s mechanical injection system, it likely refers to a control unit or interface. This might be a basic electronic module for managing the electric fuel pump, an ignition timing interface, or perhaps a simple diagnostic point. It represents an early step towards integrating electronic control with mechanical systems, even if its capabilities were modest by modern standards.
• TJ Metering Valves: These are the crucial components within the mechanical pump that determine the precise amount of fuel delivered to each cylinder. They are engineered for extremely accurate control, ensuring that each cylinder receives an optimal and consistent fuel charge for maximum efficiency and power.
• Fuel Injection Hose, Fittings, and Olives: High-pressure fuel lines are essential for any injection system. These specific hoses, fittings, and olives are designed to withstand the pressures involved and prevent leaks, ensuring safe and reliable fuel transport from the pump to the injectors.
• Linkages and Throttle Cable: These mechanical connections translate the driver's input from the accelerator pedal directly to the throttle bodies and, often, to the mechanical pump itself. Precision in these linkages is paramount for crisp throttle response and accurate fuel metering.
• Various Bolts and Hardware: The myriad of small fasteners, brackets, and clips that hold the entire system together. Their correct type and application are crucial for secure and reliable operation.
• Copy of the Original Instruction Book: This document is an invaluable resource. It contains critical information regarding installation, setup, tuning, and maintenance procedures, directly from the manufacturer. For a system of this complexity and rarity, the original instructions are a blueprint for correct operation and troubleshooting.

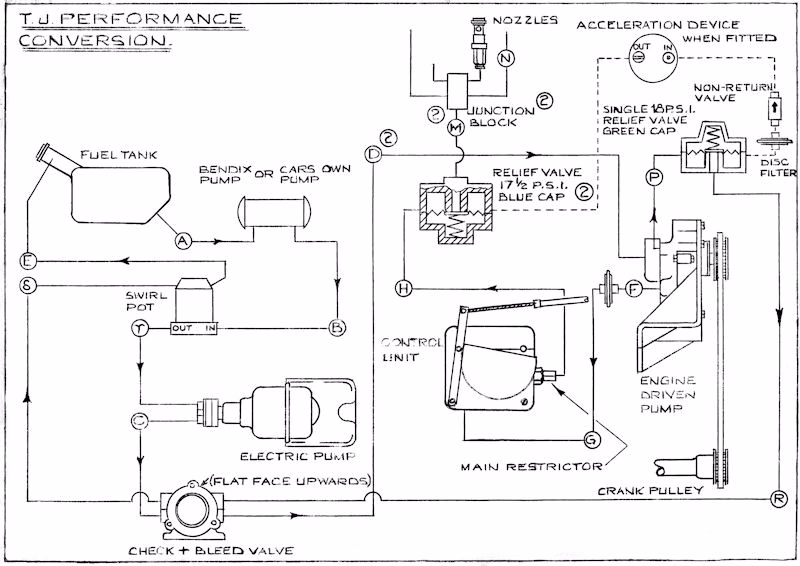

How Mechanical Fuel Injection Works (Simplified)

In essence, the Tecalemit Jackson system works by directly injecting a precisely measured quantity of fuel into the engine's intake runners or ports, just before the intake valves. The mechanical pump, driven by the engine, acts as the brain, determining the amount of fuel to deliver based on engine speed and load. As the engine RPM increases, the pump's output increases proportionally. The throttle bodies control the airflow, and the metering valves within the pump fine-tune the fuel delivery to match this airflow. This direct, pressurised delivery ensures superior fuel atomisation compared to carburettors, where fuel is largely drawn in by vacuum, leading to a more efficient burn and better performance, especially at higher engine speeds and under varying load conditions.

Advantages Over Carburettors in the 1960s

For its era, mechanical fuel injection like the Tecalemit Jackson offered several compelling advantages:

• Improved Fuel Atomisation: By injecting fuel under pressure, the TJ system created a much finer mist of fuel, leading to more efficient combustion and better power output.
• Superior Throttle Response: The direct mechanical linkage and pressurised fuel delivery meant that changes in throttle position were met with an immediate and precise response from the engine, a significant benefit in competition.
• Consistent Mixture Control: Unlike carburettors, which can struggle with mixture control during hard cornering (fuel slosh) or significant altitude changes, mechanical injection provided a more stable and consistent air-fuel ratio across a wider range of conditions.
• Increased Power Potential: Better atomisation and more precise mixture control often translated into higher peak power figures, crucial for motorsport applications.
• Better Cold Starting: While still requiring careful setup, mechanical injection generally offered more reliable cold starting compared to often temperamental carburettors.
• Elimination of Carburettor Icing: Without the Venturi effect of a carburettor, the risk of carburettor icing, a common issue in certain weather conditions, was eliminated.

Challenges and Considerations for Modern Use

While the Tecalemit Jackson system is a marvel of its time, fitting and maintaining one today comes with its own set of challenges:

• Rarity and Cost: As evidenced by a brand new, unused system, these units are incredibly rare. This rarity drives up their value significantly, making them a substantial investment for restoration or performance projects.
• Complexity of Tuning: Unlike modern electronic fuel injection (EFI) systems that can be tuned with laptops, mechanical injection requires specialist knowledge, precise adjustments, and often, dyno time to achieve optimal performance. It's an art form, not just a science.
• Parts Availability: Should any component fail, sourcing replacements can be exceedingly difficult and expensive, often requiring custom fabrication or extensive searching for period-correct parts.
• Maintenance: Mechanical injection systems require regular and meticulous maintenance to ensure peak performance and reliability. Tolerances are tight, and any wear can affect performance.
• Fuel Compatibility: While designed for fuels of its era, modern unleaded fuels, especially those with ethanol content, can sometimes be detrimental to older fuel system components. Careful consideration of fuel additives or material upgrades might be necessary.

Tecalemit Jackson vs. Carburettor: A Comparative Glance

To truly appreciate the Tecalemit Jackson system, it's helpful to compare it directly with the carburettor systems it aimed to supersede:

Frequently Asked Questions (FAQs)

Q: Is the Tecalemit Jackson system hard to tune?
A: Yes, it requires significant expertise and patience. Unlike modern EFI, there's no diagnostic port or software. Tuning involves precise mechanical adjustments and often requires a rolling road (dyno) to optimise.

Q: Can I use modern unleaded fuel with a TJ system?
A: It's generally advisable to use a lead substitute or ensure that the system's seals and hoses are compatible with modern fuels, especially those containing ethanol. Prolonged exposure to ethanol can degrade older rubber components.

Q: What kind of maintenance does a Tecalemit Jackson system require?
A: Regular checks for leaks, inspection of fuel lines, and ensuring the mechanical pump's drive belt is in good condition are crucial. The system's precision components also benefit from periodic inspection by a specialist.

Q: Is a Tecalemit Jackson system suitable for a daily driver?
A: While technically possible, it's generally not recommended for a daily driver due to its complexity, rarity, and the specialist knowledge required for maintenance and troubleshooting. It's more suited for classic car enthusiasts, show cars, or period-correct competition vehicles.

Q: Where can I find parts for a Tecalemit Jackson system?
A: Sourcing parts is extremely challenging. You'd typically need to search specialist classic car parts dealers, attend auto jumbles, or connect with dedicated clubs and forums for owners of vehicles that used these systems. Custom fabrication might also be necessary.

Q: What engines is it best suited for?
A: The system described is specifically designed for Ford Crossflow Kent engines, which were prevalent in various Ford models and motorsport applications of the era.

The Enduring Appeal of Mechanical Injection

Owning or working with a Tecalemit Jackson Mechanical Fuel Injection system is a unique experience. It represents a bygone era of automotive engineering where mechanical ingenuity pushed the boundaries of performance. Its rarity, historical significance in motorsport, and the sheer mechanical artistry involved in its design make it a highly desirable piece for collectors and enthusiasts dedicated to period-correct restorations or high-performance classic builds. While modern electronic fuel injection has far surpassed its capabilities in terms of efficiency and ease of use, the raw, unfiltered feel, and the satisfaction of mastering such a complex legacy system offer an unparalleled connection to automotive heritage. It's a testament to a time when precision mechanical engineering was at the forefront of achieving automotive performance excellence.
