TE20 vs. Ferguson FF: Unravelling the Grey Fergie Legacy

The enduring charm of the 'Little Grey Fergie' is undeniable, making it a cherished centrepiece for many a weekend mechanic's workshop. When delving into the world of classic tractors, particularly the legendary Ferguson models, a common query often arises: 'What's the difference between a TE20 and a Ferguson FF?' This question, while seemingly straightforward, touches upon the very essence of Ferguson's innovative legacy and a widespread misunderstanding regarding model designations. Let's unpick the specifics of the TE20 and clarify what 'Ferguson FF' truly signifies, offering a comprehensive guide for enthusiasts and restorers alike.

The Enduring Appeal of the Little Grey Fergie

The Ferguson TE20, affectionately known as the 'Little Grey Fergie', stands as a monumental achievement in agricultural engineering. Introduced in 1946, it was the brainchild of Harry Ferguson, an Irish engineer whose revolutionary designs transformed farming practices worldwide. Manufactured in Coventry, England, the 'TE' in TE20 stands for 'Tractor, England', distinguishing it from its American counterpart, the TO20 ('Tractor, Overseas').

The TE20 wasn't just another tractor; it was a game-changer. Its compact size, combined with unprecedented versatility, made it accessible to smaller farms and a vital tool in post-war agricultural recovery. It was designed with simplicity and efficiency in mind, a philosophy that continues to resonate with owners today. The iconic grey livery, which has become synonymous with the marque, was chosen for practical reasons – it was a readily available wartime surplus paint.

Understanding the Ferguson TE20: A British Icon

The Ferguson TE20 series encompasses a range of models, each identifiable by a specific suffix indicating its engine type. This is where many of the 'differences' lie within the TE20 family itself. The core innovation, however, remained consistent across all variants: the Ferguson System.

Key Features of the TE20 Series:

• The Ferguson System: This revolutionary hydraulic three-point linkage system, with its automatic draft control, was the cornerstone of Harry Ferguson's genius. It allowed implements to be directly attached to the tractor, becoming an integral part of the machine rather than a separate trailed unit. This not only improved traction and stability by transferring the implement's weight to the tractor's rear wheels but also made farming safer and more efficient. It truly was a paradigm shift in tractor design.
• Engine Variants: Over its production run (1946-1956), the TE20 was fitted with several different engines to cater to varying fuel availability and power requirements:
  • TE20: Early models (1946-1948) were fitted with a Continental Z120 petrol engine, imported from the USA.
  • TEA20: The most common variant, introduced in 1947, featuring a Standard Motor Company petrol engine (initially 80mm bore, later 85mm). This engine was specifically designed for the tractor and was built in the UK, making the TEA20 a truly British tractor.
  • TED20: Introduced in 1949, this model ran on 'Tractor Vaporising Oil' (TVO), a cheaper fuel alternative popular in the UK at the time. It used the same Standard engine as the TEA20 but with a different manifold and carburettor setup to handle the less volatile fuel.
  • TEF20: Launched in 1951, this was the diesel-powered version, featuring the Standard 20C diesel engine. Diesel engines offered better fuel economy and torque, marking a significant step forward.
• PTO (Power Take-Off): A standard feature, enabling the tractor to power various implements like mowers and rotavators.
• Compact Design: Its relatively small size and excellent manoeuvrability made it ideal for a wide range of tasks, from ploughing small fields to pulling trailers.

The Revolutionary Ferguson System: What 'Ferguson FF' Truly Signifies

Now, let's address the 'Ferguson FF' query. It's important to clarify that 'Ferguson FF' is not a recognised specific tractor model like the TE20. There was no 'Ferguson FF' tractor produced as a distinct model in the same way as a TE20, FE35, or MF135.

The most probable interpretation of 'Ferguson FF' in this context relates to the Ferguson System itself. Harry Ferguson's innovative 'Ferguson Formula' or 'Ferguson System' was the core engineering principle behind all his tractors, including the TE20. It refers to the patented three-point linkage with automatic draft control, which was revolutionary for its time. So, when someone might refer to 'Ferguson FF', they are likely either:

• Confusing it with another non-tractor designation.
• Referring generically to a 'Ferguson Family' tractor, with the TE20 being the quintessential example.
• Referring to the fundamental 'Ferguson Formula' or 'Ferguson System' that defined all his machines.

Essentially, the TE20 *is* a prime example of a tractor built around the principles of the Ferguson System. It embodies the 'FF' – the fundamental engineering that made Ferguson tractors so effective.

Why the Confusion? TE20 vs. 'Ferguson FF'

The confusion likely stems from the pervasive influence of the Ferguson brand and its system. Because the 'Ferguson System' was so central and revolutionary, it became synonymous with the tractors themselves. People might colloquially refer to any tractor employing this system as a 'Ferguson' or, perhaps, try to differentiate a specific model (TE20) from the broader 'Ferguson' identity, leading to terms like 'Ferguson FF' to denote the general brand or system.

Therefore, the difference isn't between two distinct tractor models, but rather between a specific, highly successful model (the TE20 and its variants) and the underlying revolutionary engineering principle that defined it and all subsequent Ferguson designs.

Embarking on a Ferguson Restoration: Tips for Your Winter Project

Bringing a classic Ferguson back to life is a rewarding endeavour, especially when it holds family history. Your 'Little Grey Fergie', despite its years of rest and a smoking issue, still boasts a remarkable ability to start, a testament to its robust design. This is a fantastic foundation for a winter project.

Tackling the Engine: From Smoke to Smooth Running

The severe smoking and breathing you've observed, coupled with the state of the head gasket, points directly to the primary culprit. A compromised head gasket can cause combustion gases to escape into the cooling system or crankcase, leading to excessive crankcase pressure (breathing) and oil burning (smoking). The fact that it still started easily suggests the core mechanicals are largely sound, but a thorough inspection is certainly warranted.

When considering whether to delve into the bottom end, it's a classic restorer's dilemma. If the engine starts well and the main issues appear to be top-end related (head gasket, valve guides, potentially bore glazing), you might be tempted to stop there. However, if you're aiming for a long-term, reliable machine, addressing the bottom end – checking crankshaft bearings, con-rod bearings, and definitely replacing piston rings and liners – provides peace of mind. Glazed liners, even if seemingly minor, can contribute to poor oil control and further smoking. Since you're already stripping the engine, the additional effort for a full overhaul often proves worthwhile in the long run, ensuring you won't have to revisit the engine for many years. It's often better to do it once, and do it properly.

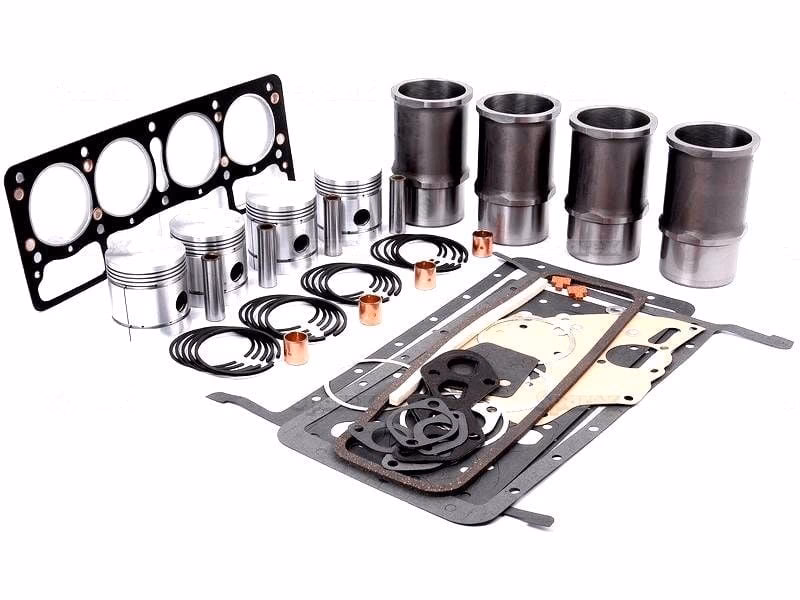

For engine kits, numerous specialist suppliers in the UK cater specifically to classic tractor parts, including comprehensive engine overhaul kits. These kits typically include new liners, pistons, rings, gaskets, and bearings. Online forums and enthusiast clubs are also invaluable resources for recommendations and sourcing reputable suppliers. Always opt for quality components, even if they cost a little more, as they will ensure longevity and performance.

The Paint Predicament: Originality vs. Preservation

Your dilemma regarding painting is one that many classic vehicle owners face. There's a strong argument for preserving originality, especially when the tin work is as solid as you describe. An unpainted, 'patinated' tractor tells a story of its working life and can hold significant historical value for collectors who appreciate an unrestored, authentic appearance. This raw, honest look is often referred to as 'barn find' condition, and for some, it's highly desirable.

On the other hand, painting offers protection against further rust and deterioration, safeguarding the metalwork for future generations. A well-executed repaint can also dramatically improve the tractor's aesthetic appeal, making it a proud display piece. If you do decide to paint, ensure meticulous surface preparation and use high-quality automotive or industrial paints. Sticking to the original Ferguson Grey (often specified by paint codes available from specialist suppliers) is crucial if you want to maintain historical accuracy.

Ultimately, the decision is personal. If the tractor is primarily a working machine or a personal project for enjoyment, painting for protection and appearance makes sense. If its potential future as a high-value collector's item is a significant factor, leaving it original (perhaps with a clear protective coating to stabilise the patina) might be the better choice. There's no single 'right' answer; it depends on your goals for the tractor.

Sourcing Quality Parts for Your Fergie

Beyond engine kits, you'll find a robust market for Ferguson TE20 parts. From electrical components and hydraulics to steering parts and body panels, specialist suppliers, both online and physical stores, stock nearly everything required. Enthusiast clubs and online communities are excellent places to find advice, locate rare parts, and even connect with fellow owners who might have spares or recommend reliable sources. Always ensure parts are compatible with your specific TE20 variant (TEA20, TED20, TEF20) as there can be subtle differences.

Comparative Overview: TE20 Variants and the Ferguson System

Frequently Asked Questions About Ferguson Tractors

Here are some common questions that often arise about these beloved machines:

What makes the Ferguson TE20 so special?

The TE20's brilliance lies in its simplicity, reliability, and the revolutionary Ferguson System. This system made farming vastly more efficient and safer by integrating the implement with the tractor, improving traction and control. It put mechanised farming within reach of many small and medium-sized farms after WWII.

Are parts still available for TE20s?

Yes, absolutely! Due to their immense popularity and robust design, a large aftermarket industry exists. Specialist suppliers in the UK and globally stock a vast array of new and reconditioned parts, making restoration projects highly feasible.

What's the typical value of a Ferguson TE20?

The value varies widely based on condition, originality, and specific model. A non-running 'project' tractor might be a few hundred pounds, while a fully restored, concours-condition example can fetch several thousand. The TEA20 and TEF20 models tend to be the most sought after.

What are common issues to look out for in a TE20?

Common issues include hydraulic pump wear (leading to slow or weak lift), steering box play, electrical gremlins (often simple wiring issues), and engine wear (smoking, low compression) as seen in your case. Rust on tin work is also common, though yours sounds remarkably solid.

Can I still use a TE20 for work today?

Many TE20s are still used for light duties on smallholdings, for topping, hauling, or as yard tractors. While they lack the power and modern features of contemporary machines, their reliability and simplicity make them perfectly capable for suitable tasks.

Conclusion

The Ferguson TE20 is far more than just a tractor; it's a piece of living history that profoundly impacted agriculture and engineering. While 'Ferguson FF' isn't a specific model name, it eloquently points to the revolutionary 'Ferguson System' that is the very heart and soul of the TE20 and its siblings. Your winter project sounds like a fantastic journey into understanding and preserving this legacy. Whether you opt for a pristine repaint or cherish its original patina, bringing this family heirloom back to full mechanical health will be a truly rewarding experience, connecting you directly with the ingenious spirit of Harry Ferguson and the enduring legacy of the 'Little Grey Fergie'.
