Yamaha TDR 250: Why This 'Ultimate Dual' Was Born

In the vibrant and sometimes audacious world of 1980s motorcycling, an era largely defined by the relentless pursuit of speed through racer-replica machines, Yamaha embarked on a daring venture. Their mission was clear: to craft a motorcycle that transcended the track-focused obsession, re-igniting the sheer "FUN" of riding for everyday enthusiasts. The result was the Yamaha TDR 250, a machine that, even decades later, stands as a testament to engineering ingenuity and a bold vision for what a dual-purpose motorcycle could truly be. This article delves into the fascinating story behind its creation, exploring the unique challenges and innovative solutions that brought the "Ultimate Dual" to life.

The Genesis: Why the TDR 250 Was Born

The year was 1985 when Yamaha's engineers initiated the TDR development project. At its core, the project was a direct response to the prevailing motorcycle trends of the decade. The market was saturated with high-performance, often uncompromising, racer-replica bikes. While exhilarating on a circuit, these machines frequently proved less practical and enjoyable for the diverse demands of everyday riding, from urban commutes to winding country lanes and even light off-road excursions. Yamaha recognised a growing disconnect between the capabilities of these specialised bikes and the broader desires of the riding public.

Their primary objective was not merely to build another motorcycle, but to conceptualise a new category altogether. The TDR 250 was envisioned as a bike capable of traversing "all types of road surfaces in a practical and enjoyable way." This ambitious premise required a significant departure from conventional design philosophies. The engineers aimed to redefine the riding experience by delivering a new dimension in terms of acceleration, manoeuvrability, handling, stability, and braking. Crucially, the goal was to enable riders to extract the maximum "driving enjoyment" from their daily interactions with the machine, moving beyond the niche appeal of track-only performance. It was about making motorcycling accessible, versatile, and above all, genuinely enjoyable once more.

Engineering the "Ultimate Dual"

Crafting a motorcycle with such a broad performance envelope was no small feat, particularly as the TDR was to be "the first of its kind, indeed a new-concept!" The development team adopted a highly pragmatic and innovative approach. They understood that to effectively blend road and off-road characteristics, they first needed to thoroughly reassess the strengths and weaknesses of existing road and off-road motorcycles.

To achieve this, Yamaha undertook a novel and comprehensive testing expedition to Hokkaido, Japan's northernmost island. This location was chosen for its diverse terrain and European-like climate, offering everything from highways and secondary mountain routes to challenging green lanes and dedicated off-road areas. The team brought along a selection of bikes: the road-focused TZR250 and RD250R, and the off-road capable DT200R and XT 225 Serow. The engineers deliberately pushed these bikes outside their comfort zones; for instance, the TZR250, a road racer, was ridden on rough green lanes, while the off-road Serow 225 endured hours of highway cruising.

These unconventional tests yielded invaluable insights into rider discomfort and machine limitations in varied environments. The core discussion revolved around "how to convert discomfort into comfort" to forge an "outstanding new-concept dual-purpose motorcycle." The consensus reached was pivotal: the TDR's technical concept was cemented. It was to be engineered to possess driving capabilities "almost the equal of TZR250" on paved roads, while simultaneously offering off-road manoeuvrability that was a "good match for DT or XT models." This audacious blend led the engineers to proudly declare the TDR 250 as the "Ultimate Dual". Its potential was further demonstrated in France through the TDR 250 Cup, a series of races on varied terrain, pre-dating modern supermotard events and showcasing the bike's remarkable adaptability.

Chassis and Frame: A Masterclass in Compromise

The design of the TDR 250's chassis was central to achieving its dual-purpose mandate. Engineers faced a fundamental choice: begin with a conventional road chassis or an off-road one. Given the priority for "high speed stability," particularly for a bike intended for enjoyable everyday use on varied public roads, they opted to start with a road chassis. The subsequent challenge was to integrate robust off-road handling characteristics within this foundational structure.

The frame design itself became a delicate balancing act. Road frames typically prioritise high lateral rigidity for precise cornering and stability at speed, while off-road frames lean towards high longitudinal rigidity to absorb impacts and handle rough terrain. For the TDR, a unique compromise was struck: the frame adopted the longitudinal rigidity characteristics of an off-road bike, yet its overall design followed the aesthetic and basic structure of a conventional road frame. Yamaha's engineers believed this provided the ideal blend for both high-speed stability on tarmac and excellent manoeuvrability off-road.

A conventional double-cradle tubular steel frame was developed, bearing a resemblance to the early RD250LC. However, the groundbreaking nature of the TDR meant that no existing design standard could be directly applied to its frame rigidity requirements. Extensive testing midway through development revealed the necessity of substantially increasing the frame's tube diameter to meet the demanding performance brief. Furthermore, the allocation of design priority to various chassis components necessitated a unique approach, consciously reducing emphasis on pure aerodynamics or motocross-level manoeuvrability in favour of the TDR's broader capabilities. Every element was meticulously considered to serve the "Ultimate Dual" philosophy.

The Heart of the Beast: Two-Stroke Power

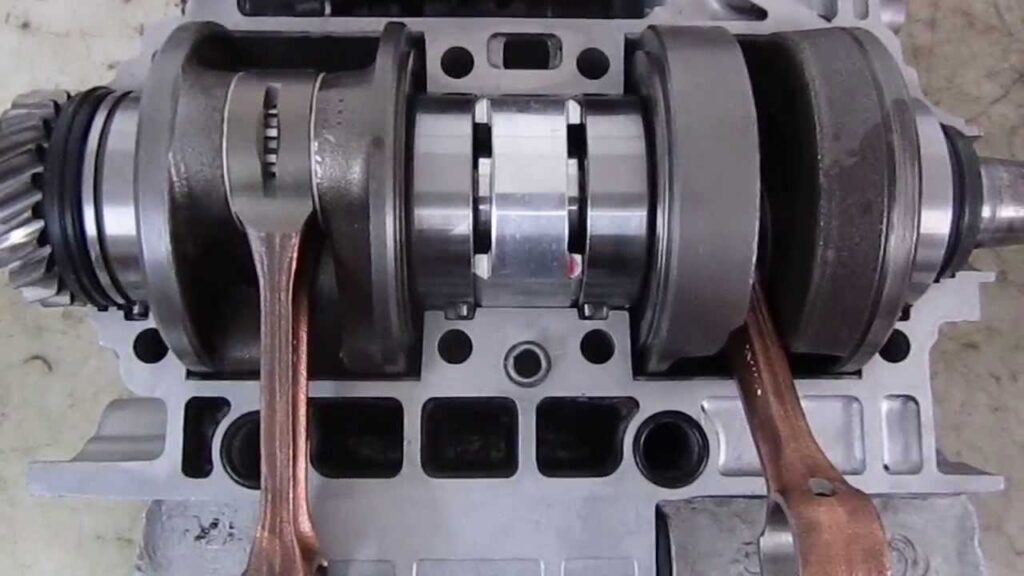

At the core of the Yamaha TDR 250's exhilarating performance lies its potent two-stroke, parallel twin engine. Sharing its YPVS (Yamaha Power Valve System) motor with the TZR250 road race bike, this 249cc powerhouse delivered a remarkable punch for its size. The TDR 250 boasted 46 horsepower at 10,000 rpm, an impressive figure that, combined with its exceptionally light dry weight of just 137 kg (302 lbs), translated into truly spirited acceleration and a thrilling power-to-weight ratio.

The two-stroke engine experience is unique and often described as stirring the soul. When "on-the-pipe," these engines produce a distinctive, sweet-sounding whine as the power surges dramatically at higher RPMs. The YPVS system on the TDR 250 played a crucial role in optimising this characteristic, allowing the exhaust ports to open wider at higher engine speeds, not only enhancing performance but also contributing to that characteristic, "wicked" two-stroke sound. For many enthusiasts, the sensory experience is completed by the unmistakable aroma of two-stroke smoke, particularly when using castor bean oil, which adds a nostalgic element to the ride.

Unfortunately, the very nature of two-stroke engines, with their inherent emissions characteristics, led to their eventual decline in mainstream motorcycle production. Modern emissions standards, rightly focused on environmental protection, effectively "killed off" these beloved powerplants. This makes the TDR 250 even more special today – a powerful, agile, and visceral reminder of an era where innovation often came with a distinct, smoky charm.

Beyond the Specs: The TDR 250's Legacy

Although not widely distributed globally (it notably wasn't imported to the U.S.), the Yamaha TDR 250 has carved out a significant niche in motorcycle history. It is widely celebrated for its "extremely agile handling," a direct result of Yamaha's meticulous engineering and the balanced compromise in its chassis design. This agility, combined with its potent two-stroke engine, made it a joy to ride on narrow, winding roads, earning it comparisons to the equally nimble Lotus Super Seven car.

The TDR 250 stands as a prime example of the innovative designs that emerged during the 1980s adventure bike boom, a period when manufacturers were more willing to take calculated risks. Its lightweight nature is a particular point of praise, especially when contrasted with many modern adventure bikes, which often tip the scales at considerable weights. To put its lightness into perspective, the TDR 250 is significantly lighter than even some of today's "lighter" adventure bikes, such as the Kawasaki KLR650, while still offering a power advantage. The weight savings become even more dramatic when compared to larger machines like the BMW R1200GS Adventure.

Today, the TDR 250 has become a highly desirable machine for collectors of vintage motorcycles. Its unique aesthetics, including the distinctive cross-over expansion chambers and tank-mounted tachometer, further enhance its appeal. For those fortunate enough to find a well-preserved example, acquiring a TDR 250 is often considered a smart investment, with clean models fetching prices in the £5,000-£8,000 range (or $6,000-$10,000 USD) and expected to appreciate in value over time. It remains a testament to Yamaha's bold innovation and a reminder of a bygone era of motorcycling excitement.

Key Specifications: Yamaha TDR 250 (1990-91)

Frequently Asked Questions (FAQs) About the Yamaha TDR 250

What was the primary reason Yamaha built the TDR 250?

Yamaha built the TDR 250 to break away from the prevalent racer-replica trend of the 1980s, aiming to re-emphasise the "FUN" aspect of motorcycling. They sought to create a versatile bike capable of being ridden practically and enjoyably on all types of road surfaces, blending road performance with off-road agility.

Is the TDR 250 a true adventure bike?

While it predates the modern adventure bike category as we know it, the TDR 250 was designed with dual-purpose capability in mind. Yamaha engineers considered it the "Ultimate Dual" due to its ability to perform almost as well as a TZR250 on tarmac while matching DT or XT models off-road. Its lightweight and agile nature certainly align with the spirit of adventure riding, albeit in a more compact package than contemporary offerings.

What kind of engine does the Yamaha TDR 250 have?

The TDR 250 is powered by a potent 249cc two-stroke, parallel twin engine, equipped with Yamaha's Power Valve System (YPVS). This engine configuration is renowned for its light weight and high power output relative to its displacement, delivering a characteristic "on-the-pipe" surge of power at higher RPMs.

How much horsepower does the TDR 250 produce?

The Yamaha TDR 250 produces 46 horsepower (37 kW) at 10,000 rpm, combined with 3.7 kgf-m (26.7 lb-ft) of torque at 8500 rpm. This impressive power output, especially for a 250cc two-stroke, contributed significantly to its lively performance and agile feel.

Why wasn't the TDR 250 widely available, particularly in the U.S.?

The Yamaha TDR 250 was primarily aimed at specific markets and was not imported to all regions, notably the United States. This limited availability has contributed to its cult status and desirability among collectors in areas where it was sold or can be imported. The eventual demise of two-stroke engines due to stricter emissions standards also curtailed its long-term production.

Is the TDR 250 a good investment for collectors?

Yes, the Yamaha TDR 250 is generally considered a smart investment for collectors of vintage motorcycles. Its unique concept, two-stroke engine, agile handling, and relatively limited production numbers contribute to its increasing value. Clean examples are highly sought after and tend to appreciate over time.

Conclusion

The Yamaha TDR 250 is far more than just a motorcycle; it's a bold statement of intent from an era when manufacturers dared to challenge conventions. Born from a desire to re-inject fun and versatility into motorcycling, it successfully bridged the gap between spirited road performance and genuine off-road capability, earning its moniker as the "Ultimate Dual." Its innovative chassis design, powerful two-stroke heart, and distinctive character ensured it stood out from the crowd. Even today, as a coveted collector's item, the TDR 250 continues to captivate riders with its unique blend of agility, power, and a riding experience that remains as engaging and enjoyable as it was when first conceived. It serves as a powerful reminder of Yamaha's commitment to pushing boundaries and creating truly memorable machines.
