The Land Rover Defender TD5, a legend in its own right, is renowned for its ruggedness and go-anywhere capability. However, for many owners, the factory-set engine performance can leave a little to be desired. This is where a TD5 remap comes into play, offering a significant uplift in power, torque, and overall drivability. But what exactly is a TD5 remap, and what benefits can you expect?
Understanding the TD5 Engine and its ECU
The TD5 engine, a 2.5-litre, five-cylinder turbocharged diesel, was the powerhouse behind Land Rover Discoveries and Defenders from 1998 to 2006. Like most modern vehicles, its performance is governed by an Electronic Control Unit (ECU), often referred to as the engine management system. The ECU is essentially the 'brain' of the engine, receiving data from various sensors (such as engine speed, throttle position, air temperature, and boost pressure) and using this information to control crucial engine functions like fuel injection, ignition timing, and turbocharger boost. The manufacturer sets these parameters to meet strict emissions regulations and to ensure a balance between performance, fuel economy, and longevity. However, these factory settings are often conservative, leaving considerable headroom for improvement.
What is a TD5 Remap?
A TD5 remap, also known as an ECU reflash or chip tuning, is the process of altering the software within the TD5's ECU to optimise engine performance. This is achieved by accessing the ECU's memory and modifying the existing engine maps. These maps are essentially lookup tables that dictate how the engine should behave under different conditions. By adjusting these parameters, a remap can:
- Increase Horsepower and Torque: This is the primary goal for most owners. A remap can significantly boost the engine's power output, making acceleration more brisk and providing more pulling power, especially noticeable when towing or tackling inclines.
- Improve Fuel Efficiency: While it might seem counterintuitive, a well-executed remap can actually improve fuel economy. By optimising the fuel injection and boost pressure, the engine can run more efficiently, requiring less fuel to produce the same amount of power.
- Enhance Throttle Response: Many TD5 owners complain of a sluggish throttle response. A remap can sharpen this up, making the engine feel more immediate and responsive to pedal inputs.
- Adjust for Modifications: If you've upgraded your TD5 with components like a larger intercooler, performance exhaust, or different turbocharger, a remap is essential to ensure these components work harmoniously and that the engine is running optimally with the new hardware.
- Disable EGR (Exhaust Gas Recirculation): In some cases, a remap can be used to disable the EGR system, which can help to reduce soot build-up in the inlet manifold and potentially improve performance. However, it's important to be aware of the legal implications of disabling emissions control systems in your region.
How is a TD5 Remap Performed?
There are generally two main methods for performing a TD5 remap:
1. OBD (On-Board Diagnostics) Port Remapping
This is the most common and least intrusive method. A technician connects a diagnostic tool to the vehicle's OBD-II port, usually located under the dashboard. This tool communicates with the ECU, allowing the technician to read the original software, modify it (either by uploading a pre-made file or by customising parameters), and then write the new software back to the ECU. This process is relatively quick and can often be done while the vehicle remains on-site.
2. Bench Remapping (ECU Removal)

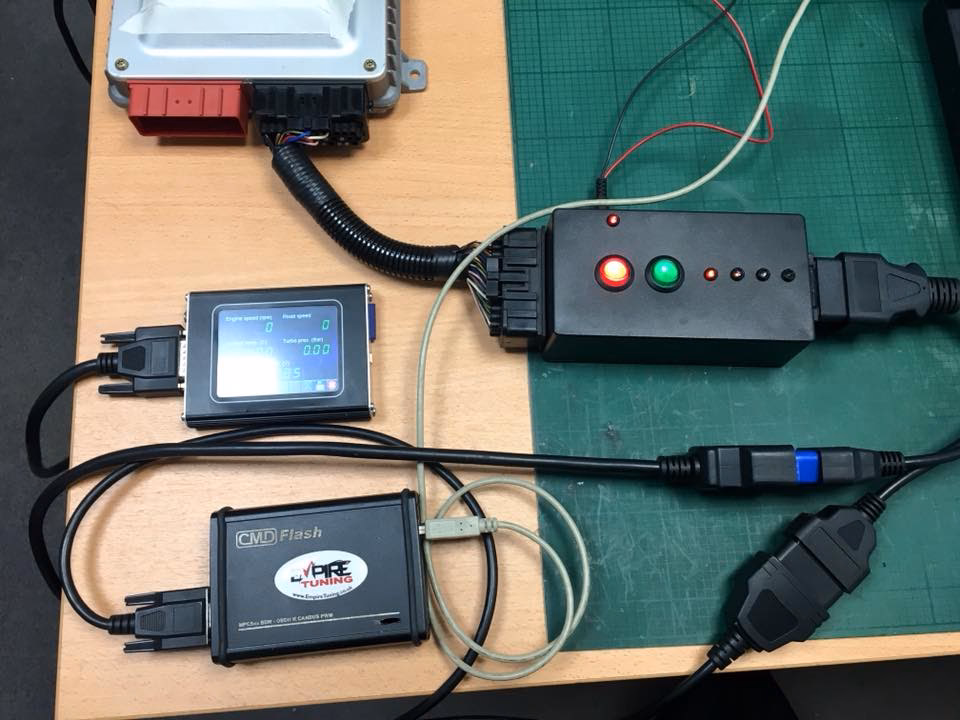

In some cases, particularly with older ECUs or for more complex tuning, it may be necessary to remove the ECU from the vehicle. The ECU is then connected directly to specialist programming equipment on a workbench. This allows for a more direct and in-depth access to the ECU's memory and is often used for more advanced custom tuning or when the OBD port method is not feasible.
The Benefits of a TD5 Remap in Detail
Let's delve deeper into the advantages that a TD5 remap can bring:
Power and Torque Gains
The TD5 engine, in its standard form, typically produces around 122 bhp and 300 Nm of torque. A well-executed remap can easily push these figures up to 140-160 bhp and 350-400 Nm of torque, sometimes even more, depending on the specific tune and any supporting modifications. This translates to a much more responsive engine, with significantly improved acceleration and a greater ability to maintain speed, especially uphill or when towing heavy loads. The 'pulling power' or tractability of the engine is dramatically improved, making driving more effortless and enjoyable.
Fuel Economy Improvements
It might sound contradictory, but optimising the combustion process can lead to better fuel efficiency. By refining the fuel injection timing and the amount of fuel injected, the engine can burn fuel more cleanly and efficiently. This means that for the same amount of work, less fuel is consumed. While the exact savings will vary depending on driving style and conditions, owners often report improvements of 5-10% in fuel economy after a remap. This is particularly beneficial for those who use their Defenders for long-distance touring or daily commuting.
Enhanced Drivability and Smoother Power Delivery
Beyond raw power, a remap can significantly improve the overall driving experience. Many TD5s suffer from a slightly laggy throttle response. A remap can make the accelerator pedal feel more direct and immediate, giving the driver a greater sense of control. Furthermore, the power delivery can be made smoother and more progressive, reducing any 'lumpiness' or hesitation, especially at lower RPMs. This makes the vehicle more pleasant to drive in everyday situations, from stop-start traffic to gentle cruising.
Supporting Modifications
If you're planning or have already made modifications to your TD5, such as a larger intercooler, a performance exhaust system, or an upgraded turbocharger, a remap is not just beneficial – it's often essential. These hardware upgrades can increase the engine's potential, but without a corresponding software adjustment in the ECU, they may not deliver their full benefits, or worse, could lead to inefficient running or even damage. A custom remap ensures that the ECU is calibrated to take full advantage of your new components, optimising boost, fuelling, and engine timing for maximum performance and reliability.
Common TD5 Remap Myths Debunked
There are several misconceptions surrounding engine remapping. Let's address a few:
Myth 1: Remapping will damage my engine.
A properly executed remap, carried out by a reputable tuner using quality software, should not damage your engine. The goal is to optimise the existing parameters within safe operating limits. Aggressive or poorly written tunes, however, can put excessive stress on components like the turbocharger, clutch, and drivetrain. Choosing a trusted tuner is paramount.
Myth 2: Remapping will void my warranty.
In many cases, yes, having a remap can void your manufacturer's warranty, particularly for the powertrain. This is because the ECU's software is modified. It's always advisable to check your warranty terms and conditions, and if your vehicle is still under warranty, consider the implications before proceeding.
Myth 3: Remapping is only for performance.
As discussed, while performance gains are a major draw, remapping can also yield significant improvements in fuel economy and drivability. Many owners opt for a remap purely to make their vehicle more pleasant and economical to drive.
Choosing the Right TD5 Remap Provider
The quality of a TD5 remap can vary significantly between providers. Here are some factors to consider when choosing a tuner:
- Reputation and Reviews: Look for tuners with a proven track record and positive customer reviews, especially those specific to TD5 engines.
- Experience: Ensure the tuner has extensive experience with Land Rover TD5 engines and understands their specific characteristics.
- Customisation vs. 'Off-the-Shelf' Files: While 'off-the-shelf' files can offer improvements, a custom remap, tailored to your specific vehicle and any modifications, will generally yield the best results.
- Transparency: A good tuner will be transparent about the process, the expected gains, and any potential risks.
- Dyno Testing: Reputable tuners will often offer dyno testing to measure your vehicle's power before and after the remap, providing concrete evidence of the improvements.
TD5 Remap: What to Expect (Table)
Here's a general overview of what you might expect from a TD5 remap:
| Parameter | Standard TD5 | TD5 Remapped (Typical) |
|---|---|---|
| Horsepower | ~122 bhp | ~140-160 bhp |
| Torque | ~300 Nm | ~350-400 Nm |
| Throttle Response | Moderate | Sharper, More Responsive |
| Fuel Economy | Standard | Potentially Improved (5-10%) |
| Drivability | Good | Smoother, More Tractable |
Frequently Asked Questions about TD5 Remaps
Q1: Will a TD5 remap affect my clutch?
An increase in torque, especially if significant, can put more strain on the clutch. If your clutch is already worn or if you opt for a very aggressive remap, you might experience clutch slip. It's advisable to have your clutch inspected if it's nearing the end of its life before getting a remap.
Q2: Can I have a TD5 remap done myself?
While the tools are available, remapping an ECU requires a good understanding of engine management systems and tuning software. Incorrectly modifying the ECU can lead to serious engine damage. It is strongly recommended to have a professional tuner perform the remap.
Q3: How long does a TD5 remap take?
An OBD port remap typically takes between 1 to 2 hours. Bench remapping might take slightly longer due to the ECU removal and refitting process.
Q4: What are the emissions implications of a TD5 remap?
Increasing power can sometimes lead to slightly increased emissions, although a good remap aims to keep these within acceptable limits. Disabling systems like EGR will have a direct impact on emissions, and this may be illegal in some jurisdictions.
Conclusion
A TD5 remap is a highly effective way to unlock the hidden potential of your Land Rover TD5. It offers tangible improvements in power, torque, fuel efficiency, and overall drivability, transforming the driving experience. When performed by a reputable and experienced tuner, it's a modification that can be enjoyed for years to come, making your beloved Defender even more capable and enjoyable to drive. Whether you're looking for more grunt for off-roading, better economy for long trips, or simply a more responsive engine for daily use, a TD5 remap is an upgrade well worth considering.
