TCM Fuel Injection: A Comprehensive Guide

For those operating aircraft powered by Teledyne Continental Motors (TCM) fuel-injected engines, understanding the intricacies of the fuel system is paramount for efficient and safe operation. While the detailed calibration process is reserved for certified mechanics, a deeper knowledge of how these systems work, what influences their performance, and the critical importance of proper maintenance can empower aircraft owners and operators. This guide delves into the world of TCM fuel injection, exploring its operational principles, the impact of environmental factors, and the essential calibration procedures outlined in crucial documents like TCM's Service Information Directive (SID) 97-3E.

Understanding the TCM Fuel System

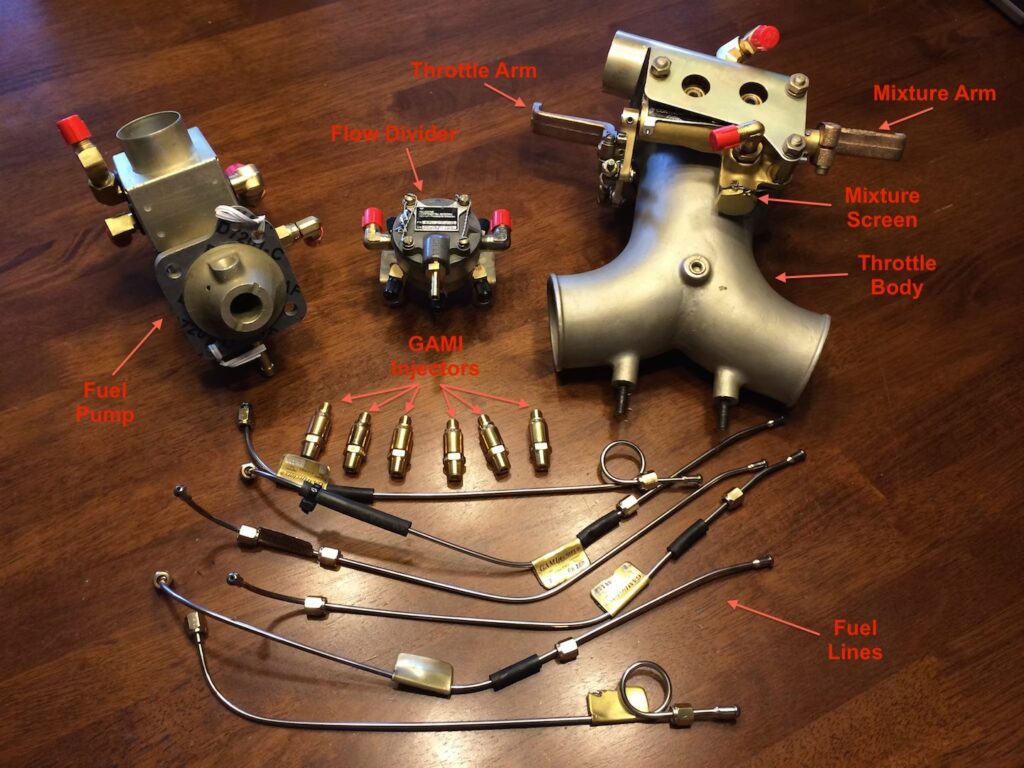

The TCM fuel injection system is designed to supply the engine with a precise amount of fuel, exceeding its immediate needs, to ensure optimal performance across various operating conditions. The core of this system relies on an engine-driven fuel pump, whose output is directly tied to engine speed. This pump delivers fuel to the engine, and any excess is recirculated back to the fuel tanks. A key principle is that engine power output is not always directly proportional to engine speed. This variability necessitates a fuel system that can adapt, ensuring adequate fuel for high-demand phases like take-off and climb, while preventing an overly rich mixture during lower-power operations such as final approach.

The system operates by the fuel pump delivering fuel at a specific pressure to a series of fixed orifices, which are the injector nozzles. These nozzles are essentially precisely drilled holes that introduce a continuous, atomised stream of fuel into the intake chamber of each cylinder. The flow rate through these fixed orifices is directly controlled by the fuel pressure supplied by the pump. This pressure is regulated by setting specific low and high pressure limits for the fuel pump. When these limits are correctly established, the fuel pressure, and consequently the flow, remains within acceptable tolerances across various engine speeds.

The Role of Pressure Gauges

Historically, measuring fuel pressure was more feasible, less intrusive, and less expensive than directly measuring fuel flow. Consequently, even the familiar fuel flow gauge found in many TCM-powered aircraft is, in reality, a pressure gauge that has been calibrated to display fuel flow. This presents an interesting troubleshooting scenario: if a fuel injector becomes restricted, the overall fuel flow decreases. However, this restriction causes system fuel pressure to increase, which, on an older analog gauge, would be misinterpreted as an increase in fuel flow. This highlights the critical need for accurate instrumentation when working with these systems.

Continuous Flow Injection: A Closer Look

TCM fuel injection systems are characterised as continuous flow systems. Unlike systems that inject fuel only when the intake valve is open, TCM injectors deliver a constant stream of fuel into the intake valve chamber. This fuel mixes with incoming air, creating a combustible mixture that is then drawn into the cylinder when the intake valve opens. The precision with which this continuous fuel flow is metered is crucial for achieving efficient and even combustion.

Altitude and Environmental Factors: The Impact on Performance

A significant challenge for internal combustion engines, particularly those designed for sea-level operation, is their performance degradation at higher altitudes. As atmospheric pressure decreases with altitude, the air-fuel mixture can become too rich, leading to reduced power and efficiency. Studies investigating engines like the Brison 95cc two-stroke have shown substantial power drops at higher altitudes. For instance, a 40% reduction in peak horsepower at 10,000 ft is not uncommon, with off-peak performance potentially dropping by over 90% when using a standard carburetor.

To combat these performance issues, throttle body fuel injection (TBI) systems have been implemented. These systems can significantly improve reliability and performance at altitude. While a stock carburetor might struggle, a TBI system can maintain peak power at sea-level static (SLS) conditions and dramatically increase power at low RPM and high-altitude operating points. Furthermore, TBI systems typically lead to a more consistent and improved Brake Specific Fuel Consumption (BSFC) across all operating conditions, often reducing it to around 1.0-1.2 lb/(hp-hr) from a carburetor's 1.2-4.0 lb/(hp-hr).

Research has quantified the effects of atmospheric pressure and temperature variations. It's established that pressure has a more dominant effect than temperature on engine performance. For every 300-meter increase in altitude, a typical small internal combustion engine might experience around a 3.5% loss in power and Brake Mean Effective Pressure (BMEP), along with a 3% increase in BSFC. Thermal efficiency can also decline by approximately 0.4 percentage points per 300 meters of altitude gain. This underscores the necessity of fuel systems that can compensate for these environmental changes.

TCM SID97-3E: The Calibration Standard

Teledyne Continental Motors (TCM) provides a critical document for the adjustment and calibration of their fuel-injected engines: Service Information Directive (SID) 97-3. Originally issued in March 1997 and revised in June 2008 as SID97-3E, this document details the procedures and specifications required for accurate fuel system settings. Compliance with this SID is vital for ensuring the engine operates within its designed parameters.

TCM specifies that these adjustments should be performed at engine installation, during 100-hour or annual inspections, after fuel system component replacements, or whenever operational performance deviates from specifications. The SID outlines the necessary tooling, which historically included the Porta Test unit, a specialised piece of equipment costing thousands of dollars. However, the SID also permits the use of calibrated gauges as an alternative, provided they meet stringent accuracy and increment specifications.

Required Tooling and Gauge Specifications

The accuracy of the gauges used for TCM fuel system calibration is non-negotiable. The SID 97-3E details specific requirements:

The differential pressure gauge, essential for turbocharged engines, is often the most challenging and expensive to source. It's required because the metered fuel pressure in these engines is referenced to the upper deck pressure (the area just before the throttle valve), ensuring accurate fuel delivery under varying manifold pressures. Standard pressure gauges measure relative to ambient pressure, whereas a differential gauge accounts for this difference.

Digital Gauge Alternatives

Fortunately, the advent of digital instrumentation has provided more accessible and cost-effective solutions. Digital gauges, such as those manufactured by Dwyer Instruments (e.g., Model DPGWB-08 for unmetered pressure and Model 490-2 for differential pressure), offer the required accuracy at a fraction of the cost of the specialised Porta Test unit. These digital alternatives can significantly reduce the barrier to entry for shops needing to perform these critical calibrations.

The Calibration Process: A Step-by-Step Overview

While a certified mechanic performs the actual adjustments, understanding the process can help identify when it's needed. The calibration involves several key steps:

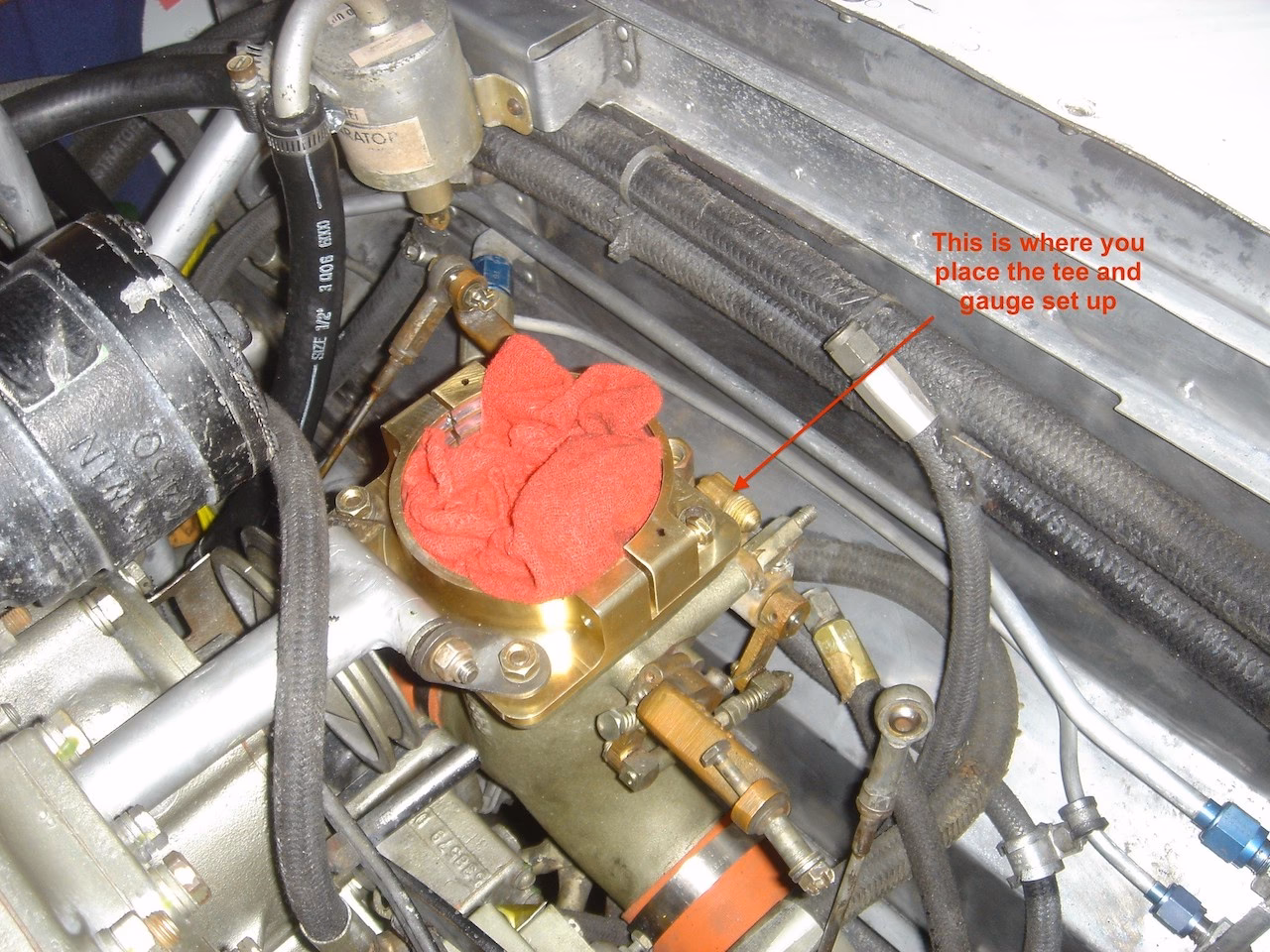

1. Pre-Run Preparation: Ensure all aircraft gauges are verified for accuracy, especially older analog tachometers. Attach the required test gauges, purge fuel lines, clean fuel screens, verify air filter condition, and adjust the idle speed set screw. Install the engine cowling for proper cooling during testing, and implement all necessary safety precautions.
2. Initial Checks: Run the engine and set it to the proper idle speed to record the unmetered fuel pressure. The mixture control is then slowly retarded towards idle cut-off to observe any RPM rise. Following this, the mixture is set to full rich, and full power is applied to record the metered fuel pressure.
3. Comparison and Adjustment: The recorded pressure readings are compared against the specifications outlined in SID 97-3E. If any readings fall outside the specified tolerances, a full system setup is necessary.
4. Idle Speed and Unmetered Pressure: Adjustments begin with the idle speed and unmetered fuel pressure. The goal is to set this to the minimum allowable pressure for optimal idle mixture and maximum part-throttle, full-rich fuel flow.
5. Idle Mixture: The idle mixture is then adjusted to achieve an RPM rise of 25 to 50 RPM during mixture cut-off. A rise exceeding 50 RPM indicates a rich mixture, while less than 25 RPM suggests a lean condition.
6. Maximum Power Metered Pressure: The maximum power metered fuel pressure is then set. This should be adjusted to the maximum allowable pressure limit to ensure optimal cooling during full-power operations and the best possible full-rich fuel flow.

It's important to note that these adjustments often require a delicate touch and may necessitate several engine runs. Maintaining cylinder head temperatures (CHTs) below critical limits is crucial; if they rise too high, the engine should be shut down to cool. Once all adjustments are finalised, the idle speed screw is reset to achieve the proper idle RPM, and the idle mixture and unmetered fuel pressure are re-checked.

Post-Calibration and Troubleshooting

After adjustments are complete, test equipment is removed, fuel lines are reconnected, and leak checks are performed. The engine cowling is reinstalled, and a flight check is conducted to ensure that in-flight readings correlate with the ground tests. Any discrepancies require repeating the calibration process.

Common operational indicators that suggest a TCM fuel system may require calibration include stumbling on final approach, engine shutdown during landing roll-out, or insufficient fuel for cooling during take-off power. If a mechanic dismisses these symptoms as normal, it may indicate a lack of the proper equipment or expertise to perform the necessary fuel system adjustments. It is the operator's responsibility to ensure that this crucial maintenance is performed correctly.

What happens to the unused fuel in a TCM system?

In a TCM continuous flow injection system, the fuel pump supplies more fuel than the engine requires at any given power setting. This excess fuel is not wasted; it is returned to the fuel tanks via a bypass mechanism within the fuel control unit. This recirculation ensures that the fuel pump remains primed and ready, and that the fuel system maintains consistent pressure, even as engine demand fluctuates.

What does TCM stand for?

TCM stands for Teledyne Continental Motors, a prominent manufacturer of aircraft engines.

Conclusion

The calibration and maintenance of TCM fuel injection systems are critical for the reliable and efficient operation of aircraft. While the technical details are best left to certified professionals, understanding the system's principles, the impact of environmental factors, and the importance of adhering to manufacturer specifications like SID 97-3E empowers aircraft owners to make informed decisions about their engine's health. The correct use of calibrated instrumentation, whether analog or digital, is fundamental to achieving optimal engine performance and preventing potentially severe damage.
