TBI Conversion: What's Inside?

Embarking on a vehicle modification journey can be both exciting and daunting. One popular upgrade for classic cars and project vehicles is the conversion to Throttle Body Injection (TBI). This modern fuel delivery system offers several advantages over older carburettor setups, including improved fuel efficiency, easier starting, and a more consistent power delivery. But what exactly goes into a TBI conversion kit, and what should you expect when undertaking such a project? This article aims to demystify the process by breaking down the typical components of a TBI conversion kit, offering insights into identifying fuel injectors, and even touching upon the versatility of a family favourite like the Kia Carnival.

Understanding Throttle Body Injection (TBI)

Before diving into the specifics of conversion kits, it's essential to grasp the fundamental principles of TBI. Unlike traditional carburettors that rely on vacuum to draw fuel into the intake manifold, TBI systems inject fuel directly into the throttle body, which then mixes with air before entering the intake manifold. This controlled injection offers a more precise fuel-air mixture, leading to better combustion and performance. The key components of a TBI system include the throttle body itself, fuel injectors, a fuel pump, fuel lines, and an engine control unit (ECU) to manage the injection process.

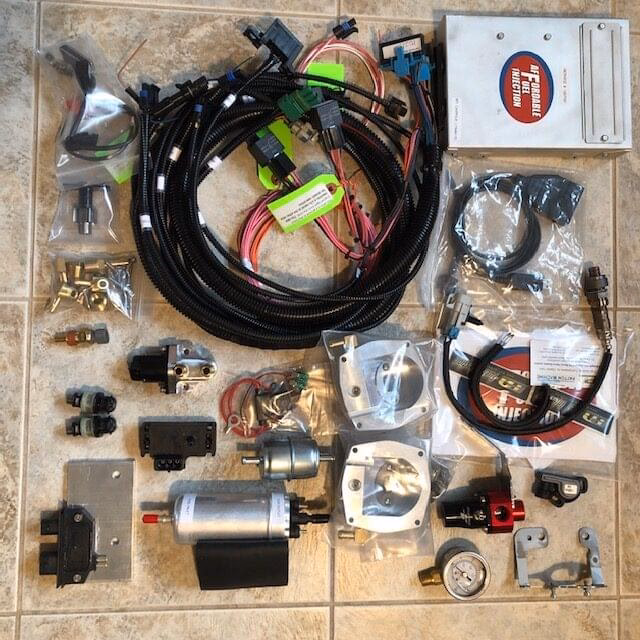

What's Typically Included in a TBI Conversion Kit?

TBI conversion kits are designed to provide the essential parts needed to replace a carburettor system with a modern TBI setup. While specific contents can vary between manufacturers and the intended application (e.g., specific engine types or vehicle models), a comprehensive kit will generally include the following:

The Throttle Body Assembly

This is the heart of the TBI system. The throttle body houses the throttle plate, which controls the amount of air entering the engine, and the fuel injectors. Most kits will provide a new or reconditioned throttle body unit that is designed to bolt directly onto your engine's intake manifold, often requiring an adapter plate if the original manifold was designed for a carburettor. The throttle body will typically have ports for the fuel inlet, return line, and any necessary sensors.

Fuel Injectors

These are the crucial components responsible for atomising and spraying fuel into the throttle body. TBI kits usually come with one or two injectors pre-installed in the throttle body. The size and flow rate of these injectors are critical and are chosen based on the engine's displacement and performance requirements. It's important to ensure the injectors are compatible with the fuel pressure and the ECU's control signals.

Fuel Pump and Regulator

Carburettors typically operate with lower fuel pressures (around 4-7 PSI), while TBI systems require higher pressures (typically 13-18 PSI). Therefore, a new electric fuel pump is almost always included in a TBI conversion kit. This pump will need to be plumbed into your fuel system, often requiring the installation of new fuel lines. A fuel pressure regulator is also vital to maintain the correct fuel pressure within the system. Some kits include a standalone regulator, while others have it integrated into the throttle body assembly.

Wiring Harness and ECU

To manage the fuel injection process, an Engine Control Unit (ECU) is necessary. This "brain" of the TBI system receives data from various sensors (like throttle position, manifold air temperature, and oxygen sensors) and precisely controls when and how much fuel is injected. A wiring harness is provided to connect the ECU to the injectors, fuel pump, and other necessary sensors. This can be one of the more complex aspects of the conversion, requiring careful attention to electrical diagrams.

Sensors

While some sensors might be re-useable from your existing engine, most TBI conversion kits will include essential new sensors. This commonly includes a Throttle Position Sensor (TPS) which tells the ECU how far the throttle is open, and often an Idle Air Control (IAC) valve to manage idle speed. Depending on the kit and your engine, you might also need an oxygen sensor (O2 sensor) for closed-loop operation, which allows the ECU to fine-tune the fuel mixture for optimal emissions and fuel economy. Many kits will provide an O2 sensor and the necessary bung to weld into your exhaust system if one isn't already present.

Fuel Lines and Fittings

As mentioned, the change in fuel pressure necessitates new fuel lines. Kits often include pre-formed fuel lines or universal tubing along with the necessary fittings, adaptors, and clamps to connect the new fuel pump, regulator, and throttle body. Ensuring a leak-free fuel system is paramount for safety and performance.

Gaskets and Mounting Hardware

To ensure a proper seal between the throttle body and the intake manifold, new gaskets are always included. The kit will also typically come with the necessary mounting bolts and hardware to secure the throttle body and any other components.

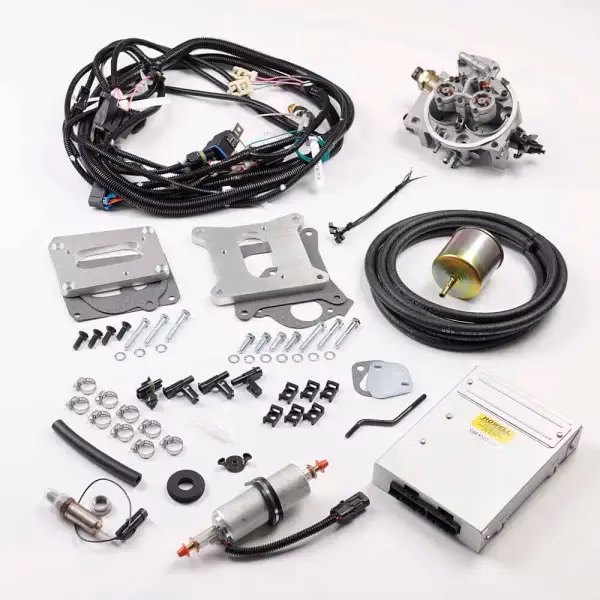

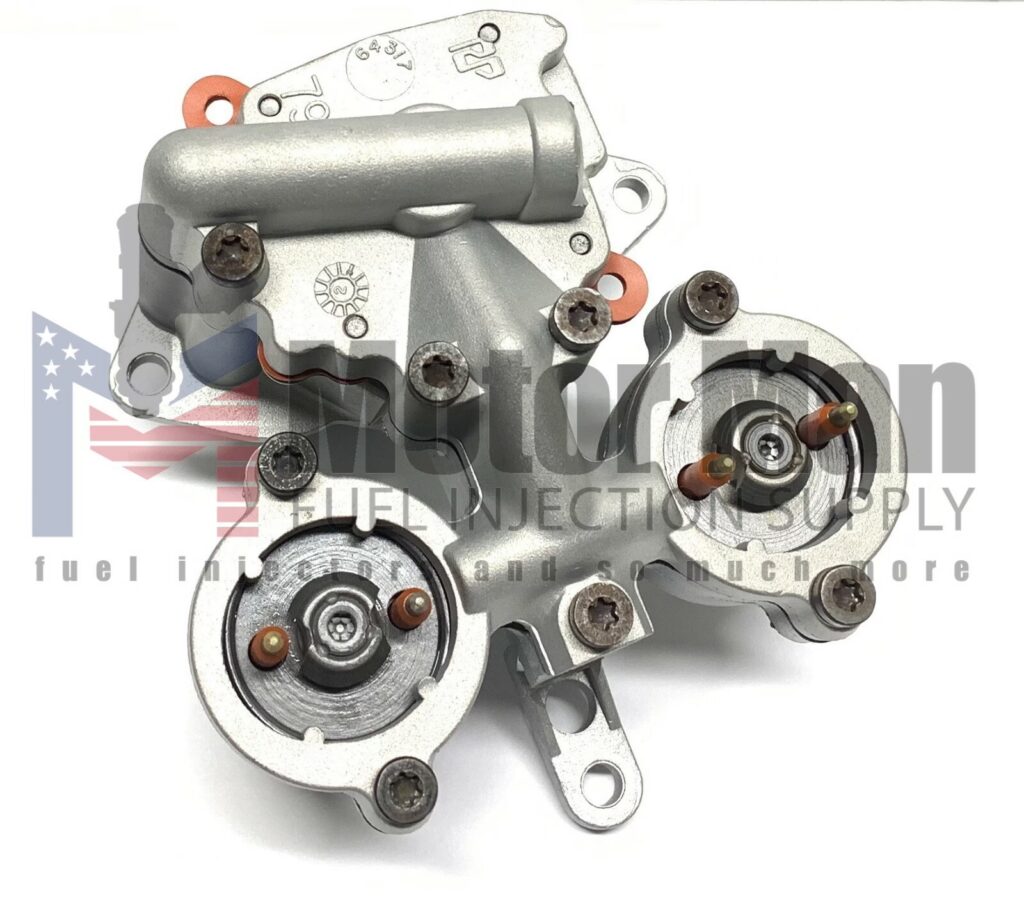

How Do You Know if a TBI Has Fuel Injectors?

Identifying a TBI system is relatively straightforward once you know what to look for. The most definitive sign is the presence of fuel injectors mounted directly within the throttle body assembly. Unlike carburettors, which have a float bowl and jets, a TBI unit will have nozzle-like components protruding from the body, usually positioned above the throttle plate. If you see these injectors, you're looking at a TBI system. You might also notice a more complex wiring harness connected to the throttle body, indicating the presence of electronic control.

In contrast, a carburettor system will have a distinct float bowl on top and visible jets or venturis within the throat of the carburettor itself. There will be fewer electrical connections, primarily for ignition timing or choke operation.

Considerations for Your TBI Conversion

When planning a TBI conversion, several factors need careful consideration:

• Engine Compatibility: Ensure the kit is designed for your specific engine. Not all TBI units are universal, and the injectors must be correctly sized for your engine's requirements.
• ECU Tuning: Some kits come with a pre-programmed ECU, while others may require custom tuning to optimise performance and drivability for your unique setup.
• Fuel System Upgrade: Beyond the pump, you might need to upgrade your fuel tank or sender unit to accommodate the electric pump and ensure adequate fuel delivery.
• Emissions Compliance: Check local regulations regarding emissions. TBI systems can often meet emissions standards, but proper installation and tuning are crucial.
• Installation Complexity: TBI conversions can range from relatively straightforward bolt-on jobs to more involved processes, especially concerning the wiring and fuel system modifications. If you're not comfortable with complex mechanical and electrical work, consider professional installation.

A Note on Versatility: The Kia Carnival

While we've focused on TBI conversions, it's interesting to note the diverse needs of vehicle owners. For families seeking a versatile and practical vehicle, a used Kia Carnival often stands out. It offers more space and flexibility than many SUVs, with a design that hints at SUV styling. When looking for a used Kia Carnival, paying attention to the best years to buy used is crucial. Researching specific model years for reliability, common issues, and feature updates can save you a lot of hassle down the line. The Carnival's spacious interior, adaptable seating arrangements, and comfortable ride make it an excellent choice for family adventures, proving that practicality doesn't always mean sacrificing style or functionality.
