06/10/2008
In the high-octane world of automotive performance, innovation is the fuel that drives progress. Back in 1994, a bold decision by TAROX founder Gianni Taroni would not only redefine the landscape of aftermarket braking but also establish a new benchmark for what was achievable on the road. This pivotal moment centred around the development of a six-piston caliper, a move that defied conventional wisdom and set the stage for the legendary 'Sport' brake kit, first conceived for the iconic BMW E30 M3.
At a time when four-piston calipers were largely the standard for performance upgrades, Taroni's vision to engineer a six-piston alternative was nothing short of revolutionary. This wasn't merely about adding more pistons; it was a holistic approach to braking, combining advanced caliper design with materials previously reserved for the most demanding race circuits. The result was a system that offered unparalleled stopping power, control, and durability, catapulting TAROX into the vanguard of high-performance braking.
- The Genesis of a Game-Changer: Why Six Pistons?
- The 'Sport' Brake Kit: Where it All Began
- The Revolutionary Two-Piece Disc: From Race Track to Road
- Engineering Beyond the Pistons: Precision and Materials
- Comparative Insight: 4-Piston vs. 6-Piston Calipers
- Comparative Insight: One-Piece vs. Two-Piece Discs
- Frequently Asked Questions (FAQs)
- The Enduring Legacy of the 'Sport' Kit
The Genesis of a Game-Changer: Why Six Pistons?
The decision to develop a six-piston caliper, rather than the more common four-piston design, was a testament to TAROX's commitment to pushing the boundaries of engineering. Gianni Taroni's insight recognised that for increasingly powerful and demanding vehicles, a more sophisticated braking solution was required to manage the immense forces generated during deceleration. The conventional wisdom suggested that four pistons provided adequate clamping force, but Taroni saw an opportunity for significant improvement.
The primary advantage of a six-piston caliper lies in its ability to distribute braking force more evenly across the brake pad. With more pistons, the pressure applied to the pad is spread over a larger area, reducing the likelihood of uneven wear and hot spots. This translates into several key benefits:
- Superior Clamping Force: More pistons mean a greater overall surface area pushing against the brake pad, resulting in significantly increased clamping force on the rotor. This directly translates to shorter stopping distances and enhanced braking effectiveness, especially under aggressive driving conditions.
- Optimised Pad Wear: By distributing the force more evenly, the six-piston design helps to prevent tapered or uneven pad wear. This not only extends the life of the brake pads but also ensures consistent performance throughout their lifespan.
- Improved Heat Dissipation: A larger caliper body, often associated with a six-piston design, provides more material to absorb and dissipate heat generated during braking. This is crucial for preventing brake fade, a condition where braking performance degrades due to excessive heat build-up.
- Enhanced Pedal Feel and Modulation: The refined control offered by multiple pistons allows for a more precise and linear response from the brake pedal. Drivers experience a firmer, more reassuring pedal feel, enabling finer modulation of braking force, which is critical for track driving and spirited road use.
The first application of this visionary design was for the BMW E30 M3 in 1994. This highly revered performance car demanded a braking system that could match its dynamic capabilities, and the TAROX 6-piston caliper delivered precisely that, setting a new benchmark for aftermarket upgrades.
The 'Sport' Brake Kit: Where it All Began
The 'Sport' brake kit is not just a product; it's the very foundation upon which TAROX built its formidable reputation. It represents the culmination of that initial pioneering spirit and engineering excellence. When TAROX refers to the 'Sport' brake kit, they are talking about the complete system designed to dramatically elevate a vehicle's braking performance far beyond OEM capabilities.

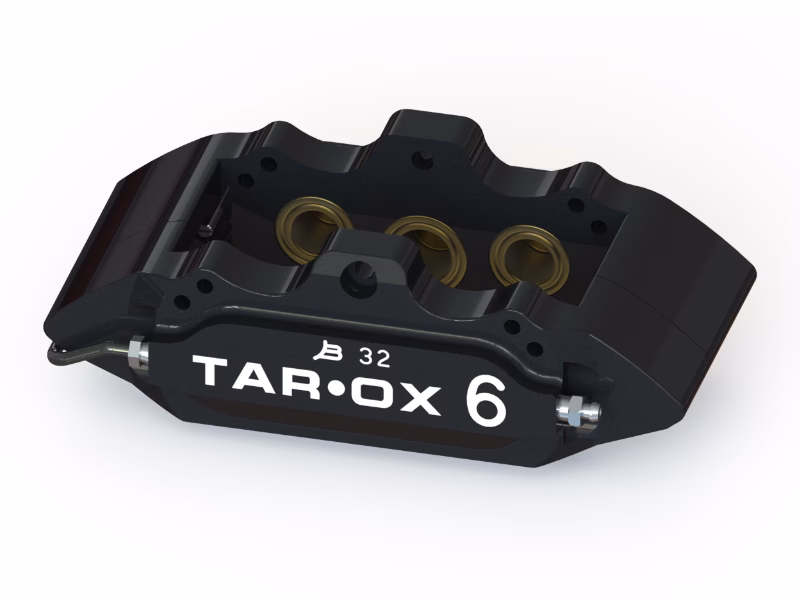

Most Sport kits available today feature the direct descendant of that original 6-piston caliper – the B32. But the caliper is only one part of the equation. The comprehensive nature of the Sport kit is what truly sets it apart. Key components of a TAROX 'Sport' brake kit include:
- TAROX B32 6-Piston Calipers: Manufactured from high-grade alloys, these calipers are not only incredibly strong but also surprisingly lightweight, contributing to reduced unsprung mass. Their design ensures optimal rigidity and consistent performance under extreme conditions.
- Two-Piece Discs: A hallmark of the Sport kit is the inclusion of two-piece discs. Prior to TAROX, these were almost exclusively found on race circuits. Comprising a separate bell (or hub) and rotor, these discs offer significant advantages over traditional one-piece rotors.
- Brake Pads: The kit is typically supplied with high-performance brake pads designed to complement the calipers and discs, offering excellent friction characteristics across a wide temperature range.
- Braided Hoses: Stainless steel braided brake lines are often included, providing a firmer pedal feel by eliminating the expansion inherent in rubber hoses under pressure.
- Mounting Hardware: All necessary brackets and hardware are included for a direct bolt-on installation, ensuring perfect fitment and alignment.
The combination of these meticulously engineered components ensures that the 'Sport' kit delivers a transformative braking experience, characterised by immediate response, unwavering stopping power, and exceptional fade resistance.
The Revolutionary Two-Piece Disc: From Race Track to Road
The integration of two-piece discs into a road-going performance brake kit was another significant leap forward pioneered by TAROX. Traditionally, brake discs for production vehicles were single-piece cast iron units. While effective for standard use, they have limitations when subjected to the extreme heat and stress of high-performance driving.
Two-piece discs, as the name suggests, are composed of two distinct parts:
- The Bell (or Hat): This is the central mounting part, typically made from a lightweight, high-strength alloy like aluminium. It bolts directly to the wheel hub.
- The Rotor Ring: This is the friction surface, usually made from high-carbon cast iron, which is bolted to the bell.
The benefits of this design are multifaceted and crucial for performance applications:
- Reduced Unsprung Weight: By using a lightweight alloy for the bell, the overall weight of the brake disc is significantly reduced compared to a solid one-piece unit. This reduction in unsprung mass improves suspension responsiveness, ride quality, and overall vehicle dynamics.
- Improved Heat Management: The separate design allows for better thermal management. The bell and rotor can expand and contract independently, reducing stress and preventing warping under extreme heat. Additionally, the floating design often incorporates ventilation channels that enhance airflow and cooling.
- Cost-Effectiveness in the Long Run: When the friction surface wears out, only the rotor ring needs to be replaced, not the entire disc assembly, which can be more economical over time.
- Enhanced Durability: The ability of the rotor to 'float' on the bell via various mounting methods (e.g., bobbins) allows for thermal expansion without inducing stress on the disc, leading to greater longevity and resistance to cracking.
Bringing this race-proven technology to the road-going 'Sport' kit demonstrated TAROX's unwavering commitment to providing enthusiasts with cutting-edge innovation and unparalleled performance.
Engineering Beyond the Pistons: Precision and Materials
The success of the TAROX 6-piston caliper and the 'Sport' kit isn't just about the number of pistons or the design of the discs; it's deeply rooted in the meticulous engineering and choice of raw materials. TAROX has always prioritised the use of high-grade alloys for manufacturing their calipers. This ensures not only exceptional strength and rigidity but also optimal heat resistance and a long lifespan. The precision with which these components are machined is equally critical, ensuring tight tolerances for consistent performance and safe operation.
Every aspect, from the internal fluid passages within the caliper to the specific metallurgy of the disc, is carefully considered and rigorously tested. This dedication to material science and manufacturing excellence is what truly differentiates a TAROX 'Sport' kit from lesser alternatives and underscores its reputation for reliability under the most demanding conditions.
Comparative Insight: 4-Piston vs. 6-Piston Calipers
To fully appreciate the impact of TAROX's decision, it's useful to compare the fundamental characteristics of a 4-piston setup with their chosen 6-piston design:
| Feature | Typical 4-Piston Caliper | TAROX 6-Piston Caliper |
|---|---|---|
| Clamping Force | Good for most performance applications | Superior, higher overall force |
| Pad Wear Evenness | Can sometimes show tapered wear | Excellent, very even pressure distribution |
| Heat Dissipation | Adequate for moderate use | Enhanced, larger mass aids cooling |
| Pedal Feel/Modulation | Good, but can be less precise | Excellent, very precise and linear response |
| Complexity/Cost | Generally simpler, lower cost | More complex, higher initial investment |
| Application | Sporty road cars, light track use | High-performance road cars, heavy track use |
Comparative Insight: One-Piece vs. Two-Piece Discs
Similarly, understanding the advantages of two-piece discs highlights their importance in the 'Sport' kit:
| Feature | Traditional One-Piece Disc | TAROX Two-Piece Disc |
|---|---|---|
| Weight | Heavier unsprung mass | Significantly lighter unsprung mass |
| Heat Management | Prone to warping under extreme heat | Superior, better thermal expansion control |
| Cost | Generally lower initial cost | Higher initial cost, but replaceable rotor ring |
| Maintenance | Whole unit replaced when worn | Only rotor ring replaced when worn |
| Performance | Good for standard driving | Excellent, ideal for aggressive driving/track |
Frequently Asked Questions (FAQs)
Is a 6-piston caliper always better than a 4-piston one?
While a 6-piston caliper generally offers superior performance in terms of clamping force, heat management, and pedal feel, 'better' is subjective to the application. For a daily driver with mild performance aspirations, a high-quality 4-piston system might be perfectly adequate and more cost-effective. However, for serious performance enthusiasts, track days, or vehicles with significant power upgrades, the benefits of a 6-piston setup become overwhelmingly apparent.
What vehicles benefit most from a TAROX 'Sport' brake kit?
Vehicles that are regularly driven spiritedly, participate in track days, or have undergone significant engine performance modifications will see the most dramatic improvements from a 'Sport' kit. High-performance saloons, sports cars, and even some performance SUVs are ideal candidates, as their original braking systems can often be overwhelmed by the demands placed upon them.
How often should I replace components in a 'Sport' kit?
The lifespan of components like brake pads and rotor rings depends heavily on driving style and usage. For track use, components will wear much faster than for road use. Generally, pads should be inspected regularly and replaced when wear limits are reached. Rotor rings, especially two-piece designs, are very durable but should be replaced if they show signs of cracking, excessive wear, or warping. The calipers themselves are designed for a very long lifespan, often outlasting the vehicle if properly maintained.
Are two-piece discs street legal?
Yes, two-piece discs, especially those from reputable manufacturers like TAROX, are fully street legal. They are designed and tested to meet or exceed safety standards for road use, offering enhanced performance without compromising legality.
What's the difference between the 'Sport' kit and other TAROX kits?
The 'Sport' kit is TAROX's foundational performance offering, focusing on a significant upgrade over OEM with its 6-piston caliper and two-piece discs. TAROX also offers other kits, such as the 'Big Brake Kit' which might feature even larger calipers (e.g., 8-piston or 10-piston) and discs for extreme applications, or 'Street' kits that offer a more subtle upgrade over OEM for daily driving. The 'Sport' kit strikes an excellent balance of performance, durability, and value for the serious enthusiast.
The Enduring Legacy of the 'Sport' Kit
The development of the 6-piston caliper and the subsequent launch of the 'Sport' brake kit were pivotal moments in TAROX's history and for the performance braking industry as a whole. This bold move by Gianni Taroni to 'ignore convention' affirmed TAROX as a true legacy brand and a pioneer of performance braking. It demonstrated that by combining visionary design, high-grade materials, and meticulous engineering, it was possible to create braking systems that not only met but exceeded the evolving demands of high-performance vehicles.
Today, the 'Sport' brake kit, with its B32 6-piston caliper and two-piece discs, remains a cornerstone of the TAROX range, a testament to the enduring quality and forward-thinking innovation that defined its inception. It continues to deliver the superior stopping power, consistency, and pedal feel that performance enthusiasts demand, ensuring that TAROX remains at the forefront of automotive braking technology.
