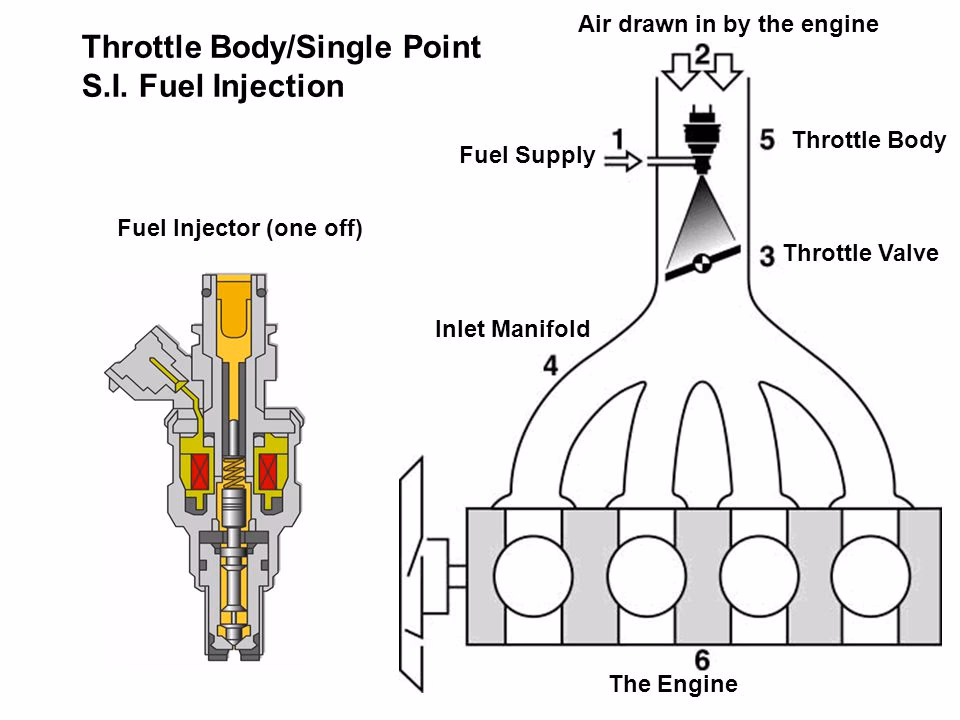

Having trouble with your vehicle’s fuel injection system can be a truly frustrating experience, often leading to perplexing symptoms like extended cranking, rough idling, or even a complete failure to start. While modern vehicles are complex, sometimes the most effective diagnostic methods are surprisingly simple and can be performed right in your own driveway. This guide will walk you through a clever, hands-on diagnostic procedure that can swiftly pinpoint issues related to your distributor, ignition coil, relays, Engine Control Unit (ECU), fuel pump, and even the fuel injectors themselves. Forget complicated equipment for a moment; this test, often achievable by a single person, provides crucial insights into the heart of your engine’s management system.
Before you even consider reaching for a test light or other specialised tools, understanding the fundamental interplay between your distributor's Hall sensor and the ECU is paramount. This procedure leverages that relationship, allowing you to manually simulate engine rotation and observe the ECU's critical responses. It’s a rapid, effective way to determine if your ECU is receiving the necessary signals and, more importantly, if it's correctly triggering the essential components for engine operation – spark, fuel delivery, and injector activation. While a test light is invaluable for checking electrical continuity and power, this specific method offers a holistic system check that can often narrow down complex fuel injection problems in mere minutes.
Understanding the Core Principle: The Hall Sensor and ECU Synergy
At the heart of many ignition and fuel injection systems lies the distributor, which, beyond distributing spark, often houses a crucial component: the Hall sensor. This sensor acts as the engine's "eye," detecting the rotational position of the distributor shaft. As the shaft turns, the Hall sensor generates precise electronic pulses. These pulses are then sent directly to the Engine Control Unit (ECU), the vehicle's brain. The ECU relies on these Hall pulses as a fundamental signal, informing it exactly when to perform three critical actions simultaneously:
- To fire the ignition coil, generating a high-voltage spark for combustion.
- To activate the fuel injectors, ensuring the correct amount of fuel is delivered to the cylinders.
- To engage the fuel pump relay, thereby ensuring a consistent supply of fuel from the tank.
The beauty of this diagnostic test lies in its simplicity: by manually rotating the distributor rotor, you effectively trick the ECU into thinking the engine is turning. If the ECU is functioning correctly and receiving the Hall pulses, it should respond by performing all three of these actions for each pulse it receives. Observing whether these actions occur, and which ones do not, provides a powerful diagnostic roadmap.
Preparation: Setting the Stage for Success
Before embarking on any diagnostic work, especially involving fuel and electrical systems, safety must be your absolute priority. Ensure your work area is well-ventilated and free from open flames or sparks. Have a fire extinguisher readily available. Read through all steps thoroughly before beginning, ensuring you understand each instruction. This preparation phase is quick but vital for both safety and accuracy.
Disconnect the Centre Lead: Carefully pull the thick centre wire out of the distributor cap. This is the main high-tension lead that carries spark from the coil to the distributor. Once removed, position the loose end of this wire so it is about 1-2 cm away from a good, unpainted metal part of the engine block. This creates a small gap for you to visually observe a spark. Be cautious; this wire carries very high voltage.
Remove Distributor Cap and Wires: Gently unclip and remove the entire distributor cap. It's often easiest to leave the spark plug wires attached to the cap itself, moving the whole assembly aside. This gives you clear access to the distributor rotor and shaft.
Note Rotor Position: This step is absolutely critical for correct reassembly. Take a moment to accurately observe and make a mental note, or even better, a quick sketch, of precisely where the rotor is pointing. The rotor typically points towards one of the spark plug towers on the cap. Also, ensure the 10mm nut securing the distributor clamp is tight for now; this prevents accidental rotation of the entire distributor housing.
Loosen Distributor Clamp: Locate the 13mm nut that holds the distributor clamp bracket to the engine block. Loosen this nut, but only by a couple of threads. The goal is to allow the distributor body to lift slightly without completely detaching or losing its approximate position. Leaving the nut on the stud prevents the distributor from lifting too far and potentially disengaging from its drive gear.
Enable Rotor Free Spin: With the 13mm nut loosened, gently wiggle and lift the entire distributor body upwards by just a small amount – perhaps 5-10mm. You should now be able to freely rotate the distributor rotor with your fingers. This confirms that the distributor gear has disengaged slightly from the engine's camshaft gear, allowing manual rotation without turning the engine over.
The Diagnostic Test: Observing ECU Responses
Now that your setup is ready, you can initiate the test. This is where you directly observe the ECU's reactions to simulated engine signals. Remember, the key is to turn the ignition on but *not* to crank the engine with the starter.
Turn Key to "ON": Insert your ignition key and turn it to the "ON" position (usually the second click, just before "START"). Do not engage the starter motor. All dashboard warning lights should illuminate, indicating the electrical system is active.
Manually Rotate Rotor: With the key on, slowly rotate the distributor rotor by hand. You should perform this rotation in small increments, ideally about a quarter turn at a time, pausing briefly after each movement to observe the responses. For each approximate 1/4 turn of the rotor, you should observe the following:
- Fuel Pump Relay Click and Pump Run: You should distinctly feel the fuel pump relay click (often located in the fuse box or relay panel) and hear the fuel pump briefly run for about a second. This indicates the ECU is receiving the Hall pulse and attempting to prime the fuel system.
- Injector Clicks: You should hear distinct clicking sounds from the fuel injectors. Each click signifies that the ECU is sending a signal to open and close the injectors, indicating it's attempting to spray fuel. If you've opted for the optional visual check (detailed below), you would see a spray of fuel.
- Strong Spark: Observe the loose end of the centre wire you positioned near engine metal. For each 1/4 turn of the rotor, you should see a strong, bright blue spark jump across the gap. This confirms the ECU is signalling the ignition coil to fire. Exercise extreme caution here; do not touch the wire or the engine metal while observing the spark.
Optional Visual Verification: Checking Injector Spray
For a more comprehensive check, you can also visually verify that each injector sprays properly. This involves carefully removing one or more injector pairs, which are usually held down by a screw, and lifting them just enough to expose their tips. However, this step carries a significant fire risk due to exposed fuel and potential sparks. Proceed with extreme caution and only if you are confident in your abilities and have appropriate safety measures in place (e.g., fire extinguisher ready, good ventilation). If a spark hits the sprayed fuel, a fire could easily result. It is generally recommended to perform this visual check only if the initial auditory and spark tests suggest an injector issue.
Interpreting Your Results: What the Test Tells You
The true power of this test lies in interpreting the observed outcomes. By comparing what *should* happen to what *actually* happens, you can quickly narrow down the potential culprits. Remember, if the ECU sees a Hall pulse, it should ideally trigger all three actions simultaneously: spark, injector fire, and fuel pump activation.
| Observed Outcome During Rotor Turn | What It Indicates | Next Steps for Troubleshooting |
|---|---|---|
| No Spark, No Injector Click, No Fuel Pump Run | The ECU is likely *not* receiving the Hall pulse, or the ECU itself is completely dead. | Check wiring from Hall sensor to ECU. Test Hall sensor directly (though this manual test largely bypasses the need for a separate sensor test if no response at all). Consider ECU power supply and ground. |
| Spark Only (No Fuel Pump/Injectors) | The ECU is receiving the Hall pulse and is signalling the ignition, but failing to activate fuel delivery. | Investigate fuel pump relay, fuel pump wiring, fuel pump fuse, and injector circuit wiring. The ECU's fuel control logic might be faulty. |
| Fuel Pump Only (No Spark/Injectors) | The ECU is receiving the Hall pulse and is activating the fuel pump, but failing to trigger ignition and injectors. | Check ignition coil primary circuit, ignition module (if external to coil), and injector circuit. The ECU's ignition and injector control logic might be faulty. |
| Injector Click Only (No Spark/Fuel Pump) | Less common, but indicates ECU is receiving the Hall pulse and activating injectors, but failing on ignition and fuel pump. | Similar to above, investigate ignition system (coil, module) and fuel pump relay/circuit. |
| All Three Actions Occur (Spark, Injectors, Fuel Pump) | The ECU is successfully receiving the Hall pulse and is correctly triggering all primary engine management functions. | This test confirms the basic functionality of the Hall sensor, ECU, ignition coil, and fuel pump relay/pump. Your problem likely lies elsewhere, such as:
|
Important Notes and Variations (Digifant Harness)
The Digifant engine management system, found in various vehicles, can exhibit slight variations in behaviour, particularly regarding the Idle Control Valve (ICV). While not directly part of the core diagnostic steps described, understanding these nuances can prevent confusion during the test:
- Constant Buzzing: In some Digifant harness versions, the idle control valve is powered and vibrates continuously whenever the ignition key is in the "ON" position. If your vehicle exhibits this, you will hear a constant buzzing sound throughout the entire test procedure.
- Intermittent Buzzing: In many later Digifant vans and vehicles, the idle control valve only activates when the fuel pump relay is engaged. This means that during your test, you will hear the idle valve buzz briefly each time the rotor is turned and the fuel pump relay clicks on.
Neither of these behaviours indicates a fault with the test itself; they are simply characteristics of different Digifant system configurations. Be aware of them so you don't misinterpret the buzzing as an issue.
Reassembly: Putting Everything Back Correctly
Once you have completed your diagnostic test and gathered your observations, it's crucial to reassemble the distributor and associated components correctly. Incorrect reassembly can lead to serious engine timing issues or a complete non-start condition.
Align Rotor: Carefully rotate the distributor rotor back to the exact position you noted in step 3. This ensures your ignition timing remains correct.
Reseat Distributor: Gently push the distributor body back down into its housing. You may need to slightly rock the rotor back and forth as you push down to ensure the distributor's drive gear properly engages with the keyed slot on the engine's camshaft. Once fully seated, tighten the 13mm nut that secures the distributor clamp bracket to the engine block. Ensure it's snug, but do not overtighten.
Replace Distributor Cap and Lead: Reattach the distributor cap, ensuring it clicks firmly into place. Then, securely reinsert the thick centre lead into the distributor cap. If you removed any injector pairs for visual inspection, reattach them now, ensuring their hold-down screws are properly tightened.
Frequently Asked Questions (FAQs)
- Can I use a test light for this procedure?
- The primary test described here is a manual diagnostic that relies on observing the ECU's mechanical and auditory responses (clicks, sparks, pump sound). While a test light is an excellent tool for checking voltage and continuity in electrical circuits, it is not explicitly required for the core steps of this particular system-level test. However, if this test reveals an issue (e.g., no power to the fuel pump relay), a test light would be invaluable for further electrical troubleshooting of that specific circuit.
- How long should this test take?
- The basic diagnostic test, from initial setup to reassembly, should typically take around 5 minutes for someone familiar with the procedure. If you opt for the visual injector spray check, it will take longer and requires additional caution.
- What if I don't hear the fuel pump run or the injectors click?
- If you don't observe all three responses (spark, injector click, fuel pump run) when turning the rotor, it indicates a problem. Refer to the "Interpreting Your Results" table above. For example, if the fuel pump doesn't run, it could point to a faulty fuel pump relay, a dead fuel pump, or a wiring issue between the ECU and the pump/relay, or even an ECU fault in that specific circuit.
- Is it safe to get a spark from the centre wire?
- Yes, it's part of the test to confirm ignition system function. However, it's crucial to exercise extreme caution. Do not touch the loose wire end or any engine metal it's near while the key is on and you are turning the rotor. The voltage is extremely high and can deliver a dangerous shock. Maintain a safe distance and only observe visually.
- Why is it important to note the rotor's original position?
- Noting the rotor's original position is critical for correct ignition timing. If the distributor is not reinstalled with the rotor in its original orientation, your engine's ignition timing will be incorrect, potentially leading to a non-start, rough running, or even engine damage.
- Can I perform this test alone?
- Yes, this test is designed to be performed by a single individual. The steps allow you to observe the necessary responses while manipulating the distributor rotor yourself.
- My idle control valve is buzzing constantly during the test. Is this normal?
- Yes, depending on the specific Digifant harness version in your vehicle, the idle control valve may buzz constantly whenever the ignition is on, or it may buzz intermittently only when the fuel pump relay is active. Neither scenario indicates a fault with the test or your vehicle, but rather a characteristic of your system's configuration.
Conclusion
Diagnosing fuel injection problems doesn't always require expensive diagnostic equipment. This clever, manual test offers a rapid and effective way to assess the fundamental health of your vehicle's engine management system, particularly focusing on the crucial interplay between the distributor's Hall sensor and the ECU's responses. By carefully following the steps and accurately interpreting the results, you can quickly determine if your ECU is receiving the necessary signals and if it's correctly triggering the vital components for ignition and fuel delivery. This knowledge empowers you to either confirm basic system functionality or pinpoint the general area of a fault, guiding you towards more targeted troubleshooting or professional assistance. Remember, patience and adherence to safety guidelines are paramount for a successful and insightful diagnostic experience.
