Modern vehicles owe much of their efficiency, power, and reduced emissions to the sophisticated technology of the fuel injection system. Far more advanced than the carburettors of old, these systems precisely control the amount of fuel delivered to the engine, allowing for superior fuel atomisation and optimal combustion efficiency. Understanding a fuel injection system diagram isn't just for mechanics; it's a valuable insight for any car owner looking to grasp the fundamental workings of their vehicle. This diagram typically illustrates the intricate network of components, from the fuel tank right through to the engine cylinders, showcasing how fuel is meticulously managed at every stage.
At its core, a fuel injection system is designed to deliver fuel to the engine's combustion chambers with unparalleled precision. This precision is crucial for achieving the perfect air-fuel mixture, leading to more complete combustion, better fuel economy, and significantly lower harmful emissions. Without a well-functioning fuel injection system, your car would struggle to start, run rough, or simply fail to operate efficiently. Let's delve deeper into the key components that make up this vital system and how they interact to keep your engine running smoothly.
The Core Components of a Fuel Injection System
A typical fuel injection system diagram highlights several critical components, each playing a distinct role in the journey of fuel from storage to combustion. Understanding each part is essential to comprehending the system as a whole.
The Fuel Tank
This is where it all begins. The fuel tank serves as the primary storage vessel for your vehicle's petrol or diesel. Modern fuel tanks are designed not just to hold fuel but also to minimise evaporation and safely contain the fuel in various driving conditions. They often include a fuel sender unit to report the fuel level to the dashboard gauge and a vent system to allow air in as fuel is consumed, preventing a vacuum.
The Fuel Pump
The fuel pump is the workhorse that draws fuel from the tank and delivers it under pressure to the rest of the system. In most modern vehicles, the fuel pump is an electric unit located inside the fuel tank itself, known as an 'in-tank' pump. This placement helps to keep the pump cool and quiet. Some systems, particularly those with direct injection, will also feature a secondary, high-pressure fuel pump mounted on the engine, which further increases fuel pressure to extremely high levels for precise injection directly into the combustion chamber.
The Fuel Filter
Between the fuel pump and the engine, the fuel filter acts as a crucial barrier. Its primary function is to remove impurities, rust, dirt, and other contaminants from the fuel before it reaches the sensitive components of the injection system, especially the injectors. A clogged fuel filter can significantly restrict fuel flow, leading to performance issues, reduced fuel economy, and potentially damaging the fuel pump or injectors. Regular replacement is key to system longevity.
The Fuel Rail
Once filtered and pressurised, the fuel is delivered to the fuel rail. This is a metal tube or manifold that distributes the pressurised fuel evenly to each of the fuel injectors. The fuel rail maintains a consistent pressure for all injectors, ensuring that each cylinder receives the correct amount of fuel when its respective injector opens. A pressure regulator is often integrated into or connected to the fuel rail to maintain this consistent pressure.
The Fuel Injectors
These are the heart of the fuel delivery system. Fuel injectors are electronically controlled valves that spray a fine, atomised mist of fuel into the engine. In multi-port fuel injection (MPFI) systems, injectors are typically located in the intake manifold, just before the intake valves of each cylinder. In direct injection (DI) systems, the injectors are positioned directly within the combustion chamber of each cylinder. The precise timing and duration of the injector opening are controlled by the engine's onboard computer, the Engine Control Unit (ECU).
Sensors and Actuators
For the ECU to make informed decisions about fuel delivery, it relies heavily on a network of sensors. These sensors provide real-time data about various engine operating conditions. Key sensors include:
- Oxygen (O2) Sensor: Measures the oxygen content in the exhaust gases to determine how rich or lean the air-fuel mixture is.
- Mass Air Flow (MAF) Sensor: Measures the amount of air entering the engine.
- Manifold Absolute Pressure (MAP) Sensor: Measures the pressure inside the intake manifold, indicating engine load.
- Throttle Position Sensor (TPS): Detects the position of the throttle pedal, indicating driver demand.
- Crankshaft Position Sensor (CKP) & Camshaft Position Sensor (CMP): Provide information about engine speed and piston position for precise timing.
- Engine Coolant Temperature (ECT) Sensor: Informs the ECU about engine temperature, crucial for cold-start enrichment.
Based on the data from these sensors, the ECU acts as the 'brain' of the system, calculating the optimal fuel quantity and injection timing. It then sends signals to actuators, primarily the fuel injectors, to open for the precise duration required.

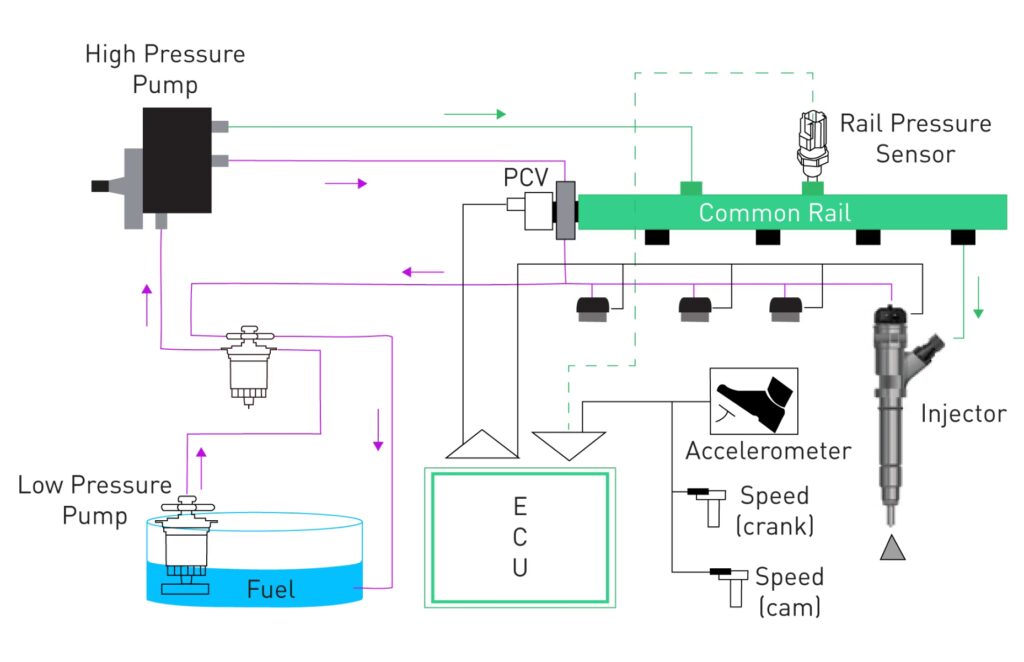

How the Fuel Injection System Operates: A Flow Diagram
Visualising the flow of fuel and information helps in understanding the system's dynamic nature:
- Fuel is drawn from the fuel tank by the fuel pump.
- The pump sends the pressurised fuel through the fuel filter to remove contaminants.
- Clean, pressurised fuel arrives at the fuel rail, which distributes it to individual fuel injectors.
- Various sensors continuously monitor engine conditions (air intake, engine speed, temperature, exhaust gases, throttle position).
- The Engine Control Unit (ECU) receives data from all sensors.
- Based on this data, the ECU calculates the precise amount of fuel needed and the optimal timing for injection.
- The ECU sends electrical signals to the fuel injectors, commanding them to open for a specific duration.
- Fuel is sprayed in a fine mist into the engine's intake manifold or directly into the combustion chamber.
- The air-fuel mixture is ignited, producing power.
- The O2 sensor in the exhaust monitors the combustion byproducts, providing feedback to the ECU for continuous adjustment and optimisation. This constant feedback loop is vital for maintaining efficiency and low emissions.
Types of Fuel Injection Systems: A Comparative Look
Over the years, fuel injection technology has evolved significantly. Understanding the different types helps to appreciate the advancements in engine design.
| System Type | Description | Typical Location of Injectors | Key Advantages | Key Disadvantages |
|---|---|---|---|---|
| Single Point Injection (SPI) | Also known as Throttle Body Injection (TBI). One or two injectors spray fuel into a central throttle body, much like a carburettor. | Throttle body (central) | Simpler, lower cost than multi-point. Better fuel control than carburettors. | Less precise fuel delivery per cylinder, less efficient than multi-point. |
| Multi-Port Fuel Injection (MPFI) / Port Fuel Injection (PFI) | Individual injectors for each cylinder, located in the intake manifold runner, spraying fuel onto the back of the intake valve. | Intake manifold (one per cylinder) | Better fuel atomisation and distribution per cylinder, improved efficiency, lower emissions than SPI. | Fuel can condense on intake port walls, some power loss at higher RPMs. |
| Direct Fuel Injection (DI / GDI) | Fuel is sprayed directly into the combustion chamber of each cylinder at very high pressure. | Directly into combustion chamber (one per cylinder) | Highly precise fuel delivery, improved fuel economy, increased power output, better cold starting. | Carbon build-up on intake valves (as fuel doesn't wash them), higher system cost, requires high-pressure fuel pump. |
| Common Rail Direct Injection (CRDI) | Predominantly for diesel engines. A common rail maintains extremely high pressure, supplying fuel to individual injectors that are electronically controlled. | Directly into combustion chamber (one per cylinder) | Excellent fuel economy, reduced emissions, quieter operation, higher torque for diesel engines. | Complex, high-pressure components, sensitive to fuel quality. |
The progression from SPI to MPFI and then to DI illustrates a continuous drive for greater precision, efficiency, and performance. Modern vehicles predominantly utilise MPFI or DI systems, with DI becoming increasingly common due to its superior benefits.
Benefits of Fuel Injection Systems
The widespread adoption of fuel injection isn't by chance; it offers numerous advantages over older carburettor systems:
- Improved Fuel Efficiency: Precise control over fuel delivery means less waste and more miles per gallon.
- Reduced Emissions: A more complete combustion process leads to significantly lower levels of harmful pollutants in the exhaust gases.
- Better Performance: Engines with fuel injection generally produce more power and torque due to optimal air-fuel mixtures.
- Enhanced Cold Starting: The ECU can enrich the mixture precisely during cold starts, ensuring reliable ignition even in low temperatures.
- Smoother Operation: Consistent fuel delivery across all cylinders results in a more stable idle and smoother acceleration.
- Adaptability: The ECU can adjust fuel delivery on the fly to compensate for changes in altitude, temperature, and engine load.
Common Issues and Troubleshooting
While robust, fuel injection systems can encounter problems. A basic understanding of common issues can help in diagnosing a problem or explaining it to a mechanic.
- Clogged Fuel Injectors: Can cause misfires, rough idle, reduced power, and poor fuel economy. Often due to deposits from low-quality fuel.
- Fuel Pump Failure: Symptoms include difficulty starting, stalling, or a complete lack of engine power. If you hear a whining noise from the fuel tank, it could be a sign.
- Fuel Filter Blockage: Similar to pump failure, a restricted filter reduces fuel flow, leading to hesitation, stalling, or poor acceleration.
- Sensor Malfunctions: A faulty MAF, O2, or TPS sensor can send incorrect data to the ECU, leading to incorrect fuel delivery, poor performance, and often triggering a 'Check Engine' light.
- Fuel Pressure Regulator Issues: Can lead to either excessively high or low fuel pressure, affecting engine performance and efficiency.
When troubleshooting, a fuel injection system diagram becomes an invaluable tool. It allows you to trace the fuel path, identify potential points of failure, and understand which components might be affecting others. For example, if you suspect a fuel delivery issue, tracing the line from the tank to the injectors on the diagram helps isolate the problem to the pump, filter, or rail.
Frequently Asked Questions About Fuel Injection Systems
- What is the main difference between a carburettor and a fuel injection system?
- The main difference lies in how fuel is delivered. A carburettor uses a vacuum created by the engine to draw fuel into the air stream. A fuel injection system, however, uses a pump to pressurise fuel and then electronically controlled injectors to spray a precise amount of fuel into the engine, offering far greater control and efficiency.
- How often should I replace my fuel filter?
- Replacement intervals vary significantly depending on the vehicle manufacturer and driving conditions. Some manufacturers recommend replacement every 20,000 to 40,000 miles, while others suggest it's a 'lifetime' component. However, in areas with lower fuel quality, more frequent replacement is advisable to prevent issues. Always consult your vehicle's service manual.
- Can I clean fuel injectors myself?
- While over-the-counter fuel system cleaners poured into the fuel tank can help with minor deposits, severely clogged injectors often require professional cleaning. This typically involves removing the injectors and using specialised equipment to clean them with powerful solvents and test their spray pattern and flow rate.
- What are the signs of a failing fuel pump?
- Common signs include a whining noise from the fuel tank, difficulty starting the engine (especially when hot), sputtering or stalling at high speeds, and a significant drop in fuel pressure, which can be measured with a diagnostic tool.
- Is direct injection better than port injection?
- Direct injection (DI) generally offers superior fuel economy and more power due to its ability to precisely control fuel delivery directly into the combustion chamber. However, DI engines can be prone to carbon build-up on intake valves because fuel doesn't wash over them. Port injection (PFI) is simpler, often less expensive to maintain, and less prone to intake valve carbon issues, though typically less efficient than DI.
Conclusion
The fuel injection system is a masterpiece of automotive engineering, central to the performance, efficiency, and environmental compliance of modern vehicles. A fuel injection system diagram provides an invaluable roadmap to understanding this complex yet critical component. From the fuel tank to the precise spray of the injectors, every part works in harmony, orchestrated by the ECU and a network of sensors, to ensure your engine receives the perfect amount of fuel at the optimal moment. Appreciating this intricate ballet of mechanics and electronics not only deepens your knowledge of your vehicle but also empowers you to better understand and address potential issues, ensuring your car remains a reliable and efficient machine on the road.
