When it comes to cycling, especially for those who push their limits on challenging terrain or demanding descents, reliable braking is not just a luxury; it's an absolute necessity. Cyclists constantly seek components that offer consistent performance, maximum stopping power, and exceptional durability. In this pursuit, brake pads play a critical role, acting as the primary interface between your bike and the forces of deceleration. Among the myriad options available, the SwissStop Exotherm 2 has garnered significant attention from serious riders. But what exactly is the SwissStop Exotherm 2, and how does it stand out in the competitive world of cycling components?

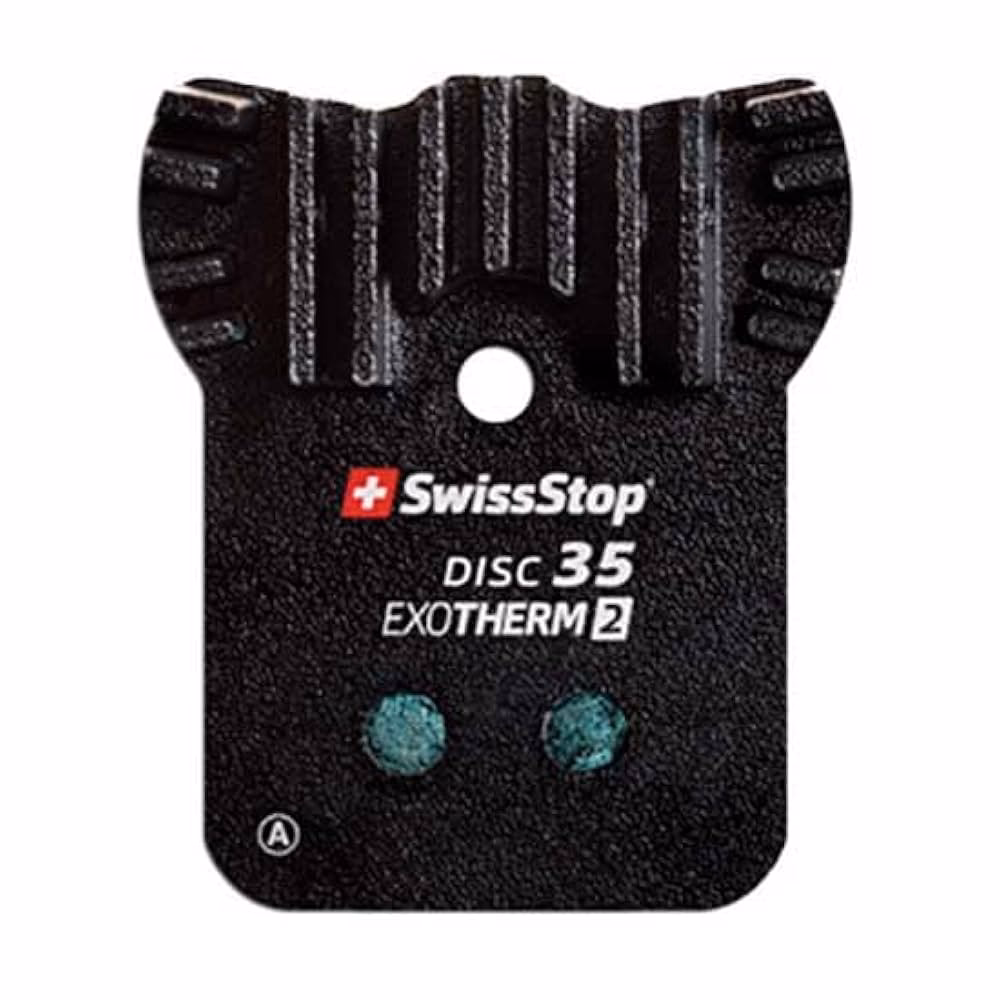

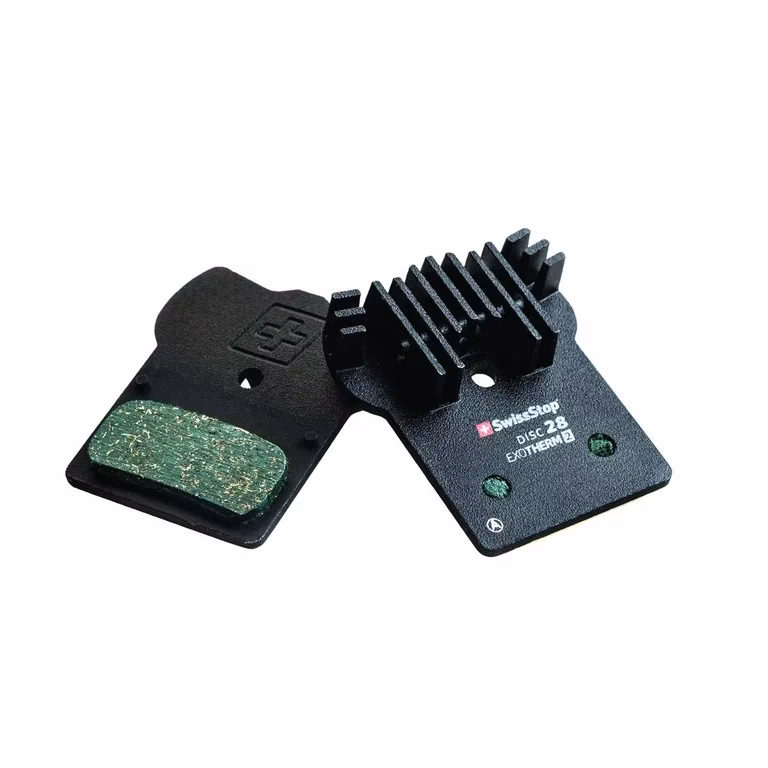

At its core, the SwissStop Exotherm 2 is a high-performance disc brake pad designed to offer superior braking characteristics, particularly in conditions where heat build-up can be a significant issue. SwissStop has long been revered in the cycling community for its commitment to engineering excellence in braking solutions. The 'Exotherm' designation itself hints at the pad's primary design philosophy: efficient heat management. In braking, friction generates heat, and excessive heat can lead to a phenomenon known as brake fade, where braking power diminishes significantly. The Exotherm 2 pads are engineered to combat this, ensuring that your stopping power remains consistent and reliable, even during prolonged and intense braking.
- Understanding Brake Fade and the Exotherm Solution
- The Anatomy of a High-Performance Brake Pad
- Comparative Overview: Exotherm 2 vs. Other Pad Types
- Maintaining Your Brake Pads and System
- Frequently Asked Questions About SwissStop Exotherm 2
- Q: Does SwissStop Exotherm 2 have a minimum brake fade?
- Q: How do I know if the SwissStop Exotherm 2 pads will fit my bike?
- Q: What is the 'bedding-in' process for new brake pads?
- Q: Are SwissStop Exotherm 2 pads noisy?
- Q: Can I use Exotherm 2 pads with any disc rotor?
- Q: How long do SwissStop Exotherm 2 pads last?
Understanding Brake Fade and the Exotherm Solution
Brake fade is a critical concern for any cyclist, especially those tackling long descents or engaging in competitive riding. It occurs when the brake system, particularly the pads and rotors, becomes excessively hot. This heat can reduce the friction coefficient of the pad material, boil the brake fluid (leading to a spongy lever feel), or even warp the rotor. The result is a dramatic reduction in braking effectiveness, which can be dangerous and confidence-sapping.
The SwissStop Exotherm 2 pads are specifically engineered to minimise brake fade through a combination of advanced pad compounds and an innovative heat management system. While the exact proprietary blend of materials remains a trade secret, it's understood that SwissStop utilises a sophisticated compound that provides a high friction coefficient across a broad temperature range. This means the pads maintain their grip on the rotor even as temperatures climb. Furthermore, the 'Exotherm' design often incorporates heat-dissipating fins on the backing plate of the pad. These fins increase the surface area, allowing heat to radiate away from the pad and caliper more efficiently. This innovative approach helps to keep the entire braking system cooler, directly addressing the root cause of brake fade.
Key Characteristics and Benefits
Beyond its impressive heat management capabilities, the SwissStop Exotherm 2 offers a range of benefits that appeal to performance-oriented cyclists:
- Exceptional Stopping Power: Riders can expect potent and reliable stopping power in both dry and wet conditions, instilling greater confidence on any terrain.
- Consistent Performance: Unlike some pads that might perform inconsistently as they heat up or cool down, the Exotherm 2 is designed to deliver predictable braking throughout your ride.
- Enhanced Modulation: Good brake pads don't just offer raw power; they provide excellent modulation, allowing riders precise control over their braking force. This is crucial for navigating technical descents and maintaining traction.
- Reduced Noise: While no brake pad can guarantee absolute silence in all conditions, SwissStop pads are generally known for their quieter operation compared to some metallic alternatives, reducing annoying squeals.
- Durability: Engineered with quality materials, these pads are designed to withstand the rigours of intense cycling, offering a reasonable lifespan even under demanding use.
The combination of these features makes the Exotherm 2 a formidable choice for anyone looking to upgrade their disc brake performance. Whether you're a mountain biker tackling gnarly trails, a road cyclist descending alpine passes, or a gravel rider exploring mixed terrain, the ability to brake confidently and consistently is paramount.
The Anatomy of a High-Performance Brake Pad
To fully appreciate the Exotherm 2, it's helpful to understand the components of a disc brake pad and how they contribute to performance:
- Pad Compound: This is the friction material that presses against the rotor. Compounds vary widely, from organic (resin-based, quieter, good initial bite) to metallic (sintered, durable, good in wet, often noisier) and semi-metallic (a blend of both). The Exotherm 2 likely uses a sophisticated semi-metallic or organic blend optimised for heat resistance and consistent friction.
- Backing Plate: This is the metal plate onto which the pad compound is bonded. It provides structural integrity and transfers the force from the caliper piston to the pad. In the case of the Exotherm 2, this backing plate is often where the heat-dissipating fins are integrated, playing a crucial role in the pad's thermal management.
- Heat Sink/Fins: These are protrusions or structures on the backing plate designed to increase the surface area, allowing heat to dissipate more rapidly into the surrounding air. This is a key differentiator for pads like the Exotherm 2, which are designed for high-heat applications.
The clever integration of these elements is what elevates a standard brake pad to a high-performance component capable of handling extreme conditions. The design isn't just about stopping power; it's about maintaining that power and control when it matters most.
Finding the Right Fit: 'Disc 34' and Beyond
One common challenge for cyclists is ensuring they select the correct brake pad shape and size for their specific brake caliper. The information provided mentions a 'Disc 34' and a downloadable life-size drawing. This is a crucial detail for compatibility. Different brake manufacturers (Shimano, SRAM, Magura, Hayes, etc.) use various pad shapes, and selecting the wrong one will result in incompatibility. SwissStop, like other pad manufacturers, produces pads in a multitude of shapes to fit a wide range of calipers.
To determine if the 'Disc 34' or any other specific SwissStop pad is the correct fit for your brakes, you should:
- Identify the model of your disc brake caliper (e.g., Shimano Deore, SRAM Level TL, etc.).
- Consult the pad manufacturer's compatibility chart or the bike component's manual.
- If available, use the provided 'life-size drawing' (like the 'Disc 34' example) by printing it at 100% scale and comparing it directly to your existing pads or the pad recess in your caliper. This hands-on comparison is an excellent way to ensure a perfect match.
Always ensure the correct pad is chosen, as an ill-fitting pad can lead to poor braking performance, excessive wear, or even damage to the brake system.
Comparative Overview: Exotherm 2 vs. Other Pad Types
To put the SwissStop Exotherm 2 into context, let's consider a conceptual comparison with other common disc brake pad types. While specific performance metrics can vary, this table highlights the general characteristics:
| Characteristic | SwissStop Exotherm 2 (High-Performance) | Standard Organic/Resin Pads | Sintered Metallic Pads |
|---|---|---|---|
| Heat Resistance / Fade | Excellent (Designed to minimise fade with advanced heat dissipation) | Good (Can fade under prolonged heavy braking) | Very Good (Good heat tolerance, but can transfer heat to caliper) |
| Initial Bite | Excellent (Strong and immediate) | Excellent (Soft feel, good initial bite) | Good (Can be less responsive when cold) |
| Modulation | Excellent (Precise control) | Very Good (Smooth and progressive) | Good (Can be more 'on-off') |
| Durability/Longevity | Very Good (Durable compound for extended life) | Fair (Wears faster, especially in wet/gritty conditions) | Excellent (Very long-lasting, especially in wet/mud) |
| Noise (Dry) | Low to Moderate (Generally quiet) | Low (Quieter operation) | Moderate to High (Can be noisy, especially when wet) |
| Noise (Wet) | Moderate (Designed to perform well in wet, may have some noise) | Moderate to High (Can become very noisy and lose performance) | Moderate to High (Often loud, but retains performance) |
| Rotor Wear | Low to Moderate (Balanced wear) | Low (Gentle on rotors) | High (Can accelerate rotor wear) |
| Application | Demanding conditions, racing, long descents, all-around performance | Casual riding, dry conditions, riders prioritising silence | Wet/muddy conditions, e-bikes, heavy-duty use, long lifespan priority |
As the table illustrates, the Exotherm 2 aims to strike an optimal balance, offering superior heat management and consistent performance that surpasses standard organic pads while often providing better modulation and less noise than typical sintered metallic pads, without the same level of rotor wear. This makes it an ideal choice for riders who demand peak performance in varied and challenging environments.
Maintaining Your Brake Pads and System
Even the best brake pads, like the SwissStop Exotherm 2, require proper maintenance to ensure optimal performance and longevity. Here are some key tips:
- Bedding-In Process: New pads, regardless of type, require a 'bedding-in' process. This involves a series of moderate to hard stops to transfer pad material to the rotor surface, ensuring full contact and optimal performance. Skipping this step can lead to reduced braking power and increased noise.
- Regular Cleaning: Keep your pads and rotors clean. Contaminants like oil, grease, or dirt can significantly degrade braking performance and cause noise. Use specific disc brake cleaner and avoid getting lubricants near your brake components.
- Inspection for Wear: Regularly check your pads for wear. Most pads have a wear indicator, but generally, if the friction material is less than 1mm thick, it's time for replacement. Uneven wear can indicate a caliper issue.
- Rotor Condition: Inspect your rotors for wear, warping, or contamination. A worn or damaged rotor will compromise even the best pads.
- Bleeding Brakes: If your brake lever feels spongy, it might be time to bleed your hydraulic brake system to remove air bubbles. This is distinct from pad performance but crucial for overall braking.
By adhering to these maintenance practices, you'll ensure that your SwissStop Exotherm 2 pads deliver their full potential ride after ride, enhancing your safety and enjoyment on the bike.
Frequently Asked Questions About SwissStop Exotherm 2
Q: Does SwissStop Exotherm 2 have a minimum brake fade?
A: The SwissStop Exotherm 2 pads are specifically engineered to significantly minimise brake fade. While no brake pad can entirely eliminate fade under extreme, sustained braking, the Exotherm 2's design, incorporating advanced compounds and heat-dissipating fins, is aimed at maintaining consistent braking performance even when temperatures climb, thus reducing the occurrence and severity of brake fade to a minimum for practical cycling applications.
Q: How do I know if the SwissStop Exotherm 2 pads will fit my bike?
A: You need to know the specific model of your disc brake caliper. SwissStop produces pads in various shapes to fit different manufacturers' calipers (e.g., Shimano, SRAM, Magura). The reference to 'Disc 34' suggests a specific pad shape. You can typically find a compatibility chart on the SwissStop website or from your bike's manufacturer. If a life-size drawing like 'Disc 34' is available, print it at 100% scale and compare it directly to your current pads to confirm the fit.
Q: What is the 'bedding-in' process for new brake pads?
A: Bedding-in new brake pads is crucial. It involves performing 20-30 progressive stops from moderate speed (e.g., 20 mph) down to walking pace, without coming to a complete stop. This process transfers a thin layer of pad material onto the rotor, optimising the friction surface and ensuring full braking power and quiet operation from the start. Avoid hard, emergency stops during this initial phase.
Q: Are SwissStop Exotherm 2 pads noisy?
A: SwissStop pads are generally known for their relatively quiet operation compared to some other high-performance options, particularly sintered metallic pads. However, brake noise can be influenced by many factors, including rotor contamination, improper bedding-in, caliper alignment, and wet conditions. If you experience noise, ensure your pads and rotors are clean and properly bedded in.
Q: Can I use Exotherm 2 pads with any disc rotor?
A: SwissStop Exotherm 2 pads are designed for use with standard bicycle disc brake rotors. They are compatible with common rotor materials like stainless steel. However, always ensure your rotors are clean, in good condition, and not excessively worn for optimal performance with any brake pad.
Q: How long do SwissStop Exotherm 2 pads last?
A: The lifespan of brake pads varies significantly depending on riding style, terrain, weather conditions, and rider weight. Exotherm 2 pads are built for durability, but aggressive braking, long descents, and riding in wet or gritty conditions will accelerate wear. Regular inspection is key to knowing when to replace them.
In conclusion, the SwissStop Exotherm 2 represents a significant advancement in bicycle disc brake pad technology. By expertly tackling the challenge of heat management and brake fade, it offers cyclists a reliable, powerful, and consistent braking experience. For those who demand the utmost performance and safety from their cycling equipment, the Exotherm 2 is a compelling choice that promises to elevate your ride.
