SV150 Intake: How it Works

The intake system of any engine is a critical component, responsible for delivering the precise mixture of air and fuel to the combustion chamber. For the SV150 engine, understanding its intake system is key to ensuring optimal performance, efficiency, and longevity. This manual aims to provide a comprehensive overview of how the SV150's intake system functions, from the initial draw of air to its delivery to the induction valve. While specific exploded view diagrams for the SV150 are not readily available to share, we can delve into the fundamental principles and components that constitute its intake process.

The Role of the Air Filter

At the forefront of the SV150's intake system lies the air filter. Its primary purpose is to act as a barrier, preventing airborne contaminants such as dust, dirt, and debris from entering the engine. These impurities, if allowed to pass, can cause significant wear and tear on internal engine components, leading to premature failure. The air filter is typically made from a porous material, such as paper or foam, which allows air to pass through while trapping solid particles. Regular inspection and replacement of the air filter are crucial maintenance tasks to ensure a consistent and clean air supply to the engine.

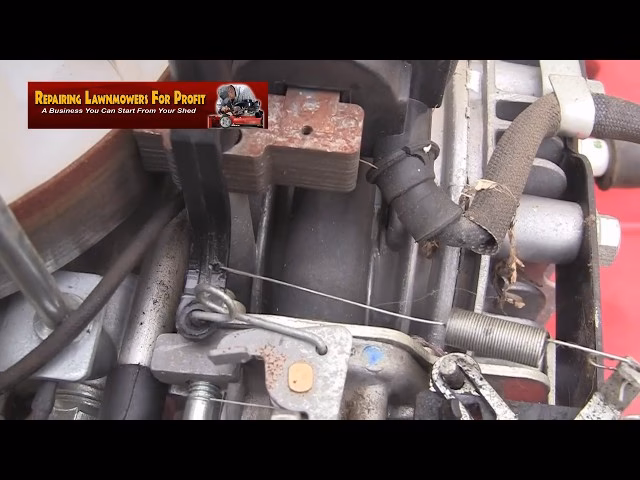

Connecting to the Carburettor

Directly connected to the air filter is the carburettor. This ingenious device is the heart of the fuel delivery system. Its function is to atomise the fuel and mix it with the incoming air in the correct ratio for combustion. The carburettor operates on the principle of the Venturi effect. As air is drawn through a narrowed section of the carburettor (the Venturi), its velocity increases, and its pressure decreases. This low-pressure area draws fuel from the fuel bowl through a jet and into the airstream. The finer the atomisation of the fuel, the more efficiently it will burn, leading to better power and fuel economy. The SV150's carburettor will have specific settings and adjustments that are vital for its correct operation, and these should only be adjusted by trained personnel.

The Function of the Manifold

Following the carburettor, the air-fuel mixture is channelled through the manifold. The manifold's role is to evenly distribute this combustible mixture to each of the engine's cylinders. In a single-cylinder engine like the SV150, the manifold is relatively straightforward, directing the mixture from the carburettor to the induction valve. The design of the manifold is important for ensuring that the mixture arrives at the cylinder with optimal velocity and distribution. Uneven distribution can lead to performance discrepancies between cylinders in multi-cylinder engines, but in a single-cylinder setup, the focus is on efficient delivery.

The Induction Valve: The Gateway to Combustion

The final component in the intake path is the induction valve, also commonly known as the intake valve. This valve is precisely timed to open at the appropriate moment during the engine's cycle. When the induction valve opens, it allows the pre-prepared air-fuel mixture from the manifold to be drawn into the cylinder by the downward movement of the piston. This phase of the engine cycle is known as the intake stroke. Once the mixture has entered the cylinder, the induction valve closes, sealing the combustion chamber for the subsequent compression and power strokes. The timing and sealing integrity of the induction valve are paramount for efficient engine operation.

Putting It All Together: The Intake Sequence

The entire process is a continuous cycle. Air is drawn through the clean air filter, then into the carburettor where it is mixed with fuel. This air-fuel mixture then travels through the manifold and is finally admitted into the cylinder when the induction valve opens during the intake stroke. The efficiency of each of these stages directly impacts the overall performance of the SV150 engine. A clogged air filter will starve the engine of air, a poorly adjusted carburettor will result in an incorrect fuel-air ratio, and a malfunctioning induction valve will hinder the entry of the mixture or compromise the seal of the combustion chamber.

Maintenance and Troubleshooting

Given the interconnectedness of these components, regular maintenance is key. This includes:

• Air Filter: Inspect and clean or replace the air filter according to the service schedule. A dirty filter restricts airflow, reducing power and increasing fuel consumption.
• Carburettor: While not requiring frequent adjustment, the carburettor may need cleaning or tuning if the engine runs rough, hesitates, or stalls. Ensure the correct fuel-air mixture is maintained.
• Manifold: Check for any cracks or leaks in the manifold, as these can introduce unmetered air, disrupting the fuel-air ratio.
• Induction Valve: Ensure the valve seats properly and that its timing is correct. Valve clearance adjustments may be necessary as part of regular servicing.

Frequently Asked Questions

Q1: What is the primary function of the SV150's intake system?
A1: The primary function is to deliver a precisely mixed charge of air and fuel to the engine's cylinders for combustion.

Q2: Why is the air filter so important?
A2: The air filter prevents harmful contaminants from entering the engine, protecting internal components from wear and damage.

Q3: How does the carburettor work?
A3: It atomises fuel and mixes it with incoming air using the Venturi effect to create a combustible mixture.

Q4: What can happen if the intake manifold has a leak?
A4: A leak can allow unmetered air into the system, leaning out the fuel-air mixture and negatively impacting performance and efficiency.

Q5: Where can I find exploded view diagrams for the SV150?
A5: Unfortunately, specific exploded view diagrams for the SV150 are not readily available to be shared at this time. However, understanding the function of each component, as outlined above, provides a solid foundation for servicing and repair.

In conclusion, the SV150's intake system, comprising the air filter, carburettor, manifold, and induction valve, works in harmony to ensure efficient engine operation. By understanding the role of each part and adhering to a regular maintenance schedule, owners can maximise the performance and lifespan of their SV150 engine.
