DIY: Suzuki Grand Vitara Rear Brake Shoe Swap

Ensuring your vehicle's braking system is in top condition is paramount for safety on the road. For many Suzuki Grand Vitara MK2 owners (models 2005-2015), the rear brakes utilise a drum and shoe system, which, while robust, requires periodic maintenance. Worn rear brake shoes can significantly compromise your stopping power, leading to extended braking distances and an uncomfortable driving experience. This comprehensive guide will walk you through the process of replacing the rear brake shoes on your Grand Vitara, empowering you to tackle this essential maintenance task with confidence.

While the process might seem daunting at first, with the right tools, a methodical approach, and a focus on safety, you can successfully replace your rear brake shoes and restore your vehicle's braking efficiency. This guide is designed to be as thorough as possible, covering everything from initial preparation to final adjustments. Let's dive in and get your Grand Vitara stopping like new!

Understanding Your Rear Drum Brakes

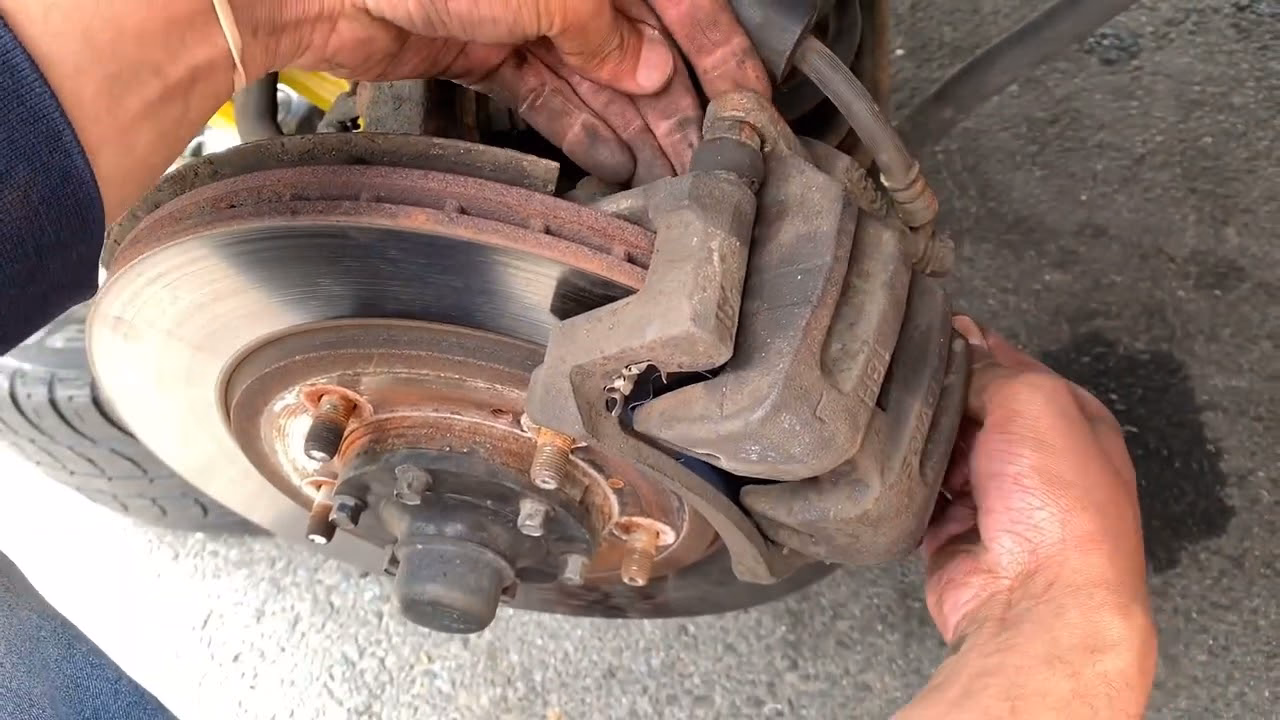

Unlike disc brakes, which use calipers and pads to squeeze a rotor, drum brakes employ shoes that press outwards against the inside of a drum. When you press the brake pedal, hydraulic pressure forces the wheel cylinder to push the brake shoes against the rotating drum, creating friction that slows the wheel. They are often used on the rear axle due to their effectiveness as a parking brake and their suitability for lighter braking loads. Over time, the friction material on the shoes wears down, necessitating replacement.

When Do Your Rear Brake Shoes Need Replacing?

Recognising the signs of worn brake shoes is crucial. Here are some common indicators:

• Reduced Braking Performance: You might notice that your Grand Vitara takes longer to stop, or the pedal feels soft and spongy.
• Squealing or Grinding Noises: While often associated with disc brakes, worn drum brake shoes can also produce these sounds, especially if the friction material is completely gone, leading to metal-on-metal contact.
• Vibration or Pulsation: A warped brake drum or unevenly worn shoes can cause vibrations felt through the brake pedal or steering wheel.
• Parking Brake Issues: If your handbrake needs to be pulled up much higher than usual to hold the vehicle, it could indicate worn rear brake shoes or an out-of-adjustment system.
• Visual Inspection: If you can see the shoes through an inspection hole (if present) or once the drum is removed, inspect the thickness of the friction material. If it's less than 1.5mm, it's time for replacement.

Tools and Materials You'll Need

Before you begin, gather all necessary tools and parts. Having everything ready will make the job smoother and safer.

• New Rear Brake Shoe Kit (specific to Suzuki Grand Vitara MK2, 2005-2015)
• Jack and Jack Stands
• Wheel Chocks
• Lug Wrench
• Rubber Mallet or Hammer
• Flat-Head Screwdriver(s)
• Pliers (especially needle-nose and/or vice grips)
• Brake Spring Pliers (highly recommended for ease and safety)
• Brake Cleaner
• Wire Brush
• High-Temperature Brake Grease (synthetic)
• Shop Rags or Old Towels
• Personal Protective Equipment (PPE): Safety Glasses, Gloves
• Torque Wrench (for wheel nuts)
• Optional: Drum Puller (if drums are seized)

Safety First: Crucial Precautions

Working on brakes requires strict adherence to safety protocols. Neglecting these could lead to serious injury or damage to your vehicle.

• Always work on a flat, level surface.
• Engage the parking brake and place wheel chocks on the wheels that will remain on the ground (e.g., front wheels if working on the rear).
• Loosen wheel nuts slightly before jacking up the vehicle.
• Never rely solely on a jack; always use sturdy jack stands to support the vehicle once it's lifted.
• Wear safety glasses to protect your eyes from debris, brake dust, and cleaning chemicals.
• Wear gloves to protect your hands from grease and brake dust, which can contain harmful asbestos fibres if working on older components (though less common in modern vehicles).
• Avoid inhaling brake dust. If possible, use brake cleaner to dampen dust before cleaning, or a wet cloth. Never use compressed air to blow off brake dust without proper ventilation and respiratory protection.
• Work on one side at a time. This allows you to use the other side as a reference for reassembly.

Step-by-Step Guide: Replacing Your Rear Brake Shoes

Step 1: Prepare the Vehicle

Begin by parking your Grand Vitara on a flat, stable surface. Engage the parking brake and place wheel chocks in front of the front wheels. Using your lug wrench, slightly loosen the lug nuts on the rear wheel you intend to work on. Just a quarter turn should be enough to break them free. Now, position your jack under a sturdy jacking point on the rear axle (refer to your owner's manual for specific points) and lift the vehicle until the wheel is clear of the ground. Place jack stands securely under the vehicle's frame, near the jacking point, and slowly lower the vehicle onto the stands. Remove the lug nuts completely and carefully take off the wheel.

Step 2: Remove the Brake Drum

The brake drum covers the shoes. It might be held in place by two small locating screws or simply by its snug fit over the wheel studs. If there are screws, remove them with a screwdriver. If the drum is stuck (common due to rust), try the following:

• Tap around the edge of the drum with a rubber mallet to help break it free.
• If your drum has threaded holes on its face (usually two), you can insert bolts (often M8 or M10, check your service manual) into these holes and tighten them alternately. This acts as a pulling force, pushing the drum off the hub.
• Sometimes, the shoes are worn, creating a lip on the inside of the drum that prevents removal. You might need to back off the brake shoe adjuster (a small star wheel, usually accessible through a rubber plug on the backing plate or by looking through a wheel stud hole) using a thin screwdriver to retract the shoes slightly.

Once freed, carefully pull the brake drum straight off the hub. Be mindful of any brake dust that may fall out.

Step 3: Inspect and Disassemble Old Shoes

With the drum removed, you'll see the intricate arrangement of springs, levers, and the brake shoes themselves. Take a clear photograph or draw a diagram of how everything is assembled. This will be an invaluable reference for reassembly. Inspect the drum for scoring, deep grooves, or excessive wear. If the drum is severely worn, scored, or out-of-round, it should be machined by a professional or replaced. Clean the inside of the drum with brake cleaner and a wire brush.

Now, begin disassembling the old shoes. This is where brake spring pliers are incredibly useful:

• Start by removing the retaining springs and pins that hold the shoes to the backing plate. These often have a small cap that you depress and turn to align with a slot on the pin.
• Next, carefully remove the larger return springs that connect the shoes to each other and to the anchor pin. Be cautious, as these springs are under tension.
• Remove the parking brake lever and the adjusting mechanism (star wheel adjuster and self-adjusting cable/lever). Note their exact positions and how they interact with the shoes.
• Once all springs and levers are detached, you can lift the old brake shoes away from the backing plate.

Step 4: Clean and Lubricate the Backing Plate

With the old shoes removed, thoroughly clean the backing plate. Use a wire brush to remove any rust, dirt, and brake dust from the contact points where the shoes rest and slide. These are typically three or four raised pads on the backing plate. Spray generously with brake cleaner to remove all residue. Once clean and dry, apply a thin, even coat of high-temperature brake grease to these contact points. This ensures the new shoes can slide freely, preventing sticking and uneven wear.

Step 5: Assemble New Brake Shoes

This is essentially the reverse of disassembly, using your new brake shoes and referring to your photo/diagram. It's often easiest to assemble the new shoes on a workbench first, along with the parking brake lever and the adjuster mechanism, before placing them onto the backing plate.

• Attach the parking brake lever to the trailing shoe (the one towards the rear of the vehicle).
• Connect the adjuster mechanism and the self-adjusting cable/lever.
• Position the new shoes onto the backing plate, ensuring they sit correctly on the greased contact points and around the wheel cylinder and anchor pin.
• Install the retaining pins and springs that hold the shoes to the backing plate.
• Carefully reattach the larger return springs using your brake spring pliers. This is often the trickiest part, as the springs are stiff. Ensure they are correctly seated.
• Make sure the adjuster mechanism is fully retracted (star wheel turned inwards) before installing the drum. This makes drum re-installation easier.

Step 6: Reinstall the Brake Drum

Carefully slide the cleaned or new brake drum back over the shoes and onto the wheel studs. It should slide on relatively easily if the shoes are properly installed and the adjuster is retracted. If it's tight, double-check that the shoes are fully seated and the adjuster is completely retracted. Reinstall any locating screws if present.

Step 7: Adjust the Brake Shoes

This is a critical step for proper braking performance. The star wheel adjuster needs to be set correctly. There's usually a rubber plug on the brake backing plate or through a wheel stud hole on the drum. Use a flat-head screwdriver to turn the star wheel until you feel a slight drag when rotating the drum by hand. Then, back it off one or two clicks until the drum rotates freely with just a very slight whisper of the shoes touching. This initial adjustment is important. The self-adjusting mechanism will fine-tune it over the first few brake applications.

Step 8: Reinstall the Wheel and Final Checks

Place the wheel back onto the hub and hand-tighten the lug nuts. Lower the vehicle off the jack stands, remove the jack, and then fully tighten the lug nuts in a star pattern to the manufacturer's specified torque (consult your Grand Vitara's owner's manual, typically around 100-120 Nm for most vehicles). Repeat the entire process for the other side.

Post-Installation Procedures and Test Drive

Once both sides are complete, pump the brake pedal several times until it feels firm. This helps seat the shoes and allows the self-adjuster to take up any slack. If you touched the brake fluid reservoir or bled the lines (unlikely for a shoe replacement), check the fluid level. Take your Grand Vitara for a slow test drive in a safe area. Make several stops from low speeds, both light and firm, to allow the shoes to bed in and the self-adjuster to work. You might hear some minor scraping or squealing initially; this is normal as the shoes conform to the drum. The parking brake lever might also feel higher than usual; it will settle as the self-adjuster works.

Common Questions About Brake Shoe Replacement

How do I know if I need new brake pads or shoes?

Your Suzuki Grand Vitara MK2 uses disc brakes on the front and drum brakes (with shoes) on the rear. So, if you're experiencing braking issues, you need to determine which end of the car the problem is originating from. Pads are for disc brakes, shoes are for drum brakes. Signs of wear often differ slightly: pads might squeal due to wear indicators, while shoes might cause the handbrake to feel loose. A visual inspection is the best way to confirm.

How often should rear brake shoes be replaced?

Rear brake shoes generally last much longer than front brake pads, often between 80,000 to 160,000 kilometres (50,000 to 100,000 miles), or even more. This is because the front brakes do the majority of the stopping. However, driving conditions, braking habits, and whether you frequently use your parking brake can all affect their lifespan. Regular inspection during services is key.

What if my brake drum is stuck and won't come off?

This is a common issue, usually due to rust or a lip worn into the drum. Try applying penetrating oil to the hub area and around the wheel studs. Use a rubber mallet to strike the drum firmly around its circumference. If your drum has threaded holes, use two appropriate bolts (M8 or M10 are common) and tighten them alternately to push the drum off. As a last resort, if there's a significant lip, you might need to try and retract the adjuster more aggressively, or in extreme cases, a professional might need to use more forceful methods.

Do I need to bleed the brakes after replacing rear brake shoes?

No, typically you do not need to bleed the brakes after replacing only the brake shoes. The hydraulic system remains sealed during this process, unlike when replacing wheel cylinders or brake lines. However, if you notice a spongy pedal after the job, it could indicate air in the system, and bleeding would then be necessary.

How do I adjust the parking brake after replacing the shoes?

After replacing the shoes, the automatic self-adjusters should take up most of the slack during the first few dozen brake applications. If the parking brake still feels loose or engages too high, you might need to adjust the cable. There's usually an adjustment nut either under the vehicle (where the cables connect) or sometimes inside the cabin near the parking brake lever. Consult your Grand Vitara's service manual for the exact location and procedure. Remember to only adjust the cable after the self-adjusters have had a chance to work.

Maintenance Tips to Extend Brake Life

To maximise the lifespan of your new brake shoes and ensure consistent braking performance, consider these tips:

• Regular Inspections: Have your brakes checked during routine services. Early detection of wear can prevent more costly repairs.
• Smooth Braking: Avoid aggressive, sudden stops whenever possible. Gradual braking reduces wear on all brake components.
• Avoid Riding the Brakes: Don't drive with your foot resting on the brake pedal, as this causes unnecessary friction and heat buildup.
• Parking Brake Usage: Regularly use your parking brake, even on flat ground. This helps keep the self-adjusting mechanism active and prevents it from seizing up.

Replacing your Suzuki Grand Vitara's rear brake shoes is a rewarding DIY task that saves money and instils confidence in your vehicle's safety. By following this detailed guide, you've not only performed essential maintenance but also gained valuable insight into your vehicle's braking system. Drive safely, knowing your Grand Vitara's stopping power is fully restored!
