Swift Lubrication: Engine & Gearbox Oil Guide

Keeping your Suzuki Swift in prime condition involves more than just regular servicing; it's about understanding the lifeblood of your vehicle: its lubricants. Just as your body relies on the right nutrients, your car's engine and gearbox depend on specific oils to perform efficiently and last for years. Choosing the correct type, quality, and quantity of lubricant is absolutely paramount. While we'll touch upon general advice for engine oil, the focus of this guide will be on the critical world of transmission fluids – both for manual and automatic gearboxes – and a practical guide to changing your automatic transmission fluid.

The Right Fluid for Your Swift's Engine

You asked about engine oil for your Swift. It's crucial to understand that specific engine oil recommendations vary significantly based on your Swift's model year, engine type (petrol or diesel), and even regional climate. Unfortunately, without those specific details, providing an exact engine oil recommendation is impossible and irresponsible. The single most important resource for this information is your car's owner's manual.

The owner's manual will specify the required oil viscosity (e.g., 5W-30, 0W-20) and the necessary industry standards (e.g., API, ACEA ratings). Using an oil that doesn't meet these specifications can lead to accelerated engine wear, reduced fuel efficiency, and potentially costly damage over time. Always consult your manual first. If in doubt, a reputable Suzuki dealership or an independent garage specialising in Swifts can provide the precise information you need.

Unravelling Transmission Fluid for Your Swift

Transmission fluid is just as vital as engine oil, ensuring the smooth operation and longevity of your gearbox. Whether your Swift has a manual or automatic transmission, the fluid requirements are distinctly different. Let's delve into what you need to know.

Manual Transmission Fluid (MTF)

Manual transmission lubricants are primarily defined by two key characteristics: their viscosity, indicated by their SAE (Society of Automotive Engineers) number, and the API GL (American Petroleum Institute Gear Lubricant) standards they adhere to. Understanding these will help you make an informed choice.

Viscosity of Manual Transmission Fluid

Just like engine oil, MTF has a viscosity rating. This information is typically found in your Swift's owner's manual. If you find yourself in an emergency situation and are unsure, a SAE 75W-90 fluid is often a safe, temporary choice that can protect your transmission until you can source the exact recommended fluid. This is a common multi-grade oil suitable for a wide range of temperatures.

Historically, some vehicles used 'monograde' oils, which have only one viscosity rating (e.g., SAE 75, SAE 90, up to SAE 140). However, these are quite rare in modern applications. Today, you'll predominantly encounter 'multigrade' oils. These clever formulations behave as if they have two different viscosities, adapting to both low and high temperatures. This means the oil flows efficiently when cold, providing immediate lubrication at start-up, and maintains its protective film when the transmission is hot and under load. Common examples include SAE 75W-80, SAE 75W-90, and SAE 80W-90.

API GL Standards for MTF

The API GL standards indicate the lubricant's performance level and its suitability for various gear designs. Again, your owner's manual is the definitive source for this information. The most commonly commercialised standards are API GL-4 and API GL-5.

It's absolutely critical to note that API GL-5 is NOT a direct replacement for GL-4, despite sometimes being perceived as 'superior'. If your Swift's manual recommends a GL-4 oil, you must use a GL-4 oil. GL-5 oils contain higher levels of extreme pressure (EP) additives, specifically sulphur-phosphorus compounds. While these are excellent for protecting hypoid gears found in differentials, they can be corrosive to the 'yellow metals' (such as bronze or brass) used in the synchronisers of many manual gearboxes designed for GL-4 oils. Using GL-5 in a GL-4 gearbox can lead to premature wear and failure of these vital synchronisers, resulting in difficult gear changes and ultimately, transmission damage.

Here's a quick comparison:

Automatic Transmission Fluid (ATF)

Automatic transmission fluids, universally known as ATF, are highly specialised lubricants. They serve multiple functions: lubricating components, providing hydraulic pressure for gear changes, cooling the transmission, and cleaning internal parts. ATFs are typically dyed red or green to easily distinguish them from other automotive fluids, making leaks easier to identify.

With ATF, the rule is even stricter: you must always use the exact type of oil recommended in your Swift's owner's manual. Automatic transmissions are incredibly complex and sensitive to the specific frictional properties and viscosity of the fluid. There are numerous ATF specifications (e.g., Dexron, Mercon, SP-III, CVT fluids), and using the wrong one can have immediate and severe consequences.

While the provided information mentions a 'list as a guide in an emergency,' without specific Swift models and their corresponding ATF requirements, providing a generic list here would be misleading and potentially harmful. Always refer to your manual or a Suzuki specialist for the precise ATF type for your Swift.

What Happens If You Use the Wrong Oil?

The consequences of using incorrect engine or transmission oil might not be immediately apparent, but they are insidious and can lead to significant problems down the line. Over time, the transmission or engine may suffer irreparable damage. You might not notice it after a few miles, but after a few thousand, the symptoms will inevitably appear.

• Transmission Issues: You may begin to notice the car jerking or shuddering when changing gears, or the gear lever might feel stiff and resistant. In automatic transmissions, a common symptom of incorrect ATF is the clutch slipping when you accelerate, leading to a loss of power and inefficient operation. This occurs because the fluid's frictional properties are not matched to the transmission's clutch materials.
• Increased Fuel Consumption: Incorrect viscosity or additive packages can increase internal friction within the transmission or engine, forcing these components to work harder. This extra effort translates directly into a noticeable increase in your car's fuel consumption, costing you more at the pump.
• Component Wear: As discussed with GL-5 in GL-4 gearboxes, incorrect fluids can corrode or wear down crucial internal components like synchronisers, bearings, and seals. This accelerates wear and leads to premature failure.
• Overheating: Lubricants also play a vital role in cooling. An incorrect fluid may not dissipate heat effectively, leading to overheating of the transmission or engine, which further exacerbates wear and can cause fluid breakdown.

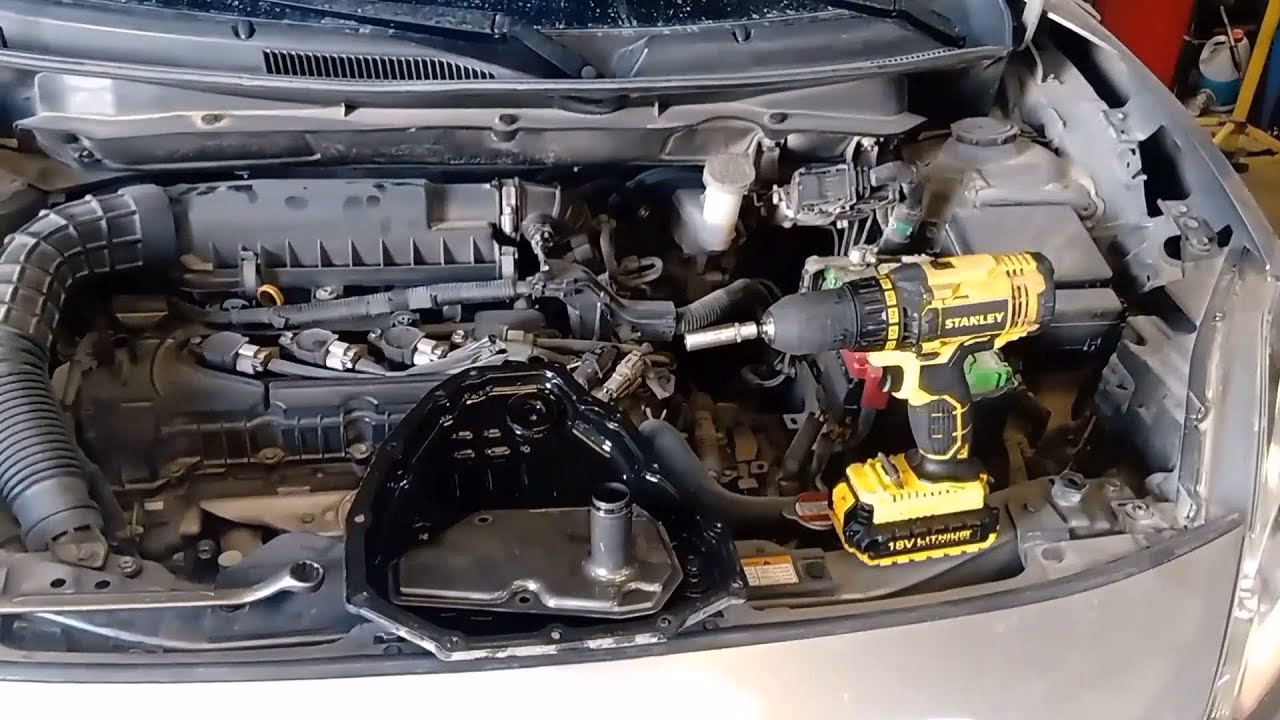

Changing Your Swift's Automatic Transmission Fluid (ATF) Sump

The provided information outlines a practical method for changing the ATF in your Swift's sump, often referred to as a 'drain and refill' or 'partial change'. This method is effective because it gradually replaces the old fluid with new, improving overall fluid quality without requiring specialised flushing equipment. For a Swift, the AT sump typically holds around 2 litres of oil, whereas the total system capacity might be closer to 5.6 litres (as per your manual). The plan here is to perform multiple drain and refill cycles to significantly dilute the old fluid with new.

Calculated Approach: If you have 8 litres of new ATF and your system capacity is 5.6 litres with a 2-litre sump capacity, performing 4 iterations of drain and refill will progressively replace the old fluid. After 4 iterations, your calculations suggest you'd have approximately 1 litre of old oil mixed with 4.6 litres of new oil in the AT, which is a substantial improvement.

Safety First: Essential Precautions

Before you begin any work underneath your car, safety is paramount. Always ensure your vehicle is securely supported.

• Stable Support: Use car ramps or sturdy car stands. Never rely solely on a jack. Ensure the car is on a level, hard surface.
• Parking Brake: Engage the parking brake firmly.
• Wheel Chocks: Place wheel chocks behind the rear wheels (if lifting the front) or in front of the front wheels (if lifting the rear) to prevent any accidental rolling.
• Personal Protective Equipment (PPE): Wear safety glasses to protect your eyes from splashes, and gloves to protect your hands from hot oil and chemicals.
• Cool Down: Allow the car to cool down sufficiently before working. Transmission fluid can be very hot after driving.

Tools You'll Need

• Car ramps or car stands
• Wheel chocks
• Spanner/Ratchet with appropriate socket for the drain bolt
• Clean oil drain pan or bucket (ensure it's spotless to spot metallic particles)
• Measuring jug (to accurately measure drained fluid)
• Funnel with a flexible hose or a modified funnel for the dipstick tube
• Clean rags or shop towels
• New ATF (8 litres for 4 iterations, as per your plan)

Step-by-Step ATF Drain and Refill Procedure

Follow these steps carefully for each iteration of the drain and refill process:

Step 1: Raise and Secure the Car
Raise the front of your Swift using car ramps or car stands to gain sufficient working space underneath. Ensure the vehicle is stable and secure before proceeding. Engage the parking brake and use wheel chocks.

Step 2: Locate the Transmission Oil Sump
From the front of the car, the transmission oil sump is typically located on the right side of the engine. Identify the drain bolt on the sump. Use the appropriate spanner or ratchet to loosen the bolt. Be prepared for fluid to start draining as soon as it's loose.

Step 3: Position the Drain Pan
Place your very clean bucket or oil drain pan directly underneath the oil drain bolt. The cleanliness of the pan is critical; it allows you to easily spot any metallic particles or debris in the drained oil, which could indicate internal transmission wear.

Step 4: Drain the Old Oil
Completely remove the drain bolt and allow all the old ATF to drain into the pan. This process will take several minutes. Once the flow slows to a drip, measure the exact amount of oil that was drained. This measurement is crucial for refilling the correct amount of new fluid. Note the colour and smell of the old fluid – dark, burnt-smelling fluid indicates it's well past its service life.

Step 5: Replace the Drain Bolt
Once all the oil has drained, clean the drain bolt and the area around the drain hole. Reinsert the drain bolt into its position. For this step, simply tighten it by hand initially to avoid cross-threading. Do not use a spanner or ratchet for final tightening at this point, as it will be removed again in subsequent iterations.

Step 6: Access the Fill Point
Locate the fill plug or the ATF dipstick. For many Swift models, a dedicated fill plug might be difficult to find or non-existent, requiring you to refill through the dipstick hole. If using the dipstick hole, you'll need a funnel with a narrow, flexible end that can create a tight fit to prevent spills. You might need to 'jugad' (a common Indian term for a clever, improvised solution) your funnel to ensure a snug fit, perhaps by trimming a small amount of plastic from the funnel's end.

Step 6a: Create More Access (Swift Specific)
For the Swift, you can often create more room to access the dipstick by gently pulling the engine coolant reservoir towards you (upwards). This provides better clearance for your funnel.

Step 7: Refill with New Oil
Slowly and steadily pour the exact amount of new ATF that you drained in Step 4 back into the transmission. If there's a significant temperature difference between the drained (hot) and refill (cold) oil, consider refilling 10-15% less volume to account for oil expansion. If you are refilling through the dipstick plug, pour at an even slower rate to prevent airlocks and overflow.

Step 8: Idle the Engine
Start the engine and let it idle for approximately 5 minutes. This allows the new fluid to circulate and mix with the old fluid remaining in the torque converter and other parts of the transmission that didn't drain.

Step 9: Cycle Through Gears
With the engine still running and your foot on the brake, slowly move the gear lever through all the positions: from Park (P) to Neutral (N), Reverse (R), and Drive (D), and then back again. Hold the lever in each position for 3-5 seconds. Repeat this cycle 5-6 times. This action helps to circulate the new fluid throughout the entire transmission system, including valve bodies and clutch packs.

Step 10: Repeat the Process
Now, repeat the entire process from Step 2. Since you have 8 litres of ATF and plan for 4 iterations, you will repeat steps 2 through 9 three more times. As each iteration progresses, you should observe a noticeable improvement in the quality of the drained fluid – it will become clearer and smell less burnt. By the fourth iteration, the drained fluid should look almost as new, indicating a high percentage of fresh fluid in your transmission.

Final Steps: Checking the ATF Level

After the final iteration, once you have refilled the exact amount of oil, the transmission should contain an equal or slightly less amount of oil than its total capacity. Carefully remove the car from the ramps or stands and lower it onto a level surface.

Perform a preliminary ATF oil level check. If it's close to the expected mark, proceed with the manufacturer's recommended procedure for checking the ATF level for your Swift. This is crucial as the dipstick reading can increase rapidly even with small quantity refills.

For the Suzuki Swift, the procedure to check the ATF level is typically as follows:

1. Drive the car for approximately 10 minutes under a light load to bring the transmission fluid up to its normal operating temperature.
2. Stop the car on a perfectly level surface.
3. With your foot firmly on the brake, move the gear lever through all the gears (P, R, N, D, L if applicable), pausing briefly in each position.
4. Put the gear lever back into Park (P).
5. While the engine is still running, check the oil level on the ATF dipstick. The level should fall within the 'HOT' or 'FULL' marks on the dipstick.

Refill in very small increments if the level is low, re-checking frequently. Overfilling can be just as damaging as underfilling.

Frequently Asked Questions (FAQs)

How often should I change my Swift's transmission fluid?

The recommended service interval for transmission fluid changes varies greatly depending on your Swift model, driving conditions, and whether it's a manual or automatic. Always consult your owner's manual for the precise schedule. As a general guideline, manual transmission fluid might be every 50,000 to 100,000 miles, while automatic transmission fluid could be every 30,000 to 60,000 miles, especially under severe driving conditions (towing, heavy city traffic, extreme temperatures).

Can I mix different types of transmission fluid?

No, it is strongly advised against mixing different types of transmission fluid. Each fluid type is formulated with specific additives and frictional properties tailored to particular transmission designs. Mixing them can dilute their effectiveness, lead to chemical incompatibilities, and cause accelerated wear or damage to your gearbox. Always use the specified type.

What are the signs of low or bad transmission fluid?

Common signs include:

• Difficulty shifting gears: For manuals, stiff or notchy shifts. For automatics, delayed engagement, harsh shifts, or slipping.
• Unusual noises: Whining, clunking, or humming sounds coming from the transmission.
• Burning smell: Overheated or degraded fluid can produce a distinct burnt smell.
• Leaking fluid: Red or green puddles under your car, indicating an ATF leak.
• Overheating: The transmission temperature warning light might illuminate, or you may notice a general lack of power.

Is a full transmission flush better than a drain and refill?

A full transmission flush, performed by a professional using specialised equipment, replaces nearly 100% of the old fluid by pushing new fluid through the entire system, including the torque converter and cooler lines. A drain and refill, as described in this article, only replaces the fluid in the sump (around 30-50% of the total volume). While a full flush is more comprehensive, it can also be more expensive and, if done incorrectly, can dislodge debris that then clogs vital components. For high-mileage transmissions that have never had a fluid change, a series of drain and refills is often a safer approach, gradually cleaning and refreshing the fluid without shocking the system. For regular maintenance, either method is beneficial, but always follow your manufacturer's recommendations.

By understanding the nuances of transmission fluids and following these practical steps, you can ensure your Suzuki Swift's gearbox remains healthy, providing you with smooth and reliable driving for many miles to come. Regular maintenance, using the correct fluids, is the cornerstone of vehicle longevity.
