DIY Oil & Filter Change: Suzuki Swift (2004-2010)

Maintaining your Suzuki Swift's engine is paramount to its longevity and performance. Among the most crucial tasks is the regular replacement of its engine oil and oil filter. While many opt for professional service, changing your Swift's oil yourself is a highly rewarding, cost-effective, and surprisingly straightforward process that empowers you to take control of your vehicle's health. This detailed guide will walk you through every step for Suzuki Swift models manufactured between 2004 and 2010 (Rs41, MK4), ensuring you have all the knowledge to complete the job with confidence.

The Vital Role of Engine Oil in Your Swift

Engine oil is the lifeblood of your Suzuki Swift's engine. It performs several critical functions that are essential for smooth operation and preventing premature wear. Firstly, it lubricates moving parts, reducing friction and heat build-up. Without adequate lubrication, metal-on-metal contact would quickly lead to catastrophic engine failure. Secondly, engine oil acts as a coolant, drawing heat away from crucial components like the pistons and cylinder walls. Thirdly, it cleans the engine by suspending dirt, sludge, and microscopic metallic particles, preventing them from accumulating and causing damage. Lastly, it helps to seal the gaps between components, such as piston rings and cylinder walls, maintaining compression and power, and also protects against corrosion. Over time, engine oil degrades; it becomes contaminated with combustion by-products, loses its viscosity, and its additives break down. This is why regular replacement is not just a recommendation but a necessity.

When to Service Your Swift's Engine Oil

The frequency of your Suzuki Swift's oil and filter change depends on several factors, including the type of oil used, your driving habits, and the manufacturer's recommendations. For most Suzuki Swift models from 2004-2010, the general recommendation for conventional oil might be every 5,000 to 7,500 miles or every six months, whichever comes first. However, if you use full synthetic engine oil, this interval can often be extended, sometimes up to 10,000 miles or annually. Always consult your owner's manual for the precise service intervals recommended for your specific model and engine variant. Factors that might necessitate more frequent changes include:

• Frequent short journeys (engine doesn't reach optimal operating temperature).
• Stop-and-go city driving.
• Towing or carrying heavy loads.
• Driving in extremely dusty or harsh environments.
• Driving in very hot or very cold climates.

Ignoring these intervals can lead to reduced fuel economy, increased engine wear, and potentially costly repairs down the line.

Gathering Your Toolkit and Essential Supplies

Before you begin, ensure you have all the necessary tools and new parts ready. Being organised will make the process much smoother and safer.

Tools Required:

• Socket Wrench Set: You'll likely need a 17mm socket for the drain plug.
• Oil Filter Wrench: A band-style or cap-style wrench that fits your Swift's filter.
• Drain Pan: Large enough to hold all the old engine oil (at least 5 litres).
• Funnel: For pouring new oil into the engine without spills.
• Jack and Jack Stands: Essential for safely raising and supporting your vehicle. Never work under a car supported only by a jack.
• Wheel Chocks: To prevent the vehicle from rolling.
• Gloves: To protect your hands from hot oil and chemicals.
• Safety Glasses: To protect your eyes from splashes.
• Rags or Shop Towels: For cleaning up spills.
• Torque Wrench: Highly recommended for tightening the drain plug to the correct specification, preventing overtightening or leaks.

Materials Needed:

• New Engine Oil: Refer to your owner's manual for the exact specification. For many 2008 Suzuki Swift models, 5W/30 full synthetic engine oil is recommended. The capacity can vary; some models (like the MK3) might require around 3.2 litres, while a 2008 model typically takes about 4.5 litres. Always buy slightly more than needed, just in case.
• New Oil Filter: Ensure it's the correct filter for your specific Suzuki Swift model year. Using a quality filter is crucial for effective oil filtration.
• New Drain Plug Crush Washer: A new crush washer (often copper or aluminium) is essential to create a proper seal and prevent leaks. These are often supplied with new oil filters or can be purchased separately.
• Container for Used Oil: For proper disposal of the old oil.

Selecting the Correct Oil and Filter for Your Suzuki Swift (2004-2010)

Choosing the right oil and filter is just as important as the change process itself. Using incorrect specifications can lead to engine damage.

Engine Oil Specification:

For the Suzuki Swift (2004-2010), particularly models like the 2008 variant, a 5W/30 full synthetic engine oil is a common recommendation. The '5W' indicates its viscosity at cold temperatures, ensuring good flow during start-up, while '30' is its viscosity at operating temperature. Full synthetic oil offers superior protection, better cold-start performance, and extended drain intervals compared to conventional oils. Always look for oils that meet or exceed the API (American Petroleum Institute) or ACEA (Association des Constructeurs Européens d'Automobiles) standards specified in your owner's manual. These ratings ensure the oil meets performance and quality criteria. As mentioned, oil capacity can vary; some sources indicate 3.2 litres for certain MK3 models, while a 2008 model often requires 4.5 litres. Double-check your owner's manual to confirm the precise volume for your specific Swift.

Oil Filter Selection:

The oil filter removes contaminants from the engine oil. It's crucial to select a filter designed specifically for your Suzuki Swift's engine. There are generally two types: spin-on filters (the most common) or cartridge filters (which fit inside a housing). For the 2004-2010 Swift, a spin-on filter is typical. Using an incorrect filter can lead to poor filtration, oil pressure issues, or even leaks. Opt for an Original Equipment Manufacturer (OEM) filter or a reputable aftermarket brand that meets or exceeds OEM specifications. A good quality filter ensures optimal flow rate and filtration efficiency, protecting your engine effectively.

Step-by-Step Guide: Replacing Your Swift's Engine Oil and Filter

Follow these steps carefully to ensure a safe and successful oil and filter change.

1. Safety First: Prepare Your Vehicle

Safety is paramount. Start by parking your Suzuki Swift on a level, firm surface. Engage the parking brake. If you need to raise the car for better access, use a jack to lift the front end and immediately secure it with sturdy jack stands. Never rely solely on the jack. Place wheel chocks behind the rear wheels for added safety. Wear your safety glasses and gloves.

2. Warm the Engine Slightly

A slightly warm engine allows the oil to drain more easily and completely. Run the engine for 5-10 minutes, then switch it off. Be cautious, as components will be hot.

3. Locate the Drain Plug and Oil Filter

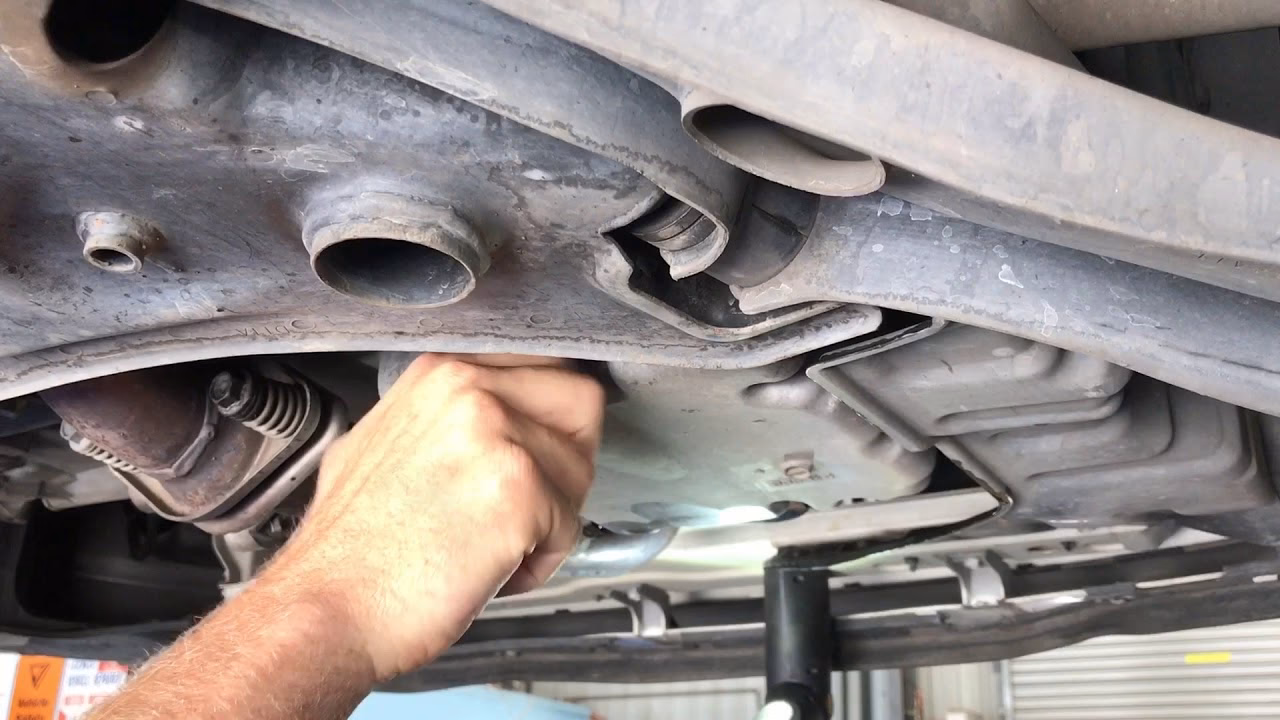

Crawl under the front of your Swift (ensure it's securely supported). The oil drain plug is typically located at the lowest point of the oil pan, which is usually a metal sump at the bottom of the engine. It's a large bolt. The oil filter is usually a cylindrical canister located on the side or front of the engine block, often accessible from underneath. For many Suzuki Swift models, it's positioned conveniently for removal.

4. Drain the Old Engine Oil

Position your drain pan directly underneath the drain plug. Using your 17mm socket wrench, carefully loosen the drain plug. Once loose, finish unscrewing it by hand, being prepared for the hot oil to gush out. Allow all the old oil to drain completely into the pan. This can take 10-15 minutes. While it's draining, inspect the old drain plug and ensure you have your new crush washer ready.

5. Remove the Old Oil Filter

While the oil is draining, or once it has slowed to a trickle, position the drain pan underneath the oil filter. Using your oil filter wrench, loosen the old filter. Be prepared for a small amount of oil to spill out as the filter is removed. Once loose, unscrew it by hand. Ensure the old filter's rubber gasket came off with the filter; sometimes it can stick to the engine block. If it's still on the engine, remove it.

6. Prepare and Install the New Oil Filter

Take your new oil filter. Apply a thin film of new engine oil to the rubber gasket on the new filter. This helps create a good seal and prevents the gasket from tearing during installation. Screw the new filter onto the engine block by hand until the gasket makes contact with the mounting surface. Then, tighten it an additional 3/4 to 1 full turn by hand. Do not overtighten it with a wrench, as this can damage the filter or its seal, making future removal difficult and potentially causing leaks. The general rule is hand-tight plus a little extra, as specified on the filter itself.

7. Reinstall the Drain Plug

Once all the old oil has drained, clean the area around the drain hole on the oil pan. Install the new crush washer onto the drain plug. Thread the drain plug back into the oil pan by hand first to prevent cross-threading. Once it's finger-tight, use your 17mm socket and torque wrench to tighten it to the manufacturer's specified torque. For metal drain plugs, this is typically around 30Nm (22lb ft). If your Swift has a plastic drain plug, the torque is much lower, around 5Nm (3lb ft). Using a torque wrench here is crucial to prevent leaks from being too loose or damaging the oil pan from being too tight.

8. Refill with New Engine Oil

Lower your Suzuki Swift back to the ground if you had it raised. Open the oil filler cap on top of the engine (it usually has an oil can symbol). Place your funnel into the filler neck. Begin pouring the new engine oil slowly. For a 2008 Suzuki Swift, you'll likely need around 4.5 litres. For other models like the MK3, it might be closer to 3.2 litres. Pour in slightly less than the full capacity, then wait a few minutes for the oil to settle. Check the oil level using the dipstick. Pull the dipstick out, wipe it clean, reinsert it fully, then pull it out again to read the level. The oil level should be between the 'Min' and 'Max' marks. Add small amounts of oil as needed until the level is correct. Do not overfill!

9. Final Checks and Disposal

Replace the oil filler cap securely. Start the engine and let it run for a few minutes. Check underneath the car for any leaks around the drain plug and the oil filter. The oil pressure warning light on your dashboard should go out within a few seconds. Switch off the engine and wait another 5-10 minutes for the oil to settle. Check the oil level on the dipstick one last time, topping up if necessary. Finally, properly dispose of your used engine oil. Most local recycling centres or automotive shops will accept used oil for free. Never pour it down the drain or into the ground.

Common Pitfalls to Avoid During Your Oil Change

• Not Using Jack Stands: Working under a vehicle supported only by a jack is extremely dangerous.
• Overtightening the Oil Filter or Drain Plug: Can cause damage to the filter, oil pan, or drain plug threads, leading to leaks or making future removal difficult. Hand-tight for the filter, torque wrench for the plug.
• Forgetting the New Crush Washer: Reusing the old washer almost guarantees a leak.
• Using the Wrong Oil Type or Quantity: Can severely impact engine performance and longevity. Always refer to your owner's manual.
• Not Cleaning the Dipstick Before Reading: Leads to inaccurate readings.
• Not Checking for Leaks After Refilling: A simple oversight that can lead to significant oil loss and potential engine damage.

Frequently Asked Questions (FAQs)

How often should I change the oil in my Suzuki Swift?

For Suzuki Swift models from 2004-2010, the general recommendation is typically every 5,000 to 7,500 miles or every six months for conventional oil, or up to 10,000 miles or annually for full synthetic oil. However, always refer to your specific owner's manual, as intervals can vary based on engine type and driving conditions. If you do a lot of short trips or drive in harsh conditions, consider changing it more frequently.

What specific type of oil is best for my 2004-2010 Suzuki Swift?

For many Suzuki Swift models in this range, particularly the 2008 model, 5W/30 full synthetic engine oil is highly recommended. Always verify the exact viscosity and specification (e.g., API SN, ACEA A3/B4) in your Suzuki Swift's owner's manual to ensure optimal engine protection and performance.

Where is the oil filter located on a Suzuki Swift (2004-2010)?

The oil filter on a Suzuki Swift (2004-2010) is typically a spin-on canister type, often located on the lower front or side of the engine block, accessible from underneath the vehicle. Its exact position can vary slightly depending on the specific engine variant, but it's generally in a visible and reachable spot once the car is raised.

Can I replace the oil filter without draining all the oil?

While technically possible to just replace the filter, it's not recommended for a full service. The old oil will still be contaminated, and you'll introduce new oil to already dirty oil. A proper oil change involves draining all the old, contaminated oil and replacing both the oil and the filter simultaneously for maximum engine health.

What are the signs that my Suzuki Swift needs an oil change?

Common signs include the oil change light illuminating on your dashboard, the engine oil appearing very dark or gritty when checked on the dipstick, a persistent knocking or grinding noise from the engine (indicating a lack of lubrication), a burning oil smell, or decreased fuel efficiency. Regular checks and adherence to service intervals are the best preventative measures.

Is pre-filling the oil filter necessary before installation?

For most modern spin-on oil filters, especially those mounted horizontally or inverted on the Suzuki Swift, pre-filling is generally not necessary and can often lead to spills and mess. Lubricating the rubber gasket with new oil is crucial for a good seal, but filling the filter itself is usually not required. The oil pump will quickly prime the filter with oil once the engine is started.

Conclusion

Performing your own engine oil and filter change on your Suzuki Swift (2004-2010) is a fundamental aspect of vehicle maintenance that is well within the capabilities of most DIY enthusiasts. By following these steps, using the correct parts, and prioritising safety, you'll not only save money but also gain a deeper understanding of your vehicle. Regular oil changes are key to ensuring your Swift remains a reliable and efficient companion on the road for many years to come. Embrace the satisfaction of keeping your car in top condition, one oil change at a time!
