Suzuki Samurai Engine Upgrades: Rebuild or Swap?

For many Suzuki Samurai enthusiasts in the UK, the plucky 4x4 holds a special place, but its original 1.3L engine, while reliable, can sometimes feel a bit underpowered or simply show its age. Whether you're facing increased oil consumption, a general lack of vigour, or simply craving more grunt for off-road adventures, you're likely contemplating either a full engine rebuild or an engine swap. This guide delves into both options, providing the crucial details you need to make an informed decision and get your Samurai back to peak performance.

The Suzuki Samurai Engine Rebuild: A Fresh Start

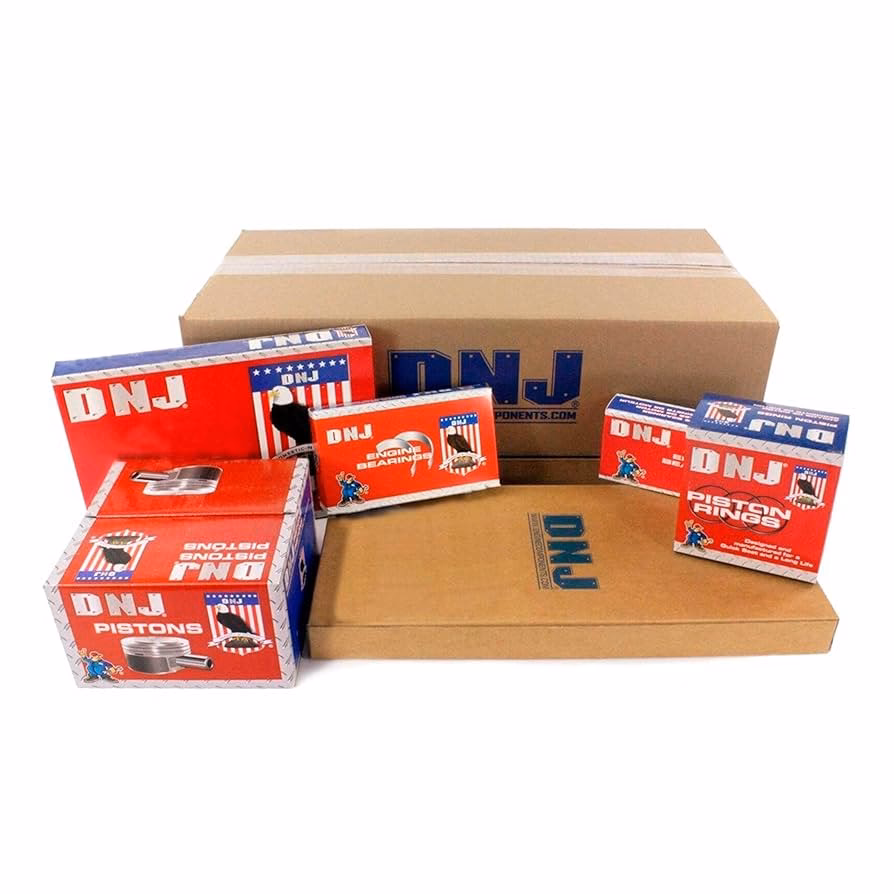

If your 1.3L engine is showing signs of fatigue, such as rising oil consumption or diminished power, a rebuild can be a cost-effective way to extend its life and restore its original performance. Many parts suppliers, such as Dennis Kirk, offer comprehensive Suzuki Engine Rebuild Kits, ensuring you have all the necessary components for a thorough overhaul.

When to Consider a Rebuild

A common indicator for a rebuild is high mileage, typically around 120,000 miles, coupled with symptoms like oil burning or reduced compression. While a consistent 160 psi compression across cylinders might seem good, if the engine feels 'tired' and consumes oil, it's time for a refresh. The goal is often to bore as little as possible to minimise the risk of overheating issues, which can be a concern for small engines.

Key Considerations for Your 1.3L Rebuild

• Block Compatibility: For direct fit into a Samurai, the G13B block is ideal. It's compatible with the 8-valve 1.3L head, allowing you to retain the mechanical fuel pump and angled rear distributor.
• High Compression Pistons: While tempting for more power, installing high-compression pistons on the factory bottom end can lead to significant stress. For such an upgrade, you would ideally need a GT-I bottom end, which features forged rods and crank to handle the increased load. Without these, you risk premature failure.
• Camshaft Upgrades: A mid-range performance camshaft can enhance power, especially between 2500 and 5500 rpm. However, similar to high-compression pistons, this can also stress the standard bottom end. Isky is a known grinder for performance cams, but for substantial power gains, many recommend looking beyond the 1.3L.
• Valve Springs: For most mild to moderate cam upgrades on the 1.3L, the stock valve springs are generally sufficient. However, it's highly recommended to regrind your rocker arms for optimal performance and longevity. Interestingly, 1.6L valve springs are stiffer and are a direct fit if you opt for a more aggressive cam profile.
• Carburettor and Exhaust: Many enthusiasts stick with a Weber carburettor and a header with a 2-inch exhaust system for their rebuilt 1.3L, finding it a good balance of performance and simplicity.

The Suzuki Samurai 1.6L Engine Swap: A Power Boost

For those seeking a more significant power increase, swapping the 1.3L engine for a 1.6L unit from a Suzuki Sidekick or GEO Tracker is a very popular and effective upgrade. This conversion offers a noticeable bump in horsepower and torque, transforming the Samurai into an even more capable trail machine without adding substantial weight.

1.6L Engine Facts and Variants

The 1.6L engine comes in two main variants, each with distinct characteristics:

The 8-valve 1.6L offers a straightforward swap, often allowing for the re-use of your stock 1.3L manifolds, flywheel, and clutch. The 16-valve, while more powerful, demands a more comprehensive conversion, including all fuel injection components and a complete rewiring.

Donor Vehicle Parts and OBDII Concerns

When sourcing your 1.6L engine from a Sidekick or Tracker, you'll need the complete engine, including all hoses, pulleys, fan, starter, alternator, coil, air cleaner, exhaust manifold, and head pipe. For 16-valve engines, the requirement extends to the engine wiring harness, everything attached to it, the under-dash wiring harness, ECM (Engine Control Module), and the instrument cluster. It's also advisable to grab the catalytic converter if possible.

A crucial note for UK owners: be mindful of the donor vehicle's age. Motors from 1996 and onwards are typically OBDII compliant. While this is less of a concern for UK emissions regulations compared to, say, California, it does mean the wiring harness will be more complex, requiring the second O2 sensor portion of the wiring harness and potentially more intricate integration with your Samurai's systems.

Conversion Kits: Simplifying the Swap

Specialised conversion kits, such as those offered by Trail Tough, can significantly simplify the 1.6L swap. These kits often include an engine adaptor, a high-pressure fuel pump, a pre-modified and colour-coded wiring harness, and modifications for your speedometer. Using such a kit, especially for the 16-valve 1.6L, can save considerable time and effort.

Installation Overview: A Step-by-Step Guide

The 1.6L engine swap, while detailed, is a manageable project for a competent DIY mechanic. Here’s a general overview of the process:

1. Engine Removal: It's often easier to remove the original 1.3L engine and transmission together. Disconnect all wiring, cables, lines, and hoses. Label everything meticulously. Drain fluids, remove the air box, battery, fan, shroud, and radiator. Unbolt the motor mounts, transmission crossmember, and brace. Watch out for the distributor hitting the firewall and the harmonic balancer pulley hitting the radiator support during hoisting.
2. Clutch and Adapter Kit: Once the engine and transmission are out, separate them. This is an opportune moment to replace the clutch, pressure plate, and throw-out bearing. Then, install the adapter kit to your new 1.6L engine and reattach the Samurai transmission.
3. Mounting and Installation: Install the Sidekick/Tracker starter. Fit the new passenger-side motor mount and the driver's-side motor mount shim. Carefully drop the new motor and transmission assembly into the Samurai, bolting it back into the stock locations. Reinstall the Samurai radiator.
4. Air Box and Ignition Coil: You'll need to custom fabricate mounts for the new air box with its mass air sensor. Typically, one side bolts to the fender well using the original mount, and the other requires a metal brace. Mount the ignition coil to the firewall on the passenger side, often using the existing vacuum line mounting location. You may need to use the 1.3L coil wire if the 1.6L wire is too short.
5. Wiring Harness and ECM: Install the modified wiring harness, routing it through the large grommet above the battery and into the passenger-side kick panel where the ECM will be mounted. Secure the ECM, ideally using rubber grommets for isolation, and consider mounting it high on the firewall behind the glove box, possibly in a protective container, to shield it from dirt and moisture.
6. Speedometer Modification: Install the modified speedometer. This is crucial for the ECM to control the engine correctly and to prevent the 'check engine' light from illuminating.
7. Fuel System Upgrade: If your Samurai doesn't have fuel injection, you'll need an electric fuel pump (with at least 45 psi output). Options include:
• Sourcing a complete fuel tank from a 1990 or newer Samurai (which includes an in-tank pump).
• Purchasing a new external electric fuel pump (e.g., from an '89 Ford F-150) and mounting it under the body or on the frame rail. Mount it as high as possible for protection.
• Cutting out and welding a Tracker fuel pump mounting plate and pump into your Samurai's fuel tank.

For fuel line connections, use high-pressure rubber fuel line between the engine and the Samurai's hard line. Double clamp all connections and install a fuel filter between the tank and pump. For 16-valve motors, ensure a 1/4-inch fuel return line runs all the way back to the tank. Route the fuel pump wiring into the engine compartment and connect it to the fuel pump relay near the ECM.

8. Hood Clearance: The 1.6L/16v engine is taller, so you might need to raise the front clip for proper hood clearance. Trail Tough kits often include replacement front body bushings for this purpose. Alternatively, you can use spacers on the body mounts near the radiator support, adjust the hood latch, or use washers under the rubber stops. If you already have a body lift, this step is usually unnecessary.

Performance Gains from the 1.6L Swap

Even without further modifications, a 1.6L swap can provide a significant boost. The 8-valve 1.6L, for example, can be further enhanced with bolt-on components like a Thorley header and MSD ignition, potentially yielding up to 25 horsepower over the stock 1.3L motor. The increased power, combined with the Samurai's light and nimble chassis, makes for a truly enjoyable driving experience, both on and off the road.

Frequently Asked Questions About Samurai Engine Upgrades

Q: Where can I buy the best Suzuki Engine Rebuild Kit?

A: Many specialist automotive parts retailers stock Suzuki Engine Rebuild Kits. For a wide selection and competitive pricing, suppliers like Dennis Kirk are often recommended, offering kits ready to ship.

Q: Is a 1.6L engine swap worth the effort for a Suzuki Samurai?

A: Absolutely. A 1.6L swap is a common and highly recommended upgrade for Samurai owners seeking more power and improved driveability. It significantly enhances the vehicle's performance without compromising its lightweight, agile nature.

Q: Can I use my existing 1.3L carburettor with a 1.6L engine?

A: Yes, if you're swapping in an 8-valve 1.6L engine, you can often reuse your 1.3L intake manifold and carburettor. However, the 16-valve 1.6L engine is strictly fuel-injected and requires all its associated fuel injection components.

Q: Will a 1.6L engine swap affect my Samurai's weight distribution?

A: The 1.6L engine adds very little weight compared to the original 1.3L. This minimal weight increase ensures that the Samurai retains its characteristic lightness and nimbleness, which are crucial for off-road performance.

Q: What are the main advantages of using a conversion kit for the 1.6L swap?

A: Conversion kits, such as those from Trail Tough, streamline the swap process by providing essential components like engine adaptors, high-pressure fuel pumps, and pre-modified, colour-coded wiring harnesses. They significantly reduce the complexity and time involved, making the swap more accessible for DIY enthusiasts.

Q: Do I need to upgrade my Samurai's bottom end if I'm just doing a mild 1.3L rebuild?

A: For a standard rebuild aiming to restore stock performance, the factory bottom end is generally fine. However, if you plan on significant power increases through high-compression pistons or aggressive camshafts, upgrading to a stronger bottom end, such as one with forged rods and crank, is highly advisable to prevent premature engine failure.

Whether you choose to breathe new life into your existing 1.3L with a comprehensive rebuild or opt for the exhilarating power of a 1.6L swap, upgrading your Suzuki Samurai's engine is a rewarding endeavour. Careful planning, sourcing the right parts, and meticulous installation will ensure your trusty 4x4 provides many more miles of reliable and enjoyable driving.
