Suzuki GSX650F Engine: A Comprehensive Deep Dive

The Suzuki GSX650F stands as a testament to balanced engineering in the middleweight motorcycle class. Often lauded for its blend of sportbike aesthetics, touring comfort, and everyday practicality, much of its widespread appeal can be attributed to the meticulously designed engine at its core. Far from being an overly aggressive track weapon, the GSX650F is purpose-built to offer a highly engaging, yet accessible, riding experience, making it a favourite among novice riders and economical commuters alike. This article delves deep into the heart of the GSX650F, exploring the specifics of its engine and how its characteristics contribute to the bike's overall charm and versatility.

The Powerhouse Within: A Deep Dive into the GSX650F Engine

At the very heart of the Suzuki GSX650F lies a robust and reliable powerplant. It features a 4-stroke, 4-cylinder, liquid-cooled, DOHC (Double Overhead Camshaft) engine, boasting a displacement of 656cc. This inline-four configuration is a direct evolution, albeit with significant refinements, from the European Bandit 650 naked bike, inheriting its reputation for durability and smooth operation. The engine's bore and stroke measurements are precisely 65.5 mm x 48.7 mm, contributing to its balanced character.

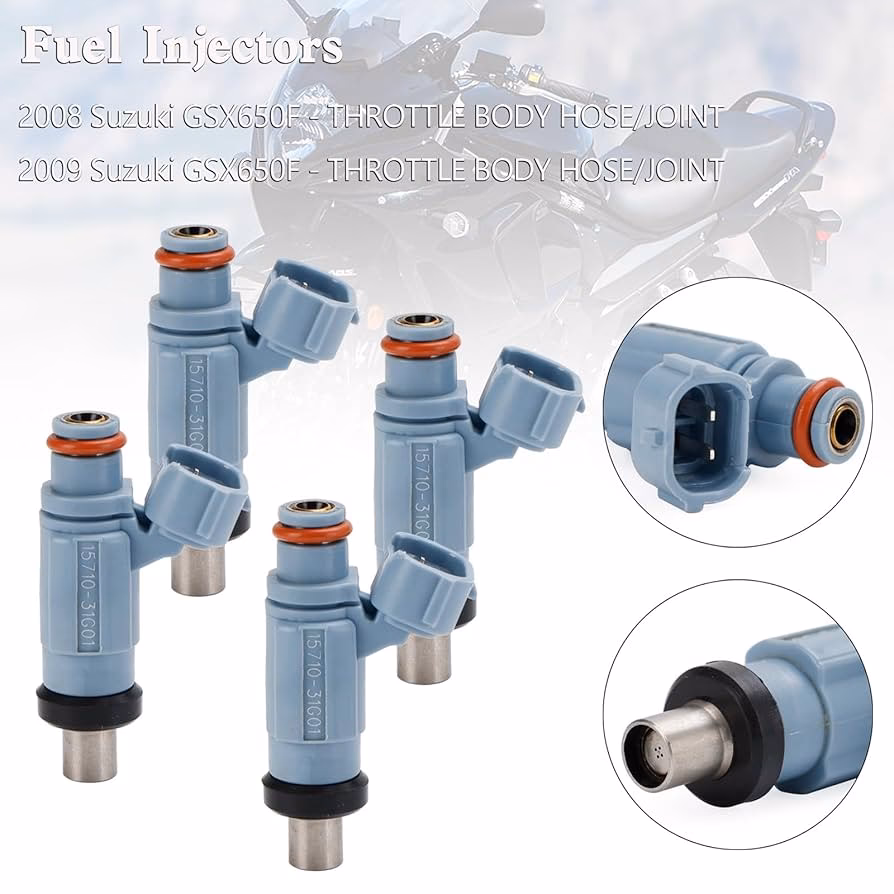

A key aspect of this engine's sophisticated design is its fuel delivery system. The GSX650F employs a highly efficient fuel-injection system, incorporating Suzuki's renowned Dual Throttle Valve (SDTV) technology. This advanced system ensures remarkably smooth acceleration and a linear power delivery, making the bike incredibly manageable across its rev range. Furthermore, the use of four-hole injectors facilitates optimum fuel atomisation, which not only enhances combustion efficiency but also contributes to greater power output and economical running. The cylinder head is meticulously designed to achieve a narrow included valve angle of 17 degrees, a feature that significantly improves both intake and exhaust efficiency, allowing the engine to breathe more freely and perform optimally.

Optimised Performance for Real-World Riding

The engineers at Suzuki specifically chose cam profiles for the GSX650F's engine with a priority on low-to-mid-range power output. This strategic tuning delivers a performance curve that is exceptionally well-suited to the demands of an entry-level street rider and daily commuting. While the engine is capable of revving up to a redline of 12,500 rpm, its true sweet spot, where it "sings nicely in the power curve," is typically found in the 4,000-8,000 rpm range. This focus on accessible torque and power at everyday riding speeds translates into a motorcycle that feels effortlessly responsive in city traffic and comfortably capable on open roads.

The engine generates a maximum output of 62.35 kW (equivalent to 84.00 hp) at 10,500 rpm, complemented by a substantial 61.50 Nm (or 45.00 lb.ft) of torque peaking at 8,900 rpm. These figures, combined with the engine's tractable nature, ensure there's always ample power on tap for swift overtakes or enjoyable spirited riding, without ever feeling overwhelming. The power delivery is described as civilised rather than a "berserk rush," which underlines the bike's design philosophy of being an entertaining yet manageable middleweight.

The engine is mated to a slick 6-speed constant mesh transmission, which, coupled with an effortless hydraulic clutch pull, makes navigating through urban environments a breeze. The short first gear, a welcome departure from supersport bikes geared more for the track, allows for smooth and confident pull-aways from a standstill. This thoughtful gearing, combined with the engine's flexible nature, means riders can click through the gears without worry, as the GSX650F surges forward seamlessly.

Engineering for Comfort and Control

While the engine is undoubtedly the star, its performance is seamlessly integrated with the GSX650F's chassis and ergonomic design. The engine is cradled within a robust double cradle steel frame, providing a stable and predictable platform. The bike's overall geometry, with 26 degrees of rake and 4.25 inches of trail, combined with a 1470mm (57.9-inch) wheelbase, contributes to its balanced and agile handling characteristics. The GSX650F turns in well, holds its line, and allows riders to confidently accelerate out of turns.

Suspension components further complement the engine's characteristics, enhancing ride comfort and control. The front features a 41mm Kayaba telescopic fork with adjustable preload, while the rear boasts a link-type coil spring shock with adjustments for both rebound and preload. This adjustability allows riders to fine-tune the suspension to their preferences and riding conditions, ensuring that the bike can soak up bumps while still providing sporty handling when desired.

The riding position of the GSX650F is notably comfortable, with an easy reach to the handlebars and a relaxed bend at the knees, thanks to its low 790mm seat height. This ergonomic setup is well-suited for both relaxed cruising and more aggressive riding on twisty roads, ensuring rider comfort even on longer journeys. The bike's full fairing, taking styling cues from the GSX-R series, also provides decent wind protection, allowing riders to tuck in if needed for high-speed runs.

The GSX650F's Place in the Suzuki Line-up

The Suzuki GSX650F marked a significant evolution in Suzuki's middleweight offerings, effectively replacing the Katana in 2008. While the Katana aimed for an inexpensive entry-level sportbike look, its somewhat alien styling often divided opinion. The GSX650F, in contrast, presented a much cleaner, sportier design, drawing strong resemblance to the previous generation GSX-R600 and 750s, particularly in its front fairing. This design choice gave the GSX650F a more universally appealing aesthetic, without compromising its core mission of providing a low-cost, comfortable, and sporty middleweight.

Its lineage from the European Bandit 650 is evident in its inline-four engine, but the GSX650F received specific upgrades to differentiate it. These included the full fairing, remapping of the engine for more revs, and slightly tweaked suspension settings, all contributing to its unique character. While it won't be mistaken for an exotic Italian superbike, the GSX650F confidently holds its own as a highly capable and enjoyable machine, offering a fantastic balance of performance, practicality, and value for money.

Key Specifications of the Suzuki GSX650F

Frequently Asked Questions About the Suzuki GSX650F

What type of engine does the Suzuki GSX650F have?

The Suzuki GSX650F is equipped with a 4-stroke, 4-cylinder, liquid-cooled, DOHC (Double Overhead Camshaft) engine with a displacement of 656cc. It features a sophisticated fuel-injection system for smooth and efficient power delivery.

Is the GSX650F suitable for beginner riders?

Yes, absolutely. The GSX650F is purpose-built as a low-cost middleweight ideal for novice riders. Its engine is tuned for accessible low-to-mid-range power, and its overall ergonomics and handling are forgiving and confidence-inspiring, making it an excellent choice for those new to motorcycling.

How much horsepower does the Suzuki GSX650F produce?

The Suzuki GSX650F produces a maximum output of 62.35 kW, which translates to approximately 84.00 hp, at 10,500 rpm. Its torque peaks at 61.50 Nm (45.00 lb.ft) at 8,900 rpm.

Does the GSX650F come with ABS?

Yes, an ABS (Anti-lock Braking System) version of the Suzuki GSX650F was available. This system enhances braking safety by comparing wheel speed to road speed every 1/100th of a second to match stopping power to available traction.

How does the GSX650F compare to a GSX-R model?

While the GSX650F shares styling cues with the GSX-R series, it is fundamentally a different type of motorcycle. The GSX-R models are dedicated supersport bikes focused on high-performance track riding, with more aggressive engines and chassis. The GSX650F, by contrast, is an all-rounder designed for comfort, practicality, and enjoyable street riding, offering a more civilised power delivery and relaxed ergonomics. It's a sport-touring bike rather than a pure sportbike.

What is the fuel capacity of the GSX650F?

The Suzuki GSX650F has a generous fuel tank capacity of 19.0 litres (approximately 4.2 UK gallons), providing excellent range for longer rides and reducing the frequency of fuel stops.

Conclusion

The Suzuki GSX650F stands as a commendable example of a truly versatile middleweight motorcycle, and at its heart lies an engine that perfectly encapsulates its design philosophy. The liquid-cooled, 656cc, DOHC inline-four, with its precise fuel-injection and thoughtful tuning for low-to-mid-range power, delivers an engaging yet incredibly manageable riding experience. It’s an engine that supports the rider, whether they are navigating bustling city streets, embarking on a comfortable tour, or enjoying a spirited run on winding country roads. The GSX650F is more than just a bike with a powerful engine; it's a meticulously balanced machine where every component, particularly its robust and refined powerplant, works in harmony to provide an outstanding blend of performance, practicality, and sheer riding enjoyment. For anyone seeking a reliable, comfortable, and sporty all-rounder, the GSX650F, with its heart of gold, remains an exceptional choice in the used market and a testament to Suzuki's engineering prowess.
