Unlock Your Grand Vitara's Secrets with OBD II

Owning a Suzuki Grand Vitara is a fantastic experience, offering a blend of rugged capability and everyday practicality. However, like any modern vehicle, it relies on a complex network of electronic systems. When something goes awry, that dreaded 'check engine' light can illuminate, leaving you wondering what's wrong. This is where On-Board Diagnostics II (OBD II) comes into play, acting as your vehicle's digital health monitor. Understanding how your Grand Vitara uses OBD II can empower you to perform basic diagnostics, save money on garage visits, and maintain your vehicle's optimal performance.

What Exactly is OBD II?

OBD II is a standardised system implemented in most vehicles sold since the mid-1990s. Its primary purpose is to monitor your vehicle's emissions control systems and other critical components. When a sensor detects an issue that could affect emissions or vehicle operation, the system stores a Diagnostic Trouble Code (DTC) and often illuminates the Malfunction Indicator Lamp (MIL), commonly known as the 'check engine' light. This standardisation means that regardless of the car manufacturer, the diagnostic port and the basic communication protocols remain the same, allowing a single diagnostic tool to work across various makes and models.

For vehicles sold in the UK and Europe, the equivalent standard is EOBD (European On-Board Diagnostics). Petrol cars became EOBD compliant from 2001, and diesel cars from 2004. This is a crucial piece of information when considering the compatibility of your Grand Vitara.

Is Your Grand Vitara OBD II Compliant?

This is a common question among Grand Vitara owners. Given the EOBD regulations, any Suzuki Grand Vitara petrol model manufactured from 2001 onwards and any diesel model from 2004 onwards will be fully EOBD (and thus OBD II) compliant. This means your 2002 Grand Vitara 2.0L L4, being a petrol model, is indeed EOBD compliant, and you can confidently use an OBD II scanner with it.

Models manufactured before these dates might have proprietary diagnostic systems (often referred to as OBD-I), which require specific manufacturer-specific tools or adapters. However, the vast majority of Grand Vitaras you'll encounter on UK roads today will fall within the OBD II/EOBD compliant years, making diagnostics accessible to the average owner.

Why Use OBD II on Your Grand Vitara?

The benefits of using an OBD II reader on your Grand Vitara are substantial:

• Quick Diagnosis: The moment your check engine light comes on, an OBD II reader can tell you the specific fault code, often pointing directly to the problematic system or component.
• Cost Savings: Instead of paying a garage for an initial diagnostic check, you can perform it yourself. This allows you to research the issue, potentially perform minor fixes, or at least go to the mechanic with a clear understanding of the problem, preventing unnecessary repairs.
• Empowerment: Understanding your car's diagnostic codes gives you control. You're not relying solely on a mechanic's interpretation; you have data to back up decisions.
• Preventative Maintenance: Some advanced OBD II scanners allow you to view live data streams (e.g., engine RPM, coolant temperature, sensor readings). Monitoring these values can help you spot potential issues before they become major breakdowns.
• Emissions Checks: OBD II monitors are crucial for emissions testing. A scanner can tell you if your vehicle is 'ready' for an MOT emissions test, preventing a failed inspection.

Essential Tools for Suzuki Grand Vitara Diagnostics

When it comes to testing your Suzuki Grand Vitara using OBD II, the primary tool you'll need is an OBD II scanner or reader. While the prompt mentions tools like the KZYEE KM10, Plasma Telwin 54, TIG MACHINE Magma TIG 250, Rotabroach, and Power Probe 3EZ, it's important to clarify that these are typically general electrical testers, welding equipment, or heavy-duty workshop tools. They are not direct OBD II code readers, though some might assist in diagnosing electrical faults *after* an OBD II code has pointed to an electrical system issue. For direct OBD II engine diagnostics, you'll need one of the following:

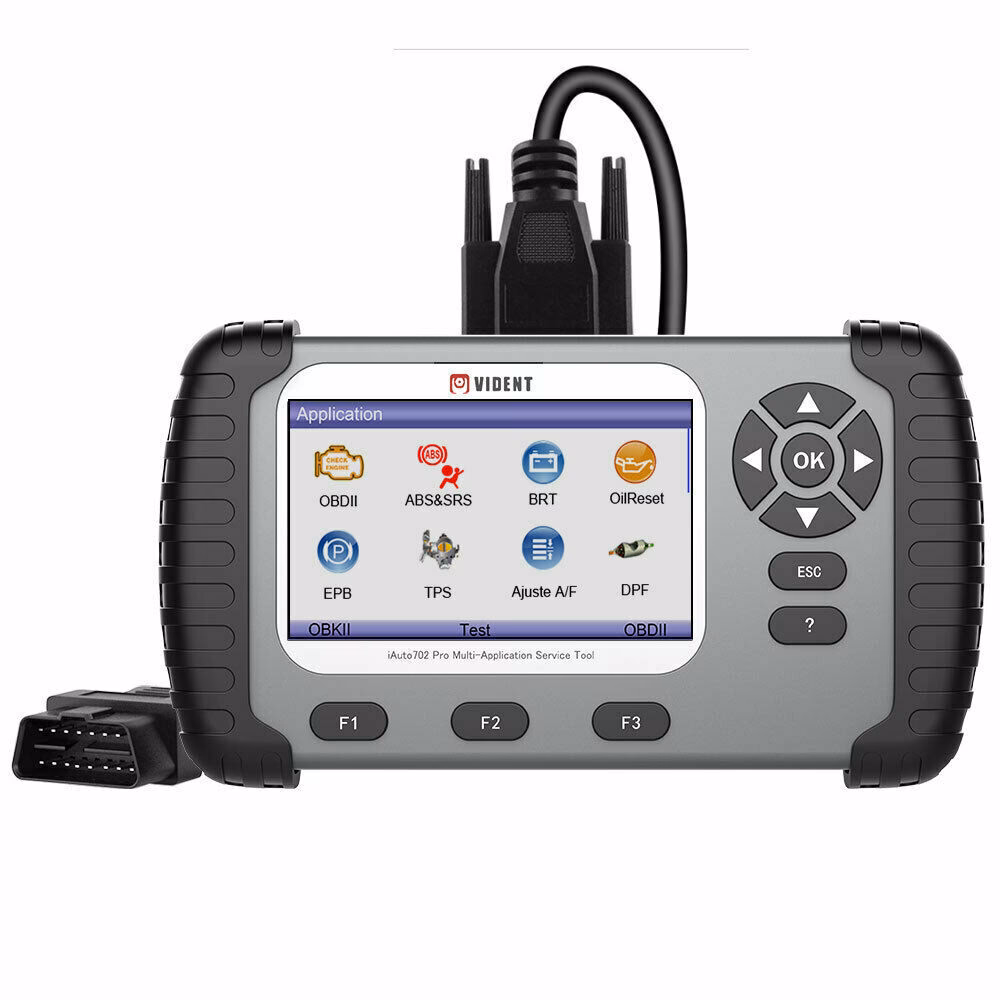

1. Handheld OBD II Scanners

These are the most common and user-friendly options. They range from basic code readers to more advanced scan tools:

• Basic Code Readers: These are affordable devices that simply read and clear DTCs. They are excellent for quickly identifying why your check engine light is on.
• Mid-Range Scan Tools: Offering more features, these often include live data viewing, graphing capabilities, and sometimes access to manufacturer-specific codes (though less common on cheaper universal scanners).
• Professional Diagnostic Tools: Used by mechanics, these are high-end devices that can access all vehicle modules (ABS, airbags, transmission, etc.), perform bi-directional controls, coding, and programming. They are significantly more expensive.

2. Bluetooth/Wi-Fi OBD II Adapters (for Smartphones/Laptops)

These small devices plug into your Grand Vitara's OBD II port and communicate wirelessly with your smartphone, tablet, or laptop. They require a compatible app or software. This option directly addresses the user's query about using a laptop instead of a hardware scanner. Many popular apps (both free and paid) are available, offering features from basic code reading to advanced live data monitoring and custom dashboards.

3. Laptop Software and Adapters

As requested, using a laptop for diagnostics is a powerful option. You'll need:

• OBD II to USB Cable or Bluetooth/Wi-Fi Adapter: This physically connects your laptop to the car's OBD II port.
• Diagnostic Software: There are many software options available, some free (like Torque Lite for Android, or various PC-based freeware) and some paid (like ScanTool.net's OBDLink software, or professional-grade software). The user mentioned 'Equus 3140'; while Equus makes good scanners, the 3140 is a handheld unit, not software. However, many reputable companies offer software solutions that pair with their adapters. When choosing, ensure the software explicitly supports the OBD II/EOBD standard and ideally, has a good reputation for compatibility with a wide range of vehicles, including Suzukis.

While a Suzuki Service Manual (like the SQ416/SQ420/SQ625 mentioned) is an invaluable guide for repair procedures, it doesn't replace the need for an OBD II reader to retrieve the initial fault codes.

How to Get Started: Using an OBD II Reader on Your Grand Vitara

Using an OBD II reader is generally straightforward:

1. Locate the OBD II Port: In most Grand Vitara models, the OBD II port (often called the DLC - Diagnostic Link Connector) is located under the dashboard, typically on the driver's side, near the steering column. It's a 16-pin trapezoidal connector.
2. Turn Off the Ignition: Ensure your vehicle's ignition is off before plugging in the scanner.
3. Connect the Scanner: Plug the OBD II scanner cable securely into the Grand Vitara's diagnostic port. If using a Bluetooth/Wi-Fi adapter, plug it in.
4. Turn On the Ignition (but don't start the engine): Turn your Grand Vitara's ignition to the 'ON' position (accessory mode, where dashboard lights illuminate, but the engine is not running). For some scanners, you might need to start the engine; consult your scanner's manual.
5. Power Up the Scanner: Most handheld scanners draw power directly from the car's OBD II port. If using a Bluetooth/Wi-Fi adapter, ensure it's powered on and visible to your device.
6. Establish Connection: Follow the on-screen prompts on your handheld scanner or the instructions in your app/software to establish a connection with the vehicle's ECU (Engine Control Unit).
7. Read Codes: Navigate to the 'Read Codes' or 'DTC Lookup' function. The scanner will display any stored DTCs (e.g., P0420, P0301).
8. Interpret Codes: Note down the codes. Most scanners provide a brief description, but for a more detailed explanation, you'll need to look up the code online or in a repair manual.
9. Clear Codes (Optional): If you've fixed the issue or just want to see if the light returns, you can use the 'Clear Codes' function. Be cautious, as clearing codes erases valuable diagnostic data that a mechanic might need.
10. Disconnect: Once finished, turn off the ignition and then disconnect the scanner.

Understanding Diagnostic Trouble Codes (DTCs)

DTCs are alphanumeric codes that pinpoint specific issues. They typically start with a letter followed by four numbers:

• P (Powertrain): Related to the engine, transmission, and associated emissions systems. These are the most common codes you'll encounter.
• B (Body): Related to body functions like airbags, central locking, power windows, etc.
• C (Chassis): Related to chassis systems like ABS, traction control, steering, etc.
• U (Network Communication): Related to communication issues between vehicle modules.

For example, a common code like P0420 might indicate 'Catalyst System Efficiency Below Threshold (Bank 1)', suggesting a problem with your catalytic converter or an oxygen sensor. Always research the specific code thoroughly before attempting repairs.

Beyond Codes: Live Data and Advanced Features

More sophisticated OBD II scanners and software can do much more than just read codes. They can display 'live data', showing real-time readings from various sensors and components:

• Engine RPM
• Coolant Temperature
• Oxygen Sensor Readings
• Fuel Trim Values
• Vehicle Speed
• Mass Air Flow (MAF) Sensor readings

Monitoring live data can be incredibly useful for diagnosing intermittent problems or verifying the proper operation of a newly replaced part. For instance, if you suspect a faulty oxygen sensor, watching its voltage fluctuate (or not fluctuate) in real-time can confirm the diagnosis.

Choosing the Right OBD II Reader for Your Grand Vitara

With so many options available, selecting the right OBD II reader can seem daunting. Consider the following:

• Budget: Basic code readers are very affordable, while professional tools can cost hundreds or thousands.
• Features: Do you just need to read/clear codes, or do you want live data, graphing, or battery testing?
• Ease of Use: Some interfaces are more intuitive than others.
• Connectivity: Handheld, Bluetooth, or Wi-Fi? Consider what devices you already own (smartphone, laptop) and your comfort level with apps/software.
• Updateability: Can the scanner's firmware or software be updated to support newer vehicles or fix bugs?

Comparative Table: OBD II Reader Types

Frequently Asked Questions (FAQs)

Q1: My Grand Vitara's check engine light is on. What should I do first?

A: Your first step should be to connect an OBD II scanner and read the diagnostic trouble codes (DTCs). This will give you a specific code that points to the area of the problem, allowing you to research it further.

Q2: Can I clear the codes immediately after reading them?

A: You can, but it's generally not recommended unless you have fixed the underlying issue. Clearing codes erases valuable historical data that a mechanic might need for diagnosis. If you clear the code without addressing the problem, the light will likely come back on.

Q3: What if my OBD II scanner won't connect to my Grand Vitara?

A: First, ensure the ignition is on (but engine off, usually). Check that the scanner cable is securely plugged into the OBD II port. Verify that your Grand Vitara is OBD II/EOBD compliant (petrol from 2001, diesel from 2004). If using a Bluetooth/Wi-Fi adapter, check your device's Bluetooth/Wi-Fi settings and the app's connection status. A blown fuse for the cigarette lighter (accessory power) can sometimes affect the OBD II port's power supply.

Q4: Does clearing codes fix the problem?

A: No, clearing codes only turns off the check engine light and erases the stored fault memory. It does not fix the mechanical or electrical issue that caused the code to appear. The underlying problem must be resolved to prevent the light from returning.

Q5: Can I use an OBD II scanner to check other systems like ABS or airbags?

A: Basic and mid-range OBD II scanners are primarily designed to read engine and emissions-related codes (P-codes). To access codes from other systems like ABS (Anti-lock Braking System), SRS (Supplemental Restraint System/Airbags), or transmission, you typically need a more advanced, often manufacturer-specific, or professional-grade scan tool. Some higher-end universal scanners might offer limited access to these modules.

Q6: Where is the OBD II port located on my Suzuki Grand Vitara?

A: For most Grand Vitara models, the OBD II port (Diagnostic Link Connector) is situated under the dashboard on the driver's side. It's usually found near the steering column, often hidden behind a small cover or panel. It's a distinct 16-pin trapezoidal connector.

In conclusion, the OBD II system is an invaluable asset for any Suzuki Grand Vitara owner. It provides a window into your vehicle's electronic brain, allowing you to quickly identify issues, understand their severity, and make informed decisions about maintenance and repair. Investing in a good quality OBD II reader is a wise decision that can save you time, money, and provide peace of mind on the road.
