Suzuki Boulevard C50 Oil Change Guide

Maintaining your Suzuki Boulevard C50 is crucial for its longevity and performance, and one of the most fundamental tasks is a regular oil change. This guide will walk you through the process, ensuring you can keep your V-twin purring like a kitten. A well-maintained engine is the heart of any motorcycle, and for the iconic Suzuki Boulevard C50, this means paying attention to its lubrication system. Ignoring your oil can lead to premature wear, reduced efficiency, and potentially catastrophic engine damage. Fortunately, changing the oil on your Boulevard C50 is a relatively straightforward task that most owners can accomplish with a few basic tools and a bit of patience. By following these steps, you'll be well on your way to keeping your C50 in top condition, ready for those long cruises and weekend adventures.

Gathering Your Supplies

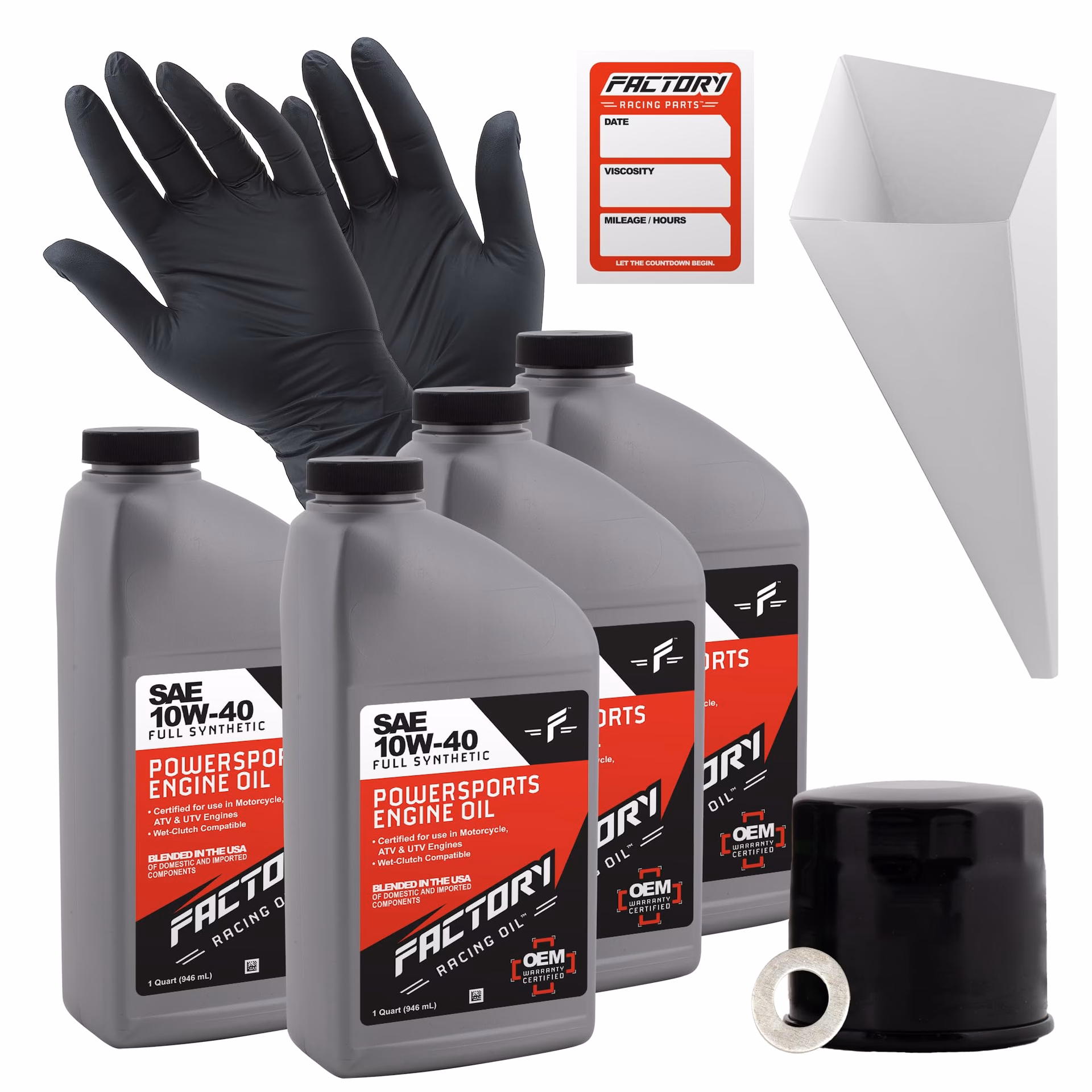

Before you begin, it's essential to have all the necessary tools and materials at hand. This will prevent you from having to stop midway through the process. You'll need: * New Engine Oil: Consult your owner's manual for the recommended oil type and viscosity. For the Boulevard C50, a 10W-40 motorcycle-specific oil is typically recommended. Ensure you have enough – usually around 3.2 litres (3.4 US quarts), but always double-check your manual. * New Oil Filter: Again, your owner's manual will specify the correct part number for your C50. Using the wrong filter can lead to leaks and inadequate filtration. * Wrench for Drain Plug: Typically a 17mm wrench or socket will fit the drain plug. * Oil Filter Wrench: This specialized tool will make removing the old oil filter much easier. * Drain Pan: A container large enough to hold at least 4 litres of used oil. * Funnel: To pour the new oil into the engine without spills. * Rags or Paper Towels: For cleaning up any drips or spills. * Gloves: To protect your hands from hot oil and grime. * Optional: Torque Wrench: To ensure the drain plug is tightened to the correct specification.

Step-by-Step Oil Change Procedure

Step 1: Warm Up the EngineCrank up your Suzuki Boulevard C50's engine for a couple of minutes. The goal here is to warm the oil, making it thinner and more fluid. This will help it drain out more easily and thoroughly, taking more of the suspended contaminants with it. Don't let it get too hot, as you don't want to burn yourself on the engine components or the oil itself. Step 2: Prepare for DrainingOnce the engine has been warmed, switch it off. Locate the oil fill cap on the engine. Unscrew and remove the oil fill cap. This allows air to enter the crankcase, which is crucial for allowing the oil to drain freely. Without this air intake, a vacuum can form, slowing down or even preventing complete drainage. Step 3: Locate and Remove the Drain PlugPosition your drain pan directly underneath the engine's oil drain plug. The drain plug is typically located on the bottom of the engine crankcase. Use your 17mm wrench or socket to loosen and remove the drain plug. Be prepared for the oil to start flowing out immediately once the plug is removed. It might be under some pressure initially, so be careful. Step 4: Drain the Old OilAllow the old oil to drain completely into the pan. This can take several minutes. While it's draining, take this opportunity to inspect the drain plug and its washer. If the washer looks worn or damaged, it's a good idea to replace it to prevent leaks. Some mechanics recommend replacing the washer with every oil change. Step 5: Replace the Drain PlugOnce the oil has finished draining, clean the drain plug and the area around the drain hole with a rag. Screw the drain plug back into the crankcase by hand to avoid cross-threading. If you have a torque wrench, tighten the drain plug to the manufacturer's specified torque (usually around 20-30 Nm, but check your manual). If you don't have a torque wrench, tighten it firmly but avoid overtightening, which can strip the threads. Step 6: Remove the Old Oil FilterLocate the oil filter. On the Boulevard C50, it's typically situated on the right-hand side of the engine. Place your drain pan beneath the oil filter, as some residual oil will likely spill out when you remove it. Use your oil filter wrench to loosen the old filter. Once it's loose, unscrew it by hand. Step 7: Prepare and Install the New Oil FilterBefore installing the new filter, take a clean rag and wipe the filter mounting surface on the engine to ensure it's clean and free of old gasket material. Dip your finger into some of the new engine oil and lubricate the rubber gasket on the new oil filter. This helps create a good seal and makes future removal easier. Screw the new oil filter onto the mounting surface by hand until the gasket makes contact. Then, tighten it an additional 3/4 to 1 full turn by hand, following the instructions on the filter packaging. Do not overtighten. Step 8: Add New Engine OilWith the drain plug and new oil filter in place, it's time to add the fresh oil. Place your funnel into the oil fill opening. Pour in the recommended amount of new engine oil (around 3.2 litres or 3.4 US quarts). It's a good idea to start with slightly less than the full amount and then top it up after checking the level. Step 9: Check the Oil LevelOnce you've added the new oil, screw the oil fill cap back on securely. Start the engine and let it run for a few minutes, allowing the oil to circulate throughout the engine and fill the new oil filter. Turn off the engine and wait for a few minutes for the oil to settle back into the crankcase. Locate the oil level check window or dipstick (consult your manual if unsure). Check the oil level. It should be between the minimum and maximum marks. Add more oil gradually if needed, rechecking the level each time until it's correct. Never overfill the oil. Step 10: Final Checks and CleanupWith the oil level confirmed, do a thorough check for any leaks around the drain plug and the oil filter. Wipe away any spilled oil from the engine and the surrounding area. Dispose of the used oil and old filter responsibly. Most local auto parts stores or recycling centres accept used motor oil for recycling.

Frequently Asked Questions (FAQs)

• Q: How often should I change the oil on my Suzuki Boulevard C50?A: It's generally recommended to change the oil and filter every 3,000-5,000 miles (5,000-8,000 km) or once a year, whichever comes first. Always refer to your owner's manual for the most accurate service intervals.
• Q: Can I use a different type of oil?A: It's best to stick with the manufacturer's recommendation. Using the wrong type of oil can affect performance and potentially damage the engine. For the C50, a 10W-40 motorcycle-specific oil is usually the correct choice.
• Q: My oil filter is stuck, what should I do?A: If the oil filter is difficult to remove with a standard filter wrench, you may need a more robust filter wrench or even consider a strap wrench. Ensure you are turning it counter-clockwise to loosen.
• Q: What if I don't have a torque wrench for the drain plug?A: Tighten the drain plug firmly by hand, but do not overtighten. Overtightening can strip the threads in the crankcase, leading to costly repairs. If in doubt, it's better to be slightly under than significantly over.

• Q: Where can I dispose of used motor oil?A: Most auto parts stores, service stations, and local recycling centres accept used motor oil for proper disposal and recycling. Never pour used oil down drains or onto the ground.

  Important Considerations

• Safety First: Always ensure your motorcycle is on a stable, level surface before you begin. Use a motorcycle stand if necessary. Wear gloves and eye protection.
• Environmental Responsibility: Proper disposal of used oil and filters is crucial for protecting the environment. Do not pour it down drains or dispose of it in household waste.
• Owner's Manual is Your Best Friend: While this guide provides comprehensive steps, your Suzuki Boulevard C50's owner's manual is the definitive source for specifications, torque values, and recommended service intervals. Always consult it. By following these instructions, you can confidently perform an oil change on your Suzuki Boulevard C50, ensuring its engine remains healthy and ready for countless miles of enjoyable riding. Happy riding!
