The suspension system in your vehicle is a complex network of components designed to provide a comfortable ride and maintain optimal tyre contact with the road surface. It's crucial for handling, safety, and overall driving experience. When your suspension starts to feel 'off,' it's often a sign that some parts may be worn or damaged. This guide will delve into the intricacies of car suspension repair and maintenance, focusing on the vital roles of suspension arms and joints.
Understanding Your Car's Suspension
At its core, the suspension system is responsible for managing the forces between the road and the vehicle's body. It absorbs shocks from bumps and imperfections, preventing them from being transmitted directly into the cabin. Furthermore, it ensures that the wheels remain planted on the road, even when cornering or braking, which is fundamental for traction and control. Key elements include shock absorbers, coil springs, anti-roll bars, and, of course, suspension arms and joints.
Suspension Arms & Joints: The Unsung Heroes

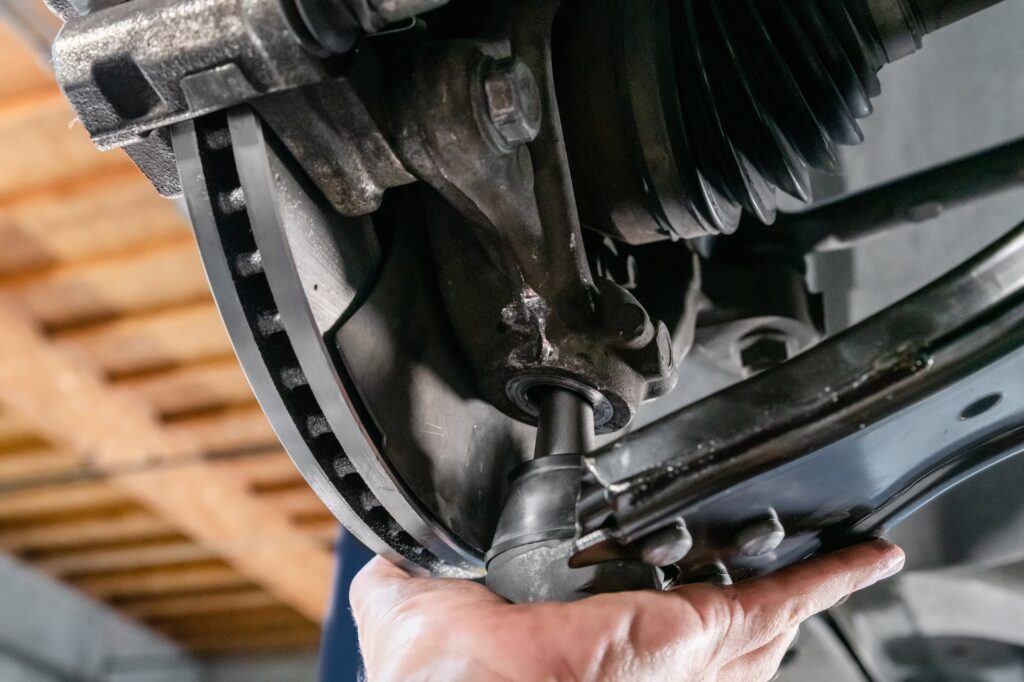

Suspension arms, also known as control arms or wishbones, are pivotal components within the suspension geometry. They connect the wheel hub assembly to the vehicle's chassis, acting as pivots. These arms are designed to allow the wheels to move up and down while controlling their position relative to the car's body. The 'hinge joint' you mentioned, typically a ball joint or a bush, is attached to the other end of these arms. These joints allow for the necessary articulation and movement, ensuring that the wheels can follow the contours of the road and steer effectively. Without properly functioning arms and joints, your car's handling and stability would be severely compromised.
Types of Suspension Arms
Vehicles commonly employ different types of suspension arms to achieve specific handling characteristics and wheel control. The most prevalent configuration, as you noted, involves two arms per wheel: an upper control arm and a lower control arm. These are often referred to as wishbone suspension due to their A-shape or V-shape. However, other designs exist:
- Trailing Arms: Found in many independent rear suspension systems, these arms are mounted longitudinally (front to back) and pivot at the chassis.
- Multi-Link Suspension: This more advanced system uses several individual arms (links) to control wheel movement in multiple directions, offering superior handling and ride quality.
The specific design and shape of these arms are dictated by the vehicle's suspension geometry, which is meticulously engineered by the manufacturer to provide the desired balance of comfort and performance. Many modern vehicles use lightweight aluminium or high-strength steel for their suspension arms to reduce unsprung mass, which further enhances handling.
Common Suspension Problems and Symptoms
Wear and tear are inevitable, and suspension components are no exception. Several issues can arise, leading to noticeable symptoms:
- Uneven Tyre Wear: Worn ball joints or control arm bushings can cause misalignment, leading to rapid and uneven tyre wear, often on the edges.
- Clunking or Knocking Noises: Loose or worn suspension arms and joints are a common cause of these noises, especially when going over bumps or turning.
- Poor Handling: If your car pulls to one side, feels unstable when cornering, or has excessive body roll, your suspension may be compromised.
- Vibration: Worn suspension components can transmit vibrations through the steering wheel or the chassis.
- Sagging Ride Height: While often associated with springs or shock absorbers, worn control arm bushings can also contribute to a lower stance.
Repairing Suspension Arms & Joints
Repairing suspension arms and joints typically involves replacing the worn-out components. This is a job that requires specific tools, mechanical knowledge, and a commitment to safety. If you're not experienced with automotive repair, it's highly recommended to entrust this task to a qualified mechanic.

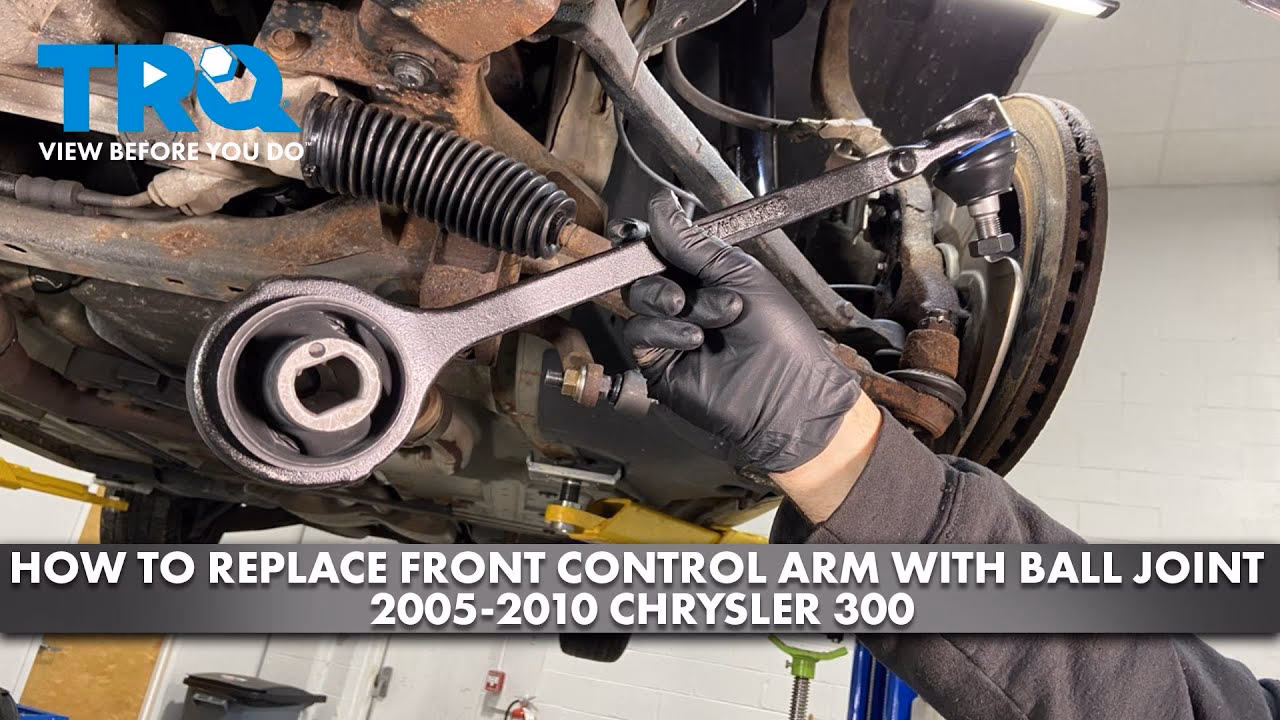

The Replacement Process (General Overview)
While the exact procedure varies between vehicle makes and models, the general steps for replacing a suspension arm and its associated joints are as follows:
- Safety First: Park the vehicle on a level surface, engage the parking brake, and use wheel chocks. Safely lift the vehicle using a jack and support it securely on jack stands. Never work under a vehicle supported only by a jack.
- Remove the Wheel: Loosen the lug nuts and remove the wheel to gain access to the suspension components.
- Inspect the Component: Visually inspect the suspension arm and its joints for signs of damage, such as cracks, excessive play, or torn rubber boots on ball joints.
- Disconnect Components: The suspension arm will be connected to the chassis and the wheel hub assembly. This usually involves unbolting the arm from its mounting points and disconnecting any associated ball joints or tie rod ends. Specialized tools, like a ball joint separator, may be required.
- Remove the Old Part: Once disconnected, the old suspension arm can be removed.
- Install the New Part: Fit the new suspension arm, ensuring it's correctly oriented. Reconnect the ball joints and secure the mounting bolts, tightening them to the manufacturer's specified torque.
- Reassemble: Reinstall the wheel, ensuring the lug nuts are tightened correctly. Lower the vehicle.
- Wheel Alignment: This is a critical step. After replacing suspension components, the vehicle's wheel alignment will almost certainly be affected. A professional wheel alignment is essential to ensure correct tyre wear, optimal handling, and safety.
When to Replace Suspension Arms vs. Joints
Often, the ball joints or bushings integrated into the suspension arm are the first to fail. In some cases, you can replace just the ball joint or bush if they are serviceable and sold separately. However, many modern suspension arms come as a complete unit with pre-installed ball joints and bushings. In such instances, the entire arm assembly needs to be replaced. It's usually more cost-effective and practical to replace the entire arm if the ball joint or bushings are integral to it, as the labour involved in pressing out old bushes and pressing in new ones can be significant.
Maintaining Your Suspension System
Regular maintenance can help prolong the life of your suspension components:
- Regular Inspections: Have your suspension checked periodically during routine servicing. Look for torn rubber boots on ball joints, leaking shock absorbers, or any visible damage to arms.
- Avoid Potholes: Driving over potholes or large bumps can cause significant damage to your suspension. Drive cautiously, especially on poorly maintained roads.
- Proper Tyre Inflation: Incorrect tyre pressures can put additional stress on suspension components.
- Listen for Noises: Pay attention to any new or unusual noises coming from your car, as these can be early indicators of suspension problems.
Table: Common Suspension Issues & Solutions
| Symptom | Possible Cause | Solution |
|---|---|---|
| Uneven Tyre Wear | Worn ball joints, worn control arm bushings, damaged steering linkage | Wheel alignment, replacement of worn components |
| Clunking/Knocking Noises | Worn ball joints, worn control arm bushings, loose components | Inspect and replace worn joints, bushings, or tighten loose fasteners |
| Poor Handling/Car Pulling | Worn suspension components, incorrect wheel alignment | Wheel alignment, replacement of worn suspension parts |
| Vibrations | Worn bushings, unbalanced wheels, worn wheel bearings | Inspect suspension, check wheel balance and bearings |
Frequently Asked Questions (FAQs)
How often should suspension arms be replaced?
There's no fixed mileage for replacing suspension arms. Their lifespan depends heavily on driving conditions, driving style, and the quality of the original parts. However, most suspension arms and joints should be inspected every 12,000 miles or 12 months and may need replacement between 50,000 and 100,000 miles, or sooner if symptoms arise.
Can I drive with a worn suspension arm?
Driving with worn suspension arms is not recommended. It can lead to significantly reduced handling, increased braking distances, uneven tyre wear, and potentially a complete failure of the component, which could cause loss of steering control and a serious accident. It's a critical safety issue.
What is the cost of replacing suspension arms?
The cost can vary widely depending on the make and model of your vehicle, the specific parts required, and your location. Parts can range from £50 to £200 per arm, while labour costs for replacement and a subsequent wheel alignment can add another £150 to £400.
What’s the difference between a ball joint and a control arm bushing?

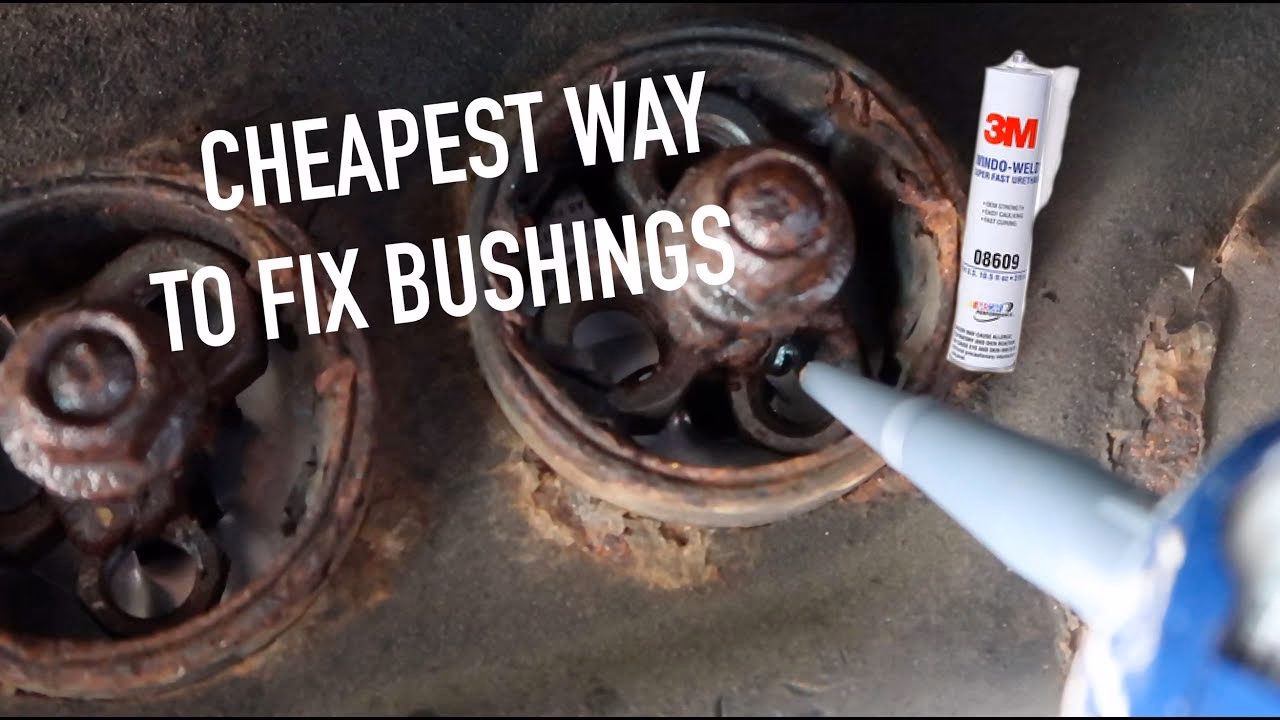

A ball joint is a spherical bearing that connects the control arm to the steering knuckle, allowing for rotational and angular movement, essential for steering and suspension articulation. A control arm bushing is typically a rubber or polyurethane sleeve that fits between the control arm and the vehicle chassis, absorbing vibrations and allowing the arm to pivot smoothly.
Why is a wheel alignment necessary after suspension work?
When suspension components are replaced, their precise positioning relative to the chassis and wheels can change. This directly affects the wheel alignment angles (camber, caster, toe). Without a proper alignment, your car will not drive straight, tyres will wear unevenly, and fuel efficiency can decrease. It's a crucial step for performance and safety.
Conclusion
The suspension system, including its arms and joints, is fundamental to your vehicle's safety, handling, and comfort. By understanding the function of these components, recognizing the symptoms of wear, and following proper maintenance and repair procedures, you can ensure your car remains a pleasure to drive. If you suspect a suspension issue, don't delay; get it checked by a professional to keep your journey smooth and secure.
