Supercharger Secrets: Boost Your Engine's Power

In the quest for more power and efficiency from internal combustion engines, engineers have explored numerous avenues. One of the most effective and historically significant methods is supercharging. While often discussed alongside turbochargers, superchargers operate on a distinct principle, directly driven by the engine itself to force more air into the combustion chambers. This article will delve into the fascinating world of superchargers, explaining their fundamental purpose, historical context, various types, working mechanisms, and the advantages and disadvantages they bring to the automotive landscape.

The very essence of an engine's power lies in its ability to burn fuel. More air means more fuel can be introduced and combusted, leading to a more potent explosion within the cylinder and, consequently, increased horsepower and torque. Naturally aspirated engines rely on atmospheric pressure to draw air into the cylinders. However, this process is limited, especially at lower engine speeds and altitudes. Superchargers, in essence, are air pumps designed to overcome this limitation, delivering a denser charge of air under pressure.

A Brief History of Supercharging

The concept of artificially increasing the air supply to an engine isn't new. The earliest documented use of a supercharger dates back to 1868, when Dugald Clerk applied the principle to a two-stroke engine. Later, in 1885, Gottlieb Daimler secured a German patent for supercharging internal combustion engines. Early iterations were often referred to as "turbosuperchargers," a term that later evolved to distinguish between engine-driven superchargers and exhaust-gas-driven turbochargers. Over time, advancements in compressor technology have refined superchargers, making them more efficient and reliable.

The Core Function of a Supercharger

The primary function of a supercharger is to increase an engine's power output without necessarily increasing its physical size or weight. It achieves this by forcing more air into the engine's cylinders than it could draw in naturally. This increased air density allows for a greater quantity of fuel to be injected, creating a richer air-fuel mixture that, when ignited, produces more power. In essence, a supercharger raises the charge density before it enters the combustion chamber, leading to:

• Increased engine power output for a given engine displacement.
• Improved volumetric efficiency, meaning the cylinders are filled more effectively with the air-fuel mixture.
• Enhanced combustion efficiency, potentially leading to lower emissions if managed correctly.
• Greater responsiveness, especially at lower engine speeds where naturally aspirated engines typically struggle.

Supercharging: The Definition and Mechanism

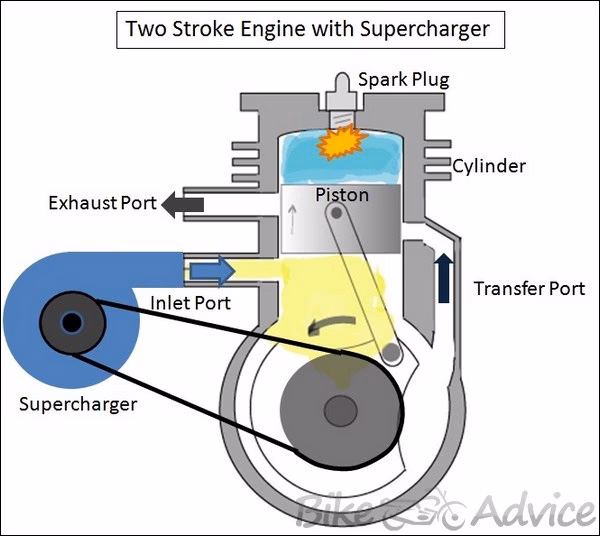

A supercharger is an air compressor mechanically linked to the engine's crankshaft, typically via belts, chains, or gears. This direct connection ensures that the supercharger operates in tandem with the engine's speed. As the engine revs up, the supercharger spins faster, increasing the volume of air it delivers. This compressed air is then fed into the engine's intake manifold, boosting the pressure within the cylinders. The process can be visualised as follows:

• Air is drawn from the atmosphere into the supercharger.
• The supercharger compresses this air.
• The compressed air is delivered to the engine's intake.
• This denser air allows more fuel to be injected.
• The resulting richer mixture burns more powerfully, generating extra horsepower.

Key Components of a Supercharger System

While specific designs vary, most supercharger systems share common components:

• Drive Mechanism: This is the linkage that connects the supercharger to the engine's crankshaft. It can be a serpentine belt, a V-belt, a timing chain, or a gear drive.
• Compressor Unit: This is the heart of the supercharger, responsible for drawing in and compressing the air. The type of compressor (centrifugal, roots, or screw) dictates its internal design.
• Housing: The casing that encloses the compressor unit and directs airflow.
• Inlet and Outlet Ports: Where air enters and exits the compressor.
• Pulley System: For belt-driven superchargers, pulleys transfer rotational force from the crankshaft to the supercharger's drive pulley.

Types of Superchargers

Superchargers are broadly categorised based on their internal design and how they compress air. The three most common types are:

1. Centrifugal Superchargers

Centrifugal superchargers are the most prevalent type in modern automotive applications. They belong to the category of dynamic compressors and function similarly to a turbocharger's compressor wheel, but are driven by the engine's crankshaft rather than exhaust gases.

Working Principle: Air enters the supercharger and is directed into a rapidly spinning impeller. The impeller's high rotational speed (often exceeding 15,000 RPM) imparts kinetic energy to the air, forcing it outwards due to centrifugal force. This high-velocity air then enters a diffuser, a stationary component that slows the air down. As the air slows, its pressure increases, a phenomenon described by Bernoulli's principle. This higher-pressure air is then channelled into the engine's intake manifold. They are often mounted at the front of the engine and connected via a belt-pulley system.

Advantages: Relatively lightweight, can be very efficient at higher RPMs, and are generally less expensive to manufacture. They also offer a smooth, progressive power delivery. Integration with intercoolers (air-to-air or air-to-water) is straightforward.

Disadvantages: They can suffer from a slight lag at very low RPMs, as it takes time for the impeller to reach its effective operating speed. Their efficiency can drop off at very high boost pressures.

2. Roots Blowers (Lobe Type Superchargers)

These are among the oldest supercharger designs, named after their inventors, Philander H. and Francis M. Roots. They utilise a pair of intermeshing lobes (rotors) to move air.

Working Principle: The Roots blower features two or more rotors that rotate within a housing, trapping volumes of air between the lobes and the housing walls. As the rotors spin, they draw air in from the inlet port and carry it around the housing to the outlet port. Crucially, Roots blowers do not significantly compress the air internally; they simply displace a fixed volume of air with each rotation. The compression primarily occurs as the trapped air is forced into the higher-pressure environment of the engine's intake manifold.

Advantages: They provide boost almost instantaneously from idle, offering excellent low-end torque and a very responsive feel. Their robust design makes them reliable. They are often mounted on top of the engine, giving a distinctive visual appeal, especially in muscle cars.

Disadvantages: They are generally less efficient than centrifugal or screw types, particularly at higher RPMs. They can also generate more heat and can be quite noisy due to the air being pulsed rather than smoothly delivered.

3. Twin-Screw Superchargers

Twin-screw superchargers represent a more advanced evolution of the Roots blower design. They also use meshing rotors, but with a helical or screw-like shape.

Working Principle: Similar to Roots blowers, twin-screw superchargers trap air in pockets formed between their helical rotors and the casing. However, the unique shape of the screws allows for internal compression. As the rotors turn, the air pockets are progressively squeezed as they move from the inlet to the outlet. This internal compression is more efficient than the displacement-only method of Roots blowers. The rotors typically have a conical taper, which aids in reducing the volume of the trapped air.

Advantages: They offer a good balance of efficiency across a wider RPM range compared to Roots blowers. They provide significant torque gains and are generally quieter and produce less heat than Roots types. Their internal compression is also more effective.

Disadvantages: They can be more complex and costly to manufacture. While more efficient than Roots, they may not reach the peak efficiency of some centrifugal designs at very high RPMs.

Supercharger vs. Turbocharger: A Quick Comparison

It's worth noting the key difference between superchargers and turbochargers. Both force more air into an engine, but their power source differs:

• Supercharger: Driven mechanically by the engine's crankshaft.
• Turbocharger: Driven by exhaust gases, using a turbine to spin a compressor.

This fundamental difference leads to distinct characteristics. Superchargers offer immediate boost with no lag, as they are directly tied to engine speed. Turbochargers, however, can experience "turbo lag" – a delay in boost delivery as the exhaust gases spool up the turbine. Conversely, turbochargers don't draw power directly from the crankshaft, making them potentially more efficient overall, especially at higher engine loads.

Advantages of Using a Supercharger

The benefits of fitting a supercharger to an engine are substantial:

• Increased Power and Torque: This is the primary advantage, leading to more spirited acceleration and better overtaking capability.
• Instantaneous Boost: Unlike turbochargers, superchargers provide boost from idle, enhancing low-end responsiveness.
• Improved Drivability: The consistent delivery of power across the RPM range makes for a more engaging driving experience.
• Reduced Emissions (Potentially): By promoting more complete combustion, superchargers can help reduce certain emissions, provided the engine management system is optimised.
• Ease of Installation: Many aftermarket supercharger kits are designed for relatively straightforward installation, often bolting directly onto the engine.

Disadvantages of Superchargers

However, supercharging also comes with drawbacks:

• Parasitic Loss: Since the supercharger is driven by the engine, it consumes a portion of the engine's power to operate. Typically, this can be around 20% of the generated boost power.
• Increased Heat: Compressing air generates heat. This heated air is less dense and can lead to detonation (engine knock) if not managed, often requiring an intercooler.
• Engine Stress: The increased cylinder pressures can place greater stress on engine components, potentially requiring stronger internal parts.
• Maintenance Costs: Superchargers are complex mechanical devices that may require periodic maintenance or eventual replacement, adding to running costs.
• Fuel Consumption: While efficiency can improve under certain conditions, the increased power output often leads to higher fuel consumption when the extra power is utilised.

Frequently Asked Questions

Q1: Can I fit a supercharger to any car?
A1: While aftermarket kits are available for many vehicles, fitting a supercharger requires careful consideration of the engine's design, strength, and the availability of suitable kits. Professional installation is often recommended.

Q2: Do superchargers always increase fuel consumption?
A2: Not necessarily. While utilising the extra power will increase fuel consumption, an efficiently supercharged engine might be more economical in certain driving scenarios as it can achieve desired performance with less effort. However, in practice, most drivers use the added power, leading to increased fuel usage.

Q3: What is the difference between a supercharger and a turbocharger again?
A3: The key difference is how they are powered. A supercharger is driven by the engine's crankshaft (mechanically), while a turbocharger is driven by exhaust gases (using a turbine).

Q4: Do I need an intercooler with a supercharger?
A4: It is highly recommended, especially if you are aiming for significant boost levels. An intercooler cools the compressed air before it enters the engine, making it denser and reducing the risk of detonation, thus improving performance and engine longevity.

Conclusion

Superchargers are remarkable devices that offer a direct and effective way to enhance an internal combustion engine's performance. By forcing more air into the cylinders, they unlock greater power and torque, providing a more exhilarating driving experience. Whether you opt for the smooth, progressive boost of a centrifugal unit, the instant low-end grunt of a Roots blower, or the balanced efficiency of a twin-screw design, understanding their principles, advantages, and disadvantages is key to appreciating their significant contribution to automotive engineering. As technology continues to evolve, superchargers remain a vital tool in the pursuit of automotive power and performance.
