When you're tearing up trails or cruising urban streets on a powerful e-bike like the Super 73 RX, the exhilaration is undeniable. With a formidable 2000W peak motor output, this machine is built for speed and tackling challenging terrains. However, such potent power demands an equally robust and reliable braking system to ensure rider safety and ultimate control. The ability to stop swiftly, safely, and predictably is paramount, transforming a thrilling ride into a secure experience. For the Super 73 RX, the choice of brakes is not merely an afterthought; it's a cornerstone of its performance and, more importantly, its rider's security. This article delves deep into the braking technology of the Super 73 RX, explaining why its chosen system is perfectly suited for its adventurous spirit and high-performance capabilities.
- The Heart of the Super 73 RX's Stopping Power: Tektro Dorado Hydraulic Disc Brakes
- Key Components of the RX's Braking System: 180mm Rotors and Four-Piston Callipers
- Why This Braking System for the Super 73 RX?
- Hydraulic vs. Mechanical Disc Brakes: A Comparative Overview
- Maintaining Your Super 73 RX's Braking System
- Frequently Asked Questions About Super 73 RX Brakes
- Q: What type of brakes does the Super 73 RX use?
- Q: Why are hydraulic disc brakes preferred for the Super 73 RX?
- Q: What is the significance of the 180mm rotors?
- Q: What do 'four-piston callipers' mean, and why are they important?
- Q: How often should I service the brakes on my Super 73 RX?
- Q: Can I upgrade the brakes on another Super 73 model to be like the RX's?
- Conclusion: Confidence in Every Stop
The Heart of the Super 73 RX's Stopping Power: Tektro Dorado Hydraulic Disc Brakes
The Super 73 RX stands out not just for its power and rugged design, but also for its sophisticated braking system. Unlike many standard e-bikes, the RX is equipped with Tektro Dorado hydraulic disc brakes. This is a significant upgrade from the mechanical disc brakes found on some more basic models, offering a superior level of performance, control, and reliability. These aren't just any brakes; they are designed to handle the demands of a heavier, faster e-bike that ventures off-road.
Understanding Hydraulic Disc Brakes
At the core of the Super 73 RX's stopping prowess is the hydraulic mechanism. Unlike mechanical brakes that rely on a physical cable to pull a lever and engage the caliper, hydraulic systems use a sealed fluid reservoir and lines. When the rider squeezes the brake lever, it actuates a master cylinder, which in turn pushes hydraulic fluid through the brake lines. This fluid pressure then forces pistons within the brake caliper to clamp the brake pads against the rotor, creating friction and bringing the bike to a halt. This fluid-based system offers several distinct advantages over traditional cable-actuated mechanical brakes.
The Benefits of Hydraulic Systems for E-Bikes
For a powerful e-bike like the Super 73 RX, the advantages of hydraulic disc brakes are numerous and critical. Firstly, they provide significantly more stopping power with less effort at the lever. This means riders can achieve powerful deceleration without having to exert excessive force, reducing hand fatigue, especially during long rides or aggressive descents. Secondly, hydraulic systems offer superior modulation. This refers to the rider's ability to precisely control the amount of braking force applied. Instead of an 'on-off' feel, hydraulic brakes allow for a nuanced application of power, enabling riders to feather the brakes for subtle speed adjustments or apply full stopping force in an emergency. This fine control is invaluable when navigating diverse terrains, from slippery trails to busy urban environments.
Furthermore, hydraulic brakes offer consistent performance across a wide range of conditions. Whether it's pouring rain, muddy trails, or dry asphalt, the fluid system is less susceptible to external elements that can degrade the performance of mechanical cables, such as dirt, water, or cable stretch. This consistency ensures that the rider can always rely on the brakes to perform predictably, no matter the situation. The sealed nature of the system also means less frequent maintenance compared to mechanical cables that can fray or stretch over time.
Key Components of the RX's Braking System: 180mm Rotors and Four-Piston Callipers
Beyond the fundamental hydraulic operation, the specific components of the Super 73 RX's Tektro Dorado system are crucial to its exceptional performance. The text highlights two key specifications: the use of 180mm rotors and four-piston callipers. These are not arbitrary choices; they are deliberate design decisions that significantly enhance the bike's stopping capabilities.
The Significance of 180mm Rotors
The rotor, also known as the brake disc, is the circular metal plate attached to the wheel hub that the brake pads clamp onto. The size of this rotor plays a critical role in braking performance. The Super 73 RX utilises 180mm rotors, which are considered a large size for an e-bike. A larger rotor offers several benefits. Firstly, it provides a greater surface area for the brake pads to make contact with, resulting in increased friction and thus, more stopping power. Secondly, the larger diameter creates more leverage. Imagine trying to stop a spinning wheel by grabbing it close to the centre versus grabbing it further out – the latter requires less effort for the same stopping effect. This leverage translates to more efficient braking. Finally, larger rotors dissipate heat more effectively. Braking generates a considerable amount of heat, and if this heat isn't managed, it can lead to brake fade, where the brakes lose their effectiveness. The larger surface area of a 180mm rotor helps to cool the system more quickly, maintaining consistent performance even during prolonged or aggressive braking.
The Advantage of Four-Piston Callipers
The calliper is the component that houses the brake pads and the pistons that push them against the rotor. Standard disc brake callipers often feature two pistons – one on each side of the rotor. The Super 73 RX, however, is equipped with four-piston callipers. This means there are two pistons on each side, effectively doubling the clamping force applied to the rotor. The benefits of this design are profound for a bike of the RX's calibre:
- Increased Stopping Power: With four pistons exerting pressure, the brake pads are pressed against the rotor with significantly greater force, leading to much more potent stopping power. This is essential for a heavier e-bike that can reach higher speeds.
- Improved Modulation and Control: While counter-intuitive, more pistons can actually lead to better modulation. The force is distributed more evenly across the pad, allowing for a more nuanced and controlled application of braking.
- Better Heat Management: More pistons also mean a larger pad surface area, which contributes to better heat dissipation and reduces the likelihood of brake fade during intense use.
- Enhanced Durability and Pad Wear: The even distribution of pressure can lead to more consistent and even wear of the brake pads, potentially extending their lifespan.
These features combined ensure that the Super 73 RX can stop straight away when needed, providing a crucial safety net for riders pushing the limits of their e-bike.
Why This Braking System for the Super 73 RX?
The choice of Tektro Dorado hydraulic disc brakes with 180mm rotors and four-piston callipers for the Super 73 RX is no accident. It's a deliberate engineering decision that aligns perfectly with the bike's design philosophy and intended use. The RX is described as having a 2000W motor and an aluminium alloy frame with full suspension, mirroring an electric dirt bike. It's built for adventures and standard off-roading, where riders will encounter varied terrain, descents, and potentially unexpected obstacles. A powerful motor means the bike can accelerate quickly and achieve significant speeds, even if electronically limited to 20mph for legal reasons. The ability to quickly and reliably shed speed is paramount in such scenarios.
Furthermore, the RX weighs around 37kg with the battery included. This substantial weight, combined with a rider, creates significant kinetic energy that needs to be effectively managed when stopping. Standard or less powerful brakes would simply be inadequate, leading to longer stopping distances, increased rider fatigue, and compromised safety. The robust Tektro Dorado system is perfectly matched to the RX's power, weight, and intended adventurous use, providing the confidence and control necessary for exhilarating yet safe rides.
Hydraulic vs. Mechanical Disc Brakes: A Comparative Overview
To fully appreciate the Super 73 RX's braking system, it's helpful to understand how it compares to the mechanical disc brakes found on bikes like the Super 73 ZI. While mechanical disc brakes offer a significant improvement over traditional rim brakes, hydraulic systems generally stand as the superior choice for high-performance e-bikes.
| Feature | Hydraulic Disc Brakes (e.g., Tektro Dorado on RX) | Mechanical Disc Brakes (e.g., on ZI) |
|---|---|---|
| Actuation Method | Fluid (oil) pressure through sealed lines | Steel cable tension |
| Stopping Power | Very High, consistent, powerful with minimal lever effort | Moderate, can be less consistent, requires more lever effort |
| Modulation (Control) | Excellent, highly precise and progressive feel | Good, but less precise and can feel more 'on-off' |
| Feel at Lever | Smooth, light, and consistent, reduces hand fatigue | Firmer, can feel stiffer, susceptible to cable friction |
| Performance in Wet/Mud | Highly consistent, unaffected by external conditions | Can be affected by cable contamination (dirt, water) |
| Maintenance | Requires periodic fluid bleeding, pad replacement | Requires cable adjustment/replacement, pad replacement |
| Weight | Generally slightly heavier due to fluid and components | Generally lighter due to simpler mechanism |
| Cost | Typically higher initial cost | Typically lower initial cost |
As the table illustrates, the benefits of hydraulic disc brakes, particularly the Tektro Dorado system on the RX, are clear. For a bike designed to tackle challenging terrain and provide significant power, the enhanced stopping power, superior modulation, and consistent performance of hydraulic brakes are indispensable safety features.
Maintaining Your Super 73 RX's Braking System
Even the best braking system requires proper maintenance to ensure optimal performance and longevity. While hydraulic brakes are known for their reliability, a few key practices will keep your Super 73 RX's Tektro Dorado system in top condition:

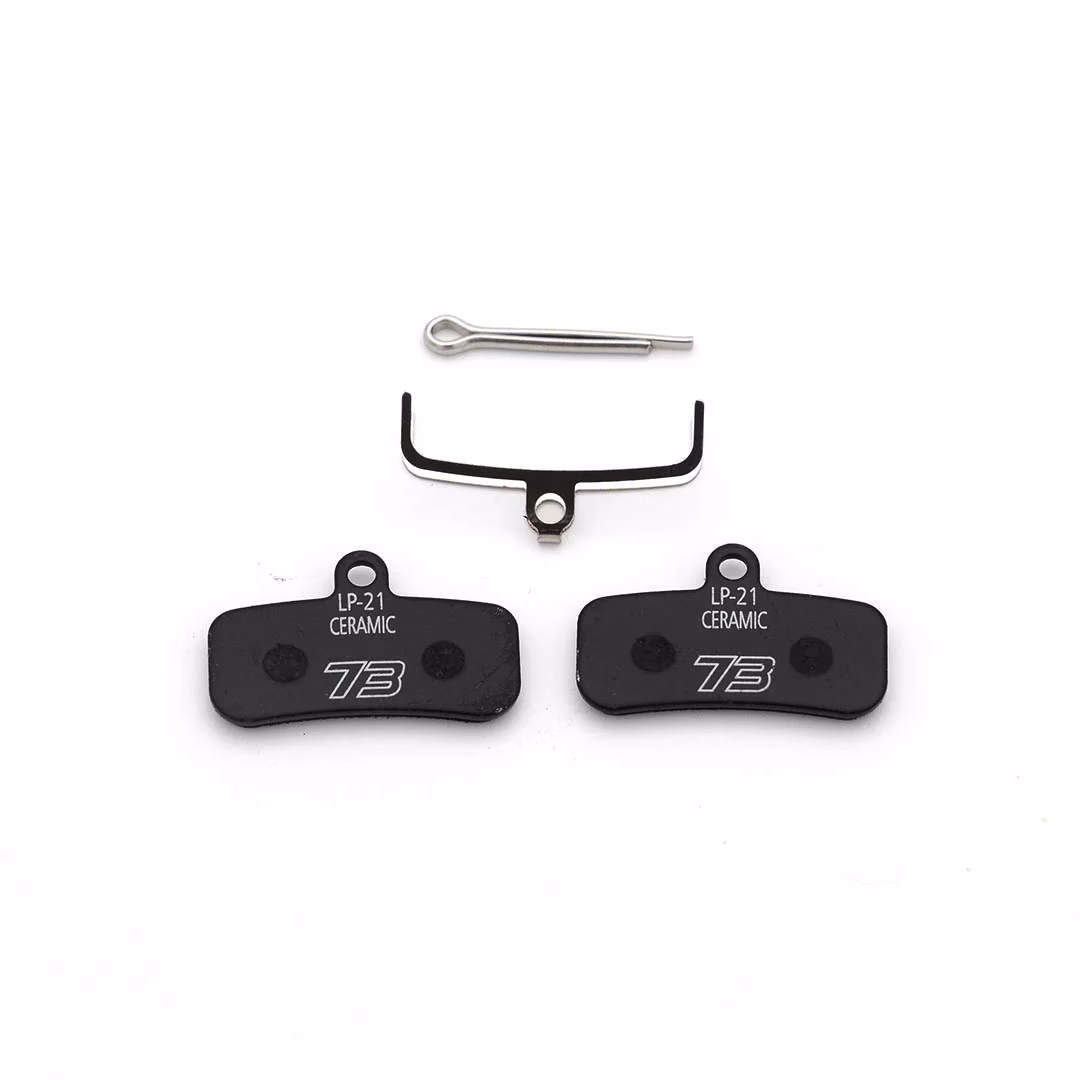

- Pad Wear: Regularly inspect your brake pads for wear. Over time, the friction material on the pads will diminish. Worn pads reduce braking effectiveness and can damage the rotors. Replacement is straightforward, but ensure you use pads compatible with Tektro Dorado brakes.
- Rotor Condition: Check your 180mm rotors for any signs of warping, deep scoring, or excessive wear. A warped rotor can cause pulsating at the lever and inconsistent braking.
- Fluid Leaks: Periodically check the brake lines and callipers for any signs of fluid leaks. A leak indicates a compromised seal, which can lead to a loss of braking pressure.
- Brake Bleeding: Over time, air bubbles can enter the hydraulic system, or the fluid can degrade. If your brake lever feels spongy or less responsive, the system may need to be 'bled' – a process of removing air and replacing old fluid. This is typically a job for an experienced mechanic, as it requires specific tools and knowledge.
- Cleanliness: Keep your rotors and callipers clean. Contaminants like oil, grease, or dirt can significantly reduce braking performance and cause irritating squeals. Use a dedicated disc brake cleaner and avoid getting any lubricants on the rotors or pads.
By following these simple maintenance tips, you can ensure that your Super 73 RX's powerful braking system remains reliable and safe for all your adventures.
Frequently Asked Questions About Super 73 RX Brakes
Q: What type of brakes does the Super 73 RX use?
A: The Super 73 RX uses high-performance Tektro Dorado hydraulic disc brakes with 180mm rotors and four-piston callipers.
Q: Why are hydraulic disc brakes preferred for the Super 73 RX?
A: Hydraulic disc brakes offer superior stopping power, better modulation (control), and consistent performance in all weather conditions, which are crucial for a powerful, heavier e-bike like the RX that is designed for off-road adventures.
Q: What is the significance of the 180mm rotors?
A: The 180mm rotor size provides a larger surface area for brake pad contact, creating more leverage for increased stopping power and improved heat dissipation, which helps prevent brake fade during prolonged braking.
Q: What do 'four-piston callipers' mean, and why are they important?
A: Four-piston callipers mean there are two pistons on each side of the brake pads, effectively doubling the clamping force compared to standard two-piston callipers. This design significantly enhances stopping power, improves modulation, and contributes to better heat management, vital for a powerful e-bike.
Q: How often should I service the brakes on my Super 73 RX?
A: Regular checks of pad wear and rotor condition should be done frequently. Hydraulic fluid typically doesn't need replacing very often, but if your brake lever feels spongy, a professional bleed might be necessary. It's always best to consult your owner's manual or a qualified bike mechanic for specific service intervals based on your usage.
Q: Can I upgrade the brakes on another Super 73 model to be like the RX's?
A: While technically possible to upgrade certain components, it can be complex and costly. The Super 73 ZI, for example, comes with mechanical disc brakes, and upgrading to a full hydraulic system like the Tektro Dorado would involve replacing levers, lines, and callipers, as well as ensuring frame and fork compatibility. It's generally more practical to choose the model that comes with the desired braking performance from the outset.
Conclusion: Confidence in Every Stop
The braking system of the Super 73 RX is a testament to its design as a capable and safe high-performance e-bike. The integration of Tektro Dorado hydraulic disc brakes with 180mm rotors and four-piston callipers provides riders with unparalleled stopping power, precise control, and consistent reliability. This robust setup is perfectly suited to handle the formidable 2000W motor and the varied demands of both urban commuting and adventurous off-road excursions. When you're riding the Super 73 RX, you can accelerate with confidence, knowing that you have a braking system designed to bring you to a secure and immediate halt whenever the need arises. It’s a critical component that truly elevates the riding experience, ensuring safety and control are always at your fingertips.
