Drain Plug Repair Kit: Your Car's Lifesaver?

A leaking engine oil drain plug can quickly turn a routine oil change into a costly nightmare. Whether it’s due to overtightening, cross-threading, or simply years of wear and tear, a damaged drain plug thread can lead to a steady drip of precious engine oil, risking severe engine damage if not addressed promptly. Fortunately, before resorting to the expensive and labour-intensive task of replacing the entire sump pan, there's often a much simpler and more affordable solution: a drain plug repair kit.

What Exactly is a Drain Plug (or Sump Plug)?

Before diving into repair kits, let's clarify the component itself. The terms 'drain plug' and 'sump plug' are often used interchangeably in the automotive world, particularly here in the UK. Essentially, it's a threaded bolt, typically with a hexagonal head, located at the very bottom of your engine's oil pan (or 'sump'). Its primary function is to seal the opening through which engine oil is drained during an oil change. It's a critical component, as it holds all the engine's lubricating oil within the sump, preventing leaks and ensuring your engine remains properly lubricated. If this plug, or more precisely, its threaded counterpart in the sump pan, becomes compromised, the integrity of your engine's lubrication system is at risk.

Why Do Drain Plugs and Sump Pans Get Damaged?

Despite its simple appearance, the drain plug and its mating threads in the sump pan are under constant stress. Common causes of damage include:

• Overtightening: This is perhaps the most frequent culprit. Applying too much torque when reinstalling the plug can strip the softer aluminium threads of the sump pan.
• Cross-threading: If the plug is not started straight and correctly, the threads can become misaligned and damaged as it's tightened.
• Corrosion: Exposure to road salt, water, and general environmental factors can lead to rust and corrosion, weakening the plug or the pan threads over time.
• Impact Damage: Driving over road debris, potholes, or speed bumps can sometimes cause direct impact to the sump pan, potentially distorting the drain plug opening.
• Wear and Tear: While less common, repeated removal and installation over many years can gradually wear down the threads.

When the sump pan is damaged or the sump plug becomes worn or loose, oil could be lost; this would result in excess oil consumption or even engine failure. Sump plugs should be changed regularly and sump pans replaced if damaged.

Introducing the Drain Plug Repair Kit

A drain plug repair kit is a specialised set of tools and components designed to fix stripped, damaged, or oversized drain plug threads in an engine's oil sump pan without needing to replace the entire pan. This can be a significant cost and time saver, as replacing a sump pan often involves draining remaining oil, removing numerous bolts, dealing with gaskets, and potentially lifting the engine slightly, depending on the vehicle model. A repair kit provides a more focused solution to the immediate problem of a failing drain plug seal.

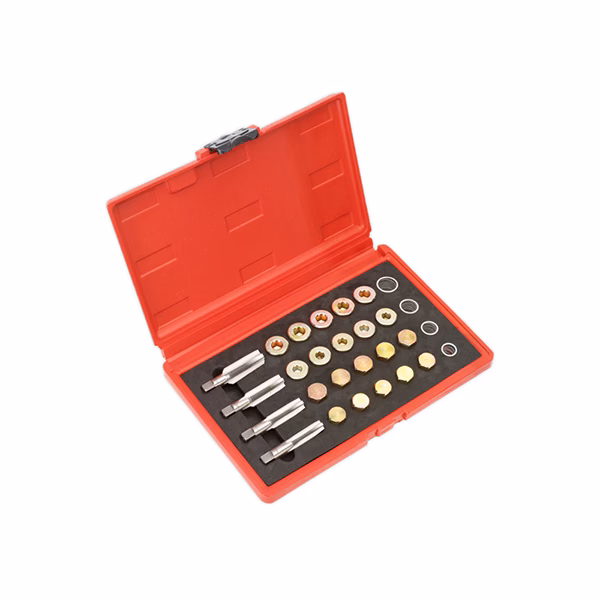

What's Typically Included in a Kit?

While contents can vary, most drain plug repair kits will include:

• Taps: These are special threading tools used to re-cut or enlarge the existing drain plug hole to a new, larger thread size.
• Oversized Drain Plugs: New, larger diameter drain plugs that match the new threads created by the tap.
• Washers/Gaskets: New sealing washers (often made of copper, aluminium, or rubberised material) to ensure a leak-proof seal with the new plug.
• Optional: Some kits might include reamers (to enlarge the hole before tapping), thread inserts (for more severe damage), or even drilling bits.

When Do You Need a Drain Plug Repair Kit?

You should consider a drain plug repair kit in the following scenarios:

• Stripped Threads: This is the most common reason. If your old drain plug spins freely without tightening, or if you can't get it to seal properly, the threads in the sump pan are likely stripped.
• Persistent Leaks: Even with a new drain plug and washer, if oil continues to seep from around the plug, it indicates an issue with the sealing surface or the threads themselves.
• Preventative Measures: If you notice that your drain plug is becoming increasingly difficult to tighten, or if it feels 'loose' even when torqued, it might be a good idea to use a repair kit to create a fresh, larger thread before the old one completely fails.

While replacing the sump pan is the ultimate solution for extensive damage, a repair kit is a viable and often preferable first step for thread-related issues, offering a significant saving in both parts and labour costs.

Types of Drain Plug Repair Kits: A Comparison

Not all repair kits are created equal. Understanding the different types can help you choose the right one for your situation:

How to Use a Drain Plug Repair Kit (General Steps)

While specific instructions will vary by kit and vehicle, here's a general overview of the process:

1. Safety First: Always ensure your vehicle is safely supported on jack stands on a level surface. Never rely solely on a jack. Wear appropriate personal protective equipment, including gloves and eye protection.
2. Drain Remaining Oil: If the plug is completely stripped, most of the oil might have already leaked. If not, try to drain as much as possible into a suitable container.
3. Clean the Area: Thoroughly clean the area around the drain plug hole to remove any oil, dirt, or debris. This helps prevent contaminants from entering the engine and provides a clear view of the damaged threads.
4. Prepare the Hole: Depending on the kit, you might need to use a reamer to enlarge the hole slightly before tapping. Follow the kit's instructions precisely.
5. Tap the New Threads: This is the most critical step. Apply cutting fluid or light oil to the tap. Carefully insert the tap into the drain plug hole, ensuring it is perfectly straight. Slowly turn the tap clockwise, applying gentle, even pressure. After every half-turn or so, back the tap out a quarter-turn to break off metal shavings. Continue until the tap has cut the new threads to the required depth.
6. Clean Out Metal Shavings: This step cannot be stressed enough. Metal shavings from the tapping process MUST be removed from the oil pan. Failure to do so can lead to catastrophic engine damage as these particles will circulate with the oil, abrading internal components. You can use a magnet, a shop vacuum with a narrow nozzle, or flush the pan with a small amount of fresh, cheap oil. Some mechanics even slightly overfill with fresh oil and immediately drain it to flush out any remaining debris.
7. Install the New Oversized Plug: Once the threads are clean, install the new oversized drain plug with a new washer. Hand-tighten it first to ensure it threads smoothly, then use a wrench to tighten it to the manufacturer's specified torque. Do NOT overtighten.
8. Refill Oil and Check for Leaks: Refill your engine with the correct amount and type of fresh engine oil. Start the engine and let it run for a few minutes, then shut it off and inspect the drain plug area thoroughly for any signs of leaks.

Pros and Cons of Using a Drain Plug Repair Kit

Advantages:

• Cost-Effective: Significantly cheaper than replacing the entire sump pan.
• Time-Saving: The repair process is much quicker than a full pan replacement, often taking less than an hour for the actual repair.
• Less Labour Intensive: Avoids the complex steps of pan removal, gasket replacement, and potential engine lifting.
• Accessible DIY: Many kits are designed for home mechanics, making it a feasible DIY project for those comfortable with basic tools.

Disadvantages:

• Risk of Metal Shavings: The biggest concern is leaving metal shavings in the oil pan, which can severely damage the engine. Meticulous cleaning is essential.
• Potential for Weaker Threads: While effective, the new threads might not be as strong as factory-original threads, especially with softer sump materials.
• Requires Precision: Tapping new threads requires a steady hand and careful alignment to ensure the new plug seats correctly and seals.
• Not a Solution for All Damage: If the sump pan is cracked, severely deformed, or the drain plug boss is completely broken off, a repair kit will not suffice, and pan replacement will be necessary.

Alternatives to a Drain Plug Repair Kit

While repair kits are excellent for stripped threads, there are other options depending on the severity and nature of the damage:

• Sump Pan Replacement: As mentioned, this is the most definitive solution for any type of sump pan damage, including large cracks, severe deformation, or irreparably stripped threads. It's also the most expensive and labour-intensive.
• Rubber Expansion Plugs: These are temporary, emergency fixes. They expand when tightened to create a seal. Not recommended for long-term use due to potential for leaks and blowouts, especially under pressure or vibration.
• Welding/Epoxy: Generally not recommended for oil pan drain plugs. Welding can be difficult on thin, oily metal and can warp the pan. Epoxy might offer a temporary seal but is unlikely to withstand engine heat, oil, and vibrations long-term.

Important Considerations for a Successful Repair

• Right Size Kit: Ensure you purchase a kit that matches the original drain plug thread size of your vehicle. Repair kits typically come in standard sizes (e.g., M14, M16, M12).
• New Washer Every Time: Always use a new drain plug washer with every oil change, and certainly with any repair. These are crush washers designed for a single use to create a perfect seal.
• Torque Specifications: Look up and adhere to your vehicle's manufacturer-recommended torque specifications for the drain plug. Overtightening is what often causes the problem in the first place.
• Magnetic Drain Plugs: While not a repair, consider installing a magnetic drain plug with your new oversized plug. These help capture small metallic particles that may circulate in your oil, offering an extra layer of engine protection.
• Professional Help: If you're unsure about performing the repair yourself, or if the damage is extensive, it's always best to consult a professional mechanic. The cost of professional repair is far less than the cost of a new engine due to a botched DIY job.

Frequently Asked Questions About Drain Plug Repair Kits

Q: Can I drive with a stripped drain plug?

A: Absolutely not. Driving with a stripped or leaking drain plug is extremely dangerous. You will lose engine oil, leading to insufficient lubrication, which can quickly cause severe and irreparable engine damage, potentially seizing the engine entirely. Address the issue immediately.

Q: Are drain plug repair kits a permanent fix?

A: They can be a long-lasting and effective fix for stripped threads, especially if properly installed. However, they are not always considered a 'permanent' fix in the same way replacing the entire sump pan would be. The longevity depends on the severity of the original damage, the type of kit used, and the quality of the installation. For many vehicles, a properly installed oversized plug can last for many years and oil changes.

Q: How often should I change my sump plug?

A: The sump plug itself generally doesn't need to be changed with every oil change, but the washer (or gasket) should always be replaced. The plug should only be changed if it shows signs of wear, damage, or its threads are compromised. Some manufacturers recommend replacing the plug after a certain number of oil changes or mileage, but it's not a universal rule.

Q: How do I know if my sump pan is damaged beyond a repair kit?

A: If you observe visible cracks, large dents, or a completely broken-off drain plug boss (the threaded part of the pan), then a repair kit is unlikely to work. These scenarios typically require a full sump pan replacement.

Q: What's the risk if I get metal shavings in my engine?

A: The risk is extremely high. Metal shavings circulating in your engine oil can act as an abrasive, grinding down critical engine components like bearings, camshafts, and cylinder walls. This will lead to accelerated wear, reduced engine performance, increased oil consumption, and ultimately, catastrophic engine failure. Thorough cleaning after tapping is paramount.

Q: What's the difference between a drain plug and a sump plug?

A: For most practical purposes, especially in the UK, these terms are interchangeable and refer to the same component: the plug at the bottom of the oil pan (sump) used for draining engine oil. 'Sump plug' is perhaps a more precise term as it directly references the 'sump' or oil pan.

In conclusion, a drain plug repair kit is an invaluable tool for any car owner or mechanic facing the common issue of stripped sump plug threads. It offers a practical, cost-effective, and often long-lasting solution that can save you significant time and money compared to a full sump pan replacement. By understanding the types of kits available and following the installation steps carefully, you can restore the integrity of your engine's oil system and keep your vehicle running smoothly.
