EFI & Ignition Timing: Mastering Your Engine

In the world of modern automotive performance and efficiency, electronic fuel injection (EFI) systems have become the cornerstone of sophisticated engine management. Moving far beyond the limitations of carburetors, EFI offers unparalleled precision in fuel delivery. However, the true power of these systems is often realised when they are able to seamlessly integrate with and control another critical engine parameter: ignition timing. This synergy allows for a level of engine optimisation that was once only the domain of professional race teams, bringing race-proven technology to your garage.

Understanding how your EFI system interacts with ignition timing, and how to properly tune crucial fuel parameters like the fuel multiplier and Prime Fuel Mult, is vital for achieving peak performance, improved fuel economy, and reliable starting, especially in the varied British climate. Whether you're building a new engine or upgrading an existing one, delving into these aspects of engine management will empower you to truly master your vehicle's heart.

The Synergy of EFI and Ignition Timing Control

For decades, ignition timing was largely mechanical, relying on distributors, springs, and vacuum advance mechanisms. While effective for their time, these systems offered limited flexibility. Modern EFI systems, particularly those designed for comprehensive engine management, can take over the precise control of ignition timing, offering a multitude of benefits.

Why Integrated Timing Control Matters

The precise moment the spark plug fires relative to the piston's position and engine load is fundamental to engine operation. Incorrect timing can lead to a host of issues, from reduced power and poor fuel economy to damaging engine knock or 'pinging'. When an EFI system controls ignition timing, it can:

• Optimise Performance: Adjust timing in real-time based on engine RPM, manifold pressure (load), coolant temperature, air temperature, and even throttle position. This allows the engine to always run with the most efficient and powerful timing for any given condition.
• Enhance Fuel Efficiency: By precisely controlling when the fuel ignites, the system can ensure maximum energy extraction from every drop of petrol, leading to better miles per gallon.
• Improve Emissions: Optimised combustion reduces harmful emissions, helping your vehicle meet stringent environmental standards.
• Prevent Engine Damage: Advanced EFI systems often incorporate knock sensors. If pre-ignition or detonation (knock) is detected, the system can instantly retard ignition timing to protect the engine from potentially catastrophic damage.
• Facilitate Advanced Features: Integrated timing control is essential for features like boost compensation (retarding timing under boost), nitrous oxide enrichment (further retarding timing to prevent knock), and specific fuel type tuning (e.g., E85 requires different timing curves).

The ability of an EFI kit to control timing is not universal. As the initial information highlights, 'Many EFI kits are capable of timing control when used with the right ignition system.' This means you need a compatible EFI unit that has the necessary inputs (e.g., for a crank trigger or cam sensor) and software capabilities to manipulate spark timing. Furthermore, your ignition system itself must be capable of receiving and acting upon these electronic signals, moving beyond traditional mechanical distributors.

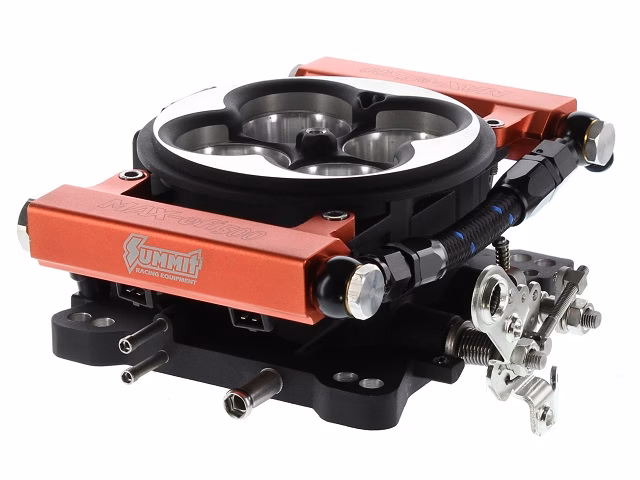

Choosing the Right EFI Kit for Timing Control

If integrated timing control is a feature you desire, either now or in the future, it’s paramount to select a compatible EFI kit from the outset. Retrofitting this capability later can be costly and sometimes impossible without replacing the entire ECU. Here's what to look for:

• Dedicated Timing Control Channels: Ensure the ECU has inputs for crankshaft position sensors and potentially camshaft position sensors. These sensors provide the precise rotational information needed for timing calculations.
• Configurable Timing Maps: The software should allow you to create and modify multi-dimensional timing maps (e.g., 3D maps based on RPM and load).
• Ignition System Compatibility: Verify that the EFI system can drive your chosen ignition setup, whether it's a distributor-based system with an electronic module, a coil-on-plug setup, or a waste-spark system. Some systems require specific ignition modules or amplifiers.
• Expandability: Consider if the system supports additional sensors like knock sensors, exhaust gas temperature (EGT) sensors, or wideband oxygen sensors, which further refine timing control and tuning capabilities.

Choosing wisely at the beginning will save you significant headaches and expense down the line, ensuring your engine management system is truly comprehensive and future-proof.

Advanced EFI Features: Nitrous, Boost, and E85 Compatibility

Beyond basic fuel and timing control, many high-end EFI kits offer advanced features that cater to modified engines. The information provided mentions that 'Many EFI kits work with nitrous, boost and/or E85.' These capabilities are often deeply intertwined with the system's ability to precisely control ignition timing and fuel delivery under extreme conditions:

• Nitrous Oxide Systems: When nitrous is activated, the engine effectively becomes larger and more susceptible to knock. Compatible EFI systems can automatically retard ignition timing and add extra fuel when nitrous is armed, protecting the engine and optimising power.
• Forced Induction (Boost): Turbochargers and superchargers significantly increase cylinder pressure. An EFI system with boost control can manage boost levels and, crucially, automatically pull ignition timing as boost pressure increases to prevent detonation. It can also manage fuel enrichment under boost.
• E85 Fuel Compatibility: E85 (85% ethanol) has different burning characteristics and a higher octane rating than standard petrol. EFI systems designed for E85 can handle the increased fuel flow required and often have specific timing maps that take advantage of E85's knock resistance, allowing for more aggressive timing for increased power.

These advanced features highlight the sophistication and adaptability of modern EFI, underscoring why integrated timing control is such a powerful tool for serious engine builders and tuners.

Understanding Fuel Multipliers in EFI Systems

While ignition timing dictates when the spark occurs, fuel delivery is equally critical. EFI systems rely on complex calculations and maps to determine the precise amount of fuel to inject. Two key parameters often encountered during tuning are the main fuel multiplier and the Prime Fuel Mult.

The Role of the Main Fuel Multiplier

A 'fuel multiplier' (often called a global fuel trim or master fuel setting) is essentially a scaling factor applied across the entire fuel map. Think of it as a master volume knob for your fuel delivery. If your engine is consistently running too lean or too rich across all RPMs and loads, adjusting this multiplier allows you to make a broad correction without having to individually adjust every single cell in your fuel map.

The advice given – 'A good starting point is to change the settings in intervals of 10 to find which way you need to adjust the system to work better' – is a practical tuning tip. When making significant adjustments or trying to determine the general direction of correction, a larger step (like '10') will show a clear effect. If you're too lean, increasing the multiplier by 10% (or 10 units, depending on the system's scale) will make the engine run richer. Observing the effect on your wideband oxygen sensor reading will then tell you if you're moving in the right direction. Once you're in the ballpark, you'd then make finer adjustments.

Fine-Tuning Your Fuel Multiplier: A Practical Approach

Using the 'intervals of 10' method is excellent for initial setup or after major engine changes (e.g., new injectors, cam swap). Here's a typical process:

1. Establish a Baseline: Before making any changes, record your current air-fuel ratio (AFR) at various RPMs and loads using a wideband O2 sensor.
2. Make a Change: Adjust the main fuel multiplier by 10 units (or 10%) in the direction you suspect is needed (e.g., increase by 10 if too lean).
3. Observe and Evaluate: Drive the car under similar conditions and monitor the AFR. Did it get closer to your target AFR?
4. Iterate: If it moved in the right direction but isn't perfect, repeat the process with smaller increments (e.g., 5, then 2, then 1) until your overall AFRs are close to target. If it moved in the wrong direction, adjust in the opposite direction.

This methodical approach ensures you don't overshoot your target and helps you understand the impact of your adjustments. It's a foundational step before diving into detailed cell-by-cell fuel map tuning.

Demystifying Prime Fuel Multiplier: The Key to Quick Starts

The 'Prime Fuel Mult' is a specific setting within your EFI system that controls the initial shot of fuel injected into the intake manifold just before or during the first few engine revolutions (cranking). It's designed to ensure a quick and reliable engine start, particularly when cold.

As the information states, 'Prime Fuel Mult is the first shot of fuel the system shoots into the intake. This value can be increased to add additional fuel prior to cranking the engine to help the engine start quickly.' Here's why it's so important:

• Cold Start Enrichment: When an engine is cold, fuel tends to condense on the cold intake manifold and cylinder walls. This means a richer mixture is needed to ensure enough fuel actually vaporises and enters the combustion chamber to ignite. Prime Fuel Mult provides this initial enrichment.
• Immediate Combustion: Without enough initial fuel, the engine will crank for an extended period, potentially draining the battery and causing wear. A properly set Prime Fuel Mult ensures near-instantaneous combustion once the starter engages.
• Factors Influencing Prime Fuel Mult:
  • Engine Temperature: Colder engines require more prime fuel. Your EFI system will likely have a table that varies Prime Fuel Mult based on coolant temperature.
  • Engine Size: Larger engines naturally need more fuel to fill their cylinders.
  • Injector Size: Larger injectors deliver more fuel per pulse, so the Prime Fuel Mult value might need to be lower than with smaller injectors.
  • Fuel Type: E85, for example, typically requires significantly more prime fuel than petrol due to its lower energy density and different vaporisation characteristics.
  • Intake Manifold Design: Some intake designs are more prone to fuel 'puddling' and may require more prime fuel.

Symptoms of an incorrectly set Prime Fuel Mult:

Adjusting the Prime Fuel Mult is a trial-and-error process, often done by making small changes (e.g., 1-5% at a time) and observing the engine's starting behaviour in various temperature conditions. The goal is a quick, smooth start without excessive cranking or rich exhaust fumes.

Common Challenges and Troubleshooting

Even with the most advanced EFI systems, challenges can arise. Understanding common issues can help you diagnose and resolve problems effectively:

• Inconsistent Starting: Often related to Prime Fuel Mult or cranking fuel settings. Check battery voltage during cranking, as low voltage can affect injector pulse width.
• Engine Knock/Ping: If your EFI system controls timing, check your timing maps, especially under load. Ensure your knock sensor is functioning correctly and its sensitivity is appropriately set. Fuel quality and octane rating are also critical.
• Poor Fuel Economy: Could be overly rich fuel maps, faulty oxygen sensor, or incorrect injector data. Regularly monitor your AFRs.
• Hesitation or Stumbling: Often points to lean spots in the fuel map or ignition timing issues at specific RPMs or loads. Data logging is invaluable for identifying these areas.
• Sensor Malfunctions: EFI systems rely heavily on sensor inputs (MAP, TPS, IAT, CLT, O2, Crank, Cam). A faulty sensor can send incorrect data, leading to erratic engine behaviour. Always check sensor readings in your tuning software.

Frequently Asked Questions (FAQs)

Here are some common questions enthusiasts have regarding EFI and engine management:

Can I add timing control to my existing EFI system later?

It depends entirely on the specific EFI system you have. Many entry-level or older kits may not have the necessary hardware inputs (e.g., for a crank sensor) or the software capability to control ignition timing. If timing control wasn't a feature from the start, it's often more cost-effective and reliable to upgrade to a more capable EFI system rather than attempting to add functionality that isn't inherently supported.

What kind of ignition system do I need for EFI timing control?

For an EFI system to control timing, you generally need an electronic ignition system that can receive a signal from the ECU. Common setups include: a crank trigger system (most accurate), a distributor with an electronic pickup (and potentially locked out mechanical advance), or a coil-on-plug/waste-spark system (which the ECU directly fires). The key is a precise signal to the ECU about engine position and a method for the ECU to trigger the coils.

How do I know if my Prime Fuel Mult is correct?

The best indicator is how quickly and smoothly your engine starts, particularly from cold. If it fires up almost immediately with minimal cranking, your Prime Fuel Mult is likely well-tuned. If it cranks excessively, sputters, or requires throttle input to start, adjustments are needed. Monitor exhaust smell (rich/lean) and check spark plugs for signs of flooding (wet/sooty) or extreme leanness (very white).

What's the difference between a global fuel multiplier and individual cell tuning?

A global fuel multiplier applies a percentage or factor to *all* fuel values across the entire fuel map. It's used for broad adjustments, such as compensating for a major change in fuel pressure or injector size. Individual cell tuning, on the other hand, involves adjusting the specific fuel value in a particular RPM and load cell within your 3D fuel map. This is where the fine-tuning for optimal AFRs at all operating points occurs after the global multiplier has got you into the general ballpark.

Is EFI tuning a DIY job or should I get professional help?

Basic EFI setup and minor adjustments (like Prime Fuel Mult) can often be done by a competent DIY enthusiast with patience and the right tools (like a wideband O2 sensor). However, comprehensive tuning, especially for performance applications, forced induction, or complex ignition timing maps, is highly recommended to be done by an experienced professional tuner. They have the specialised knowledge, equipment (like a dynamometer), and experience to safely extract maximum performance and reliability from your engine without causing damage.

Conclusion

The integration of EFI with ignition timing control represents a significant leap forward in engine management. It provides unparalleled precision, allowing for optimal performance, efficiency, and reliability across a wide range of operating conditions. Coupled with a thorough understanding of fuel parameters like the global fuel multiplier and the critical Prime Fuel Mult, you gain comprehensive control over your engine's heart. While the initial setup and tuning may seem daunting, the rewards of a perfectly calibrated engine – from crisp throttle response to effortless cold starts – are well worth the effort. By choosing the right components and adopting a methodical approach to tuning, you can unlock the full potential of your vehicle, ensuring it runs at its absolute best on the roads of the UK and beyond.
