Subaru Outback Transmission Fluid Change Guide

Subaru Outback Transmission Fluid: A Vital Component for Longevity

The Subaru Outback, celebrated for its go-anywhere capability and robust all-wheel-drive system, relies heavily on diligent maintenance to uphold its reputation for reliability. Among the critical upkeep tasks, ensuring the transmission fluid is in prime condition is paramount. This fluid is, quite literally, the lifeblood of your transmission, facilitating smooth gear changes, lubricating complex internal mechanisms, and dissipating the considerable heat generated during operation. Over time, this essential fluid degrades, accumulating microscopic metal particles from wear and losing its vital lubricating properties. Ignoring this can lead to a cascade of problems, from hesitant shifting and reduced performance to, in the worst-case scenario, a costly transmission overhaul. This detailed guide aims to demystify the process of changing your Subaru Outback's transmission fluid, empowering you to perform this vital maintenance with confidence.

Why is Transmission Fluid So Important?

Think of transmission fluid as the unsung hero within your Outback's drivetrain. Its responsibilities are manifold:

• Lubrication: It coats and lubricates all the moving parts within the transmission, reducing friction and wear between gears, bearings, and clutches.
• Cooling: As components move and friction occurs, heat is generated. The transmission fluid absorbs this heat and carries it away to be dissipated, preventing the transmission from overheating.
• Hydraulic Power: In automatic transmissions, the fluid is pressurised and used to engage clutches and bands, which are responsible for selecting and holding different gears.
• Cleaning: The fluid also picks up small particles of metal and other debris that result from normal wear and tear, carrying them to the filter (if equipped) for removal.

As the fluid ages, it oxidises, breaks down, and becomes contaminated. This compromised fluid loses its ability to lubricate effectively, cool efficiently, and transmit hydraulic power. The result is increased wear, potential for overheating, and ultimately, a less reliable and shorter-lived transmission.

When Should You Change Your Subaru Outback Transmission Fluid?

The exact interval for changing transmission fluid can vary based on your specific Subaru Outback model year, the type of transmission (automatic or manual), and your driving habits. However, consulting your owner's manual is always the definitive source of information. As a general guideline:

Severe driving conditions, such as towing trailers, carrying heavy loads, frequent short trips where the engine doesn't reach full operating temperature, or extensive off-road excursions, place significantly more stress on the transmission and its fluid. In these scenarios, more frequent fluid changes are highly recommended to maintain optimal performance and prevent premature wear.

What You'll Need: Gathering Your Supplies and Tools

Before you begin, ensure you have all the necessary items to complete the job safely and effectively. Having everything ready will make the process much smoother:

• New Transmission Fluid: This is the most crucial item. Crucially, refer to your Subaru Outback's owner's manual for the specific type and quantity of transmission fluid required. Subaru often specifies a particular type of Automatic Transmission Fluid (ATF) or manual transmission fluid. Using the wrong type can lead to serious transmission damage.
• Drain Pan: A sufficiently large drain pan with a capacity of at least 5-7 litres is essential to catch all the old fluid without overflow.
• Wrench or Socket Set: You'll need the correct size socket or wrench to remove the transmission drain plug. This size can vary by model year, so check your manual or do a quick online search for your specific Outback.
• Funnel: A long, flexible funnel is ideal for refilling the transmission with the new fluid to avoid spills.
• Torque Wrench: Essential for tightening the drain plug to the manufacturer's specified torque. Overtightening can strip threads or crack the transmission pan, while undertightening can lead to leaks.
• Rags or Shop Towels: Plenty of clean rags or shop towels will be needed for wiping down components and cleaning up any minor spills.
• Gloves: Nitrile or latex gloves will protect your hands from the potentially irritating old transmission fluid.
• Jack and Jack Stands (If Necessary): If your Outback doesn't have enough ground clearance to comfortably access the transmission drain plug, you'll need a reliable car jack and a sturdy set of jack stands. Safety is paramount; never work under a vehicle supported only by a jack. Always use jack stands properly positioned on the vehicle's frame.
• Wheel Chocks: For added safety when lifting the vehicle, use wheel chocks to prevent the car from rolling.
• Fluid Pump (Optional): For some models, a hand-operated or electric fluid pump can make refilling the transmission easier, especially if the fill port is in an awkward location.
• New Drain Plug Washer/Crush Washer (Recommended): It's good practice to replace the crush washer on the drain plug whenever you remove it to ensure a perfect seal and prevent leaks.

Preparing Your Subaru Outback for the Fluid Change

With your tools and supplies at the ready, it's time to prepare the vehicle:

1. Warm Up the Transmission: Start the engine and let it run for 5-10 minutes. This warms the transmission fluid, making it thinner and allowing it to drain more completely. Avoid letting the engine overheat; you just want the fluid warm, not scalding hot.
2. Position the Vehicle Safely: Park your Outback on a level, stable surface. If you need to lift the vehicle, use your jack to raise it to a comfortable working height and securely place jack stands under the designated support points on the frame. Once safely on stands, chock the rear wheels.
3. Locate the Transmission Drain Plug: Consult your owner's manual or a reliable online repair guide for your specific Outback model year to pinpoint the exact location of the transmission drain plug. It's typically found on the underside of the transmission pan.

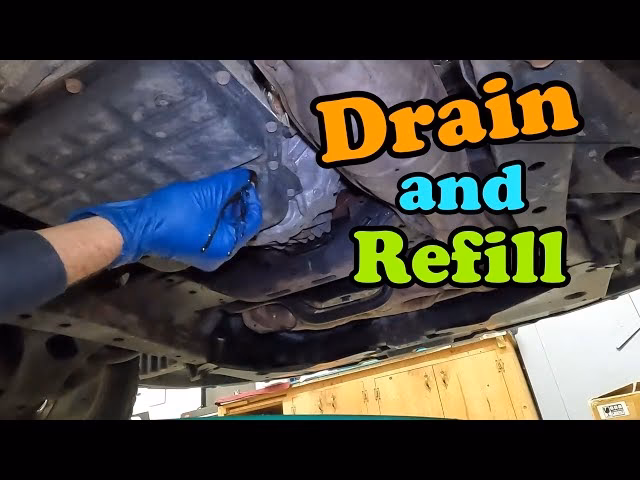

Draining the Old Transmission Fluid

This is where the actual fluid removal takes place:

1. Position the Drain Pan: Carefully slide the drain pan directly underneath the transmission drain plug. Ensure it's centred to catch all the draining fluid.
2. Remove the Drain Plug: Using the appropriate wrench or socket, slowly loosen the drain plug. Be prepared for the fluid to start flowing as soon as the plug is sufficiently loosened. Exercise caution, as the fluid may still be quite warm. Once loosened, you can usually finish unscrewing it by hand. Let the old fluid drain completely into the pan. This can take several minutes.
3. Inspect the Drain Plug: While the fluid is draining, take a moment to inspect the drain plug. Check for any signs of damage to the threads or the plug itself. Many Subaru drain plugs have a magnetic tip designed to capture ferrous metal particles. If yours does, clean this magnetic tip thoroughly with a clean rag. Any significant amount of metal shavings on the magnet could indicate excessive internal wear and warrants further investigation.

Refilling with Fresh Transmission Fluid

Once all the old fluid has been drained, it's time to introduce the new:

1. Reinstall the Drain Plug: Clean the drain plug and the area around the drain hole on the transmission pan. Install a new crush washer onto the drain plug if you have one. Screw the drain plug back into the transmission pan by hand to avoid cross-threading. Then, use your torque wrench to tighten it to the manufacturer's specified torque setting.
2. Locate the Fill Tube/Port: The method for refilling varies between automatic and manual transmissions, and even between different model years. Consult your owner's manual to find the transmission fluid fill tube or plug. For automatic transmissions, it's often a dipstick tube, but some newer models may have a sealed transmission requiring a specific fill plug.
3. Add New Fluid: Attach your funnel to the fill tube or opening. Slowly and carefully pour in the specified amount of new transmission fluid. Avoid overfilling. It's better to add slightly less than the full amount initially and top up after checking the level.

Checking the Fluid Level and Test Drive

Getting the fluid level just right is critical for proper transmission operation:

1. Initial Level Check (Automatic Transmissions): If your Outback has a transmission dipstick, start the engine with the transmission in Park (or Neutral for some models, check your manual). Let the engine run for a few minutes while the new fluid circulates. With the engine still running, pull out the dipstick, wipe it clean, reinsert it fully, and then pull it out again to check the fluid level. It should be within the 'HOT' or operating range markings.
2. Adjust Fluid Level: If the level is low, add a small amount of fluid at a time, rechecking the level after each addition until it's correct. If you accidentally overfill, you'll need to drain a small amount to bring it down to the proper level.
3. Inspect for Leaks: After running the engine and checking the level, perform a thorough visual inspection of the transmission drain plug and surrounding areas for any signs of leaks. If you spot any, re-tighten the drain plug slightly (do not overtighten) or check the crush washer.
4. Test Drive: Take your Outback for a short test drive, preferably around 5-10 miles. Drive through all the gears, paying close attention to how the transmission shifts. It should feel smooth and responsive. Listen for any unusual noises, clunks, or grinding sounds.
5. Final Level Check: After the test drive, return to a level surface, let the engine idle for a few minutes, and recheck the transmission fluid level (if applicable). The level might change slightly as the fluid heats up and circulates fully. Make any final minor adjustments as needed.

Proper Disposal of Used Transmission Fluid

Used transmission fluid is considered a hazardous waste and must be disposed of responsibly. Never pour old transmission fluid down a drain, into sewers, or onto the ground. Most auto parts stores and local recycling centres accept used motor oil and transmission fluid for proper recycling. Keep the old fluid in a sealed container and take it to an authorised collection point.

A Smooth Ride Ahead

Performing a transmission fluid change on your Subaru Outback is a rewarding maintenance task that directly contributes to the longevity and reliable performance of your vehicle. By understanding the importance of the fluid, gathering the correct supplies, and following these steps carefully, you can confidently tackle this job, potentially saving money on labour costs and ensuring your Outback continues to provide dependable service for many miles to come. Regular maintenance, like this fluid change, is the key to a smooth and worry-free driving experience.

Frequently Asked Questions

Q: How often should I change the transmission fluid in my Subaru Outback?
A: The recommended interval varies by model year and driving conditions. As a general rule, check your owner's manual. For normal driving, every 30,000 to 60,000 miles is common. For severe conditions (towing, heavy loads, frequent short trips), consider changing it every 20,000 to 40,000 miles.

Q: What type of transmission fluid should I use?
A: It is absolutely critical to use the specific type of transmission fluid recommended in your Subaru Outback's owner's manual. Using the wrong fluid can cause significant damage. Subaru typically specifies a particular grade of ATF for their automatic transmissions.

Q: Can I do a transmission flush instead of a fluid change?
A: For most vehicles, especially those with higher mileage, a simple drain and fill is often preferred over a full transmission flush. A flush can sometimes dislodge debris that might be contributing to the sealing of worn components, potentially leading to leaks or other issues. A drain and fill replaces a significant portion of the fluid, which is usually sufficient for maintenance.

Q: What are the signs my transmission fluid needs changing?
A: Watch out for: rough or delayed gear changes, slipping gears (engine revs up but the car doesn't accelerate proportionally), unusual noises like whining or clunking from the transmission area, and a distinct burnt smell from the fluid. If the fluid on the dipstick appears dark brown or black, it's also a strong indicator it needs changing.

Q: Do I need to replace the transmission filter?
A: This depends on your specific Outback model. Some have internal filters that are not easily accessible and may not need replacement during a routine fluid change. Others have external filters that should be replaced at the same time as the fluid. Always consult your owner's manual or a trusted repair resource for your model year to determine if a filter change is recommended or necessary.
