Essential Differential Fluid Change: A UK DIY Guide

For many car owners in the UK, the term 'differential fluid' might sound like something best left to the mechanics at the local garage or dealership. However, understanding and performing this vital maintenance task yourself can save you a fair bit of cash, provide a deeper connection to your vehicle, and ensure its longevity. Just like your engine oil, the fluid in your differential works tirelessly to lubricate, cool, and protect critical components. Neglecting it can lead to costly repairs down the line, so let's delve into why and how you can tackle this job with confidence.

Understanding Your Differential: The Heart of Your Drivetrain

Before we get our hands dirty, it’s worth understanding what the differential actually does. Located between the driven wheels (front, rear, or sometimes both in 4WD/AWD vehicles), its primary job is to allow those wheels to rotate at different speeds when turning. When your car goes around a corner, the outer wheel travels a greater distance than the inner wheel. Without a differential, the wheels would be forced to turn at the same speed, causing them to scrub, hop, and put immense strain on the drivetrain. The differential ensures smooth, controlled power delivery to the wheels, allowing for comfortable and efficient cornering.

Inside this crucial component, a complex array of gears – often hypoid gears – meshes together. These gears are under immense pressure and generate significant heat. This is where the differential fluid, sometimes referred to as gear oil, comes into play. It provides a protective film, reducing friction, dissipating heat, and preventing wear between these hardworking metal surfaces. Think of it as the lifeblood of your differential; without it, or with degraded fluid, the gears will grind, overheat, and eventually fail.

Why Changing Your Differential Fluid Is Non-Negotiable

So, do you need to remove and replace your differential fluid? Absolutely, yes. Over time, this fluid degrades. It breaks down from constant heat cycles, becomes contaminated with microscopic metal particles from normal gear wear, and loses its lubricating properties. Once the fluid's protective qualities diminish, the gears start to experience increased friction, leading to:

• Increased Wear: Metal-on-metal contact accelerates wear on the gears, leading to premature failure.
• Overheating: Poor lubrication means more friction, which generates more heat, further breaking down the fluid and potentially warping components.
• Noise: A failing differential often announces itself with whining, clunking, or humming noises, especially during acceleration or cornering.
• Reduced Efficiency: Increased friction can subtly reduce fuel economy and overall drivetrain efficiency.

Regular fluid changes flush out these contaminants and replenish the differential with fresh, high-performance lubricant, ensuring the gears operate smoothly and quietly for thousands of miles.

When to Undertake This Vital Task

The frequency of differential fluid changes can vary significantly based on your vehicle's manufacturer recommendations, driving conditions, and the type of fluid used. As a general guideline, many manufacturers suggest a change every 30,000 to 60,000 miles (approximately 50,000 to 100,000 kilometres) or every 2-3 years. However, certain factors may necessitate more frequent changes:

• Heavy Towing or Hauling: Increased loads put more stress on the differential, leading to higher temperatures and faster fluid degradation.
• Aggressive Driving: Frequent hard acceleration and cornering can also stress the components.
• Off-Road Driving: Exposure to dirt, mud, and water can contaminate the differential, even if sealed.
• Extreme Temperatures: Both very hot and very cold climates can affect fluid performance and lifespan.
• Older Vehicles: Older cars may benefit from more frequent changes to counteract accumulated wear.

It's always best to consult your vehicle's owner's manual for the precise recommended service interval. Don't wait until you hear tell-tale noises; by then, significant wear may have already occurred.

Choosing the Right Fluid: GL5 and Viscosity Explained

Selecting the correct differential fluid is paramount. The information provided highlights the importance of a reputable GL5 fluid, often with a 75w90 viscosity rating. Let's break that down:

• API GL-5 Specification: This is a performance classification by the American Petroleum Institute (API). GL-5 oils are designed for hypoid gears operating under high-speed, shock-load, and high-torque conditions, which is typical for most modern vehicle differentials. Using an incorrect specification (e.g., GL-4 where GL-5 is required) could lead to premature wear.
• 75W-90 Viscosity: This indicates the fluid's thickness across a range of temperatures. "75W" (W for Winter) denotes its flow characteristics at low temperatures, ensuring good lubrication upon cold starts. "90" indicates its viscosity at operating temperature. This multi-grade oil provides excellent protection in various climates.
• Synthetic vs. Conventional: While conventional GL5 fluids are perfectly acceptable, synthetic GL5 fluids often offer superior performance, especially under extreme conditions. They typically have better thermal stability, resist breakdown longer, and provide enhanced protection. They might cost a bit more, but their extended lifespan and protective qualities can be worth the investment.
• Limited-Slip Differentials (LSD): If your vehicle is equipped with a limited-slip differential, it might require a specific type of GL5 fluid that contains friction modifiers. Some GL5 fluids come with these additives already included, while others may require you to add an LSD additive separately. Always check your owner's manual for specific requirements for LSD-equipped vehicles.

As for the query about Valvoline, yes, Valvoline is a highly reputable brand that produces excellent gear oils, including GL5 75w90 fluids. As long as the Valvoline product meets the GL5 specification and the correct viscosity for your vehicle, it will be a perfectly good choice for your differential and, if applicable, your manual transmission (though many manual transmissions prefer GL4 or specific MTF fluids, so always double-check).

Gathering Your Gear: Essential Tools and Supplies

One of the beauties of a differential fluid change is that it's a relatively straightforward DIY job, requiring only a few basic tools. Here’s what you’ll need:

• New Differential Fluid: Approximately 1 litre (or 1 quart) of the correct GL5 75w90 fluid. It's always wise to buy a little more than the specified capacity to account for spillage or to ensure you have enough if your differential takes slightly more than expected.
• Oil Drain Pan: With a capacity of at least 1 litre to catch the old fluid.
• 1/2-inch Drive Ratchet or Breaker Bar: The drain and fill plugs are often quite tight, so a breaker bar can provide the extra leverage needed.
• Torque Wrench: Essential for tightening the plugs to the manufacturer's specified torque, preventing leaks or stripped threads.
• Fluid Pump or Squeeze Bottle: Differential fill holes are often in awkward spots, so a hand pump that attaches to the fluid bottle or bottles with built-in extendable nozzles are incredibly useful for refilling.
• Clean Rags or Shop Towels: For cleaning up spills and wiping down components.
• Wire Brush: For cleaning the drain plug magnet.
• Safety Glasses and Gloves: Protect your eyes and hands from old, potentially corrosive fluid.
• New Crush Washers or Gaskets: This is a crucial detail often overlooked in basic guides. The drain plug, and sometimes the fill plug, will have a crush washer (similar to those on engine oil drain plugs). These are designed to seal by deforming once tightened. Reusing an old, compressed washer significantly increases the risk of leaks. Always replace them!
• Wheel Chocks: For added safety, especially if your car is on a slight incline or you're working underneath it.

A Step-by-Step Guide to Changing Your Differential Fluid

The process, as suggested, is indeed quite simple. Follow these steps carefully for a successful fluid change:

1. Preparation and Safety First:
   • Ensure your car is parked on a level ground. This is critical for accurately gauging the fluid level during refilling.
   • Engage the handbrake (E-brake) fully and put the car in gear (or Park for automatics).
   • Place wheel chocks behind the front wheels for added stability.
   • While the provided information suggests there's enough room to get underneath some cars without jacking, for many vehicles, you might need to safely lift the rear of the car using a jack and secure it with sturdy jack stands. Never rely solely on a jack.
   • Don your safety glasses and gloves.
   • Position your oil drain pan directly beneath the differential.
2. Locating and Loosening the Fill Plug:

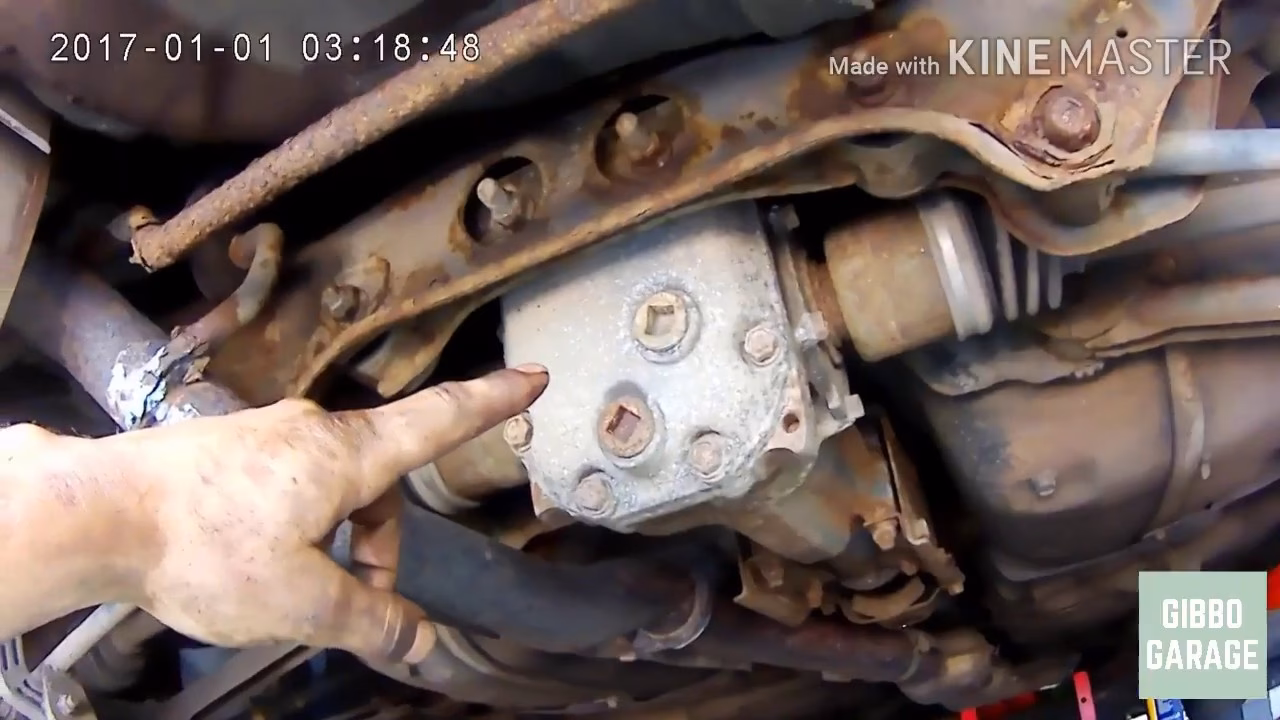

   • You'll typically find two plugs on the differential casing: a higher "fill" plug and a lower "drain" plug.
   • It is absolutely vital to always remove the fill plug first. If you drain the fluid and then can't open the fill plug, your car is immobilised until you can resolve the issue.
   • Insert your 1/2-inch drive ratchet or breaker bar into the square indentation on the fill plug. These plugs are often in there very tightly from the factory or previous services, so don't be afraid to apply significant force. A sharp, firm pull is often more effective than a slow, steady strain. If it's exceptionally stubborn, a few taps with a hammer on the end of the breaker bar (while applying turning force) can sometimes help break it loose.
   • Once loosened, remove the fill plug and set it aside. This will relieve any pressure and allow the fluid to drain more easily.

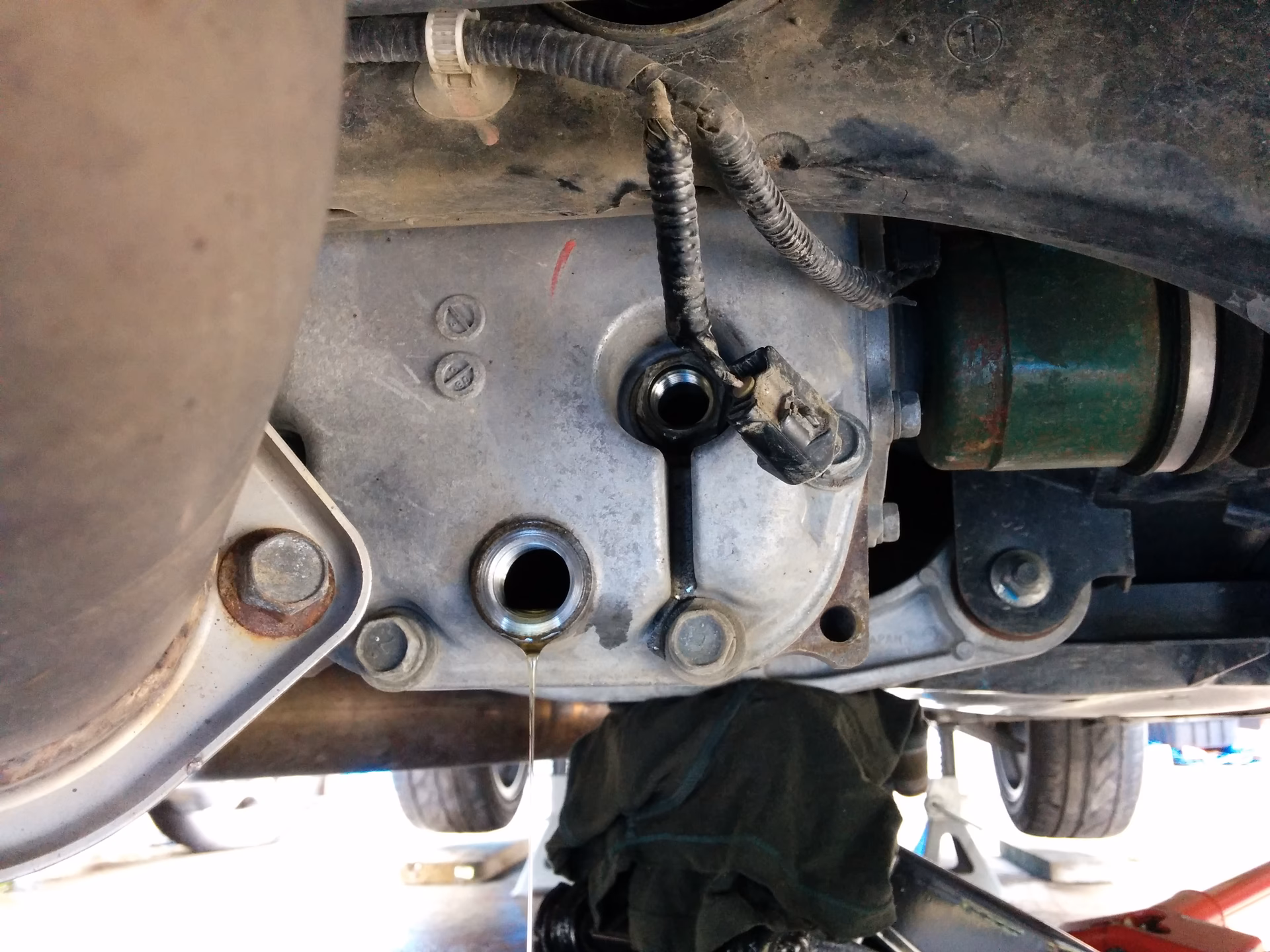

3. Draining the Old Fluid:
   • Now, position your drain pan directly under the lower "drain" plug.
   • Using your ratchet or breaker bar, loosen and remove the drain plug. Again, it might be quite tight.
   • Allow the old differential fluid to drain completely into the pan. This can take some time, so be patient. The fluid might be dark, thick, and have a strong odour, which is normal for used gear oil.
   • The suggestion of using an air compressor to blast out gunk can indeed be effective, but as noted, it's "EXTREMELY messy." If you choose this route, be prepared for oil to spray everywhere, and ensure you have ample protection for yourself and the surrounding area. For most DIYers, simply allowing it to drain thoroughly is sufficient.
   • Once drained, move the pan aside and prepare for proper disposal of the old fluid. Most local authority recycling centres or garages will accept used automotive fluids. Never pour it down drains or dispose of it in household waste.
4. Cleaning and Inspection:
   • Take both the drain and fill plugs. The drain plug, in particular, will almost certainly have a magnet on its tip. This magnet's job is to collect any metallic particles floating in the differential fluid, preventing them from causing further damage to the gears.
   • Carefully clean the magnet with a rag and a wire brush. A small amount of fine, metallic sludge is normal wear. However, if you find larger chunks or shards of metal, this could indicate significant internal wear, and it might be wise to consult a professional mechanic.
   • Clean the threads of both plugs thoroughly.
   • Crucially, replace the crush washers on both the drain and fill plugs (if present). These are single-use items designed to create a tight seal. Reusing them dramatically increases the risk of leaks. Ensure the new washers are correctly seated.
5. Refilling with Fresh Fluid:
   • Once the drain plug and its new crush washer are clean and ready, re-insert the drain plug into its hole.
   • Using your torque wrench, tighten the drain plug to the manufacturer's specified torque setting. Over-tightening can strip threads or damage the washer, while under-tightening will lead to leaks.
   • Now, with the drain plug secure, it's time to refill. Take your new GL5 75w90 differential fluid. This is where the fluid pump or squeeze bottle with an extendable nozzle becomes invaluable.
   • Insert the pump hose or nozzle into the fill hole. Begin to pump or squeeze the fresh fluid into the differential casing.
   • Continue filling until the fluid just begins to leak out of the fill hole. This indicates that the differential is filled to the correct level. The provided information mentions a capacity of 0.8 quarts (approximately 0.75 litres) for a specific case, so you might have some leftover fluid from a 1-litre bottle. Capacities vary by vehicle, so always check your manual.
6. Final Tightening and Clean-up:
   • Once the fluid starts to seep out, remove your pump/nozzle and replace the fill plug, ensuring its new crush washer is in place.
   • Tighten the fill plug to the manufacturer's specified torque using your torque wrench.
   • Wipe down the differential casing and surrounding area thoroughly to remove any spilled fluid. This will help you easily spot any potential leaks later.
   • Remove your tools, drain pan, and dispose of the old fluid responsibly.
   • If you lifted the car, safely lower it back to the ground.

Common Pitfalls and How to Avoid Them

While a DIY differential fluid change is rewarding, there are a few common mistakes that can turn a simple job into a headache:

• Stripped Plugs: This is perhaps the most common issue. Always ensure your ratchet or breaker bar is fully seated in the square drive of the plug. Use firm, even pressure. If a plug feels like it's rounding off, stop immediately and explore other options like a specific square drive socket or a penetrating oil.
• Not Replacing Crush Washers: As emphasised, reusing old crush washers is a recipe for leaks. Always have new ones on hand.
• Using the Wrong Fluid: Incorrect viscosity or API specification can lead to accelerated wear and differential failure. Always consult your owner's manual.
• Not Removing the Fill Plug First: Imagine draining all your fluid only to find you can't open the fill plug! Always open the fill plug before the drain plug.
• Improper Torque: Over-tightening can strip threads in the differential casing, a very expensive repair. Under-tightening leads to leaks. A torque wrench is your friend here.
• Over- or Under-filling: Over-filling can cause fluid to expand and leak, potentially damaging seals. Under-filling leads to insufficient lubrication. Filling until it just trickles out of the fill hole on level ground is the correct method for most differentials.

DIY vs. Professional Service: A Cost-Benefit Analysis

The question often arises: should I do it myself or take it to a garage? Let's weigh the options:

For those comfortable with basic car maintenance and looking to save money, the DIY route is highly recommended. The satisfaction of knowing you've properly maintained your own vehicle is an added bonus.

Frequently Asked Questions (FAQs)

Here are some common questions about differential fluid, including those raised by our community:

Q: Do I need to remove differential fluid?
A: Yes, absolutely. Differential fluid degrades over time and with use, losing its lubricating properties and becoming contaminated. Regular replacement is essential for preventing wear, extending the life of your differential, and ensuring smooth operation of your drivetrain.

Q: Is Valvoline a good gear oil for a tranny & rear diff?
A: Yes, Valvoline is a reputable brand that produces high-quality automotive fluids. If their gear oil meets the specific API GL-5 (and viscosity like 75w90) requirements for your differential and/or manual transmission, then it is generally an excellent choice. Always double-check your vehicle's owner's manual for the exact specifications needed.

Q: Are the instructions provided (in the original query) wrong?
A: The steps outlined in the original post provide a solid and accurate foundation for changing differential fluid. They correctly identify the fill and drain plugs, the order of removal (fill first), and the general process. However, for a comprehensive and truly safe DIY guide, we've expanded on critical details such as the absolute necessity of replacing crush washers, the importance of using a torque wrench, proper disposal, and more explicit safety precautions like wheel chocks. So, while not 'wrong,' they benefit greatly from these crucial additions for a complete maintenance procedure.

Q: How often should I change my differential fluid?
A: Refer to your vehicle's owner's manual for the manufacturer's recommended service interval, typically every 30,000 to 60,000 miles (50,000-100,000 km) or 2-3 years. If you tow heavily, drive aggressively, or frequently off-road, consider shortening these intervals.

Q: What happens if I never change my differential fluid?
A: Neglecting differential fluid changes will lead to accelerated wear of the internal gears due to reduced lubrication, increased friction, and overheating. This can manifest as whining or clunking noises, eventually leading to costly differential failure and potentially leaving you stranded.

Q: Can I use regular engine oil in my differential?
A: Absolutely not. Engine oil and differential fluid (gear oil) have completely different formulations and additives designed for their specific applications. Engine oil is not designed to withstand the extreme pressures and shear forces present in a differential's hypoid gears and will lead to rapid wear and failure.

Q: My car has a Limited-Slip Differential (LSD). Is the process different?
A: The physical process of draining and refilling is largely the same. However, LSDs often require specific GL5 fluids that contain friction modifiers to ensure the clutches within the LSD operate smoothly without chatter. Always check your owner's manual for LSD-specific fluid requirements. Some GL5 fluids come with these modifiers already blended in.

Q: How do I know if my differential is leaking?
A: After changing the fluid, regularly inspect the differential casing. Look for dampness, drips, or stains on the housing or on the ground beneath it. Leaks often occur around the drain/fill plugs (if crush washers aren't replaced or torqued correctly) or from axle seals.

Conclusion

Changing your differential fluid is a fundamental aspect of car maintenance that should not be overlooked. It's a relatively simple, rewarding DIY task that can significantly extend the life of your vehicle's drivetrain, prevent expensive repairs, and ensure a smoother, quieter ride. By following the steps outlined, using the correct GL5 75w90 fluid from a reputable brand like Valvoline, and paying close attention to details like replacing crush washers, you'll be well on your way to mastering this essential bit of automotive care. Your differential, and your wallet, will thank you for it!
