EGR Valve Issues: Symptoms & Subaru P0401 Diagnosis

Understanding Exhaust Gas Recirculation (EGR) Valve Problems

The Exhaust Gas Recirculation (EGR) system is a vital component in modern vehicles, designed to reduce harmful emissions by recirculating a portion of exhaust gases back into the engine's combustion chambers. This process lowers combustion temperatures, thereby reducing the formation of nitrogen oxides (NOx), a major contributor to smog and air pollution. When your EGR valve malfunctions, it can lead to a host of performance issues and trigger diagnostic trouble codes (DTCs). For Subaru owners, understanding these codes, particularly P0401 and P0409, is key to maintaining optimal engine health.

What is the P0401 Code?

The P0401 code is a generic OBD-II trouble code that specifically indicates "Exhaust Gas Recirculation Flow Insufficient Detected." In simpler terms, your vehicle's onboard computer has detected that the EGR system is not recirculating enough exhaust gas. This often points to a blockage or a fault within the EGR system itself, preventing the correct amount of exhaust gas from being returned to the engine for combustion. For Subaru vehicles, this code can manifest due to several common issues.

Common Causes of P0401 in Subarus

Several factors can contribute to a P0401 code appearing on your Subaru's dashboard:

• Clogged or Restricted EGR Passages: Over time, carbon deposits and soot can build up within the EGR passages, restricting the flow of exhaust gases. This is perhaps the most frequent culprit.
• Faulty EGR Valve: The EGR valve itself can become stuck, either open or closed, due to carbon buildup or internal wear. A malfunctioning valve will not regulate the flow of exhaust gas correctly.
• Malfunctioning EGR Temperature Sensor: This sensor monitors the temperature of the exhaust gas being recirculated. If it fails or provides inaccurate readings, the system's control module may misinterpret the EGR flow.
• Problem with the EGR Vacuum Control Solenoid: This solenoid controls the vacuum that operates the EGR valve. A faulty solenoid can lead to improper valve actuation.
• Blocked Exhaust Gas Recirculation Cooler: If the EGR cooler becomes clogged, it can restrict exhaust gas flow.

Diagnosing and Fixing the P0401 Code

A systematic approach is crucial for accurately diagnosing and resolving the P0401 code:

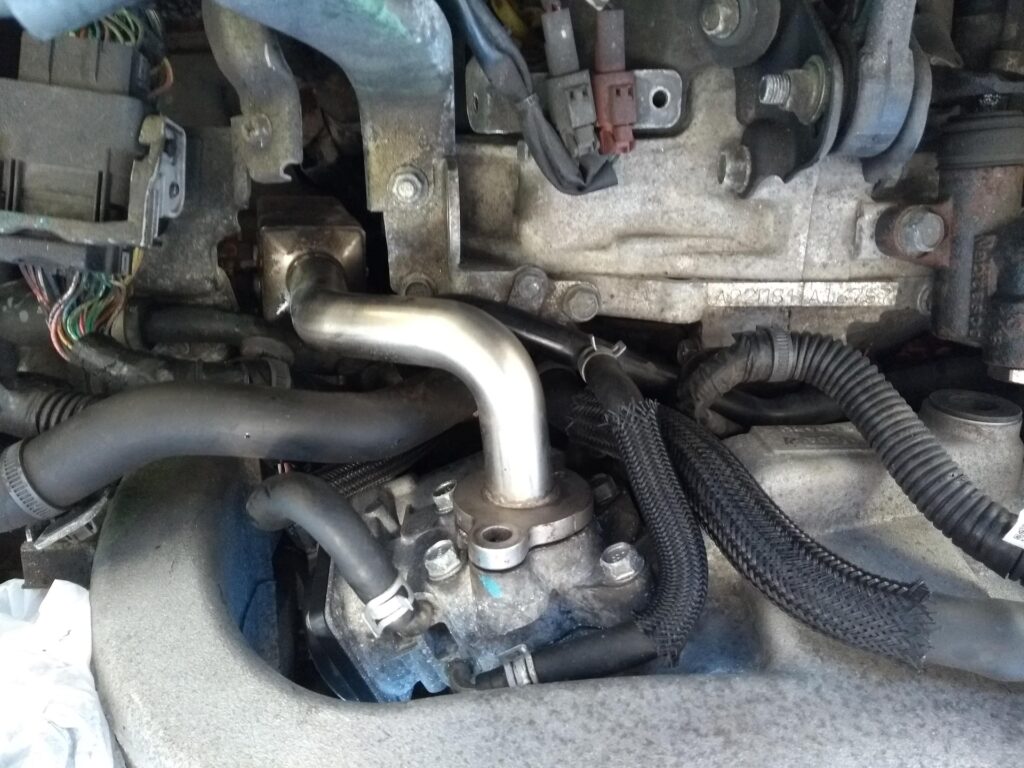

1. Inspect the EGR Valve: Begin by visually inspecting the EGR valve for any signs of damage, corrosion, or significant carbon buildup. You can often remove the valve and attempt to clean it with a suitable carburetor cleaner. Check if the pintle (the valve's moving part) moves freely.
2. Check EGR Passages: With the EGR valve removed, inspect the passages leading to and from the valve for any clogs. Use a pipe cleaner or compressed air to thoroughly clean these passages, ensuring a clear path for exhaust gas flow.
3. Test the EGR Temperature Sensor: Using a multimeter, test the EGR temperature sensor for proper resistance values according to your Subaru's service manual specifications. If the resistance is out of spec, the sensor likely needs replacement.
4. Inspect the EGR Vacuum Control Solenoid: Examine the vacuum control solenoid for any physical damage, cracked hoses, or loose connections. You can also test its electrical function and vacuum operation.
5. Reset the Trouble Code: After performing any necessary repairs or cleaning, use an OBD-II scanner to clear the P0401 code. This allows you to monitor the system and confirm that the issue has been resolved.

Preventing Future P0401 Occurrences

To minimise the chances of the P0401 code returning, consider these preventive measures:

• Regular Maintenance: Adhere to your Subaru's recommended maintenance schedule. This includes periodic inspections and potential cleaning of the EGR system components.
• Use Quality Fuel: Opting for high-quality fuel can help reduce the formation of carbon deposits that often clog the EGR system.
• Drive Responsibly: Avoid overly aggressive driving habits, which can sometimes put extra strain on the EGR system.

What is the P0409 Code?

The P0409 code, "Exhaust Gas Recirculation Sensor A Circuit," signals a problem with the electrical circuit of the EGR sensor. This sensor provides feedback to the engine control module (ECM) about the EGR system's operation. A fault in this circuit means the ECM isn't receiving accurate information, which can lead to improper EGR function.

Common Symptoms of a P0409 Code

When your Subaru triggers a P0409 code, you might experience:

• Decreased Engine Performance: Sluggish acceleration and a general lack of power.
• Poor Fuel Economy: You may notice an increase in fuel consumption.
• Rough Idle: The engine may shake or vibrate noticeably when idling.
• Check Engine Light: This is the most obvious indicator. You might also see related codes like P0405 (low voltage) or P0406 (high voltage).
• Increased Emissions: The vehicle may fail emissions tests.

Common Causes of a P0409 Code

The P0409 code can stem from various issues:

• Malfunctioning EGR Sensor: The sensor itself may have failed.
• Damaged Wiring or Connections: Corroded, frayed, or loose wires in the EGR sensor circuit are a common cause.
• Defective EGR Solenoid or Position Sensor: Problems with related control components can indirectly trigger this code.
• Clogged EGR Valve: While more directly related to P0401, a severely clogged valve can sometimes affect sensor readings.
• Vacuum Leaks: Leaks in the vacuum lines connected to the EGR system can disrupt proper operation and sensor readings.

Diagnosing and Repairing the P0409 Code

Diagnosing the P0409 code involves:

1. Scan for Codes: Use an OBD-II scanner to read all stored trouble codes, paying attention to any accompanying EGR-related codes.
2. Visual Inspection: Thoroughly inspect the EGR system's wiring harness and connectors for any signs of damage, corrosion, or loose connections.
3. Test the EGR Sensor: Use a multimeter to test the resistance and voltage signals of the EGR sensor against the manufacturer's specifications.
4. Check Related Components: Inspect the EGR valve, solenoid, and any associated vacuum lines for blockages or leaks.
5. Repair and Clear Codes: Address any faulty wiring, connections, or components. After repairs, clear the codes and perform a test drive to ensure the issue is resolved.

How Serious is the P0409 Code? Can I Continue Driving?

While not typically an immediate roadside emergency, the P0409 code should not be ignored. Continuing to drive with a faulty EGR sensor can lead to:

• Reduced engine efficiency and increased fuel consumption.
• Potential for further damage to the EGR system or other engine components.
• Failure to pass emissions tests.
• More severe symptoms like stalling or rough running could develop.

It's advisable to have the issue diagnosed and repaired promptly to prevent escalating problems.

Repair Solutions for P0409

Repairing a P0409 code typically involves:

• Repairing or Replacing Wiring: Addressing damaged or corroded wiring and connectors.
• Replacing the EGR Sensor: If the sensor is found to be faulty.
• Cleaning or Replacing the EGR Valve: If carbon buildup is severe or the valve is mechanically stuck.
• Addressing Vacuum Leaks: Repairing or replacing faulty vacuum hoses.

Cost and Time for Diagnosis and Repair

Diagnosing a P0409 code usually takes 1-2 hours, with labour costs ranging from £75 to £150 per hour. Total diagnostic costs might be between £100 and £300. Repair costs vary significantly: a faulty EGR valve might cost £200-£800 to replace, while wiring repairs could be less or more depending on complexity. Always get quotes from multiple reputable garages.

How to Avoid P0409 Codes

Prevention is key:

• Regular Maintenance: Keep up with your Subaru's service schedule, including checks on the EGR system.
• Monitor Performance: Pay attention to any changes in engine performance, fuel economy, or idle quality.
• Use Quality Fuels: Use reputable fuel brands to minimise carbon deposits.
• Clean EGR Components: Periodically cleaning the EGR valve and passages can prevent buildup.
• Ensure Secure Connections: Regularly check electrical connections for corrosion or looseness.

What Happens if You Ignore a P0409 Code?

Ignoring a P0409 code can lead to:

• Performance Degradation: Continued reduction in power and fuel efficiency.
• Increased Emissions: Your vehicle will pollute more and likely fail emissions tests.
• Further System Damage: The EGR system or other engine components could suffer more severe damage, leading to more expensive repairs.
• Triggering Other Codes: Related systems may be affected, causing additional DTCs to appear.

Is P0409 Specific to Certain Makes?

No, the P0409 code is not specific to any single car make or model. It can occur in any vehicle equipped with an EGR system. While some manufacturers or models might be more prone to EGR issues due to design or component quality, the code itself is universal across OBD-II compliant vehicles.

Related Trouble Codes

When diagnosing P0409, be aware of these commonly associated codes:

• P0401: EGR Flow Insufficient.
• P0402: EGR Flow Excessive.
• P0404: EGR Circuit Range/Performance.
• P0405: EGR Sensor A Circuit Low.
• P0406: EGR Sensor A Circuit High.
• P0420: Catalyst System Efficiency Below Threshold (can be indirectly related if EGR issues affect catalyst performance).

Addressing all related codes simultaneously is crucial for a complete repair.

Conclusion

Faulty EGR valves and associated circuit problems, indicated by codes like P0401 and P0409, are common issues that can affect your Subaru's performance and emissions. By understanding the symptoms, causes, and diagnostic procedures, you can effectively address these problems. Regular maintenance and prompt attention to warning lights are the best ways to ensure your Subaru continues to run smoothly and efficiently, minimising the risk of costly repairs and environmental impact.
