The SU Carburettor: Unveiling Its Secrets

For decades, the SU carburettor has been the unsung hero beneath the bonnets of countless British classics, from Jaguars to Minis. Often lauded for its remarkable simplicity yet equally feared for its perceived complexity, the SU operates on a principle that, once understood, reveals a truly elegant design. Unlike conventional carburettors with fixed venturis, the SU employs a variable venturi system, allowing it to dynamically adjust to engine demands. This ingenious design ensures an optimal air/fuel mixture across a vast range of engine speeds and loads, making it a masterpiece of automotive engineering.

The Variable Venturi Principle: A Stroke of Genius

At its heart, the SU carburettor's operation is based on a principle patented by George Skinner in 1905, hence the name 'Skinners Union'. The core idea is to maintain a constant air velocity and depression above the fuel jet, regardless of engine demand. This is achieved through a variable venturi. Imagine a tube that can change its internal diameter. As the engine demands more air, this tube widens; as demand lessens, it narrows. This dynamic adjustment is key to the SU's self-regulating nature.

In practice, this variable venturi is created by a closely fitting piston, often referred to as the 'suction disc assembly', housed within a suction chamber (commonly known as the 'dashpot'). This piston is free to rise and fall. As air is drawn into the carburettor by the engine, a vacuum is created beneath the piston. This vacuum, acting on holes in the underside of the piston, lifts it. The higher the engine's air demand, the higher the piston lifts, effectively increasing the size of the venturi and allowing more air to flow. The piston stops rising when the depression balances its weight and the force of its return spring. This clever mechanism ensures that the air velocity and depression over the fuel jet remain remarkably consistent, leading to excellent fuel atomisation and precise metering across all operating conditions.

The Piston, Needle, and Jet: A Symbiotic Relationship

Central to the SU's precise fuel metering is the interplay between the piston, a tapered needle, and the fixed fuel jet. Attached to the bottom of the rising and falling piston is a small, precisely tapered needle. This needle protrudes down into the fuel jet, which is essentially a fixed-size hole through which fuel is drawn from the float chamber. As the piston lifts, the tapered needle is gradually withdrawn from the jet. Because the needle is tapered, withdrawing it further allows a larger annular gap around the needle, thus permitting more fuel to flow into the air stream.

The beauty of this system lies in its inherent self-adjustment. As the engine's demand for air increases, the piston lifts, simultaneously widening the venturi for more air and withdrawing the tapered needle to allow more fuel. This ensures that the correct air/fuel ratio is maintained. Each SU carburettor is designed to provide the optimum mixture for both maximum power throughout the full throttle range and minimum consumption under part-throttle conditions. The precision of the tapered needle, with its many specific diameters measured during manufacturing, is paramount to achieving this balance.

Enrichment for All Conditions: Beyond the Basics

While the SU's variable venturi excels at maintaining a consistent mixture, engines require richer mixtures during specific conditions, such as cold starting and hard acceleration. The SU handles these situations with elegantly simple solutions:

• Cold Starting: Unlike conventional carburettors that 'choke' the engine by limiting air intake, SU carburettors richen the mixture by increasing fuel flow without restricting air. This is typically achieved by a linkage that lowers the jet tube. Lowering the jet allows more of the tapered needle to be exposed, drawing more fuel into the air stream. This linkage also usually opens the butterfly valve slightly to increase idle speed when the 'choke' is engaged.
• Hard Acceleration: The SU doesn't use an accelerator pump like many conventional carbs. Instead, it relies on a hydraulic dashpot damper. The piston assembly contains a hollow tube filled with oil, through which a damper rod with a one-way valve moves. This damper restricts the rate at which the piston can rise but allows it to fall freely. On sudden acceleration, the vacuum rapidly increases, but the damper slows the piston's ascent. This momentary delay in the piston's lift increases the depression over the jet, causing a temporary enrichment of the mixture – effectively acting as the SU's 'accelerator pump'. The viscosity of the damper oil also plays a role, with colder, thicker oil slowing the piston more, leading to greater enrichment when the engine is cold.

The Art and Science of Needle Selection: A Deep Dive into Tuning

Despite its inherent self-adjusting nature, the SU carburettor requires specific tuning to match the unique needs of each engine. This is primarily done by selecting the appropriate tapered needle and piston spring. Even subtle modifications to an engine's intake or exhaust systems can necessitate a change in needle profile.

The Challenge of Needle Profiles

SU manufactured a staggering array of slightly different tapered needles, along with a selection of piston springs, to suit virtually every engine they were fitted to. This is where the 'simple' nature of the SU can become quite complex. There are over 800 known needle profiles, each with multiple measurement points (often 14 or more at 1/8-inch intervals) detailing its taper.

For a dedicated enthusiast, finding the 'magic combination' can be a meticulous process. Instead of blindly trying different needles, a data-driven approach is often employed. This involves gathering real-world data from the engine under various conditions (idle, cruising, acceleration, wide-open throttle) using sensors like MAP and O2 sensors, and even measuring vacuum in the dashpots to infer piston lift. By comparing the engine's behaviour with different needle profiles, one can identify which "steps" (diameters at specific points along the needle) are too rich or too lean.

Once data is collected, the arduous task of sifting through countless needle specification sheets begins. The goal is to find an existing needle profile that matches the desired characteristics. Given the sheer number of needles, this often involves digitising all dimensions into a spreadsheet to sort and group them. Even then, it's common to end up with a 'fist full of possibles'. Sometimes, the ideal solution isn't an off-the-shelf needle, but a custom-reprofiled one, requiring delicate polishing and precise measuring equipment. The key rules for reprofiling are simple: you can take metal off, but not put it back on, and the needle must always progressively taper.

It's crucial that for multi-carburettor setups, the needles in each carb are exactly matched, even if their diameter is slightly off the chart. Minor variations in dashpot springs, intake manifolds, air cleaners, exhausts, ignition timing, and even ambient temperature can all influence the optimal needle profile. This explains why such a vast range of needles exists.

Basic SU Carburettor Tuning

Assuming the carburettors are in good mechanical condition and fitted with appropriately sized needles, the tuning procedure for SUs is often less daunting than perceived. However, proper preparation is key.

Pre-Tuning Checks

Before adjusting the carburettors, ensure the following are correct:

• Ignition Dwell and Timing: These must be set precisely as per manufacturer specifications.
• Valve Clearances: Verify that valve clearances are correct to ensure consistent engine operation.
• Vacuum Leaks: Thoroughly check for any vacuum leaks in the intake system, as these can drastically affect mixture readings and tuning accuracy.

Synchronisation (for Multi-Carb Setups)

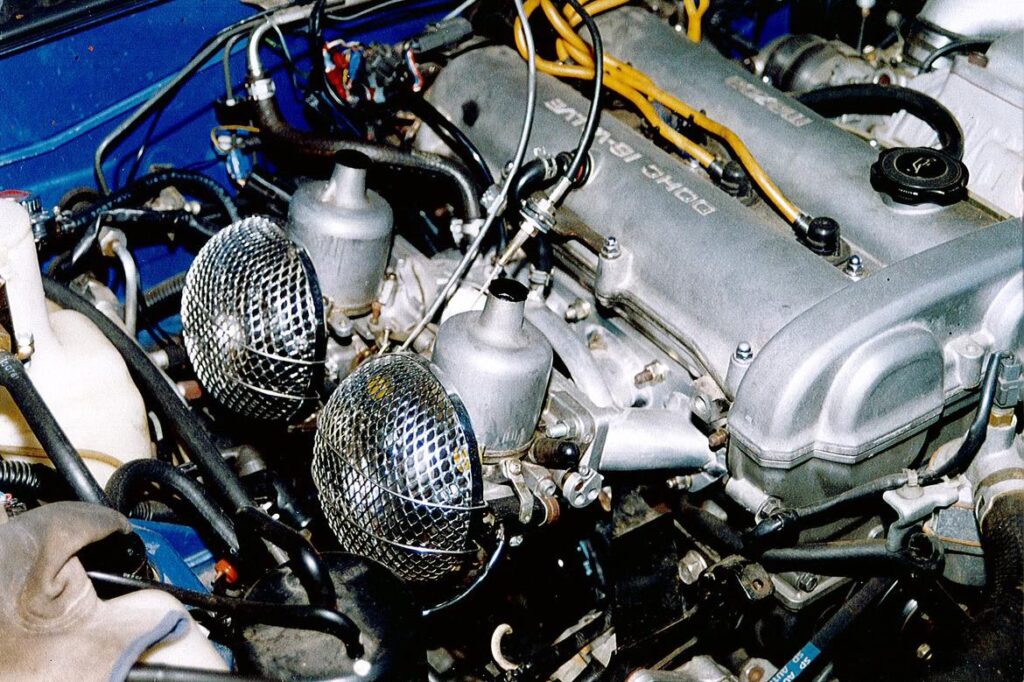

If your engine has two or more SU carburettors, they must be synchronised to ensure they draw equal amounts of air at idle. This can be done using a dedicated synchronisation tool or a simple length of hose:

1. With the engine idling (typically 600-1000 rpm), place the synchronisation tool over the inlet of each carburettor.
2. Adjust the idle screw on each carburettor until the tool gives the same reading for all carbs.
3. Alternatively, use a 12- to 18-inch length of 1/4-inch or 5/16-inch hose. Hold one end to the air inlet of each carb and the other to your ear. Adjust the idle screws until each carb emits the same sound.
4. Once synchronised at idle, adjust the throttle linkages to ensure all throttle arms begin moving simultaneously when the accelerator pedal is depressed, maintaining synchronisation throughout the RPM range.

Idle Mixture Adjustment

Setting the idle mixture is a crucial step for smooth running and efficiency:

1. Carefully lift each piston slightly, about 1/16-inch, using a small screwdriver.
2. Observe the engine speed:
• If engine speed falls off, the mixture is too lean. Lower the jet via its adjustment nut or screw.
• If RPMs rise, the mixture is too rich. Raise the jet.
• The ideal setting is when lifting the piston causes the engine speed to rise by about 50 rpm before returning to its previous level.
3. An alternative method involves using a vacuum gauge, adjusting each carb's mixture to achieve the highest possible vacuum at idle.

Choke Mechanism Adjustment

As SUs don't use a conventional choke, their enrichment mechanism needs proper adjustment:

1. Ensure proper linkage balance between multiple carburettors.
2. Set the high-speed idle screws that touch the cams, typically aiming for around 1800 rpm when the 'choke' is fully engaged. The linkage and cam usually affect idle speed in the first two-thirds of choke cable travel, with the final third also enriching the air/fuel mixture.

Maintaining and Rebuilding Your SU Carbs

Most common problems with SU carburettors stem from wear and age. The good news is that SUs are relatively easy to rebuild due to their simple design and few moving parts. Enthusiasts can perform many repairs at home, though some tasks may require professional help.

Common Issues and Solutions

The most critical wear point in an SU carburettor is often the throttle shaft and its bushings. Worn shafts allow air leaks, making proper tuning impossible. Solutions include:

• Replacing only the shafts (if bushings are not excessively worn).
• Reaming out existing bushings by 0.010-inch and installing oversized shafts (a cost-effective but one-time solution).
• Completely removing old bushings, installing new standard ones, and fitting new standard shafts (the most comprehensive solution, often requiring specialist tools).

Other components that typically need replacement during a rebuild include jets, needles, float bowl needle and seat assemblies, gaskets, and rubber components. For show cars, external parts are often glass-beaded, and linkages replated for a pristine finish.

DIY vs. Professional Rebuilds

While many enthusiasts can tackle a basic rebuild, tasks like replacing throttle shaft bushings often benefit from professional expertise and specialised reaming tools. Many reputable rebuilders can restore SU carbs to as-new condition, offering a viable alternative to DIY for those less mechanically inclined or seeking concours-correct results.

Enhancing Performance: Limited Modifications

While Webers might boast more racing titles, SUs, when properly set up, can perform exceptionally well for normal driving and even spirited use. Performance modifications for SUs are somewhat limited but effective:

• Larger Carburettors: Upgrading to a larger SU size (e.g., from 1½-inch to 1¾-inch) can increase airflow and horsepower for modified engines.
• Needle Changes: As discussed, selecting a different needle taper can fine-tune the mixture for specific performance goals (leaner for economy, richer for power). Custom profiling is also an option for radical tuners.
• Airflow Improvements:
• Air Filters and Velocity Stacks: Aftermarket air filters (like K&N) and velocity stacks can improve airflow, yielding a few extra horsepower.
• Throttle Disk and Shaft Modifications: Later-model SU carbs (post-1968) often feature spring-loaded poppet valves in their throttle disks for emissions control; replacing these with earlier, flat disks improves airflow. For extreme tuning, the throttle shafts can be thinned and ovalised to minimise obstruction.

New vs. Rebuilt: Making the Choice

For classic car owners, a decision often arises: should I rebuild my original SU carburettors or purchase brand-new replacements? Both options have their merits:

Your budget, the specific model of your car, and your ultimate goals (daily driver, performance, concours restoration) should guide your decision. For very common setups, new carbs can be a straightforward and cost-effective solution. For rare models or strict originality, rebuilding the originals is often the only path.

Deciphering SU Carburettor Identification

SU carburettors come in various styles and sizes, identified by a logical naming system. Understanding this system is crucial for selecting the correct replacement or tuning components:

• First Letter (H or V): Indicates mounting orientation. 'H' for Horizontal (common on European cars), 'V' for Vertical.
• Second Letter (S, IF, D): Describes physical characteristics or float chamber location. 'S' for Side float or Short body; 'IF' for Internal Float; 'D' for Diaphragm jet.
• Numbers: These indicate the carb's throat size in eighths of an inch over 1 inch. For example, an 'HS4' carb is 1 + (4 x 1/8) inches, which equals 1½ inches. An 'HD8' is 1 + (8 x 1/8) inches, or a 2-inch carb.

An exception is the more modern 'HIF44', where '44' refers to 44mm, approximately 1¾ inches. When choosing used carbs, consider vacuum fittings, float bowl angles (e.g., 20° for Spridgets, 30° for Minis), and whether they are configured in sets. The HS and HIF versions are generally recommended, with H-type carbs being good but prone to choke linkage wear and leaks, and HD carbs being more complex.

For most engines, one carburettor per two cylinders works well. Regarding size, sticking to the stock size is often best unless your engine is heavily modified. For slight upgrades, a quarter-inch increase in throat size is usually sufficient; for full-race engines, a half-inch increase might be warranted.

Frequently Asked Questions (FAQs)

Q: Why do SU carburettors have so many different needle profiles?

A: The vast number of needle profiles exists because every engine, even seemingly identical ones, has slightly different air/fuel mixture requirements based on its specific setup (intake, exhaust, ignition, cam profile, etc.). Each needle's taper is precisely designed to provide the correct fuel flow for a particular engine's characteristics across its operating range, ensuring optimal performance and efficiency.

Q: Are SU carburettors better than Weber carburettors for performance?

A: This is a long-standing debate among enthusiasts. While Webers are often associated with racing and high performance, many believe that properly set up SU carburettors can perform just as well as Webers on the street, often with easier tuning and better drivability. SUs are generally more forgiving and provide a smoother power delivery due to their constant velocity design, whereas Webers can be more abrupt but offer higher peak power when perfectly tuned for competition.

Q: How does ethanol in modern fuel affect SU carburettors?

A: While some concerns about ethanol eating aluminium parts in carbs have been voiced, actual widespread damage from this appears overblown. The primary issue reported is ethanol attacking older rubber components (like diaphragms and fuel lines), leading to leaks and degradation over time. New, ethanol-resistant rubber parts are available during rebuilds to mitigate this. Fuel evaporation can also lead to clogging if the car sits for extended periods.

Q: Can I run a single SU carburettor on my engine?

A: Yes, many engines are designed to run with a single SU carburettor. The number of carburettors typically depends on the engine's design, cylinder count, and desired performance. For most performance engines, one carburettor for every two cylinders is a common and effective setup, but single-carb setups are perfectly viable and common on many models.

Understanding the SU carburettor is to appreciate a brilliant piece of engineering. Its elegant simplicity, combined with its precise self-adjusting nature, has ensured its longevity in the classic car world. With the right knowledge and a bit of patience, you can master the SU and keep your cherished classic running as smoothly and efficiently as it was designed to be.
