Sturmey Archer Hub Brakes: A Deep Dive into Reliability

When it comes to the crucial components of your bicycle, brakes are arguably the most vital. They are your primary safety mechanism, and their performance can mean the difference between a smooth stop and an unexpected incident. In the world of cycling, Sturmey Archer has long been a name synonymous with quality and innovation, particularly regarding their internal gear hubs and, importantly, their hub brakes. For many riders, the question arises: just how reliable are Sturmey Archer hub brakes? The answer, for those who appreciate enduring design and steadfast performance, is overwhelmingly positive.

Understanding Sturmey Archer Hub Brakes

Sturmey Archer hub brakes are a type of drum brake, integrated within the bicycle's wheel hub. Unlike traditional rim brakes, which apply pressure to the wheel's rim, hub brakes operate internally. This design offers several distinct advantages, primarily in terms of protection from the elements and reduced wear on external components. Sturmey Archer, a pioneer in bicycle components for over a century, has refined this technology to create a braking system renowned for its durability and consistent performance.

These brakes are commonly found on a diverse range of bicycles, from the classic 'sit-up and beg' models that grace many British streets to robust transport bikes and even modern velomobiles. Their widespread adoption across such varied applications speaks volumes about their versatility and, more importantly, their trusted performance under different riding conditions and loads.

The Hallmark of Reliability: Longevity and Low Maintenance

One of the most compelling attributes of Sturmey Archer hub brakes is their exceptional reliability and long-lasting nature. The internal mechanism, shielded from road grime, water, and debris, experiences significantly less wear and tear compared to external braking systems. This inherent protection contributes directly to their impressive lifespan.

Users frequently report that it takes a considerable amount of time to wear out the brake pads (also known as brake shoes) on these units. This extended pad life translates directly into lower maintenance requirements and less frequent need for replacements, saving cyclists time and money. While the parts are indeed built to last, it's always prudent to ensure your brakes are correctly set up from the outset. A proper initial adjustment can further maximise their efficiency and longevity.

Key Components and Sizes

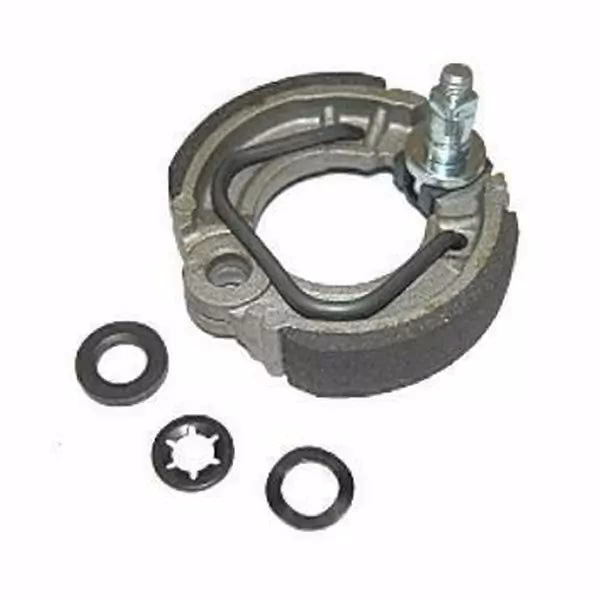

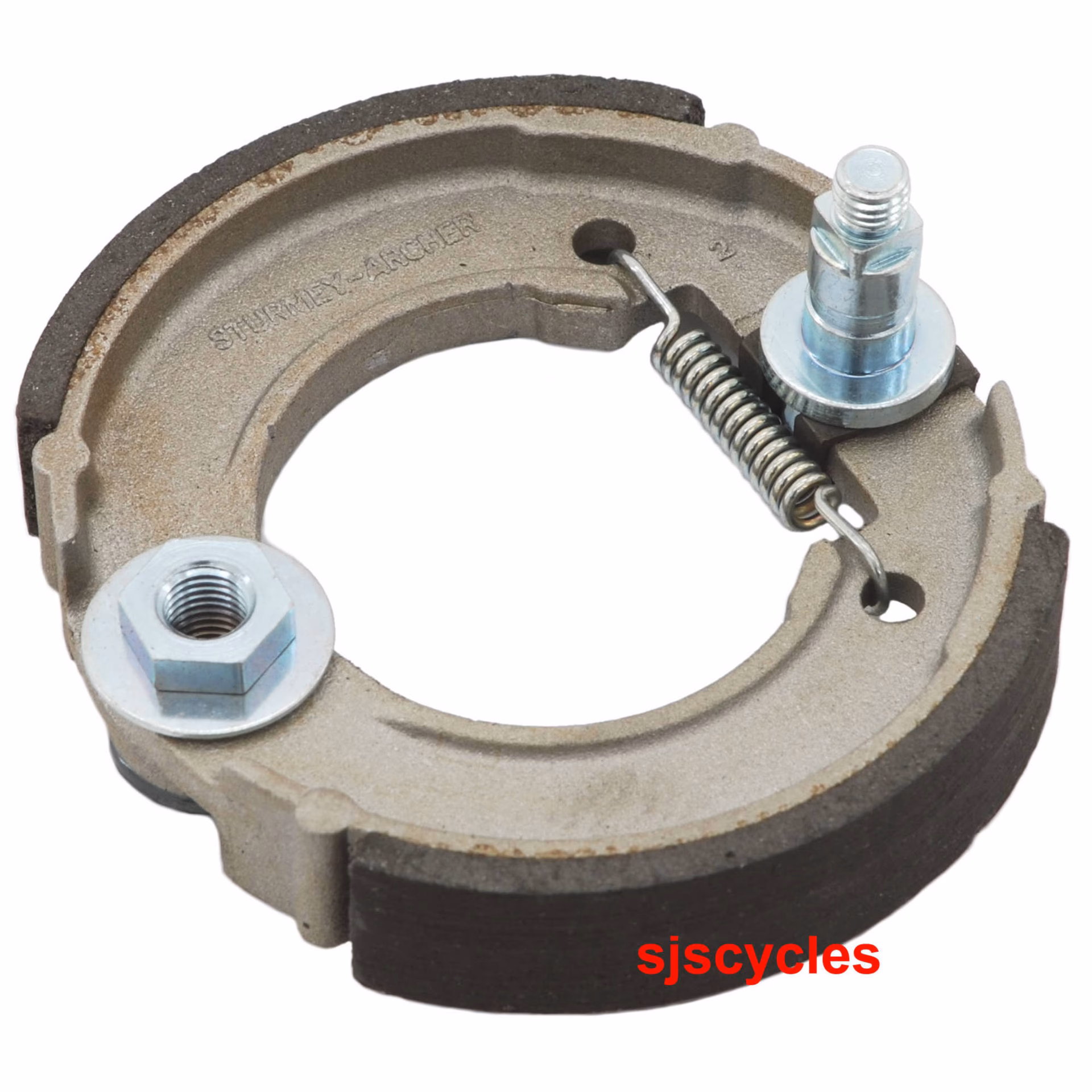

Sturmey Archer hub brake systems consist of a set of hub brake pads and various other internal components. To cater to different bicycle requirements, these parts are available in two primary sizes: 70 mm and 90 mm. This sizing ensures compatibility with a wide array of Sturmey Archer drum brakes fitted on various bicycle models. Whether you own a classic commuter or a purpose-built transport bike, there's a good chance that the standard 70mm or 90mm replacement parts will be suitable for your braking system.

Performance in All Conditions

Unlike rim brakes, which can see a significant reduction in performance in wet or muddy conditions due to water and grit on the rim, hub brakes maintain a far more consistent stopping power. Because the braking mechanism is enclosed within the hub, it is largely unaffected by adverse weather. This makes Sturmey Archer hub brakes an excellent choice for year-round cycling, particularly in climates where rain and damp conditions are common. This consistent performance contributes significantly to rider safety and confidence, knowing that your brakes will perform when you need them most, regardless of the weather.

Maintenance and Replacement: When and How

While Sturmey Archer hub brakes are celebrated for their longevity, like any mechanical component, they will eventually require maintenance or part replacement. The primary component that will wear over time is the brake pad. As mentioned, this wear is typically slow, but regular checks are still advisable.

Before considering a replacement, it's crucial to first check that your brakes are set up correctly. Misalignment or improper cable tension can lead to perceived poor performance that isn't actually due to worn pads. If, after checking the setup, you still experience reduced braking efficiency, then it's likely time to consider a service kit.

Replacing the internal components typically involves disassembling the hub, which might seem daunting to a novice. However, with the right tools and a careful approach, it is a manageable task for those with some mechanical inclination. Service kits, which usually include the necessary replacement brake pads and other internal parts, are readily available for both the 70mm and 90mm brake sizes.

Compatibility Considerations: The VT Hub Example

While Sturmey Archer replacement parts are designed to fit a wide range of their hubs, specific older or less common models can sometimes pose a compatibility challenge. A notable example highlighted by user queries is the Sturmey Archer Elite VT hub.

For models like the Elite VT, the standard 70mm drum brake service kit is the only replacement option available directly from Sturmey Archer. However, due to the age of such hubs and the specific design variations that might have existed, there's no absolute guarantee of a perfect fit without direct testing. This scenario underscores the importance of verifying compatibility, especially for vintage or niche components. If you own an older or unusual Sturmey Archer hub, it's always wise to consult with specialist suppliers or dedicated cycling forums, as they may have specific knowledge or experience regarding your particular hub model.

Sturmey Archer Hub Brakes vs. Rim Brakes: A Comparison

To fully appreciate the benefits of Sturmey Archer hub brakes, it's useful to compare them with the more common rim brake systems:

As the table illustrates, while both systems serve the same purpose, hub brakes offer distinct advantages in terms of longevity, weather resistance, and reduced maintenance, making them a highly reliable choice for many cyclists.

Frequently Asked Questions (FAQs)

How often do I need to replace Sturmey Archer brake pads?

Due to their enclosed design and robust construction, Sturmey Archer brake pads are exceptionally long-lasting. There's no fixed schedule, as it depends on usage and riding conditions, but they typically last for many years and thousands of miles. It's more common to check their setup and replace them only when you notice a significant reduction in braking performance that isn't resolved by adjustment.

Are Sturmey Archer hub brakes good in the rain?

Yes, they are excellent in the rain. Unlike rim brakes, which lose efficiency when the rims get wet, Sturmey Archer hub brakes operate internally and are protected from water and road grime, ensuring consistent stopping power regardless of the weather conditions.

Can I install Sturmey Archer hub brake parts myself?

Replacing the internal brake pads and other components requires some mechanical aptitude and specific tools for disassembling and reassembling the hub. While it's a manageable task for experienced home mechanics, if you're unsure, it's always best to consult a professional bicycle mechanic to ensure the brakes are installed and adjusted safely and correctly.

What types of bikes commonly use Sturmey Archer hub brakes?

Sturmey Archer hub brakes are prevalent on traditional 'sit-up and beg' bicycles, classic roadsters, cargo and transport bikes, and increasingly on velomobiles. Their reliability and low maintenance make them ideal for bikes designed for practical, everyday use and those requiring robust braking performance under heavy loads.

Where can I buy Sturmey Archer replacement parts?

Sturmey Archer replacement parts, including brake pads and service kits for both 70mm and 90mm brakes, are available from specialist bicycle component retailers, online cycling stores, and some larger local bike shops. It's always advisable to purchase from reputable suppliers to ensure you receive genuine parts.

Conclusion

In summary, Sturmey Archer hub brakes stand out as an exceptionally reliable and long-lasting braking solution for a wide variety of bicycles. Their enclosed design offers superior protection from the elements, leading to extended pad life and consistent performance in all weather conditions. While specific older hubs might present minor compatibility nuances, the general availability of replacement parts ensures that these dependable braking systems can continue to serve cyclists safely and effectively for many years. For those prioritising durability, low maintenance, and unwavering stopping power, Sturmey Archer hub brakes remain an excellent and trustworthy choice.
