Single-Cylinder Engine: Dismantle & Reassemble

Small engines are the unsung heroes of countless homes and businesses across the UK, powering everything from lawnmowers and generators to pressure washers and rotavators. While robust, even these workhorses eventually require attention, whether for routine maintenance, troubleshooting a performance issue, or a full rebuild. Understanding how to properly dismantle and reassemble a single-cylinder four-stroke engine isn't just a technical skill; it's an empowering journey into the heart of these machines, allowing you to diagnose problems, perform repairs, and significantly extend their lifespan. This comprehensive guide will walk you through the entire process, from initial preparation to the final test run, ensuring you approach this task with confidence and precision.

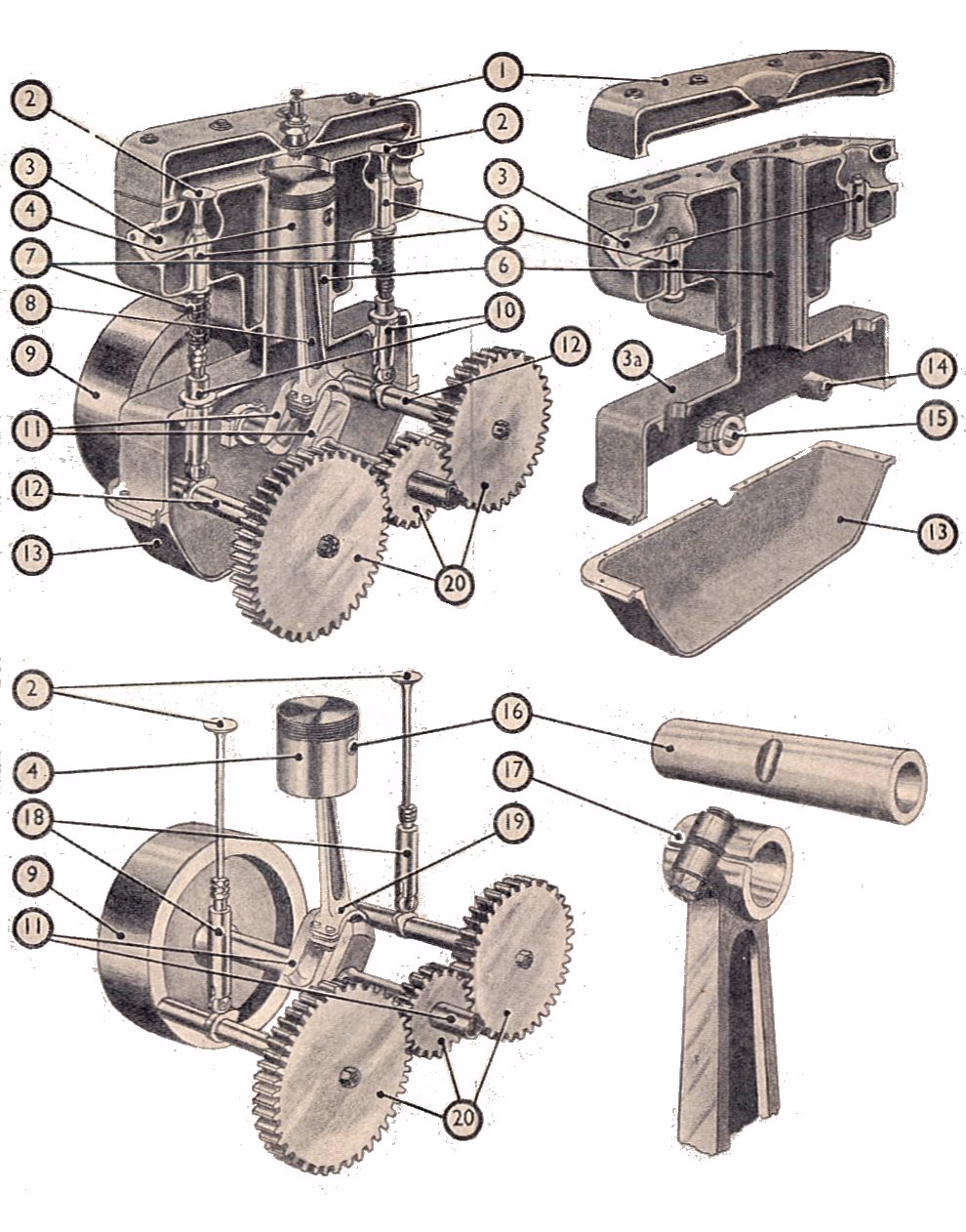

What Does 'Dismantle & Reassemble a Single-Cylinder Engine' Entail?

At its core, dismantling and reassembling a single-cylinder four-stroke engine refers to the systematic process of taking apart an engine, inspecting its individual components, cleaning them, replacing worn or damaged parts, and then putting it all back together in correct working order. This isn't just a casual strip-down; it's a methodical procedure that demands patience, attention to detail, and adherence to specific guidelines.

The process typically encompasses several key performance outcomes:

• Planning and Preparation: This crucial initial phase involves gathering the necessary tools, securing a suitable workspace, and, most importantly, acquiring the engine's service manual. Without proper planning, the task can quickly become disorganised and frustrating.
• Dismantling the Engine and Inspecting Components: This is where the engine is carefully taken apart, component by component. Each part is then meticulously inspected for wear, damage, or any anomalies that could affect performance.
• Reassembling the Engine and Checking Operation: With all components cleaned and necessary replacements made, the engine is carefully put back together, following precise torque specifications and assembly sequences. Once reassembled, the engine's operation is thoroughly checked to ensure it functions correctly and safely.
• Maintaining the Work Area, Tools, and Equipment: A clean and organised workspace is vital for efficiency and safety. Proper maintenance of tools ensures their longevity and accuracy for future tasks.

Mastering this unit allows you to troubleshoot common engine problems, perform routine maintenance, or even embark on a full engine rebuild, saving you significant costs and providing a deep understanding of your machinery.

Why Undertake a Single-Cylinder Engine Overhaul?

There are numerous compelling reasons to undertake the task of dismantling and reassembling a single-cylinder engine:

• Troubleshooting and Diagnosis: When an engine isn't running right – perhaps it's losing power, burning oil, or simply won't start – a systematic disassembly allows you to pinpoint the exact cause of the problem. You can inspect components directly, rather than relying on guesswork.
• Routine Maintenance and Preventative Measures: Over time, carbon build-up, worn seals, and stretched components can degrade performance. A periodic strip-down allows for thorough cleaning, replacement of inexpensive wear items (like gaskets and piston rings), and general preventative maintenance that can extend the engine's life considerably.
• Performance Restoration: A tired engine can often be brought back to life with new piston rings, valve lapping, and fresh gaskets, restoring lost compression and power.
• Cost Savings: Professional engine repairs can be expensive, particularly for small engines where the cost of labour might outweigh the value of the machine. Doing the work yourself can lead to substantial savings.
• Educational Value: For the mechanically inclined, taking apart an engine offers an unparalleled learning experience. It demystifies internal combustion and builds a valuable practical skill set.
• Customisation and Upgrades: For enthusiasts, disassembling an engine might be the first step towards performance modifications or custom builds.

Essential Preparations Before You Begin

Before you even touch a spanner, thorough preparation is paramount. This phase dictates the success, safety, and efficiency of your entire endeavour.

Safety First

Your personal safety should always be the top priority. Ensure you have the following:

• Personal Protective Equipment (PPE): Safety glasses are non-negotiable to protect against flying debris or chemical splashes. Robust gloves will protect your hands from cuts, scrapes, and harsh chemicals.
• Well-Ventilated Area: You'll be dealing with fuel, oil, and cleaning solvents, so work in an area with good air circulation to avoid inhaling fumes.
• Fire Extinguisher: Keep a suitable fire extinguisher (rated for liquid fires, e.g., ABE or CO2) within easy reach.
• Stable Work Surface: Ensure your workbench or work area is sturdy and at a comfortable height to prevent strain.

The Work Area

A clean, organised, and well-lit workspace is critical. Lay down old newspapers or a large tarp to catch spills and small parts. Have plenty of containers or magnetic trays ready to sort and label fasteners and components as you remove them. Taking photos at each stage of disassembly can be an invaluable reference during reassembly.

Tools Required

While specific tools may vary slightly by engine model, a standard set of automotive or small engine tools will be sufficient for most single-cylinder four-stroke engines. Key items include:

• Socket and spanner sets (metric and/or imperial, depending on engine origin)
• Screwdriver set (flathead and Phillips, various sizes)
• Torque wrench (essential for correct bolt tightening, especially on the cylinder head)
• Feeler gauges (for checking valve clearances and piston ring gaps)
• Piston ring compressor (a specialised tool for installing pistons into the cylinder)
• Piston stop (optional, but helpful for setting valve timing)
• Rubber mallet or soft-faced hammer
• Pliers (various types, including circlip pliers)
• Scrapers and wire brushes (for cleaning gasket surfaces and carbon build-up)
• Oil drain pan and fuel container
• Funnel
• Cleaning fluids (degreaser, carburettor cleaner)
• Workshop rags or paper towels

The Indispensable Workshop Manual

Perhaps the single most important 'tool' you'll need is the engine's official Workshop Manual. This document provides critical information specific to your engine model, including:

• Detailed exploded diagrams and parts lists
• Disassembly and reassembly sequences
• Crucial torque specifications for every fastener
• Component wear limits and tolerances (e.g., piston ring gap, valve clearances, cylinder bore diameter)
• Troubleshooting guides
• Special tool requirements

Attempting an engine overhaul without the correct manual is akin to trying to navigate a foreign country without a map – you might get there eventually, but you're likely to get lost and cause damage along the way. Always consult your manual for precise instructions.

Parts and Consumables

Before starting, gather any new parts you anticipate needing. It's almost always recommended to replace:

• All gaskets (cylinder head, sump, exhaust, carburettor)
• Oil seals (crankshaft, valve stems)
• Spark plug
• Engine oil and fuel
• Thread locker (blue Loctite for non-permanent applications, if specified)

Having these on hand prevents delays once you've started the reassembly process.

The Dismantling Process: A Step-by-Step Guide

Approach disassembly methodically. Take photos, label parts, and keep fasteners with their respective components.

1. Drain All Fluids

Begin by draining the fuel from the tank and carburettor, and the engine oil from the sump. Dispose of these fluids responsibly at an authorised recycling centre.

2. Remove External Components

Systematically remove components attached to the engine's exterior:

• Air filter assembly
• Carburettor
• Exhaust system
• Spark plug lead and spark plug
• Starter assembly (recoil or electric)
• Any shrouds or covers

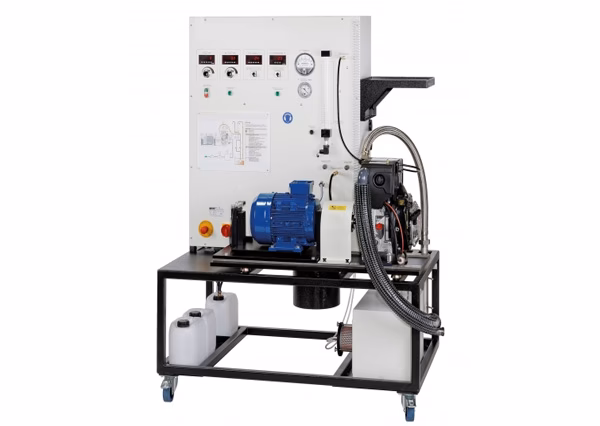

3. Cylinder Head Removal

This is a critical step that requires particular care, as highlighted in the provided instructions:

• Locate all cylinder head bolts. These may be visible or hidden under covers.
• Crucial Rule: When loosening the bolts, use the reverse order of the tightening sequence listed in the service manual. This ensures even pressure release, preventing warping of the cylinder head or block.
• Once all bolts are loose, carefully attempt to lift the cylinder head.
• ABSOLUTELY DO NOT use a hammer or pry bar to remove the cylinder head. Applying force in this manner can severely damage the delicate mating surfaces of both the cylinder head and the engine block, leading to irreparable warping or scoring that will cause leaks and loss of compression. If the cylinder head does not come off easily, it may be stuck due to carbon build-up or a stubborn gasket. A few gentle taps with a rubber mallet around the edges might free it, or applying penetrating oil around the gasket line and allowing it to soak can help. If it still resists, re-check the manual for any hidden fasteners or specific removal techniques.
• Once off, carefully remove the old head gasket. It will likely be brittle and stuck. Be meticulous in cleaning the gasket surfaces on both the cylinder head and the engine block, ensuring they are perfectly smooth and free of old gasket material or carbon.

4. Valve Train Disassembly

With the cylinder head removed, you'll gain access to the valve train components. Depending on the engine design, this may involve removing rocker arms, pushrods, and then the valves themselves (by compressing the valve springs). Keep all components organised; it's often best to keep valve springs, retainers, and keys with their respective valves.

5. Piston and Connecting Rod Removal

Next, you'll typically remove the sump or oil pan from the bottom of the engine. This exposes the connecting rod, which links the piston to the crankshaft. Remove the connecting rod cap bolts, carefully separate the cap, and then push the piston assembly up and out of the cylinder bore. Be mindful of the crankshaft journals and connecting rod bearings. Note the orientation of the piston (usually an arrow or mark indicating the front).

6. Crankshaft and Camshaft Removal

Depending on the engine's design and the extent of your overhaul, you may need to remove the crankshaft and camshaft. This involves removing any retaining plates, bearings, or timing gears. Pay close attention to timing marks if the camshaft is chain or gear-driven.

Inspection and Assessment of Components

Once all components are disassembled, the crucial inspection phase begins. This determines which parts need replacement and which can be reused.

1. Cleaning

Thoroughly clean every component. Use degreasers, brushes, and scrapers to remove oil, grease, carbon, and old gasket material. Pay particular attention to oil passages and cooling fins.

2. Visual Inspection

Carefully examine each part for:

• Cracks: Especially in the cylinder head, block, or crankshaft.
• Scoring or Grooves: On cylinder walls, piston skirts, crankshaft journals, or camshaft lobes.
• Wear: On bearings, valve faces, valve seats, piston rings, and cam lobes.
• Distortion or Warping: Check flat surfaces (like the cylinder head) with a straight edge and feeler gauges.
• Carbon Build-up: On piston crowns, combustion chambers, and valves.

3. Measurements and Tolerances

This is where your feeler gauges, micrometers, and calipers come into play. Consult your Workshop Manual for specific wear limits and clearances. Key measurements include:

• Cylinder Bore: Check for wear, taper, and out-of-roundness. Excessive wear may require re-boring or a new engine.
• Piston and Rings: Measure piston skirt diameter, ring land wear, and crucially, the piston ring end gap when inserted into the cylinder bore. Compare to manual specifications.
• Valves and Valve Seats: Inspect for pitting, burning, or excessive wear. Check valve stem diameter and guide clearance.
• Crankshaft and Connecting Rod: Measure main bearing and connecting rod bearing journals for wear and out-of-round. Check connecting rod straightness.
• Bearings: Inspect for scoring, discolouration, or excessive play.

Any component that falls outside the specified tolerances should be replaced or reconditioned by a professional machinist.

Reassembly: Bringing It All Back Together

Reassembly is essentially the reverse of disassembly, but with even greater emphasis on cleanliness, correct procedures, and precise torque specifications.

1. Absolute Cleanliness

Before reassembly, ensure all components are spotlessly clean. Even a tiny speck of dirt or grit can cause premature wear or catastrophic failure in a newly rebuilt engine. Work in a dust-free environment if possible.

2. Lubrication

As you reassemble, lubricate all moving parts with fresh engine oil. This includes crankshaft journals, camshaft lobes, piston skirts, connecting rod bearings, and valve stems. This pre-lubrication protects components during the initial start-up before oil pressure builds.

3. Follow the Manual's Sequence

Just as important as correct torque is the correct assembly sequence. Always refer to your Workshop Manual.

• Crankshaft and Camshaft: Install these first, ensuring all bearings are correctly seated and timing marks (if applicable) are aligned.
• Piston and Connecting Rod: Carefully install the piston rings onto the piston (using a piston ring expander if necessary), ensuring they are correctly oriented. Use a piston ring compressor to gently guide the piston assembly into the cylinder bore. Ensure the connecting rod cap is oriented correctly and the bolts are tightened to the specified Torque Wrench setting.
• Cylinder Head: This is a critical step. Always use a brand-new cylinder head gasket. Place it carefully on the engine block, ensuring it's correctly aligned. Place the cylinder head on top. Install the cylinder head bolts and tighten them in the specific sequence (usually a spiral pattern from the centre outwards) and to the exact Torque Wrench specification given in the manual. This ensures even clamping pressure and prevents warping. Overtightening can strip threads or break bolts; undertightening will lead to compression leaks.
• Valve Train: Reinstall valves, springs, retainers, and rocker arms. Crucially, set valve clearances (tappet gaps) to the precise specification using feeler gauges. Incorrect valve clearances can lead to poor performance, excessive wear, or even bent valves.
• External Components: Reattach the carburettor, exhaust, starter, shrouds, and any other external parts. Replace the spark plug.

4. New Gaskets and Seals

Always, always use new Gaskets and oil Seals during reassembly. Old gaskets compress and lose their sealing ability, and old seals become brittle and prone to leaking. It's a false economy to reuse them.

Initial Engine Operation Check

Once the engine is fully reassembled, it's time for the moment of truth:

• Add Fluids: Fill the crankcase with the correct type and amount of fresh engine oil. Fill the fuel tank with fresh, appropriate fuel.
• Check for Leaks: Before starting, visually inspect for any signs of fluid leaks.
• First Start: The engine may take a few more pulls or cranking attempts to start as the fuel system re-primes and oil circulates.
• Monitor: Once running, listen carefully for any unusual noises (knocking, ticking, grinding). Check for smoke from the exhaust (a little white smoke initially as assembly lube burns off is normal, but excessive blue or black smoke is not).
• Break-in Procedure: If you've replaced major components like piston rings, follow the manufacturer's recommended break-in procedure. This typically involves running the engine under light load for a specific period to allow the new components to seat properly.

Maintaining Your Work Area, Tools, and Equipment

The job isn't truly finished until your workspace and tools are clean and organised. This is part of being a professional and ensures you're ready for the next task.

• Clean all tools thoroughly and return them to their proper storage locations.
• Clean your workbench, wiping away any oil or grease spills.
• Properly dispose of all waste materials, including old fluids, rags, and worn-out parts, following local environmental regulations.

Common Pitfalls and How to Avoid Them

Even experienced mechanics can make mistakes. Here are some common pitfalls and how to avoid them:

• Losing Parts: Use labelled containers, magnetic trays, and take photos at each stage.
• Incorrect Torque: Always use a Torque Wrench and consult the manual.
• Damaging Gaskets/Seals: Be gentle during removal, and always use new replacements.
• Not Consulting the Manual: This is the biggest mistake. The manual is your bible.
• Ignoring Cleanliness: Dirt and grit are engine killers. Be meticulous.
• Mixing Up Fasteners: Keep bolts, nuts, and washers with the components they belong to.
• Forgetting Lubrication: Assembling dry components can cause immediate wear upon start-up.

Comparative Table: Common Engine Issues & Potential Causes

Frequently Asked Questions (FAQ)

Q: How long does it typically take to dismantle and reassemble a single-cylinder engine?

A: The time required can vary significantly based on your experience level, the complexity of the engine, and the extent of the work. For a beginner, a full dismantle, inspection, and reassembly might take anywhere from a full day to several days, spread out over weekends. An experienced mechanic might complete it in a few hours. Always allocate more time than you think you'll need.

Q: Do I need special tools, or can I get by with a basic toolkit?

A: While a basic toolkit will get you far, some specialised tools are highly recommended, if not essential, for proper work. A torque wrench is critical for correct fastener tightening. Feeler gauges are needed for clearances. A piston ring compressor is invaluable for safely installing pistons. Depending on the engine, a valve spring compressor might also be necessary. Investing in these tools will save you frustration and potential damage.

Q: Can a complete beginner attempt this without prior experience?

A: With patience, a meticulous approach, and the indispensable Workshop Manual for your specific engine, a complete beginner can certainly undertake this task. Start with a simpler, smaller engine if possible. The key is to follow instructions precisely, take your time, and not force anything. If you get stuck, online forums, YouTube tutorials, and local mechanics can offer advice.

Q: Where can I find a manual for my Briggs & Stratton engine?

A: Briggs & Stratton provides an excellent resource for finding service and owner's manuals. The best place to start is their official website. You'll typically need the model, type, and code numbers from your engine (usually stamped directly onto the engine itself) to locate the correct manual. Online forums dedicated to small engines or specific lawnmower brands can also be a good source of community wisdom and shared manuals, but always prioritise the official manufacturer's documentation for critical specifications.

Q: What if I get stuck during the process?

A: Don't panic! This is common. First, re-read your Workshop Manual carefully. Often, a missed step or detail is the cause. If the manual isn't helping, turn to online resources such as mechanical forums, YouTube tutorials, or dedicated small engine repair websites. If all else fails, consider taking the engine (or the problematic component) to a reputable small engine repair shop for professional advice or assistance. It's better to ask for help than to damage a component.

Conclusion

Dismantling and reassembling a single-cylinder four-stroke engine is a challenging yet incredibly rewarding task. It demystifies the inner workings of these ubiquitous machines and equips you with a valuable skill set for maintenance, troubleshooting, and repair. By adhering to the principles of careful planning, meticulous execution, stringent cleanliness, and unwavering reliance on your Workshop Manual, you can confidently tackle this mechanical endeavour. Not only will you save money on professional repairs, but you'll also gain a profound sense of accomplishment and a deeper understanding of the engines that power so much of our daily lives. So, gather your tools, consult your manual, and embark on your engine overhaul journey – the satisfaction of a purring, perfectly reassembled engine awaits!
