DIY Car Alignment: The String Method Guide

Understanding your vehicle's alignment is absolutely crucial for both the longevity of its suspension components and, more importantly, how it handles on the road. Alignment refers to a series of measurements that dictate how your wheels and tyres are positioned relative to the car and the road ahead. The three primary components of alignment are the camber angle, caster angle, and the toe. If any of these measurements fall outside the manufacturer's specifications, it can lead to excessive and uneven tyre wear, as well as a vehicle that handles poorly, potentially compromising safety. While professional alignment shops use sophisticated laser equipment, a surprisingly effective and precise method for the dedicated enthusiast involves nothing more than some string and a few basic tools. This guide will walk you through the intricacies of alignment and provide a detailed, step-by-step approach to performing a string alignment yourself, right from your driveway.

Car alignment is a delicate balance, ensuring your tyres make optimal contact with the road. Each angle plays a distinct role in how your car performs and how quickly your tyres wear out. Let's delve into each of these critical measurements.

Understanding the Core Alignment Angles

Before attempting any adjustments, it’s vital to grasp what each alignment angle signifies and its impact on your vehicle.

What is the Camber Angle, and What are its Effects?

In the simplest terms, the camber angle describes how much your tyre leans inwards or outwards when viewed from the front of the car. Imagine looking at your car head-on. If the tyre stands perfectly straight up, there's no camber. If the top of the tyre leans towards the centre of the car, it has negative camber. Conversely, if the top of the tyre leans away from the car, it exhibits positive camber.

You've undoubtedly seen vehicles, often those 'slammed' to the ground, with wheels angled dramatically inwards. While visually striking, this exaggerated inward lean is an extreme example of negative camber. Most modern passenger vehicles, from saloons to SUVs, are designed with a slight degree of negative camber, typically around one degree, on both front and rear wheels. Manufacturers incorporate this slight negative camber to ensure that during cornering, the outside tyre sits more evenly on its tread, rather than just on its outer edge. This allows for a larger contact patch, improving grip. Properly inflated tyres with correct negative camber will show slight wear on the insides first, but only marginally.

For vehicles prepared for tarmac motorsports, such as circuit racing or autocross, more significant negative camber is often dialled into the front wheels. Front tyres in these demanding applications endure immense forces, and increased negative camber helps maintain the largest possible tyre contact patch during tight, high-speed cornering. Rear negative camber in motorsport varies; circuit and autocross setups will have more than stock for cornering, but drift cars, for example, often aim for zero rear camber to maximise straight-line grip for initiating and sustaining drifts.

Positive camber, on the other hand, is almost universally undesirable for a passenger car. Tyres and modern suspension systems are not designed for it. Excessive positive camber will rapidly wear the outside edge of your tyres and can lead to instability, particularly during cornering. If you notice your vehicle exhibiting positive camber, it's crucial to have your alignment checked and corrected immediately.

How Do I Get More Camber?

Achieving more camber often depends on your vehicle's specific suspension design. Some factory setups offer limited adjustable alignment settings that allow for minor camber adjustments. However, for more significant changes, especially those required for motorsport applications, aftermarket parts are typically necessary. Adjustable camber plates (for MacPherson strut suspensions) and adjustable control arms (for wishbone or multi-link setups) are the most effective ways to add negative camber. Many of these components are designed with clear markings to aid in precise adjustment. A more budget-friendly option involves replacing factory camber bolts with aftermarket eccentric bolts, which offer a wider range of adjustment. It's always advisable to consult with an alignment specialist before investing in aftermarket parts, as too much negative camber can reduce the tyre's contact patch in a straight line, leading to instability and accelerated inner tyre wear.

What is the Caster Angle, and What are its Effects?

The caster angle refers to the angle at which the steering axis (an imaginary line running through the upper and lower pivot points of the suspension) is tilted forwards or backwards from vertical when viewed from the side of the vehicle. Imagine a vertical line passing through the centre of the wheel. If the top of the strut/shock assembly leans towards the back of the car, you have positive caster. If it leans towards the front, you have negative caster.

A positive caster angle is essential for a vehicle that feels stable and predictable to drive. Most passenger cars are designed with three to five degrees of positive caster to provide optimal benefits. The primary advantages of positive caster are significantly improved straight-line stability and enhanced cornering ability. You'll most commonly experience the effects of positive caster when the steering wheel naturally returns to the centre position after completing a turn. Without sufficient positive caster, the steering wheel would tend to remain in the position you turned it to, making the car difficult to drive in a straight line.

The self-centring effect of positive caster directly contributes to straight-line stability. The more positive caster present, the more quickly and decisively the steering wheel will snap back to the centre, as the caster inherently pulls the wheel to that position. This also results in a heavier, more responsive steering feel during turn-in and greater stability at higher speeds. Furthermore, caster influences negative camber during cornering. As the wheels turn, the caster angle causes the outside wheel to gain more negative camber, increasing the contact patch. This means that a well-designed positive caster setup allows you to achieve the necessary negative camber for optimal grip in corners without having excessive negative camber when driving in a straight line, which would otherwise lead to premature inner tyre wear.

How Do I Get More Caster?

Unlike camber, caster is rarely adjustable from the factory in most passenger cars. To increase positive caster, aftermarket parts are usually required. Adjustable camber plates (particularly for MacPherson strut suspensions) often incorporate additional positive caster by design, positioning the shock mounting point further back on the plate. Another common method involves replacing the original rubber control arm bushings with aftermarket alternatives, often made from polyurethane. These aftermarket bushings can be designed to alter the control arm's pivot point, thereby increasing positive caster. The use of stiffer materials like polyurethane also reduces bushing deflection under load, helping to maintain the set alignment specifications more consistently.

What is the Toe Angle, and What are its Effects?

The toe angle describes the direction your tyres are pointed relative to the vehicle's centreline when viewed from directly above. Imagine a line running straight down the centre of your car. If the front edges of the tyres are pointing inwards towards that centreline, you have toe-in. If they are pointing outwards, you have toe-out. While the range of adjustment for toe is significantly smaller compared to camber or caster, its effects on tyre wear and handling are often more pronounced.

Factory toe settings for modern vehicles are typically very subtle, often around a tenth of a degree, either in or out, for the front wheels. Rear wheels commonly have zero toe. Toe is precisely measured in degrees and minutes, or sometimes in millimetres or inches. The toe angle plays a crucial role in a vehicle's turn-in response and straight-line stability, depending on whether it's toe-in or toe-out. Generally speaking, toe-in helps to reduce oversteer and improve straight-line stability. Conversely, toe-out provides a sharper turn-in response and can reduce understeer.

However, too much of either toe-in or toe-out is detrimental. Excessive toe angles will cause your tyres to 'scrub' along the ground as they roll. This scrubbing action is akin to dragging a tyre sideways while it's also rolling forward, leading to extremely rapid and uneven tyre wear. With severely misaligned toe settings, you might even feel and hear the tyres 'hopping' or 'skipping' as the car moves. The ideal toe setting often depends on your vehicle's drivetrain. Rear-wheel-drive vehicles typically have a slight amount of toe-in on the front wheels because, under power, the front wheels tend to toe outwards. Front-wheel-drive vehicles, conversely, are often set up with a slight toe-out on the front wheels, as their drive wheels tend to pull themselves inwards under power. Beyond these basic principles, toe alignment can be fine-tuned to achieve specific handling characteristics, such as a more aggressive turn-in.

How Do I Get More Toe?

Thankfully, adjusting the toe angle usually doesn't require aftermarket parts. The toe angle is directly adjusted via your steering rack and the tie rod ends. During a professional alignment, the tie rods are rotated to set the toe to the factory specifications. By rotating the tie rod more or less, you can precisely adjust the toe angle. While the tie rods themselves allow for adjustment, stiffer suspension bushings can help maintain the set toe angle more consistently under dynamic driving conditions. Standard rubber bushings can flex under load, causing slight deviations from the aligned settings. Upgrading to stiffer polyurethane bushings can reduce this deflection, helping to keep the toe precisely where it was set during alignment.

Can I Perform a Car Alignment Myself? The String Method

Yes, you absolutely can perform a car alignment yourself, at least for the crucial toe and camber settings. While professional alignment shops utilise sophisticated laser and sensor-based Hunter alignment machines for pinpoint accuracy, you don't necessarily need such high-tech equipment for a surprisingly effective DIY alignment. For the dedicated enthusiast, particularly those involved in grassroots motorsport, a tape measure and some string can yield excellent results. String alignments are a fantastic way to learn a new skill and ensure your vehicle has proper alignment settings. This method is especially popular among those who use their cars for track days or autocross, as it can be performed in your driveway or even in the paddock at your local race track.

It's important to note that while the string method is excellent for setting camber and toe, adjusting caster is often more complex and typically falls outside the scope of this DIY approach, as it usually requires specific aftermarket components or specialised tools to measure and adjust accurately. This DIY guide will focus predominantly on setting your toe and camber.

Tools & Supplies Required to Perform a String Alignment on Your Vehicle:

• Four jack stands (or sturdy, level blocks)
• Two lengths of PVC pipe (or equivalent straight, rigid material) – length determined by car width + 14 inches
• Strong, non-stretching string or fishing line (plenty of it)
• Four weights (to keep string taut)
• Tape measure
• Ruler
• Angle finder (digital is best)
• Spirit level or straight edge (long enough to span tyre face)
• Ratchet straps
• Wrenches for tie rod ends and camber bolts (specific to your vehicle)
• Chalk or marker

Steps to Perform a String Alignment on Your Vehicle:

Step 1: Build the Alignment Box

To accurately align your car using string and rulers, you first need to create a precisely measured 'box' around the vehicle. Begin by measuring the width of your car from tyre sidewall to tyre sidewall. Add approximately seven inches (or roughly 18 cm) to each side of this measurement. This total will determine the necessary length for your two PVC pipe pieces. Once you have the pipes, you'll need to cut precise grooves into them to hold the string. These grooves must be cut simultaneously on each end of both pipes to ensure they are perfectly aligned and the string runs straight and parallel to the car's sides.

To determine where to cut the grooves, take your original tyre track width measurement and add approximately three inches (or 7.5 cm) to either side of the car. Subtract this new total from the overall length of your PVC pipes. Divide the remaining number by two. This final measurement is the distance from each end of the pipe where your grooves should be cut. Cut these grooves deep enough for your string or fishing line to sit securely. Remember the old adage: measure thrice, cut once, for precision is key here.

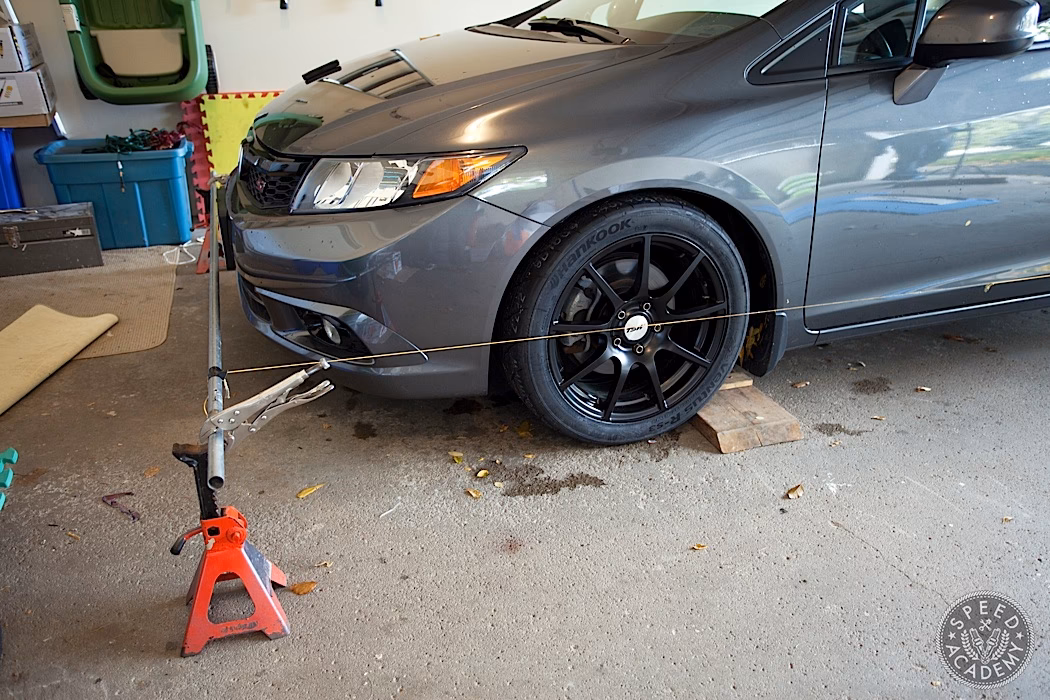

Next, position your four jack stands at each corner of the vehicle. Place one PVC pipe across the two front jack stands and the other across the two rear jack stands. Carefully lift all four jack stands equally until the pipes are approximately level with the centre of your wheel hubs. This height ensures the string will run parallel to the ground and provide accurate readings.

Step 2: Lock Down the Steering Wheel

When performing a front suspension alignment, it is absolutely critical that the steering wheel remains completely stationary. Any movement will compromise the accuracy of your toe measurements and adjustments. To achieve this, loop two ratchet straps around the steering wheel and secure them to the seat base or seat rails inside the car. Tension the straps evenly and firmly to prevent the steering wheel from being able to turn in either direction. This ensures that your front wheels remain in a perfectly straight-ahead position throughout the process.

Step 3: Aligning the String Setup

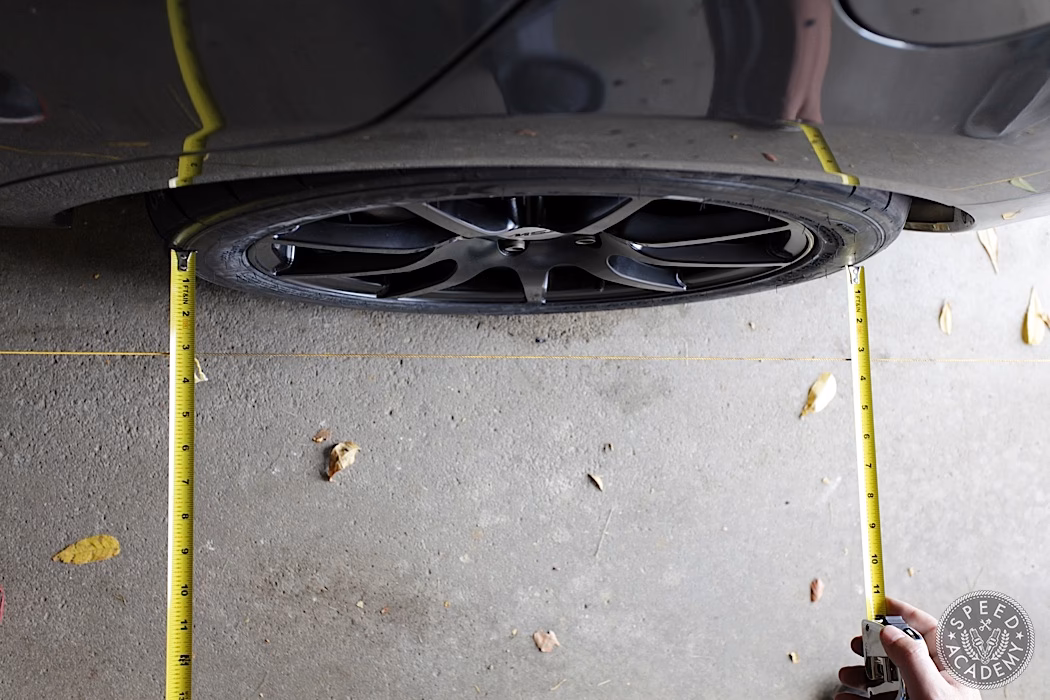

Now, it's time to set up your string lines. Tie a weight to each end of your string or fishing line. Ensure you have enough line so that the weights can hang freely, keeping the string taut along the entire length of the car. Run one length of string along each side of the vehicle, passing through the grooves you cut in the PVC pipes.

Once the lines are running parallel to the vehicle, they must be spaced evenly from the wheels. Use a ruler or tape measure to carefully measure the distance from the wheel centre (or the edge of the rim) to the string. Adjust the position of the PVC pipes along the jack stands until the string is precisely the same distance away from each wheel on all four corners. It's important to note that the distance from the string to the wheel should only be the same between the front wheels and between the rear wheels. The front and rear suspension typically have different track widths, so the absolute distance from the string will not necessarily match from front to rear.

Step 4: Setting the Toe

This is where you'll begin making critical measurements and adjustments. It's highly recommended to create a simple diagram to record your findings for each wheel. You'll need to measure the distance from the string to the front edge of the wheel, the centre of the wheel, and the rear edge of the wheel. For example, if the front edge of your wheel measures 92mm to the string and the rear edge measures 95mm to the string, this indicates 3mm of toe-out. Record these measurements for each wheel and then calculate the total toe for both the front and rear axles.

Compare your measurements against your vehicle's factory alignment specifications. These can usually be found in your car's service manual or online. The alignment sheet will typically provide the total amount of toe-in or toe-out required for the front and rear wheels. Divide this total by two to determine the target toe for each individual wheel.

To adjust the toe, you'll need to jack up the front of the vehicle (or the rear, if adjusting rear toe) to allow the wheels to spin freely. Locate the tie rod end connected to the steering knuckle. Loosen the locking fastener on the tie rod end – this might be a jam nut or a pinch bolt. Before making any adjustments, use chalk or a marker to create a small mark on the tie rod, perhaps an inch or two from the tie rod end. Measure the distance between the tie rod end and this mark. This measurement will help you track how much the wheel moves in or out with each rotation of the tie rod.

Using the correct wrench size for your tie rod, carefully rotate it to push or pull the wheel inwards or outwards. Make small adjustments, then re-tighten the locking fastener. Lower the car back onto the ground and roll it back and forth a few times to allow the suspension to settle. Then, reposition your strings and re-check the toe alignment measurements. Repeat the jacking, adjusting, and re-checking process until the toe is within your desired specifications. Once the toe is correctly set, you can move on to camber adjustment.

Step 5: Adjust the Camber

Before measuring camber, it's paramount to ensure that the ground you are working on is perfectly flat. Use a spirit level or an accurate angle finder to confirm a level surface, as uneven ground will lead to inaccurate readings. To measure the camber on your wheels, place a long spirit level or a straight edge vertically across the face of the tyre or wheel. Then, place your angle finder against this straight edge to read the camber angle. Record your measurements for each wheel and compare them to your vehicle's factory specifications to determine how much adjustment is needed.

The method for adjusting camber varies significantly depending on your vehicle's suspension type. If your car features MacPherson struts, you will typically find an eccentric bolt that secures the strut to the steering knuckle. To adjust camber, loosen the nut on this eccentric bolt. Rotating the bolt will move the top of the knuckle (and thus the top of the wheel) inwards or outwards. Make small adjustments, then tighten the nut to lock the camber in place. For vehicles equipped with wishbone or multi-link suspension, camber adjustment is often achieved by moving either the upper or lower control arm, which in turn moves the top or bottom of the wheel inwards or outwards. Once your adjustments have been made, carefully lower the car back to the ground and roll it back and forth to settle the suspension before re-measuring your work.

With both the camber and toe set to your specifications or the factory settings, your DIY string alignment is complete. Remember that while this method is highly effective for toe and camber, it doesn't typically address caster. For a full, professional-grade alignment that includes caster, a visit to a specialist shop with laser alignment equipment is recommended.

Alignment Angle Comparison Table

Frequently Asked Questions About DIY Alignment

Q: How accurate is a string alignment compared to a professional laser alignment?
A: While a string alignment can't match the pinpoint precision of a professional laser alignment machine, it can be remarkably accurate for setting toe and camber if done carefully and meticulously. Many grassroots motorsport teams use this method successfully. It's often accurate enough for daily driving and track use, especially for toe, which is critical for tyre wear.

Q: Can a string alignment fix all alignment issues?
A: No. The string method is excellent for setting toe and camber. However, it does not easily allow for the measurement or adjustment of caster. Caster adjustment typically requires specialised tools or aftermarket parts. If you suspect caster issues, a professional alignment is recommended.

Q: How often should I check my alignment?
A: It's a good practice to check your alignment annually or every 10,000-12,000 miles, whichever comes first. You should also check it after hitting a large pothole, curb, or after replacing any steering or suspension components.

Q: Will this DIY method save me money?
A: Absolutely. A professional alignment can cost anywhere from £50 to £150 or more in the UK. Performing a string alignment yourself, especially if you already own most of the tools, can save you a significant amount of money over time, particularly if you're frequently making suspension changes for track use.

Q: What are the signs of bad alignment?
A: Common signs include uneven or accelerated tyre wear (e.g., one side of the tyre wearing faster), the vehicle pulling to one side, the steering wheel being off-centre when driving straight, or a general feeling of instability or vagueness in the steering.

Q: Is it safe to drive with a DIY alignment?
A: If performed correctly and meticulously, a DIY string alignment can provide safe and effective alignment settings for toe and camber. However, if you are unsure about your measurements or adjustments, or if the car still handles poorly, it is always best to seek professional assistance. Your safety and tyre longevity depend on it.
