Troubleshooting Your Car's Stop-Start System

The stop-start system in modern vehicles is a clever piece of engineering designed to enhance fuel efficiency and reduce emissions. By automatically shutting down the engine when you're stationary – such as at traffic lights or in a traffic jam – and then instantly restarting it when you're ready to move, it offers a tangible benefit to both your wallet and the environment. However, as many Vauxhall Insignia owners and drivers of other marques have discovered, this sophisticated system isn't always as reliable as one might hope. If you've found yourself wondering, "Why isn't my stop-start system working?", you're certainly not alone. This article aims to demystify the technology, explore the common culprits behind its occasional (or persistent) failure, and offer guidance on how to get it functioning optimally again.

Understanding How Stop-Start Technology Works

At its core, the stop-start system is a complex interplay of sensors, control modules, and a more robust battery and starter motor than typically found in older vehicles. For the system to engage and shut off the engine, a precise set of conditions must be met. These conditions can be broadly categorised into those that the driver directly controls and those managed by the vehicle's systems.

Conditions Under Driver Control:

• Economy Mode ON: Often indicated by an 'ECO' light on the dashboard, this setting must be activated.
• Bonnet/Hood Status: The system will not engage if the bonnet is detected as open.
• Driver Door Status: Similarly, the driver's door must be closed.
• Seatbelt Fastened: The driver's seatbelt needs to be securely buckled.
• Clutch Pedal Released: When stationary, the clutch pedal must be fully released.
• Transmission in Neutral: The gearbox must be in neutral.
• HVAC System Status: High demands from the air conditioning or defrost systems can prevent the engine from shutting off.
• Previous Vehicle Speed: The vehicle must have been driven above a certain speed (often around 2 mph) before coming to a halt.

Conditions Beyond Direct Driver Control:

• Engine Coolant Temperature: The engine needs to reach an optimal operating temperature. It won't shut off if it's too cold or overheating (typically above 120°C).
• Battery Voltage and State of Charge: This is a critical factor. The battery voltage must be sufficient (generally above 12V), and its state of charge needs to be above a certain threshold (often 75%).
• Brake Booster Vacuum: Adequate vacuum in the brake booster is required for safe operation.
• Diesel Particulate Filter (DPF) Regeneration: If the DPF is undergoing its cleaning cycle, the stop-start system will typically be disabled.

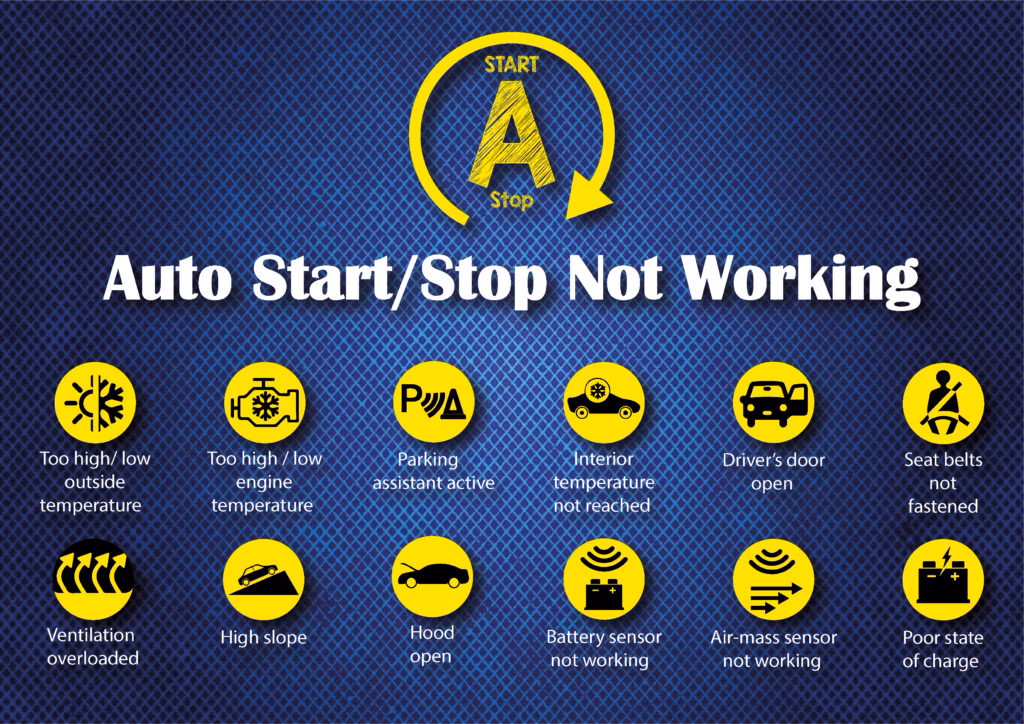

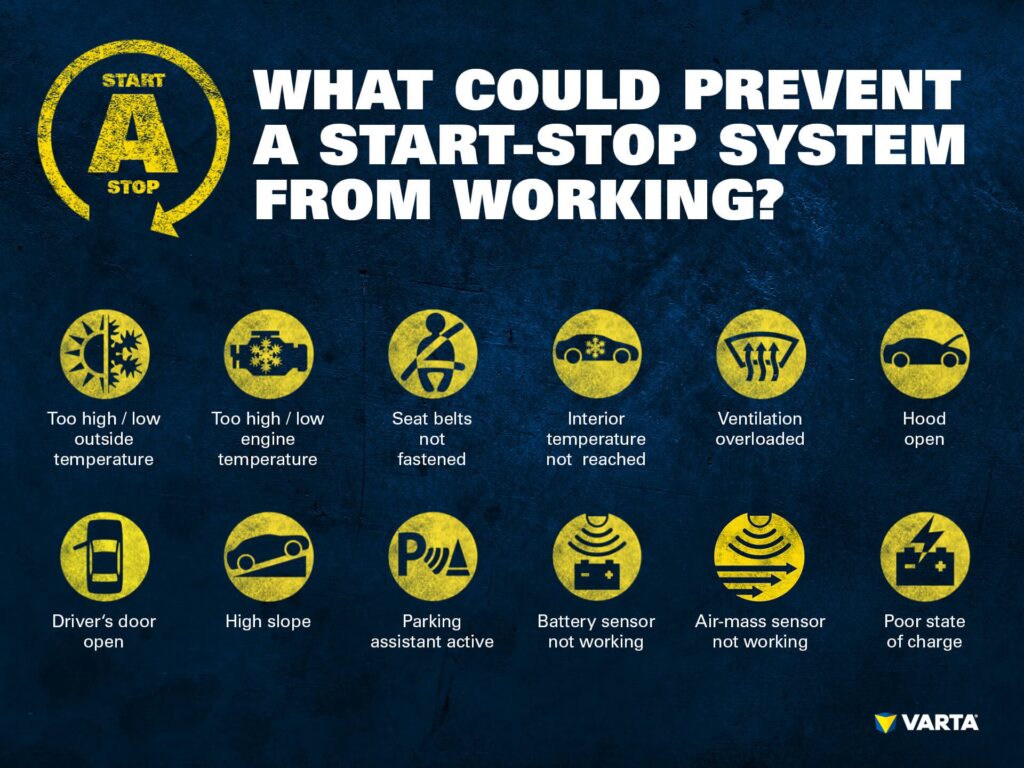

Common Reasons for Stop-Start System Failure

When your stop-start system mysteriously stops working, it can be frustrating. Several factors can contribute to this, often without indicating a major fault with the vehicle itself. Understanding these common issues can help you diagnose the problem before a visit to the mechanic.

1. Battery Health and Charging

The battery is arguably the most crucial component for a functioning stop-start system. These systems place significant demand on the battery due to the frequent engine restarts. Consequently, the battery must be in excellent condition and fully charged.

• Ageing Battery: Batteries have a finite lifespan. An older battery may not be able to hold a sufficient charge, even if it appears to start the engine reliably.
• Insufficient Charge: Short trips, frequent idling, or a faulty alternator can lead to a battery that isn't consistently charged to the required level (often above 70-75%).
• Incorrect Battery Type: Vehicles equipped with stop-start technology typically require specific battery types, such as EFB (Enhanced Flooded Battery) or AGM (Absorbent Glass Mat) batteries. These are designed to handle the increased demands. Using a standard battery can lead to premature failure and system malfunction.

2. Ambient and Engine Temperature

The vehicle's computer monitors temperatures to ensure the engine is operating efficiently and that passenger comfort isn't compromised.

• Cold Weather: In cold conditions, the system may remain inactive to allow the engine to reach its optimal operating temperature more quickly, ensuring efficient running and cabin heating.
• Warm Weather/HVAC Use: If the air conditioning or heating system is working hard to maintain a comfortable cabin temperature, especially in extreme weather, the engine may be kept running to power these systems.

3. Sensor Malfunctions

A network of sensors provides the critical data that the stop-start system relies upon. If any of these sensors are faulty or providing inaccurate readings, the system will likely be deactivated.

• Clutch Pedal Sensor: This sensor tells the system when the clutch is released.
• Brake Pedal Sensor: Ensures the brake is firmly applied.
• Vehicle Speed Sensor: Monitors the car's speed.
• Engine Temperature Sensor: Crucial for determining if the engine is at its optimal operating temperature.
• Bonnet/Hood and Door Sensors: These ensure all openings are securely closed.

A faulty sensor can cause the system to believe a safety or operational criterion is not being met, even if it is.

4. Software Glitches and Control Module Issues

Modern cars are controlled by sophisticated software. Issues with this software, or the electronic control module (ECM) that manages the stop-start function, can lead to unexpected behaviour.

• Outdated Software: Manufacturers periodically release software updates to improve system performance and fix bugs. If your vehicle's software is not up-to-date, it might cause the stop-start system to malfunction.
• Control Module Fault: While less common, the control module itself could develop a fault, preventing it from processing sensor data correctly.

5. Driving Conditions and Habits

Your driving style and the conditions you frequently encounter can also impact the stop-start system's operation.

• Frequent Short Trips: Similar to the battery issue, numerous short trips without sufficient driving time to fully recharge the battery can lead to low charge levels, disabling the system.
• Steep Inclines: For safety reasons, the system is often disabled on steep gradients to prevent potential rollback if the engine doesn't restart quickly enough. This is often linked to Hill Start Assist (HSA) systems.
• Aggressive Steering/Parking: When parking or manoeuvring at low speeds with significant steering input, the system may disengage to provide the driver with full control.

Diagnosing a Malfunctioning Stop-Start System

Troubleshooting a stop-start system can be intricate, as multiple components could be at fault. A professional diagnosis is often the most effective route.

What a Mechanic Will Check:

• OBD-II Scan: Connecting an OBD-II scanner can reveal any stored diagnostic trouble codes (DTCs), such as 'P0562' for low battery voltage, which can point towards the root cause.
• Battery Testing: A comprehensive battery test will assess its voltage, cold-cranking amps (CCA), and internal resistance. A healthy battery for stop-start systems should typically show a voltage above 12.4V and low resistance.
• Alternator Output Test: The alternator's ability to charge the battery is tested. With the engine running, voltage should typically be between 13.8V and 14.8V.
• Wiring and Connections: A visual inspection will check for loose or corroded battery terminals and any damage to sensor wiring.
• Sensor Functionality: Using diagnostic tools, a mechanic can check the live data from various sensors to ensure they are operating within specification.
• Fluid Levels: Checking engine oil, coolant, and transmission fluid levels is also part of a general diagnostic process.

Potential Repairs and Maintenance

Once the cause is identified, several repairs might be necessary to restore the stop-start functionality:

• Battery Replacement: If the battery is old or faulty, replacing it with a compatible EFB or AGM battery is essential.
• Battery Terminal Cleaning/Repair: Corroded or loose terminals can impede electrical flow and need cleaning or tightening.
• Sensor Replacement: If a sensor is found to be faulty, it will need to be replaced.
• Software Updates: Ensuring the vehicle's control modules have the latest software can resolve many intermittent issues.
• Alternator Repair/Replacement: If the alternator isn't charging the battery correctly, it will need attention.
• Coolant System Repair: Addressing any leaks or ensuring the correct coolant level is maintained is important for engine temperature regulation.

Pros and Cons of Stop-Start Systems

While the benefits are clear, it's worth considering the potential downsides:

Advantages:

• Reduced Fuel Consumption: Can lead to significant savings, especially in urban driving.
• Lower Emissions: Contributes to a reduction in CO2 and other harmful pollutants.
• Quieter Operation: Offers a more peaceful experience when stationary.

Disadvantages:

• Component Wear: Increased use of the starter motor and battery can potentially lead to faster wear on these components.
• Condensation in Exhaust: Frequent short stops can sometimes lead to condensation build-up in the exhaust system.
• Cost of Specialized Batteries: EFB and AGM batteries are more expensive than standard lead-acid batteries.
• Intermittent Operation: As discussed, the system's sensitivity to various factors can lead to it not always engaging when expected.

Should You Manually Disable the Stop-Start System?

While it can be tempting to disable the system if it's proving unreliable or intrusive, it's generally not recommended. Doing so negates the fuel-saving and emission-reducing benefits. However, there might be specific circumstances where temporary deactivation is prudent, such as during prolonged idling in very hot or cold weather, or if you suspect it's contributing to other issues.

Most vehicles allow temporary deactivation via a button on the dashboard. For a more permanent solution, aftermarket 'stop-start eliminators' are available, but caution is advised as these can potentially void your vehicle's warranty. Always consult your owner's manual for the correct procedure for your specific vehicle.

Frequently Asked Questions:

Q1: Why does my stop-start system only work sometimes?

A1: The system is designed to operate only when a specific set of conditions are met. These include battery charge, engine temperature, HVAC usage, and driver inputs. If any of these criteria aren't met, the system will remain inactive.

Q2: Can a new battery fix a faulty stop-start system?

A2: Very often, yes. A weak or improperly charged battery is the most common reason for the stop-start system to fail. Ensuring you have the correct type of battery (AGM or EFB) and that it's fully charged is crucial.

Q3: My stop-start system stopped working after 18 months. What could be wrong?

A3: This is a common timeframe for batteries in stop-start vehicles to begin showing signs of age or reduced capacity, especially if the vehicle is used for many short trips. It's also possible that a sensor or software issue developed during this period.

Q4: Is it normal for the stop-start system not to work in cold weather?

A4: Yes, it is normal. The system often remains inactive in cold weather to help the engine warm up faster and ensure the cabin heating or air conditioning can function effectively without draining the battery.

Q5: Do I need a special battery for my stop-start car?

A5: Yes. Vehicles with stop-start systems require EFB or AGM batteries, which are designed to withstand the higher number of charge and discharge cycles. Using a standard battery can lead to premature failure and system malfunction.

In conclusion, while the stop-start system is a valuable feature for improving efficiency and reducing environmental impact, its operation is contingent on a delicate balance of factors. Understanding these factors can empower you to identify why your system might be underperforming and what steps to take to ensure it functions as intended, providing a smoother, more economical drive.
