Understanding Your Car's Steering System

When you take the wheel and effortlessly guide your vehicle through traffic or around a bend, it’s easy to take the intricate mechanics beneath for granted. The steering system is one of the most vital components of any automobile, directly influencing safety, control, and driving comfort. It's the sophisticated link that translates your subtle inputs into the precise movements of your wheels, allowing you to navigate with confidence. But what exactly is a steering system, how does it work, and what are its crucial elements? Let's embark on a journey to demystify this essential automotive marvel.

What is a Car Steering System?

At its core, a car steering system is a complex network of components designed to allow the driver to control the direction of the vehicle by turning the wheels, typically the front ones. It converts the rotary motion of the steering wheel into the angular movement of the road wheels, enabling precise directional changes. Without a properly functioning steering system, maintaining control of a vehicle would be virtually impossible, highlighting its paramount importance for both safety and the overall driving experience.

The Fundamental Purpose of Steering

The primary purpose of a steering system extends beyond simply turning the wheels. It’s engineered to provide:

• Directional Control: Allowing the driver to guide the vehicle in the desired direction.
• Stability: Ensuring the vehicle remains stable on the road, even at varying speeds and road conditions.
• Reduced Driver Effort: Enabling a driver to steer a heavy vehicle with relatively light forces, thanks to mechanical advantage.
• Tyre Longevity: Minimising uneven tyre wear and tear through proper wheel alignment.
• Shock Absorption: Preventing road shocks and vibrations from reaching the driver’s hands.
• Self-Righting Effect: Assisting the wheels in returning to a straight-ahead position after a turn.

Key Elements and Components of a Steering Assembly

While the overall system is intricate, several key elements form the backbone of any steering assembly. Understanding these components is crucial to grasping how the system functions as a cohesive unit.

The Steering Wheel and Column

The journey of steering begins with the steering wheel itself, the driver’s primary interface. This circular control is directly connected to the steering column, which is essentially a shaft that transmits the rotational input from the wheel downwards. The steering column often incorporates safety features like collapsible sections designed to absorb impact in a collision, protecting the driver.

The Steering Gearbox and Linkage

At the end of the steering column, you'll find the steering gearbox (or steering gear). This critical component converts the rotational motion of the steering column into linear motion, or an oscillating motion, which then drives the rest of the steering linkage. Different types of steering gears exist, each with its own mechanical advantages, which we will explore in detail later.

Connected to the steering gearbox is the steering linkage, a series of rods and arms that transmit the motion to the wheels. Key components within this linkage include:

• Tie Rods: These are the connecting rods that link the steering gearbox (or steering rack) directly to the wheels' steering knuckles. They transmit the movement, allowing the wheels to turn.
• Steering Rack: In many modern systems, the steering rack is the component that receives the motion from the pinion gear (driven by the steering column) and translates it into the linear movement that the tie rods then convey to the wheels.
• Power Steering Pump: For systems equipped with power steering, this pump generates hydraulic pressure, which assists the driver by reducing the effort needed to turn the wheel, especially at low speeds.
• Steering Knuckles: These are the pivot points to which the wheels are attached, allowing them to turn in response to the steering inputs.

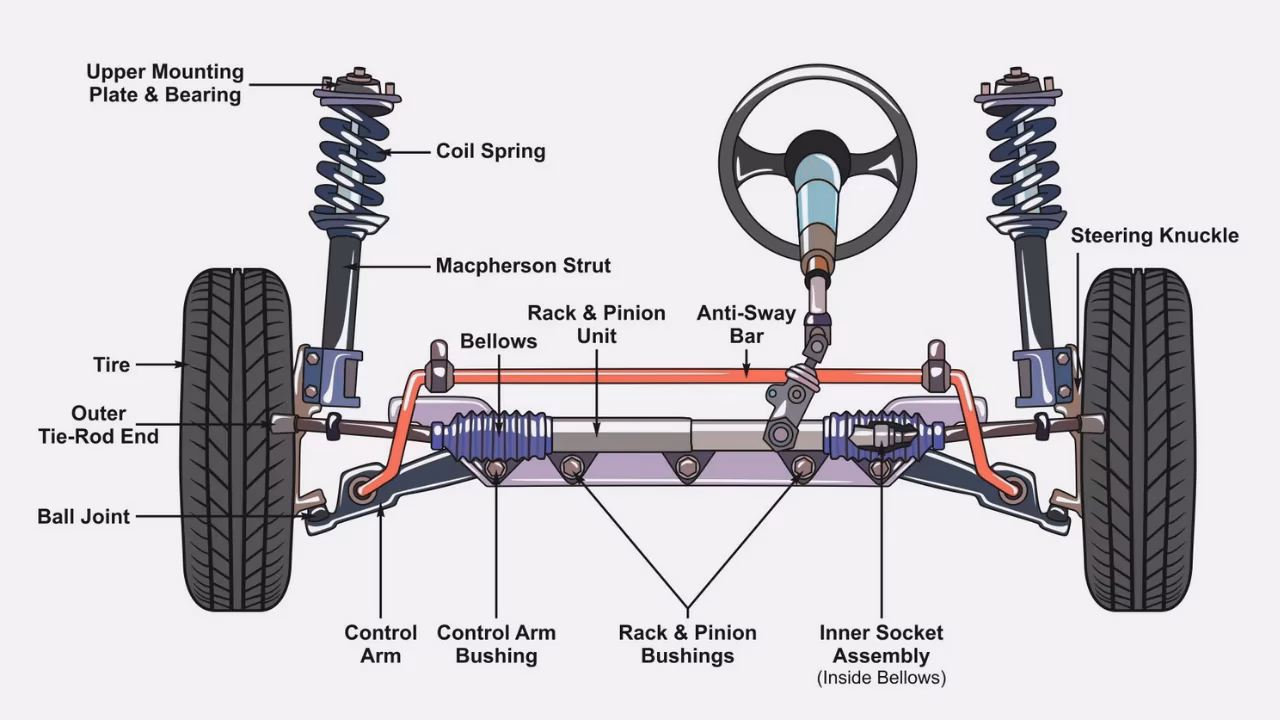

How the Car Steering System Works

The operational principle of a steering system, though seemingly simple from the driver’s seat, involves a precise sequence of mechanical actions. Let's break down the process:

As you turn the steering wheel, the steering shaft rotates. This shaft is connected to a pinion gear (in rack and pinion systems) or a worm gear (in recirculating ball systems) within the steering gearbox. This gear then engages with a steering rack or a sector gear.

For instance, in a common rack and pinion system, the rotating pinion gear meshes with the teeth of the linear steering rack. As the pinion rotates, it pushes the rack horizontally from side to side. This linear movement of the rack is then transmitted through the tie rods to the steering knuckles, which are attached to the front wheels. The steering knuckles act as pivot points, causing the front tyres to turn in the desired direction. If you turn the steering wheel to the left, the rack might be pushed to the right, pivoting the front tyres to the left. The greater the turn of the steering wheel, the more the rack is pushed, resulting in a sharper turn.

In systems with a steering gearbox, the rotary motion of the steering wheel rotates the steering column, which in turn causes a cross shaft in the gearbox to oscillate. This cross shaft is connected to a drop arm, which is then linked via a drag link to the steering arms on both wheels. The steering arms are also connected by tie rods. When the steering wheel is operated, these linkages work in concert to move the steering knuckles and turn the wheels.

Wheel Alignment: The Cornerstone of Steering Performance

Proper wheel alignment is absolutely critical for effective steering, tyre longevity, and vehicle stability. It refers to the correct adjustment of the pivot axes controlling the movement of the wheels. When wheels are correctly aligned, it promotes ease of steering, minimises tyre wear, and provides directional stability. Misaligned wheels can lead to erratic steering, excessive tyre wear, and increased driver fatigue.

Key factors contributing to proper wheel alignment include:

Camber

Camber is the angle between the centerline of the tyre and the vertical line when viewed from the front of the vehicle. If the wheels tilt outwards at the top, it's called positive camber. If they tilt inwards, it's negative camber. An equal camber angle on both front wheels ensures uniform tyre contact with the road and even wear. Excessive camber, either positive or negative, leads to uneven tyre wear (outer or inner edge respectively) and can cause vibrations.

Caster

Caster refers to the forward or backward tilt of the kingpin axis (or steering axis) from the vertical line when viewed from the side of the wheel. A backward tilt is known as positive caster, and a forward tilt as negative caster. Caster is crucial for maintaining directional stability, enhancing steering stability, and reducing the driver's effort. Unequal caster on either side can cause the vehicle to pull to one side.

Kingpin Inclination (KPI)

Kingpin Inclination, also known as Steering Axis Inclination (SAI), is the angle between the vehicle's vertical line and the centre of the kingpin or steering axis, viewed from the front. This angle aids in the self-centring of the wheels after a turn, provides directional stability, and reduces steering effort. Like camber, KPI must be equal on both sides to prevent the vehicle from pulling.

Toe-in and Toe-out

Toe-in occurs when the front wheels are slightly tilted inward, meaning the distance between the front of the wheels is less than the distance at their rear. This is typically a small measurement (e.g., 2-3 mm) and helps to counteract the effects of camber. Conversely, Toe-out is a dynamic condition particularly relevant during turns. With Ackerman steering geometry, the inner wheel turns more degrees than the outer wheel during a turn, ensuring all four wheels roll freely about a common instantaneous centre without scuffing.

Types of Steering Systems in Automobiles

While the basic function remains the same, steering systems have evolved, leading to different classifications:

Based on Geometry:

Most modern automobiles utilise the Ackerman steering principle.

• Bicycle Steering: Here, the rear wheel is fixed while the front wheel steers. Both wheels must roll about a common instantaneous centre for safe turning.
• Turntable or Centre Pivot Steering: Common in older, low-speed vehicles like horse-drawn coaches. The entire front axle turns about a single central pivot. Unsuitable for high-speed automobiles due to instability and space requirements.
• Ackerman Steering or Side Pivot Steering: The modern standard. Each front wheel turns individually about a side pivot (stub axle). The steering arms are inclined, and their projected lines meet at the centre of the rear axle line, forming the "Ackerman Angle," ensuring smooth, scuff-free turning.

Based on Leverage:

This classification considers the gear ratio between the road wheel and the steering wheel, and how vibrations are transmitted.

• Reversible Steering: Characterised by a 1:1 gear ratio, meaning any movement of the handle causes the same angular movement of the wheel. Vibrations are directly transmitted back to the steering handle (e.g., bicycles, scooters).
• Irreversible Steering: Features a very high gear reduction between the road wheels and the steering wheel (e.g., 40:1 in road rollers). This high reduction prevents vibrations from the road wheels from being transmitted back to the steering wheel, requiring less driver effort for heavy vehicles.

Steering Gears: The Heart of the Conversion

Steering gears are crucial devices that convert the rotary motion of the steering wheel into the straight-line motion of the linkage with a significant mechanical advantage. They are enclosed in a steering gearbox. Without them, turning the wheels, especially on a heavy vehicle, would require immense effort.

Several types of steering gears have been developed:

1. Rack and Pinion Steering Gear

This is arguably the most common type in modern passenger cars. A pinion gear, mounted on the end of the steering shaft, engages directly with a linear rack. As the steering wheel turns the pinion, it moves the rack sideways. This movement is then directly transmitted to the wheels via tie rods. Its simplicity, direct feel, and compact design make it very popular.

2. Recirculating Ball Steering Gear

Often found in older cars, trucks, and SUVs, this gear uses a worm gear and a ball nut mechanism. Steel balls circulate within spiral grooves between the worm and the nut, providing a low-friction drive. As the worm rotates, the ball nut moves linearly, which then rotates a sector gear attached to the pitman arm. This design is robust and offers good mechanical advantage, making it suitable for heavier vehicles.

3. Worm and Sector Steering Gear

In this design, a worm on the steering shaft meshes with a sector mounted on a sector shaft. When the worm rotates, it turns the sector, which in turn rotates the sector shaft (also known as the pitman arm shaft). This motion is then transmitted to the wheels through the linkage.

4. Worm and Roller Steering Gear

Similar to the worm and sector, but here a two-toothed roller is fastened to the sector or roller shaft, meshing with the worm gear. As the worm turns, it causes the roller to move in an arc, rotating the roller shaft. The roller is often mounted on ball bearings for smooth operation.

5. Worm and Ball Bearing Nut Steering Gear

This is closely related to the recirculating ball type. A ball nut is mounted on the steering shaft's worm, with steel balls circulating in mating spiral grooves. This creates a frictionless drive. As the shaft turns, the ball nut moves up or down, transferring motion to a sector gear.

6. Cam and Roller Steering Gear

In this system, a specially shaped cam meshes with a roller. As the cam rotates, the roller is compelled to follow its contour, causing a rocker shaft to rotate and move the drop arm. The cam's design ensures a constant depth of mesh, distributing load and wear evenly.

7. Cam and Peg Steering Gear

Here, a tapered peg attached to the rocker arm engages in a groove within the cam. When the cam rotates, the peg moves along the groove, causing the rocker shaft to rotate and thus operate the steering linkage.

8. Cam and Double Lever Steering Gear

This system uses a unique cylindrical cam with a variable pitch groove, narrower at the centre. Twin levers are mounted on a cross shaft, with stubs engaging the cam from the side. As the cam turns, the stubs move along the groove, causing the levers to swing and rotate the cross shaft. The variable pitch can provide non-reversibility in the centre, where most steering occurs.

Each type of steering gear offers different characteristics in terms of mechanical advantage, feel, and suitability for various vehicle types and applications.

Frequently Asked Questions about Steering Systems

Q1: Why is power steering so important in modern cars?

Power steering significantly reduces the effort required to turn the steering wheel, especially at low speeds or when parking. This makes driving less fatiguing and improves manoeuvrability, enhancing overall driving comfort and safety. Without it, steering a heavy vehicle would be a strenuous task.

Q2: What are the signs of a failing steering system?

Common signs include a stiff steering wheel, unusual noises (whining, groaning, clunking) when turning, excessive play or looseness in the steering wheel, vibrations felt through the wheel, and the vehicle pulling to one side. Any of these symptoms warrant immediate inspection by a qualified mechanic.

Q3: How often should wheel alignment be checked?

It's generally recommended to have your wheel alignment checked annually or every 10,000 to 15,000 miles. You should also get it checked after hitting a significant pothole, curb, or after replacing steering or suspension components, as these can knock your alignment out.

Q4: Can I drive with a faulty steering system?

Driving with a faulty steering system is extremely dangerous and not recommended. It can compromise your ability to control the vehicle, potentially leading to accidents. Any issues with steering should be addressed immediately by a professional.

Q5: What is the difference between manual and power steering?

Manual steering relies solely on the driver's physical effort to turn the wheels through mechanical linkages. Power steering, on the other hand, uses an external power source (typically hydraulic fluid pressure or an electric motor) to assist the driver, significantly reducing the effort needed to steer. Most modern cars feature power steering.

Conclusion

The steering system is an unsung hero of automotive engineering, a meticulously designed assembly that ensures your vehicle responds precisely to your commands. From the familiar feel of the steering wheel in your hands to the complex array of gears and linkages beneath the bonnet, every component plays a vital role in delivering a safe, comfortable, and controlled driving experience. Understanding its workings, key components, and the importance of proper maintenance, such as wheel alignment, empowers you as a driver and helps you appreciate the incredible technology that underpins every journey.
