Steering Rack Boots: Silent System Killers?

Imagine navigating a busy roundabout or executing a precise parallel park; the responsiveness of your car's steering is paramount. At the heart of this crucial control lies the steering rack, a sophisticated assembly that translates your input at the steering wheel into the precise movement of your road wheels. It's a component designed for durability, yet like any intricate mechanism, it has its vulnerabilities. One often-overlooked but incredibly vital part of this system is the humble rubber boot. Can these seemingly insignificant covers truly lead to a complete steering rack system failure? Let's delve deep into the mechanics of your steering and uncover the critical role these boots play.

Understanding Your Steering Rack: The Core of Vehicle Control

Put simply, the steering rack is the ingenious component responsible for converting the rotational motion of your steering wheel into the linear motion required to turn your vehicle's wheels. This transformation is achieved through a clever mechanical setup known as the rack and pinion system, predominant in most modern light vehicles, cars, and even some SUVs. Heavy-duty trucks and larger SUVs often employ the more robust, albeit older, recirculating ball system, but for the majority of drivers, the steering rack is their direct link to the road.

How the Steering Rack Works Its Magic

The steering rack assembly is intricately connected to your steering wheel via the steering shaft and column. As you turn the wheel, a small gear, known as the pinion gear, rotates. This pinion gear meshes with a longer, straight bar called the rack, which has teeth along its length. The rotation of the pinion forces the rack to move laterally, either left or right. This linear movement is then transmitted through various components, primarily the tie rods, to the steering knuckles, ultimately guiding your wheels in the desired direction. This ingenious gear reduction allows you to steer with minimal effort, providing a comfortable and controlled driving experience.

The Anatomy of Your Steering Rack: More Than Just Metal

The steering rack assembly is a complex unit, comprising several critical parts that work in harmony. Understanding each component helps appreciate the system's overall function and identify potential points of failure:

• Pinion Shaft: This shaft links the steering column to the steering rack assembly. It rotates with your steering wheel, driving the pinion gear. In hydraulic power steering systems, it often incorporates a torsion bar that controls fluid flow.
• Pinion Gear: A small, splined gear that rotates in response to the steering wheel's movement. It meshes directly with the rack, converting rotational input into linear motion.
• Rack: The long, straight metal bar with teeth that engage with the pinion gear. It moves sideways, pushing or pulling the tie rods to steer the wheels. Typically made from durable steel to withstand constant stress.
• Rack Housing: Usually crafted from lightweight cast aluminium, this housing encases the rack and pinion gears, providing protection and a stable environment for their operation. In hydraulic systems, it also contains the piston and hydraulic fluid mechanisms.
• Tie Rods: Extending from either end of the rack, these rods connect the steering rack to the steering knuckles. They consist of an inner tie rod, connected directly to the rack, and an outer tie rod, which connects to the steering knuckle. Both ends feature ball joints, allowing for flexible movement during steering and suspension travel.
• Boots (Gaiters): These are flexible, corrugated rubber boots or bellows installed over the joints, specifically between the inner and outer tie rods. Their primary function is to act as a protective barrier, shielding the vital internal components, especially the ball joints and their lubrication, from environmental contaminants.

The Unsung Heroes: How Damaged Rubber Boots Lead to Steering Rack Failure

Now, to the core question: Can those seemingly simple rubber boots truly cause a steering rack system failure? The answer is a resounding yes, and understanding *how* is crucial for your vehicle's longevity and your personal safety.

Steering rack boots, often referred to as gaiters, are much more than just dust covers. They are the first line of defence for the delicate ball joints and internal mechanisms of your tie rods and, by extension, the entire steering rack. These joints are factory-packed with grease, which reduces friction and prevents wear. The boots seal this grease in and, more importantly, keep harmful elements out.

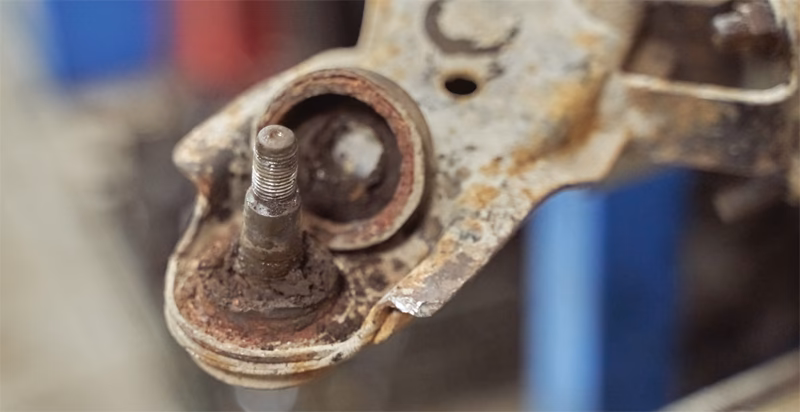

Over time, due to exposure to road debris, temperature fluctuations, and general wear and tear, these rubber boots can crack, tear, or become brittle. What happens then? It creates a pathway for contaminants:

• Dirt and Grit Ingress: Every time your wheel turns, or your suspension moves, dirt, sand, and small stones from the road surface can enter through the compromised boot. These abrasive particles act like sandpaper, grinding away at the precision-machined surfaces of the ball joint.
• Moisture and Water Damage: Rain, puddles, and even condensation can seep into the joint. Water washes away the vital grease, leaving the metal-on-metal components exposed. Furthermore, moisture promotes rust and corrosion, rapidly deteriorating the joint's integrity.
• Loss of Lubrication: Once the boot is compromised, the protective grease can leak out, or be contaminated and rendered ineffective. Without proper lubrication, the ball joint experiences excessive friction, leading to rapid wear, overheating, and premature failure.

The consequences of compromised boots are progressive but severe. Initially, you might notice a slight looseness in the steering or an unusual noise. As the wear progresses, the ball joint develops excessive play, leading to inaccurate steering, vibrations through the steering wheel, and potentially a clunking noise when turning or going over bumps. If left unaddressed, the ball joint can completely seize or, worse, break apart, leading to a sudden and catastrophic loss of steering control. So, while the boots themselves don't directly "fail" the rack, their failure to protect leads directly to the failure of critical internal components, culminating in a steering rack system failure.

Steering Rack Types: Manual vs. Powered

Steering racks come in two primary configurations: manual and powered. The latter has become the standard in modern vehicles due to the enhanced driving experience it offers.

Manual Steering Rack

A manual steering rack operates purely on mechanical advantage. When you turn the steering wheel, the force is transmitted directly through the steering column and shaft to the pinion gear, which then moves the rack. While offering a direct "feel" of the road, manual systems require significant effort to turn the wheels, especially at low speeds or during parking manoeuvres. They are simpler in design and often found in older or very lightweight vehicles.

Power Steering Rack

A powered steering rack incorporates an assist system to reduce the effort required to steer. This assist can be either hydraulic or electric, each with its distinct mechanism and characteristics.

• Hydraulic Steering Rack: This system uses hydraulic fluid, pressurised by an engine-driven pump, to assist in moving the rack. A hydraulic valve, often integrated with the pinion shaft, controls the flow of fluid based on steering wheel input. When you turn the wheel, the valve directs fluid to the appropriate side of a piston within the rack housing, helping to push the rack with greater force. While effective, hydraulic systems add weight, are prone to leaks, and consume engine power.
• Electric Steering Rack (EPS): Electric Power Steering systems utilise an electric motor to provide assistance. This motor, controlled by a dedicated module and sensors detecting steering wheel movement and position, directly applies torque to the steering mechanism. EPS systems are more fuel-efficient as they only draw power when assistance is needed, are lighter, and offer greater customisation in terms of steering feel. They are rapidly becoming the industry standard.

Hydraulic vs. Electric Power Steering Rack: A Comparison

Choosing or understanding the differences between these power steering systems can be vital. Here's a brief comparison:

Common Steering Rack Woes: Beyond the Boots

While damaged boots are a significant culprit, several other issues can plague your steering rack:

• Broken Steering Rack Seals: Internal seals prevent hydraulic fluid leaks (in hydraulic systems) and keep internal components lubricated. When these fail, fluid loss can lead to loss of power assist and internal damage due to lack of lubrication.
• Loose Steering Rack Connections: Over time, vibrations and general wear can cause bolts and connections to loosen. This can result in excessive play in the steering wheel, inaccurate steering, and characteristic clunking noises.
• Power Steering System Failure: This could be a malfunctioning hydraulic pump, a failed electric motor, faulty sensors, or issues with the control module. Without power assist, steering becomes incredibly heavy.
• Worn Steering Rack Joints: The ball joints within the tie rods or other internal joints can wear down, leading to play, noise, and imprecise steering.
• Internal Gear Wear: While less common due to the robust materials used, the teeth on the rack or pinion can wear down over extreme mileage or due to lack of lubrication, leading to excessive play.

Recognising the Red Flags: Symptoms of Steering Rack Failure

Early detection of steering rack problems can prevent costly repairs and, more importantly, enhance your driving safety. Be vigilant for these common symptoms:

• A Stiff Steering Wheel: This is a classic sign, particularly with power steering issues. In hydraulic systems, it often indicates low fluid levels or a failing pump. For electric systems, it could point to a motor or sensor malfunction.
• Unusual Noises: A clunking, grinding, or knocking sound, especially when turning the steering wheel or going over bumps, often signals worn joints, loose connections, or internal damage. A squealing noise can indicate a struggling power steering pump.
• Steering Wheel Vibrations: If your steering wheel vibrates excessively, it might suggest issues with the power assist system, worn internal components, or even contaminants building up within the rack.
• Leaking Fluid: For hydraulic systems, visible fluid leaks under the car are a clear indicator. Power steering fluid is typically reddish or brownish. A burning smell can also indicate fluid leaking onto hot engine parts.
• Excessive Steering Wheel Play: If you can turn your steering wheel a significant amount before the wheels react, it indicates wear in the rack and pinion gears or loose tie rod connections.
• Vehicle Wandering: If your car struggles to maintain a straight line and constantly pulls to one side, or feels "floaty," it could be a sign of significant steering rack wear.

Steering Rack FAQs: Your Questions Answered

Here are some frequently asked questions about steering racks, providing further insights into this critical component:

What is a steering rack gaiter?

Steering rack gaiters are precisely the rubber bellows or boots we've discussed. They are fitted over the flexible joints at the ends of the steering rack assembly, primarily protecting the inner tie rod ball joint and its lubrication from ingress by dust, dirt, sand, small stones, and water. Without intact gaiters, the grease would quickly be contaminated or washed away, leading to rapid wear and potential failure of the joint.

What is a steering rack limiter?

A steering rack limiter is a type of insert, typically a small bush or ring, placed on the outer ends of the rack gear shaft. Its purpose is to physically restrict the maximum travel of the rack. This limitation is crucial for preventing the wheels from turning excessively, which could cause damage to other suspension components or the tyres, especially in vehicles equipped with powerful steering assist systems.

What causes steering rack damage?

Steering racks are exposed to a harsh environment. Their location beneath the vehicle subjects them to road debris, water, and extreme temperature fluctuations, all of which contribute to wear over time. Specific causes of damage include:

• Compromised Boots: As highlighted, damaged rubber boots allow contaminants in, leading to premature wear of joints.
• Fluid Leaks (Hydraulic): Loss of power steering fluid due to seal failure or hose damage starves the hydraulic system, leading to increased friction and potential pump failure.
• Component Wear: Over mileage, internal gears, bearings, and ball joints naturally wear down.
• Impact Damage: Hitting potholes, kerbs, or road hazards can cause immediate damage to the rack housing or internal components.
• Power Assist Failure: A failed hydraulic pump, electric motor, or control module can cause the rack to operate under undue stress, accelerating wear.

Regular maintenance, including checking fluid levels (for hydraulic systems) and inspecting the condition of the boots, is paramount in preventing these issues and prolonging the lifespan of the entire assembly.

What happens if a steering rack fails?

A steering rack failure can range from an inconvenience to a dangerous situation. Symptoms include a vibrating or stiff steering wheel, loud clunking or grinding noises, fluid leaks (if hydraulic), excessive play in the steering, or the vehicle wandering uncontrollably. In severe cases, the steering wheel may jam, or you could experience a complete loss of steering control, making the vehicle extremely unsafe to drive. Prompt attention to any of these symptoms is critical.

Can you drive with a bad steering rack?

While it might be technically possible to drive a short distance with a failing steering rack, it is absolutely not recommended. Driving with a compromised steering system severely jeopardises your safety and that of other road users. Control over the vehicle will be diminished, unpredictable, or even non-existent, especially in emergency situations. The risk of an accident is significantly heightened. If you suspect your steering rack is failing, it is advisable to have your vehicle towed to a qualified garage for immediate inspection and repair.

What are the options for steering rack repairs?

The repair options for a steering rack depend entirely on the nature and extent of the damage. Minor issues like worn rubber boots or bushings can often be replaced, sometimes as part of a steering rack reconditioning or rebuilding process. Leaking seals on hydraulic racks can sometimes be replaced. However, if the internal gears are significantly worn, the housing is cracked, or the power assist unit (motor or pump) is integrated and failed, a complete steering rack replacement is often the most reliable and cost-effective long-term solution. Always consult a specialist garage for an accurate diagnosis and repair recommendation.

What is the steering rack lifespan?

Steering racks are designed to be durable, often lasting the lifetime of the vehicle if properly maintained. On average, you can expect a steering rack to last anywhere from 100,000 to 150,000 miles, or even more. Factors influencing lifespan include driving conditions (e.g., frequent rough roads), vehicle type, and the quality of maintenance. Regular inspections, especially of the protective boots and fluid levels (if applicable), can significantly extend its operational life. Look out for the symptoms mentioned earlier as indicators that your rack may be nearing the end of its service life.

What is the steering rack price and replacement cost?

The cost of a new steering rack varies widely based on your car's make, model, year, and whether you opt for an OEM (Original Equipment Manufacturer) part or an aftermarket equivalent. Prices for the part alone can range from around £80 to over £400. OEM parts are generally more expensive but assure original quality and fit. As for the steering rack replacement cost, labour charges can add a significant amount. Technicians typically charge between £150-£350 for the installation, bringing the total replacement cost, including parts, to anywhere from £250 to £750 or more, depending on your vehicle and garage labour rates in your area.

Do steering racks come with tie rods?

It varies. Some new or reconditioned steering rack assemblies are sold complete with both inner and outer tie rods already attached, providing a convenient all-in-one replacement. However, many aftermarket or even OEM racks are sold without tie rods, meaning you would need to purchase them separately. Always confirm what's included when buying a replacement part to ensure you have all necessary components for the installation.

Conclusion: Protecting Your Steering, Protecting Your Drive

The steering rack is an indispensable component, fundamental to your vehicle's control and your safety on the road. From converting rotational input to linear motion to providing crucial power assistance, its role cannot be overstated. As we've explored, seemingly minor components like the rubber boots play a surprisingly critical role in its longevity. Neglecting these protective covers can lead to the ingress of destructive contaminants, compromising the integrity of vital joints and potentially leading to significant steering system failure.

Understanding how your steering rack works, recognising the early warning signs of trouble, and committing to regular maintenance – particularly inspecting those often-forgotten boots – are key to ensuring your steering system remains responsive, reliable, and safe. Don't let a small tear lead to a major repair; proactive care is always the best approach for a smooth and controlled journey.
