Nissan Steering Angle Sensor Reset Guide

Understanding Your Nissan's Steering Angle Sensor

It's a common scenario for Nissan owners: you've had some work done on your suspension, steering components, or perhaps a routine wheel alignment. Shortly after, those familiar dashboard warning lights – ABS, VDC, or the dreaded SLIP indicator – illuminate, casting a shadow of concern. If this sounds familiar, your Steering Angle Sensor (SAS) might be the culprit, and it's likely due for a reset. This guide is designed to demystify the process, explaining what the SAS is, why it needs recalibration, and how you can get it done to ensure your Nissan's safety systems are functioning optimally.

What Exactly is a Steering Angle Sensor?

Your Nissan's Steering Angle Sensor is a surprisingly small but incredibly vital component. It's the unsung hero that acts as the bridge between your physical steering input and your vehicle's advanced electronic safety systems. Its primary function is to precisely measure three key aspects of your steering wheel's behaviour:

• Position: The exact angle of the steering wheel relative to the vehicle's straight-ahead position.
• Rate of Turn: How quickly you are turning the steering wheel.
• Direction: Whether you are turning left or right.

This data is fed directly into your Nissan's Vehicle Dynamic Control (VDC) and Anti-lock Braking System (ABS). Essentially, the SAS tells the car's computer how you intend to steer. The VDC system then uses this information, along with data from wheel speed sensors and the yaw rate sensor, to compare your steering input with the car's actual movement. If a discrepancy is detected – for instance, if the car is starting to skid – the VDC system can intervene by applying brakes to individual wheels or reducing engine power to help you regain control. Most modern Nissans utilise digital sensors with optical technology for exceptional accuracy, though some older models might feature analog sensors that generate varying voltage outputs.

When is a Steering Angle Sensor Reset Necessary?

The good news is that you won't need to reset your SAS with every oil change. However, several specific situations mandate a recalibration to ensure accurate readings and proper functioning of safety systems. Nissan's official stance is clear: any time the alignment is adjusted, a reset is mandatory. Beyond alignments, consider a reset in these scenarios:

Key Situations Requiring SAS Reset:

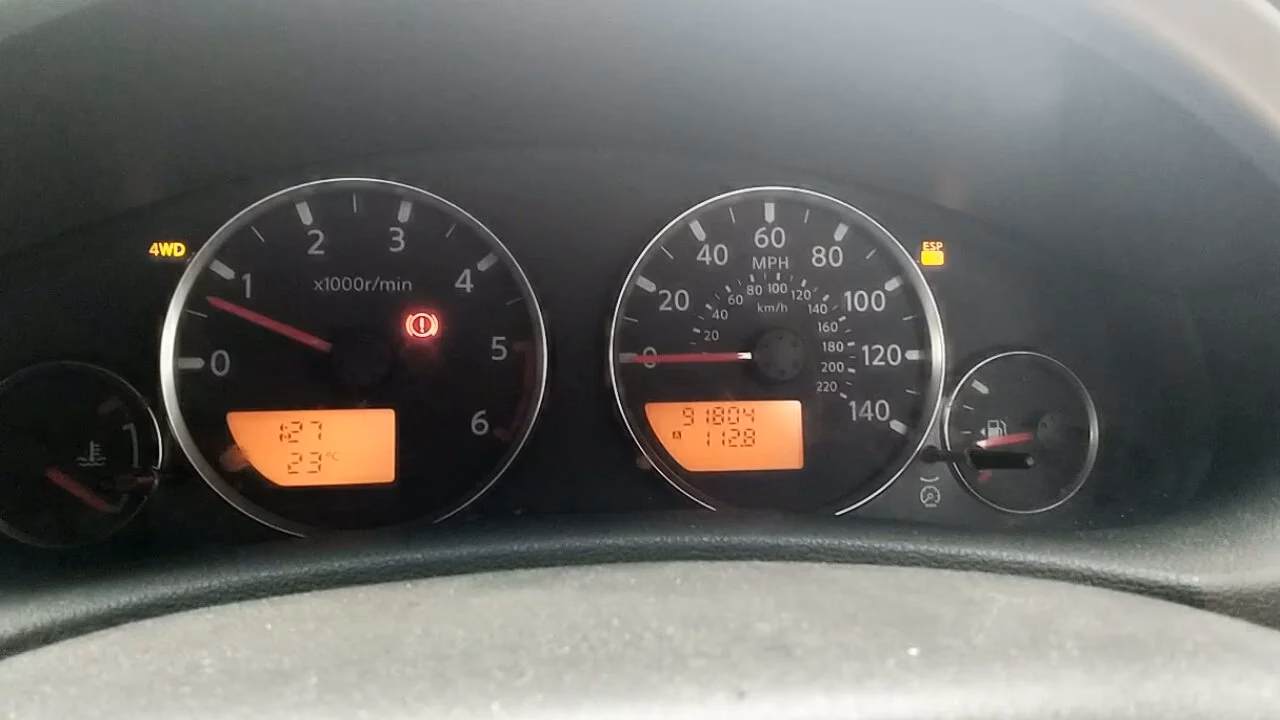

Ignoring these requirements can lead to a cascade of problems. Most obviously, those persistent warning lights will continue to glare, but more critically, your vehicle's stability control and ABS systems may operate erratically or not at all, significantly compromising your safety. In some cases, the car may even enter a 'limp mode', drastically reducing engine power to prevent further damage. As one Nissan owner shared, "After replacing my steering rack, the VDC light stayed on despite everything being installed correctly. A simple sensor reset fixed the problem completely." Nissan's commitment to customer safety means adhering to these recommendations is paramount.

Tools of the Trade: What You'll Need

Performing a steering angle sensor reset correctly requires specific diagnostic equipment. While some basic physical calibration might be attempted on older models, modern Nissans almost universally require a diagnostic scan tool capable of communicating with the vehicle's modules. The choice of tool can significantly impact the ease and reliability of the process.

Diagnostic Scanner Options:

Beyond the scanner, ensure you have a reliable battery charger or maintainer. A stable voltage supply (ideally above 12.6V) is crucial throughout the calibration process. A clean, well-lit workspace and access to your vehicle's specific service manual are also highly recommended. The National Highway Traffic Safety Administration (NHTSA) emphasises the importance of using appropriate diagnostic tools for safety-critical calibrations, warning that unofficial methods could compromise vehicle safety.

Step-by-Step: Resetting Your Nissan's Steering Angle Sensor

The exact procedure can vary slightly between Nissan models and the diagnostic tool used, but the general principles remain consistent. Always refer to your vehicle's service manual for model-specific instructions.

Using Nissan CONSULT Scanner (Dealer/Professional Level):

1. Preparation: Park the vehicle on a level surface. Ensure the steering wheel is perfectly centred in the straight-ahead position. Connect a battery charger to maintain stable voltage. Close all doors and ensure the transmission is in 'Park' (or neutral with the parking brake engaged for manual transmissions).
2. Connection: Connect the CONSULT scanner to your Nissan's OBD-II port, typically located under the dashboard on the driver's side.
3. Ignition Cycle: Turn the ignition key to the 'ON' position, but do not start the engine.
4. Navigation: On the scanner, select your vehicle's make, model, and year. Navigate to the relevant module, usually 'ABS' or 'VDC'.
5. Calibration: Within the module's functions, find and select 'Steering Angle Sensor Adjustment' or 'SAS Calibration'.
6. Follow Prompts: Carefully follow all on-screen instructions. This may involve turning the steering wheel lock-to-lock or holding it at specific angles. Crucially, do not touch the steering wheel during the automated calibration sequence.
7. Confirmation: Wait for the scanner to confirm that the calibration is complete.
8. Verification: Use the scanner's 'Data Monitor' or 'Live Data' function to check the steering angle reading. It should typically be within ±3.5 degrees of 0° when the wheels are straight. Clear any Diagnostic Trouble Codes (DTCs) that may have been set.
9. Test Drive: Perform a low-speed test drive (under 20 km/h or 12 mph) in a safe, open area to allow the vehicle's systems to validate the new calibration.

Using Third-Party Scanners (DIY Friendly):

1. Scanner Setup: Connect your chosen scanner (e.g., Launch X-431, Foxwell NT650) to the OBD-II port. Select 'Nissan' from the manufacturer list and input your vehicle's specific details (model, year, engine).
2. Navigate to Functions: Look for a menu labelled 'Special Functions', 'Service Functions', or 'Maintenance'.
3. Select Calibration: Find and select the 'Steering Angle Sensor Calibration' option.
4. Follow Instructions: Read and adhere strictly to the on-screen prompts. These scanners will guide you through the necessary ignition cycles, steering wheel movements, and waiting periods.
5. Maintain Stationary Position: Keep the vehicle stationary and the steering wheel centred unless the scanner specifically instructs otherwise.
6. Confirmation: The scanner will provide a confirmation message upon successful calibration. Check that the relevant warning lights on the dashboard are now extinguished.
7. Test Drive: A cautious test drive is essential to ensure the stability control systems are functioning correctly.

One experienced technician notes, "The Launch diagnostic tool makes steering angle reset accessible to DIYers, with clear step-by-step instructions that even novices can follow."

Troubleshooting Common SAS Reset Issues

Even with the right tools and procedures, you might encounter hiccups. Here’s how to tackle common problems:

Warning Lights Persist After Reset:

• Re-check Alignment: Ensure your wheel alignment specifications are precisely to factory standards. Even a slight deviation can cause issues.
• Inspect Wiring: Carefully examine the wiring harness connected to the SAS and related modules for any signs of damage, corrosion, or loose connections.
• Verify Procedure: Double-check that you followed the exact reset procedure for your specific Nissan model and year. Some models have unique requirements.
• Check for Other DTCs: Use your scanner to check for any other stored DTCs. An unrelated fault code might be preventing the warning lights from clearing.

Error Codes During Calibration (e.g., C13E9, C13EB):

These codes often indicate a 'steering angle plausibility error', meaning the sensor's readings are not making sense to the vehicle's computer. Common causes and solutions include:

• Power Interruption: Turn the ignition off completely for at least 60 seconds, then restart the process. Ensure your battery voltage is stable throughout.
• Steering Wheel Centering: Make absolutely certain the steering wheel is perfectly centred before starting the calibration.
• Data Monitor Verification: Use the scanner's data monitor to confirm the steering angle is reading within the acceptable range (often ±4.4° or ±3.5°) when the wheel is straight.

Nissan technical service bulletins (TSBs) frequently cite insufficient power supply or incorrect ignition cycling as primary causes for calibration failures.

Can You Reset Without a Scanner? The Manual Method

For a select few older Nissan models or in very specific, simple circumstances (like a slightly misaligned clock spring), a basic physical reset might be attempted. However, this is not a reliable substitute for electronic calibration on most modern vehicles and often still requires scanner confirmation.

When a Manual Reset Might Be Considered:

• Minor mechanical misalignment of the SAS itself.
• Improper installation of the clock spring.
• Certain older Nissan models with physical alignment marks on the sensor.

Basic Physical Calibration (Use with Extreme Caution):

1. Centre the steering wheel precisely with the front wheels pointing perfectly straight.

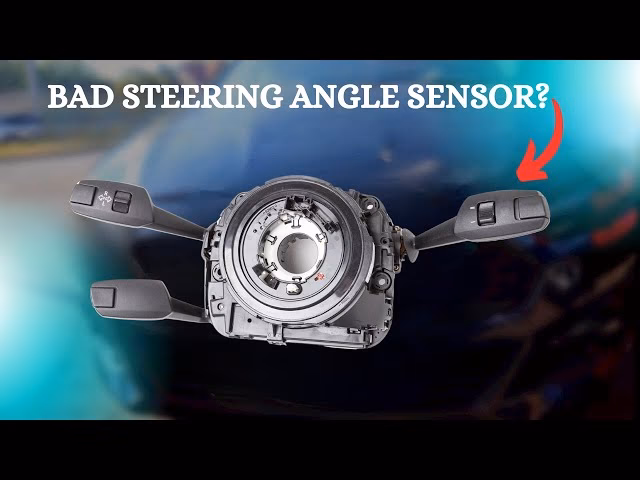

2. Locate the Steering Angle Sensor, usually situated behind the steering wheel, often integrated with the clock spring assembly.
3. Look for any alignment tabs, notches, or markings on the sensor housing or its mounting points that indicate the neutral or 'zero' position.
4. If present, carefully rotate the sensor module to align these marks. This may require partial disassembly of the steering column shroud.

Remember, even if you perform this, a scan tool will likely be needed to confirm and finalize the calibration. Community forums, like those for the Nissan Qashqai, often highlight that electronic calibration is virtually always necessary.

Safety First: Best Practices for SAS Reset

Your safety and the integrity of your vehicle's systems are paramount. Follow these best practices:

Before You Begin:

• Disconnect any non-essential electrical accessories (e.g., aftermarket stereos, chargers) that could draw power.
• Connect a reliable battery maintainer to ensure a consistent voltage supply.
• Work in a well-lit, well-ventilated area, free from distractions.
• Crucially, read your specific vehicle's service manual for detailed instructions and any model-specific precautions.

During Calibration:

• Never touch the steering wheel when the diagnostic tool is actively performing the calibration, unless specifically instructed to do so by the tool.
• Follow the ignition cycling and steering input sequences precisely as dictated by the scanner.
• Be patient; rushing the process can lead to errors.
• Keep children and pets away from the work area.

After the Reset:

• Conduct a thorough low-speed test drive in a safe environment (e.g., an empty car park).
• Confirm that all previously illuminated warning lights remain off during normal driving conditions.
• Keep a record of the date and procedure performed for future reference.

The Risks of Skipping a Necessary Reset

Nissan explicitly warns that neglecting a required SAS reset after relevant repairs can have serious consequences:

• Compromised Safety Systems: Your VDC and ABS might not function correctly during critical situations, leaving you vulnerable.
• Distracting Warning Lights: Persistent dashboard lights can mask other important warnings.
• Warranty Issues: Incorrect calibration could potentially void the warranty on related components.
• Unpredictable Handling: The vehicle might exhibit unexpected or overly aggressive interventions from the stability control systems.
• Diagnostic Confusion: Future troubleshooting can be complicated by inaccurate sensor data.

Nissan's collision repair guidelines consistently classify steering angle sensor calibration as a mandatory operation following any steering or suspension service that could affect its accuracy.

Model-Specific Considerations

While the core principles apply broadly, be aware of potential model-specific nuances:

• Nissan Altima (2013+): May require G-sensor calibration alongside the SAS. The SAS is often integrated with the airbag module.
• Nissan Rogue/X-Trail: Known for sensitive stability control. Clock spring replacement may involve additional steps. A specific post-reset driving pattern might be needed.
• Nissan 370Z/350Z: Performance models often have unique calibration parameters. Some owners report needing multiple reset attempts.
• Nissan Pathfinder/Frontier: Truck and SUV models may have different steering geometries. Suspension lift kits can necessitate specific calibration procedures. Ensure your scanner has the correct software version.

When to Call in the Professionals

While DIY resets are increasingly accessible, there are times when professional intervention is the wisest course of action:

• If you've attempted the reset multiple times without success.
• Following complex accident repairs where multiple systems may be affected.
• If your vehicle has significant aftermarket modifications to the steering or suspension.
• If you lack access to the appropriate diagnostic tools.
• When warning lights return shortly after a seemingly successful reset.

Professional workshops possess the latest factory diagnostic equipment and up-to-date technical documentation, ensuring the job is done correctly and safely.

Preventative Maintenance Tips

While not a routine maintenance item in the traditional sense, good vehicle care can help prevent SAS issues:

• Regular System Checks: Have your VDC and ABS systems inspected during routine servicing.
• Protect from Moisture: Avoid driving through deep water, as the sensor can be sensitive to moisture ingress.
• Maintain Battery Health: A weak or failing battery can cause erratic behaviour in electronic modules, including the SAS.
• Gentle Steering: Avoid habitually slamming the steering wheel to its full lock positions.
• Address Warnings Promptly: Don't ignore ABS or VDC warning lights; investigate the cause as soon as they appear.

The Long-Term Benefits of Proper Calibration

Investing the time and resources to correctly calibrate your Nissan's Steering Angle Sensor yields significant advantages:

• Enhanced Safety: Your VDC and ABS systems will function as intended, providing crucial stability and braking support.
• Predictable Handling: The vehicle will respond reliably in emergency situations.
• Optimised System Performance: Ensures all related electronic systems work in harmony.
• Reduced Wear: Properly functioning systems can contribute to longer life for related components.
• Peace of Mind: Eliminates distracting warning lights and the worry of compromised safety.
• Maintained Resale Value: Proper service records, including sensor calibrations, can bolster your vehicle's value.

As vehicles become more reliant on sophisticated electronic safety nets, maintaining the accuracy of components like the Steering Angle Sensor is not just recommended – it's essential for safe and reliable operation. Whether you choose a DIY approach or professional service, ensuring your SAS is properly calibrated after relevant work is a critical step in maintaining your Nissan's integrity.
