Reviving Your Stanadyne DB4 Pump

The Stanadyne DB4 injection pump is a robust and reliable component in many diesel engines, but like any mechanical part, it benefits from proper maintenance. Over time, dirt, debris, and fuel contaminants can accumulate on the exterior of the pump, potentially affecting its performance and longevity. While internal cleaning is a complex task best left to professionals, external cleaning is a vital step that can be performed by the diligent owner to keep the pump in good working order. This guide will walk you through the process, focusing on the Stanadyne DB4 and its common counterpart, the DB2, highlighting what you need to know to perform this task safely and effectively. Remember, a clean exterior is the first line of defence against potential issues.

Understanding the Stanadyne DB4 and DB2 Pumps

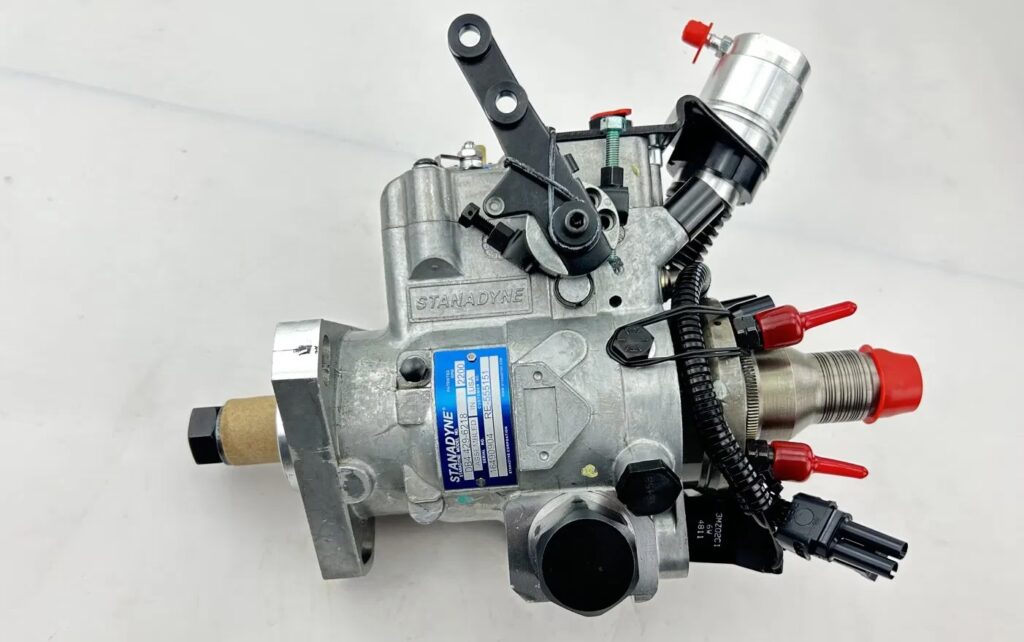

The Stanadyne DB4 injection pump is a popular choice for many diesel applications due to its durability and efficiency. A key characteristic of most DB4 models, and indeed many DB2 pumps as well, is the retained drive shaft. This means that when you remove the pump from the engine, the drive shaft remains attached to the pump itself, simplifying the removal and reinstallation process compared to pumps where the shaft is splined to the engine's drive gear. This design feature is important to keep in mind during any maintenance or cleaning activities.

Why External Cleaning is Crucial

While the internal workings of an injection pump are complex and sensitive, the exterior is not immune to the elements and the operating environment of a diesel engine. Accumulation of oil, dirt, road grime, and even coolant can create a layer of gunk on the pump's housing. This can:

• Obscure vital markings: Important identification numbers, timing marks, or adjustment screws can become unreadable.
• Trap heat: A thick layer of dirt can act as an insulator, potentially causing the pump to run hotter than intended, which is never ideal for delicate fuel systems.
• Allow contaminants to enter: While unlikely with a good seal, a very dirty pump exterior increases the risk of debris finding its way into seals or fittings during maintenance.
• Make leak detection difficult: If the pump is leaking fuel or oil, a clean exterior makes it much easier to spot the source of the leak.

What You'll Need

Before you begin, gather the necessary supplies:

• Safety glasses
• Gloves (nitrile or similar chemical-resistant gloves are recommended)
• Clean rags or shop towels
• A non-caustic, diesel-safe cleaning solvent or degreaser. Avoid harsh chemicals that could damage seals or paint. A good quality brake cleaner or specific engine degreaser can be suitable, but always check the product's compatibility with rubber and plastic components.
• A soft brush or toothbrush for stubborn grime
• Compressed air (optional, for drying)
• A container to catch any drips of cleaning fluid

The Cleaning Process: Step-by-Step

Step 1: Preparation and Safety

Ensure the engine is cool. Never attempt to clean the injection pump while the engine is running or immediately after it has been shut off. Heat is the enemy of many cleaning solvents and can also pose a burn risk. Always wear your safety glasses and gloves to protect yourself from cleaning chemicals and any residual fuel or oil.

Step 2: Clean the Exterior Surfaces

Start by wiping down the accessible exterior surfaces of the injection pump with clean rags. Remove as much loose dirt and debris as possible before applying any cleaning agents. This initial wipe-down will make the subsequent degreasing much more effective.

Step 3: Apply Cleaning Solvent

Liberally spray or apply your chosen diesel-safe cleaning solvent or degreaser onto the exterior of the injection pump. Focus on areas with significant grease and grime build-up. Allow the solvent to dwell for a few minutes, as per the product's instructions, to break down the contaminants.

Step 4: Agitate Stubborn Grime

For areas where dirt and grease are caked on, use a soft brush or an old toothbrush to gently agitate the grime. Be careful not to scrub too aggressively, especially around electrical connections or delicate parts. The goal is to loosen the dirt so the solvent can lift it away.

Step 5: Wipe and Rinse (Carefully)

Use clean rags to wipe away the loosened grime and excess solvent. You may need to use multiple rags. If your solvent is designed to be rinsed, you can use a minimal amount of water, but ensure you do not soak the pump. Avoid high-pressure washing or steam cleaning, as this can force water or cleaning solution into sensitive internal components or electrical connectors, leading to corrosion or short circuits. If using compressed air, use it at a low to moderate pressure to blow away remaining solvent and debris, again being mindful of sensitive areas.

Step 6: Dry Thoroughly

Ensure the exterior of the injection pump is completely dry. Any remaining moisture, especially around electrical connections or fittings, can lead to corrosion. You can use more clean, dry rags or compressed air for this purpose.

Step 7: Clean Mounting Surfaces

Don't forget the mounting surfaces. Clean the area where the pump mates to the engine block or mounting bracket. This ensures a clean seal and prevents dirt from being compressed between surfaces, which could lead to leaks or improper seating.

Crucial Dos and Don'ts

To ensure you're cleaning your Stanadyne injection pump correctly and safely, keep these points in mind:

When to Seek Professional Help

While external cleaning is a straightforward maintenance task, it's important to recognize when the issue might be more serious. If you notice:

• Fuel leaks from the pump housing or fittings.
• Unusual noises coming from the pump.
• Erratic engine performance (rough idling, poor acceleration, stalling) that persists after basic maintenance.
• Evidence of internal contamination or damage.

In these situations, it is highly recommended to consult a qualified diesel mechanic or a specialist in fuel injection systems. Internal cleaning, calibration, and repair require specialized knowledge, tools, and a clean-room environment to prevent further damage.

Conclusion

Keeping the exterior of your Stanadyne DB4 (or DB2) injection pump clean is a simple yet effective way to maintain its performance and to help identify potential issues early. By following these guidelines, using the right cleaning agents, and always prioritising safety, you can contribute to the overall health and longevity of your diesel engine's fuel system. Remember, regular external cleaning is a small effort that can prevent larger problems down the line, ensuring your diesel engine continues to run smoothly and reliably.

Frequently Asked Questions (FAQ)

Q1: Can I use brake cleaner to clean my Stanadyne injection pump?

A1: While brake cleaner can be effective at removing grease and oil, it's crucial to use a brake cleaner that is specifically stated as safe for rubber and plastic components. Some aggressive brake cleaners can degrade seals. Always test on an inconspicuous area first if unsure, and ensure the pump is completely dry afterwards.

Q2: How often should I clean the exterior of my injection pump?

A2: There's no strict mileage interval. It's best to clean it whenever you notice significant dirt or grease accumulation, or as part of a more comprehensive engine bay cleaning. Inspecting it during routine oil changes or other under-hood services is a good practice.

Q3: Is it okay to spray water on the injection pump?

A3: It is strongly advised against spraying water, especially high-pressure water or steam, onto the injection pump. Water can easily penetrate seals and electrical connections, leading to corrosion and electrical faults. If a minimal amount of water is used for rinsing (and only if the solvent requires it), ensure the pump is dried immediately and thoroughly.

Q4: What if my pump has electrical components?

A4: Be extremely cautious around any electrical connectors or sensors on the pump. Avoid spraying cleaning solvents directly onto these components. If they become contaminated, use a dedicated electrical contact cleaner and ensure they are completely dry before reconnecting or operating the engine.

Q5: My pump looks very dirty, almost black with grime. Is it safe to clean?

A5: Yes, a very dirty pump is precisely the kind that benefits most from cleaning. Just follow the steps carefully, use an appropriate degreaser, and be patient. The key is to avoid harsh methods like steam or high-pressure washing that could cause more harm than good.
