Cadillac SRX Oil Change & Filter Location Guide

Performing your own oil change on your Cadillac SRX can be an incredibly rewarding experience, not to mention a significant saving compared to dealership prices. While modern vehicles, including luxury SUVs like the SRX, have made maintenance more straightforward, it’s always wise to be aware of any specific nuances. If you're tackling this essential service yourself, understanding the process, especially the location of that elusive oil filter, is paramount for a successful and mess-free job. This guide will walk you through the steps, focusing on common SRX models and providing insights to ensure your beloved Cadillac continues to run smoothly.

Proper engine lubrication is the lifeblood of your vehicle. The engine oil reduces friction, cools components, and cleans internal parts, while the oil filter ensures that harmful contaminants don't circulate through your engine. Neglecting regular oil changes or using the wrong type of oil can lead to premature wear, reduced fuel efficiency, and potentially costly damage. For a Cadillac SRX, a vehicle renowned for its performance and luxury, maintaining its engine with the utmost care is non-negotiable.

Understanding Your Cadillac SRX Oil Filter Location

For many drivers, locating the oil filter is the first hurdle in a DIY oil change. On the 2004 Cadillac SRX, whether it's the V6 or V8 variant, you'll find that the oil filter isn't a traditional spin-on canister filter that hangs visibly from the engine block. Instead, the SRX often utilises a cartridge filter system, which is housed within a specific cap on the engine itself.

Specifically, for the 2004 SRX, the oil filter is attached to a cap that you'll need to unscrew. This cap typically requires a 15/16-inch socket for removal. While the exact position can vary slightly between engine configurations (V6 versus V8), it's generally located on the top or upper side of the engine, making it relatively accessible from above, rather than requiring you to reach underneath the vehicle extensively for its removal. This design is common in many modern engines, as it can be more environmentally friendly by reducing waste (only the paper element is replaced, not the entire metal canister).

Always consult your vehicle's owner's manual for the precise location and any specific tools required for your exact model year and engine type. While this guide focuses on the 2004 model's characteristics, the principle of a cartridge filter accessed via a specific cap is consistent across many SRX generations.

Step-by-Step Oil Change Guide for 2004 Cadillac SRX

Here’s a detailed breakdown of the oil change process for a 2004 Cadillac SRX, building upon common practice and insights from experienced owners:

1. Preparation and Safety First

• Ensure your engine is warm, but not scorching hot. A warm engine allows the oil to drain more thoroughly.
• Park your SRX on a level surface.
• Safety is paramount. Use a lift if available, or sturdy ramps and wheel chocks if working from the ground. If using a jack, always supplement with jack stands. Never rely solely on a jack.
• Gather all your tools: 13mm socket for the drain plug, 15/16-inch socket for the oil filter cap, a ratchet, an oil drain pan (large enough for 8 litres), a funnel, new oil, a new oil filter with new O-rings, gloves, and shop rags.

2. Draining the Old Oil

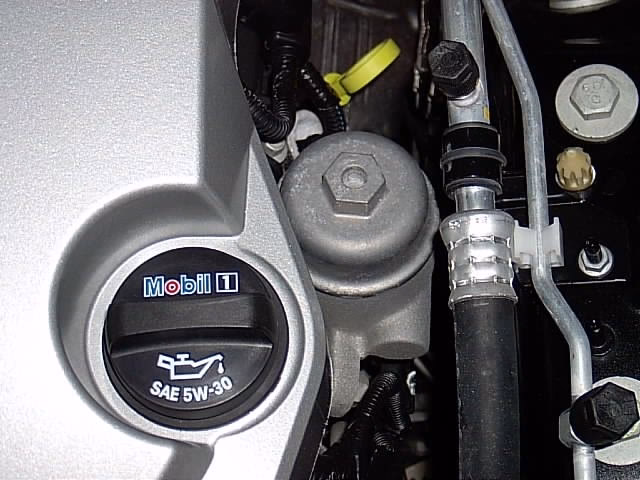

• Locate the oil filler cap on top of the engine, often marked with 'Mobile1 SAE 5W-30'. Remove it to allow air to enter, which aids in quicker draining.
• Position your oil drain pan directly beneath the oil drain plug, usually located at the lowest point of the oil pan underneath the engine.
• Using your 13mm socket, carefully loosen and remove the drain plug. Be prepared for the oil to gush out. Allow it to drain completely, which can take 10-15 minutes.
• Inspect the drain plug and its washer. If the washer looks crushed or damaged, replace it to prevent leaks. Clean the drain plug.

3. Replacing the Oil Filter

• While the oil is draining, locate the oil filter cap on the engine (as discussed above).
• Place some rags around the base of the oil filter cap to catch any drips.
• Using your 15/16-inch socket, carefully unscrew the oil filter cap. As you remove it, the oil filter element will likely come out attached to the cap. There might be some residual oil that drains out, so be ready with your pan or rags.
• Once removed, carefully detach the old filter element from the cap.
• Remove the old rubber O-rings from the filter cap and clean the cap thoroughly.
• Take your new oil filter and the new O-rings supplied with it. Lubricate the new O-rings with a little fresh engine oil and install them onto the filter cap in the correct grooves.
• Attach the new filter element to the cap.
• Carefully thread the filter cap back into its housing. Hand-tighten it first, then use your socket to tighten it firmly, but do not overtighten. Over-tightening can crack the plastic housing. A quarter-turn past hand-tight is often sufficient.

4. Refilling and Final Checks

• Once the old oil has fully drained, reinstall the oil drain plug. Tighten it securely with your 13mm socket, but again, do not overtighten, as this can strip the threads.
• Using a funnel, carefully pour the new engine oil into the oil filler opening.

Oil Capacities for 2004 Cadillac SRX:

• Once filled, replace the oil filler cap.
• Start the engine and let it idle for a few minutes. This allows the new oil to circulate and the filter to fill up.
• While the engine is running, check underneath the vehicle for any leaks around the drain plug or the oil filter housing.
• Shut off the engine and wait for a few minutes to allow the oil to settle back into the oil pan.
• Check the oil level using the dipstick. Add more oil if necessary until it reaches the 'full' mark. Do not overfill.
• Dispose of the old oil and filter responsibly at an approved recycling centre.

Resetting the Oil Life Monitor (OLM) on Newer SRX Models (2009-2016)

After an oil change, it's crucial to reset your Oil Life Monitor (OLM) system. This system tracks engine operating conditions to determine when an oil change is due, rather than relying on a fixed mileage interval. For Cadillac SRX models from 2009 to 2016, the reset procedure is straightforward:

1. Ensure all doors are closed and the gear selector is in the 'Park' position.
2. Turn the ignition to the 'ON' position, but do not start the engine.
3. On your vehicle's instrument cluster or infotainment screen, scroll to the right to select the 'RIGHT MENU'.
4. Scroll down within that menu until you navigate to 'REMAINING OIL LIFE'.
5. While 'REMAINING OIL LIFE' is displayed, press and hold the 'SEL' (Select) button. Hold it until the oil life percentage resets to 100%.
6. Turn off the ignition. The Oil Life Reset is now complete.

Resetting the OLM ensures your vehicle accurately tracks its oil life and alerts you when your next service is genuinely needed, preventing unnecessary early changes or dangerously late ones.

Tools You'll Need for Your SRX Oil Change

To make your DIY oil change as smooth as possible, ensure you have these essential tools and supplies:

• Oil Drain Pan (8-litre capacity or more)
• Funnel
• Socket Wrench with Extension
• 13mm Socket (for drain plug)
• 15/16-inch Socket (for oil filter cap)
• Torque Wrench (recommended for drain plug and filter cap)
• New Engine Oil (correct type and capacity)
• New Oil Filter with O-rings
• Gloves (nitrile or similar)
• Shop Rags or Old Towels
• Jack and Jack Stands OR Car Ramps OR Vehicle Lift
• Wheel Chocks

Frequently Asked Questions About Cadillac SRX Oil Changes

How often should I change the engine oil on my Cadillac SRX?

Cadillac SRX models, particularly those from 2009 onwards, are equipped with an advanced Oil Life Monitor (OLM) system. This system constantly analyses factors such as engine temperature, revolutions, and driving conditions to determine the optimal oil change interval. Therefore, you should change your oil when the OLM indicates that service is due, typically around 15-20% remaining oil life, or at least once a year, whichever comes first. Always consult your owner's manual for the specific recommendations for your model year.

Is my 2008 Cadillac SRX using excessive oil?

For some Cadillac SRX models, including the 2008 year, General Motors released technical service bulletins (TSBs) regarding accepted oil consumption rates. According to GM TSB #01-06-01-011H, the accepted rate of oil consumption for engines used in the 2008 Cadillac SRX is approximately 0.946 litre (1 quart) per 3200 km (2000 miles). If your vehicle is consuming oil at a rate higher than this, it may be indicative of excessive oil consumption, and it would be wise to have it inspected by a qualified technician.

Can I use synthetic oil in my Cadillac SRX?

Yes, in fact, many Cadillac SRX models, especially later generations, are designed to use or highly recommend synthetic or synthetic-blend oils. The 2004 SRX forum post even mentions 'Mobile1 SAE 5W-30' on the filler cap, which is a synthetic oil. Synthetic oils generally offer superior protection, better performance in extreme temperatures, and longer drain intervals compared to conventional oils. Always ensure the oil meets the specific viscosity grade (e.g., 5W-30) and API/GM specifications listed in your owner's manual.

What if my Cadillac SRX is a different model year?

While the core principles of an oil change remain consistent, specific details like oil capacity, filter location (though often still a cartridge filter), and the oil life monitor reset procedure can vary slightly between model years and engine types. Always refer to your specific Cadillac SRX owner's manual for the most accurate and detailed information pertinent to your vehicle. Online forums and dedicated Cadillac enthusiast sites can also be valuable resources for model-specific tips.

What is a cartridge oil filter, and why does my SRX have one?

A cartridge oil filter is an element-only filter designed to be placed inside a reusable housing, typically made of plastic or metal, that is permanently attached to the engine. Unlike traditional spin-on filters, which are self-contained units, the cartridge filter system reduces waste by only requiring the replacement of the filter element itself. This design is increasingly common in modern vehicles, including the Cadillac SRX, due to its environmental benefits and often improved filtration capabilities.

Conclusion

Changing the oil and filter on your Cadillac SRX is a fundamental maintenance task that, with the right knowledge and tools, is well within the capabilities of most DIY enthusiasts. By understanding the specific oil filter location for your model, following the correct steps for draining and refilling, and properly resetting your oil life monitor, you can ensure your luxury SUV receives the care it deserves. Regular maintenance not only prolongs the life of your engine but also provides the peace of mind that comes from knowing your vehicle is in top condition. Drive safely and enjoy the satisfaction of a job well done!
