SRAM Code RSC Brakes: Ultimate Stopping Power

When the trail ahead demands absolute confidence in your stopping power, the SRAM Code RSC hydraulic disc brakes emerge as a formidable ally. Designed specifically for the most aggressive downhill racers and hard-charging mountain bikers, these brakes are not merely components; they are a statement of intent, enabling riders to push the limits of what’s truly possible on a bike. If you’re looking for brakes that can haul you down from warp speed with unwavering consistency and control, the Code RSC is engineered to perform when it matters most.

Built upon a foundation of tried and tested technology, drawing heavily from the acclaimed Guide brakes, the all-new Code platform takes heavy-duty braking to an entirely new level. By incorporating larger pistons and an expanded fluid reservoir, Code brakes deliver a combination of massive power, predictable modulation, and exceptional heat management. This sophisticated design ensures that even on the longest, most brutal descents, you can maintain composure and control, letting you focus on the ride rather than worrying about your brakes fading.

Unveiling the SRAM Code RSC Brake: Power and Precision

The SRAM Code RSC is a high-performance hydraulic disc brake system meticulously engineered for the most demanding gravity and enduro applications. It represents SRAM's top-tier offering for riders who require robust, consistent, and powerful braking in extreme conditions. Unlike lighter brake sets, the Code RSC is purpose-built to handle the immense forces and heat generated during aggressive riding, making it a staple on downhill sleds, enduro bikes, and even electric mountain bikes where additional stopping power is crucial due to increased weight and speed.

At its core, the Code RSC leverages a sophisticated design that prioritises both raw power and fine-tuned control. The 'RSC' in its name denotes a specific set of features that elevate its performance above the standard 'R' model, primarily focusing on enhanced rider adjustability and feel. This includes the revolutionary SwingLink™ lever and comprehensive contact point adjustment, allowing riders to precisely tailor the brake's response to their individual preferences and riding style.

The Engineering Behind Unrivalled Stopping Power

Four-Piston Caliper Design

Central to the Code RSC's immense stopping power is its robust four-piston caliper design. Each caliper houses four pistons, specifically a mixed-size configuration of 15mm and 16mm. This intelligent piston sizing is not arbitrary; it's engineered to maximise braking force without making the system feel unwieldy or grabby. SRAM claims this mixed piston size provides an impressive 15% extra piston power compared to previous designs, ensuring that every squeeze of the lever translates into substantial deceleration. The expanded piggyback reservoir within the caliper significantly increases the fluid volume, which is crucial for both enhancing power and, more importantly, dissipating heat effectively. This larger volume of DOT 5.1 brake fluid helps maintain consistent performance even under prolonged, heavy braking, preventing brake fade on long descents.

SwingLink™ Technology: Master of Modulation

One of the standout features of the Code RSC is its innovative SwingLink™ lever technology. This patented cam system is designed to reduce the 'deadband' or slack in the lever, meaning the pads engage with the rotor much faster with less lever throw. Unlike simpler systems where the pads move linearly with lever input, SwingLink provides a unique cam-actuated mechanism that pushes the pads towards the rotor more aggressively at the initial part of the lever pull, then transitions to a more progressive rate for modulation. The result is a more positive and immediate pad engagement combined with superb modulation throughout the rest of the lever travel. This allows riders to feather their brakes with incredible precision, offering fine control over braking force, from a gentle scrub to a full-on emergency stop. Complementing SwingLink™ are lever pivot bearings, which ensure a smooth, buttery, and resistance-free lever feel, further enhancing the overall braking experience.

Heat Management and Fluid Dynamics

Effective heat management is paramount for consistent braking performance, especially in demanding applications. The SRAM Code RSC incorporates several technologies to combat heat build-up. The larger fluid reservoir is a primary component in this, providing more fluid to absorb and dissipate heat. Additionally, SRAM's Bleeding Edge™ technology simplifies the bleeding process, ensuring that the system can be easily maintained to perform optimally. The Heat Shield technology, integrated into the caliper, further isolates the brake fluid from the heat generated by the rotor and pads, preventing the fluid from overheating and boiling, which can lead to brake fade and a spongy lever feel. The use of DOT 5.1 brake fluid, known for its high boiling point, also contributes significantly to the system's thermal stability.

Tailoring Your Ride: Adjustability and Ergonomics

The Code RSC shines in its customisation options, allowing riders to fine-tune their brake setup for optimal comfort and control. This level of adjustability is crucial for high-performance riding, where every millimetre of lever position and every nuance of brake feel can impact confidence and speed.

Tool-Free Reach and Contact Point Adjustment

The Code RSC offers both tool-free reach adjust and contact point adjust. The tool-free reach adjust allows riders to quickly and easily modify the distance of the lever blade from the handlebar, accommodating different hand sizes and riding preferences. This is vital for maintaining comfort and ensuring optimal finger placement on the lever. The contact point adjust, exclusive to the RSC model (compared to the R model), allows riders to fine-tune the exact point in the lever's travel where the pads begin to engage the rotor. This enables a rider to set their preferred amount of 'dead travel' before braking force is applied, offering a more personalised and responsive feel. This granular control over the bite point is a key differentiator for the RSC, allowing for a truly bespoke braking experience.

Lever Feel and Ergonomics

The lever material for the Code RSC is a durable alloy, designed for longevity and a solid feel. Coupled with the lever pivot bearings, the lever action is remarkably smooth and consistent, free from the kind of resistance or stickiness that can plague lesser brake systems. The overall ergonomics of the lever blade are well-regarded, providing a comfortable and secure grip, which is essential during long, technical descents where hand fatigue can be a significant issue. The ambidextrous design and MatchMaker™ X compatibility further enhance cockpit integration, allowing for a clean and uncluttered handlebar setup.

SRAM Code R vs. RSC: A Closer Look

While both the SRAM Code R and Code RSC are formidable heavy-duty brakes, they cater to slightly different needs and budgets. Understanding their differences is key to choosing the right brake for your riding style.

Both models share the same robust 4-piston caliper design, utilise DOT 5.1 brake fluid, and feature tool-free lever reach adjustment. They also benefit from the increased fluid volume and larger piston sizes that define the new Code platform, ensuring powerful and consistent braking performance across the board. However, the Code RSC distinguishes itself with two primary enhancements:

1. SwingLink™ Lever: This technology, present on the RSC but not the R, provides the unique cam-actuated lever feel for quicker pad engagement and superior modulation.
2. Contact Point Adjust: Only the RSC model offers this additional tool-free adjustment, allowing riders to fine-tune the exact point of pad engagement.

These additional features on the RSC translate into a more refined, customisable, and ultimately, a more premium braking experience. The Code R, while still incredibly powerful and reliable, offers a more straightforward lever feel without the advanced modulation control or bite point adjustment of the RSC. Consequently, there's a notable difference in price, with the Code RSC retailing at a higher price point due to its advanced features.

Comparative Table: SRAM Code R vs. Code RSC

Real-World Performance: On the Trail and Beyond

Having been put through their paces by countless riders over the years, including extensive testing by industry professionals, SRAM Code brakes have a well-documented performance profile. While older SRAM brake models sometimes faced criticism for inconsistency and warranty issues, the new Code series, particularly the RSC, marks a significant improvement.

Reliability and Consistency

SRAM has clearly listened to rider feedback, incorporating features into the Code platform that directly address past concerns. The increased fluid volume, larger piston sizes, and an obvious improvement in quality control have yielded a brake that is a substantial upgrade over its predecessors, like the SRAM Guide brakes that were once the benchmark. While some riders might still find the need to bleed these brakes multiple times over the course of a season to compensate for fluid level drops due to pad wear, when properly bled and maintained, the Code RSC operates flawlessly. A critical improvement is their resistance to fading; even with slightly low fluid levels, the Code RSC maintains its stopping power, a feat that older SRAM brakes often struggled to accomplish.

Noise Control

Another area of notable improvement with the new SRAM Code brakes is noise control. Riders often report that these brakes are noticeably quieter than previous generation models, which is a welcome change on the trail. This enhanced quietness can be attributed to a combination of factors, including refined rotor shapes and improved pad materials. The brakes typically come stock with steel-backed metal sintered pads, which offer excellent durability and consistent performance in various conditions. For riders seeking an even quieter experience, switching to a resin or organic pad material can further mute any potential noise.

Maintenance Considerations

While the Code RSC is generally reliable, there are a few practical considerations for maintenance. The physical size of the fluid reservoir on the caliper, which sits directly above the pads and caliper bolts, can make it tricky to fit a standard multi-tool Allen wrench for adjustments or tightening. A longer Allen key is often necessary for trailside repairs or adjustments. Despite the improved bleeding process facilitated by Bleeding Edge™ technology, it's still recommended for riders to have a bleed kit on hand and understand how to use it. However, the good news is that you won't need to perform bleeds nearly as often as with older SRAM brakes, thanks to the increased fluid volume and improved reliability.

Detailed Specifications

• Weight: Approximately 411g (lever, caliper, front brake line cut and bled, pads installed) / 443g (general specification)
• Lever Material: Alloy
• Caliper Design: 4-piston, dual diameter caliper (15mm and 16mm mixed pistons)
• Finish: Black anodised

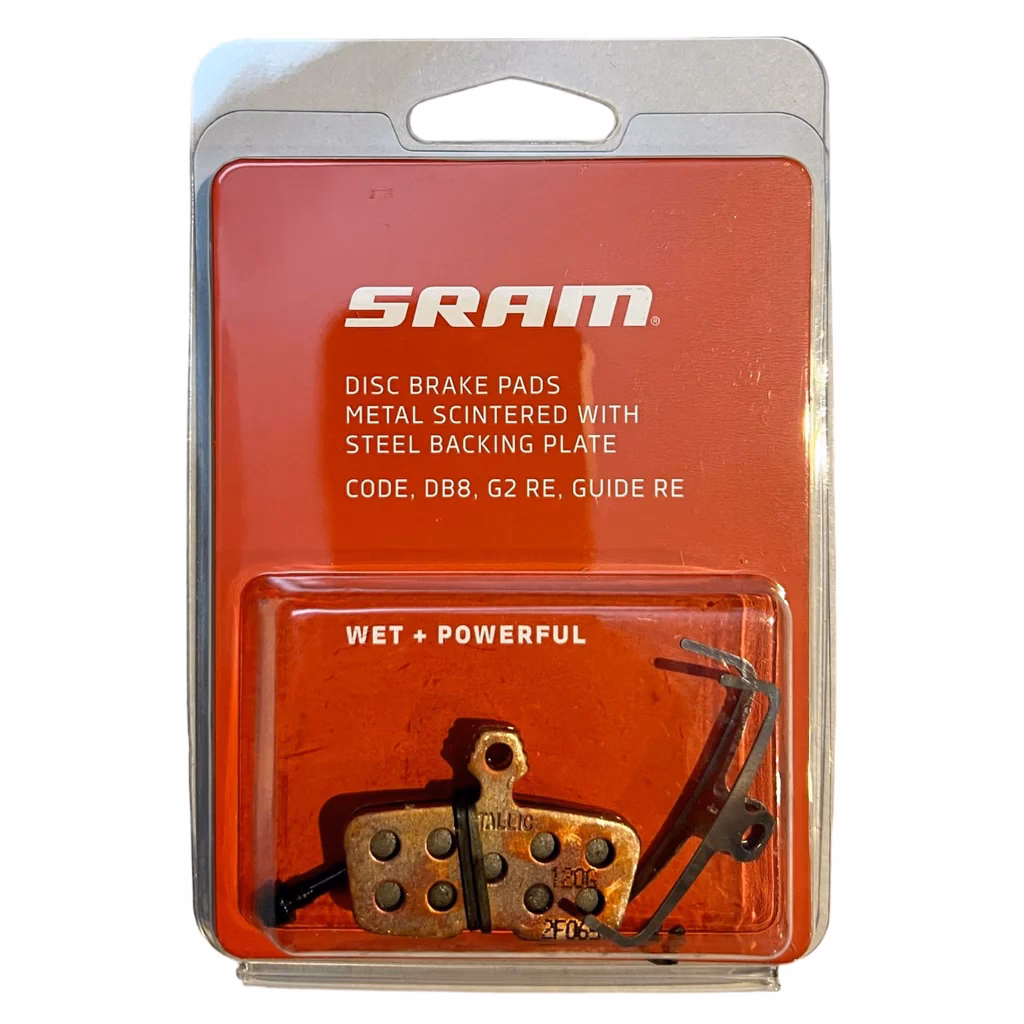

• Pad: Steel-backed metal sintered (top-loading)
• Fluid: DOT 5.1
• Mount: Ambidextrous
• Adjustments: Tool-free Reach Adjust, Contact Point Adjust, Banjo Adjust
• Special Features: Tool-free Reach Adjust, Contact Point Adjust, Piggyback Reservoir, MatchMaker™ X compatible, Bleeding Edge™, Heat Shield
• Technology Highlights: SwingLink™, Lever Pivot Bearings, Bleeding Edge™, Heat Shield
• Material: Forged aluminium
• System: OPEN SYSTEM
• Rotor Sizes: Compatible with 160mm, 170mm, 180mm, 200mm rotors
• Bend Zone™: Yes
• Ambidextrous: Yes
• Stainless Hardware: Yes
• Other: All-new Code design based on Guide architecture, designed specifically to handle heavy-duty demands

Frequently Asked Questions (FAQs)

Q: Does the SRAM Code brake come with a caliper?
A: Yes, absolutely. Every SRAM Code brake, whether the R or RSC model, comes complete with its robust 4-piston caliper, which includes an expanded piggyback reservoir for increased power and heat dissipation.

Q: What's the main difference between SRAM Code R and Code RSC?
A: The primary difference lies in the lever technologies. The Code RSC features the advanced SwingLink™ lever for quicker pad engagement and superior modulation, along with tool-free contact point adjustment. The Code R has a simpler lever design without these advanced modulation and bite point customisation features, making the RSC the more refined and adjustable option.

Q: Are SRAM Code RSC brakes suitable for electric mountain bikes (e-MTBs)?
A: Yes, they are ideally suited for e-MTBs. Their heavy-duty design, massive stopping power, and excellent heat management capabilities make them perfect for handling the increased weight and speeds associated with electric bikes, ensuring reliable performance on long descents.

Q: What type of brake fluid do SRAM Code brakes use?
A: SRAM Code brakes use DOT 5.1 brake fluid. It's crucial to use the correct DOT fluid (DOT 5.1 or DOT 4 are compatible, but 5.1 has a higher boiling point) and never mix it with mineral oil-based systems.

Q: Can I adjust the bite point on SRAM Code R brakes?
A: No, the contact point (or bite point) adjustment is a feature exclusive to the SRAM Code RSC model. The Code R only offers tool-free reach adjustment.

In conclusion, the SRAM Code RSC represents a significant leap forward in heavy-duty mountain bike braking. While SRAM brakes have had a mixed reputation in the past, the Code RSC models demonstrate a clear commitment to reliability, power, and rider control. They offer plenty of power for the most challenging terrain, excellent modulation to maintain control, and a level of consistency that inspires confidence. While a bleed kit remains a useful tool to have, the frequency of maintenance has been notably reduced. For riders seeking uncompromising stopping power and a highly customisable feel, the Code RSC is no longer merely an option; it's a compelling choice that elevates your riding experience, allowing you to descend with greater speed, control, and, most importantly, peace of mind.
