SR20DET Engine Rebuild: Costs & Components

The SR20DET: A Legend Reborn

The Nissan SR20DET engine is a true icon in the automotive world, particularly revered for its performance potential and its widespread use in popular drift and sports cars like the Silvia S13, S14, and S15, as well as various Skyline and Pulsar models. Known for its robust construction and tunable nature, the SR20DET has captured the hearts of enthusiasts worldwide. However, like any high-performance engine, it can require significant attention and investment to keep it running at its peak, or to bring a tired unit back to life. This article delves into the costs associated with purchasing an SR20DET engine, the price of OEM parts, and provides an in-depth look at a comprehensive engine rebuild, highlighting the components and services involved.

Purchasing an SR20DET Engine

Acquiring an SR20DET engine can vary significantly in price depending on its condition, origin, and whether it's a complete unit with a gearbox and ECU, or just the bare engine block. Prices can range from approximately £1,500 for a used, untested unit to upwards of £3,000-£4,000 for a fully rebuilt or freshly imported, low-mileage engine. It's crucial to factor in potential shipping costs and import duties if sourcing from overseas. Many specialist importers and tuners offer these engines, often with a degree of warranty or assurance, which can justify a higher price point.

The Cost of OEM SR20DET Parts

When it comes to maintaining or rebuilding an SR20DET, the availability and cost of Original Equipment Manufacturer (OEM) parts are a key consideration. While many aftermarket performance parts are readily available, sourcing genuine Nissan parts can sometimes be more challenging and expensive, especially for components no longer in mass production. Here's a general idea of OEM part costs, though these can fluctuate:

It's important to note that these are estimates, and prices can vary based on the supplier and current market demand. For performance builds, many enthusiasts opt for high-quality aftermarket components from reputable brands which can offer enhanced durability and performance characteristics.

Case Study: An S13 SR20DET Engine Rebuild

The following is a detailed account of a common scenario encountered by SR20DET owners, highlighting the importance of professional expertise and quality components. This specific case involved an S13 SR20DET engine that was initially purchased as a "built motor" but was found to be in a severely compromised state due to improper assembly and sub-standard work by a previous builder.

Initial Inspection and Discovery of Issues

Upon receiving the engine from an out-of-state customer for inspection and a quote for a rebuild, it quickly became apparent that the engine had not been built correctly. The initial disassembly revealed:

• Excessive Piston-to-Cylinder Clearances: Clearances were measured at 0.006 inches, nearly double the recommended specification. This is a critical error that leads to excessive piston rock, noise, and potential piston/bore damage.
• Tapered and Out-of-Round Bores: The cylinder bores were not perfectly round or straight, indicating poor machining or incorrect honing procedures.
• Worn Main Studs: Factory main stud bolts showed signs of wear, with evidence of main cap walk and fretting, suggesting the engine had been subjected to significant power and stress without adequate reinforcement.
• Damaged Main Stud Threads: The threads in the block for the main studs were heavily damaged, necessitating repair.
• Reused Engine Bearings: The presence of heavily worn bearings strongly indicated that old bearings had been reused during the previous "rebuild."
• Incorrect Camshaft Specification: The engine was advertised with Brian Crower 272-degree camshafts, but upon inspection, they were found to be 264-degree units.
• Inadequate Valve Springs: Stock valve springs were used in conjunction with high-lift camshafts, a recipe for valve float and potential catastrophic engine failure.
• Stock Cylinder Head Components: The cylinder head was largely stock, featuring worn intake and exhaust valve guides.

The Rebuild Process: Parts and Machining

To rectify these issues and build a reliable, high-performance SR20DET, a comprehensive list of quality parts and expert machining services were employed:

Essential Components Used:

• Darton Sleeves: To ensure the bores were perfectly straight, round, and capable of handling higher power levels.

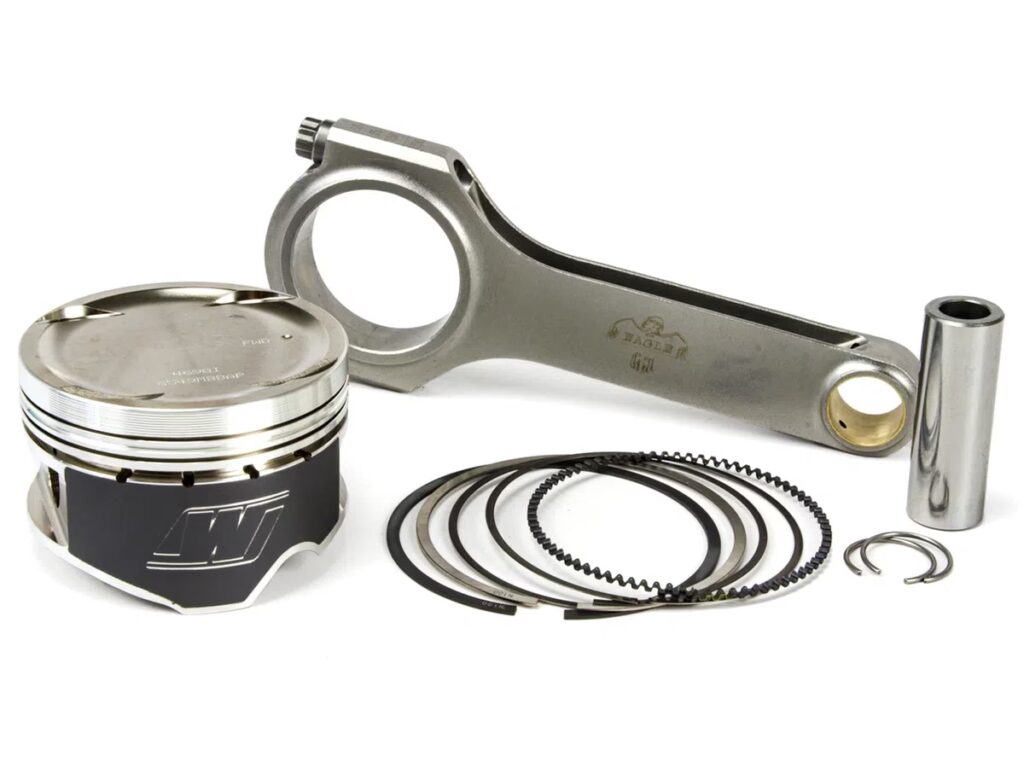

• CP 86.5mm Forged Pistons: Forged pistons are essential for strength and reliability under demanding conditions. The 86.5mm bore size is a common upgrade.
• New CP Piston Rings: High-quality rings to match the new pistons and ensure proper sealing.
• Eagle H-Beam Forged Steel Connecting Rods: H-beam rods offer superior strength compared to stock or even I-beam aftermarket rods.
• ARP 2000 1.5-inch Connecting Rod Bolts: ARP fasteners are renowned for their strength and reliability, crucial for high-revving engines.
• ACL Race Series Main, Rod, and Thrust Bearings: These bearings are designed for higher loads and oil pressures found in performance engines.
• ARP Main Stud Kit: Replaces weaker factory bolts, securing the crankshaft main caps more effectively.
• ARP Head Stud Kit: Provides superior clamping force for the cylinder head, preventing lifting under boost and heat.
• Silicone Bronze Intake and Exhaust Valve Guides: Bronze guides offer better lubrication and wear resistance than standard cast iron.
• New 6mm Stem Intake and Exhaust Valves: 6mm stem valves are generally stronger and allow for the use of upgraded valve springs and retainers.
• Brian Crower 272 Degree Intake and Exhaust Camshafts: The correct, upgraded camshafts to improve airflow and powerband.
• Brian Crower Single Valve Springs: Matched to the camshaft lift to prevent valve float.
• Brian Crower Titanium Retainers: Lightweight titanium retainers reduce valvetrain mass, improving high-RPM performance.
• Fidanza Adjustable Camshaft Sprockets: Allow for precise tuning of valve timing (cam phasing) after assembly.
• Apexi 87mm Head Gasket: A quality gasket suitable for the 86.5mm bore size, providing reliable sealing.
• Rocker Arm Stoppers: To prevent rocker arms from dislodging under high G-forces, common in drifting.

Specialised Services and Machining:

• Block Machining: The engine block was mounted in a 2-axis CNC machine to repair the damaged main stud threads using a Time-Sert thread repair system. This ensures the main caps are securely fastened.
• Honing: Cylinder bores were honed to ensure they were perfectly round and straight, with the correct clearance for the new pistons.
• Valve Guide Replacement and Machining: All worn valve guides were replaced. The exhaust guides were converted to 6mm stems to match the new valves. Guides were honed using a Goodson diamond hone, and valve seats were recut using a Serdi 100 cutting system for optimal sealing.
• Valve Spring Validation: All valve springs were tested using a Rimac valve spring tester to ensure they met specifications for installed height and pressure.
• Camshaft Degreeing: After final assembly, the camshafts were carefully degreed according to manufacturer instructions. This step is crucial as any machining of the block or head can affect the final valve and ignition timing, impacting performance and reliability.

The Importance of Professional Rebuilds

This detailed example underscores why choosing a reputable engine builder is paramount. The cost savings from a cheap or poorly executed rebuild can quickly be eclipsed by the expense of correcting mistakes and the potential for catastrophic engine failure. A professional rebuild ensures that every component is inspected, measured, machined, and assembled to precise tolerances, using the correct parts for the intended application. For an SR20DET, this attention to detail is non-negotiable for achieving reliable performance.

Common SR20DET Issues and Preventative Measures

Even with a professional rebuild, understanding common failure points can help owners maintain their engines:

• Head Gasket Failure: Often caused by overheating or excessive boost pressure without proper supporting modifications. Using ARP head studs and a quality head gasket, along with a well-tuned engine management system, can mitigate this.
• Piston Ring Land Wear: High-performance use and detonation can lead to wear on the piston ring lands, causing loss of compression and oil consumption. Forged pistons with correct clearances are the best solution.
• Oil Pump Wear: The stock oil pump can wear over time, leading to low oil pressure, especially at higher mileage. Upgraded oil pumps or regular inspection are recommended.
• Timing Belt Issues: Though generally reliable, the timing belt, tensioner, and idlers should be replaced at regular intervals (typically every 60,000 miles or 5 years) as a preventative measure.

Frequently Asked Questions (FAQs)

Q1: How much does it typically cost to rebuild an SR20DET?
A: A basic rebuild with standard replacement parts might cost between £2,000 - £3,500. A performance-oriented rebuild, like the one detailed above with forged internals and extensive machining, can easily range from £4,000 to £7,000+, depending on the specific components and services required.

Q2: Can I use aftermarket parts for an SR20DET rebuild?
A: Yes, many high-quality aftermarket parts are available from reputable brands for the SR20DET. These often offer better performance and durability than OEM parts for high-performance applications. Always choose parts from trusted manufacturers.

Q3: What is the typical horsepower range for a rebuilt SR20DET?
A: A well-built SR20DET can reliably handle anywhere from 300-400bhp with supporting modifications like upgraded injectors, turbo, and ECU tuning. With stronger internals, it can be built to handle 500bhp and significantly more, though this requires meticulous attention to detail and often custom solutions.

Q4: How long does an SR20DET engine rebuild typically take?
A: The time taken can vary greatly depending on the complexity of the rebuild, the availability of parts, and the workshop's workload. A standard rebuild might take 2-4 weeks, while a more involved performance build could take 1-3 months or longer.

Q5: What is the difference between an SR20DE and an SR20DET?
A: The primary difference is the 'T' in DET, which signifies the addition of a turbocharger. The SR20DET is the turbocharged variant, offering significantly more power and torque than the naturally aspirated SR20DE.

Conclusion

The SR20DET engine remains a highly desirable powerplant for enthusiasts. While the cost of purchasing and rebuilding one can be substantial, investing in quality parts and expert workmanship ensures a reliable and potent engine that can deliver exhilarating performance for years to come. Understanding the intricacies of the rebuild process, as highlighted in our case study, is key to avoiding costly mistakes and achieving the best possible outcome for your SR20DET.
