VS30 Transmission Fluid: The Drain Plug Mystery

When it comes to vehicle maintenance, some tasks are straightforward, while others present unique quirks that can leave even seasoned DIY enthusiasts scratching their heads. The Mercedes-Benz VS30, a popular platform for vans and commercial vehicles, certainly falls into the latter category when it comes to refilling its automatic transmission fluid. Unlike most vehicles where a dedicated dipstick tube or a clearly marked fill port is used, the VS30 employs an unconventional, yet remarkably clever, method: you fill the transmission fluid through the very same drain plug!

The Unconventional VS30 Transmission Fluid Fill Point

It sounds counter-intuitive, doesn't it? The drain plug is, by definition, where fluid *leaves* the system. However, for the VS30 transmission, specifically designed by Mercedes-Benz, this is precisely where the new fluid goes in. This peculiar design is not a workaround or a hack; it's the official procedure as detailed in Mercedes-Benz's workshop instructions (WIS). This unique approach is engineered to ensure precise fluid level measurement and prevent overfilling, which can be just as detrimental as underfilling for an automatic transmission.

Understanding this design is key to a successful fluid change. When you remove the drain plug, you'll notice that the drain hole isn't just a simple aperture. It's surrounded on the inside of the pan by a plastic tube, often referred to as a standpipe. This standpipe is crucial to the system's operation. Its height within the transmission pan dictates the correct fluid level. When you pump new fluid into the transmission through the drain plug, it flows around and eventually fills up to the top of this internal standpipe. Any excess fluid will then simply overflow and drain back out, signalling that the correct level has been achieved.

Preparing for the Transmission Fluid Service

Before you even think about adding fluid, proper preparation is paramount. This isn't just about having the right tools; it's about safety and ensuring you have all the necessary components. Remember, this is a critical maintenance task, and cutting corners can lead to costly repairs down the line.

Essential Parts You'll Need:

• Correct Transmission Fluid: This is non-negotiable. The VS30 requires a specific, later revision of transmission fluid. Using the wrong type can lead to poor performance, damage to internal components, and premature failure. Always consult your vehicle's manual or a reputable parts supplier to confirm the exact fluid specification.
• Transmission Filter Kit: A complete transmission service always includes replacing the filter. This kit typically includes a new filter, a pan gasket, and, crucially, new transmission pan bolts.
• One-Time Use Pan Bolts: This is a critical detail often overlooked. The transmission pan bolts on the VS30 are designed for one-time use. They are engineered to stretch slightly when torqued correctly, providing a precise and secure seal. Reusing old bolts can lead to leaks and an improperly sealed transmission pan. Ensure your filter kit includes these replacements.

Where to Source Your Parts:

Finding the correct parts for your VS30 transmission service is easier than you might think. Reputable online retailers and dealerships are your best bet:

Tools for the Job:

• Fluid Transfer Pump: Absolutely essential. Since you're pumping fluid upwards into the transmission, a good quality fluid transfer pump will make the job infinitely easier and cleaner. While cheaper pumps exist, they might take longer and be more cumbersome. Invest in one with a good flow rate.
• Torque Wrench: Critical for correctly tightening the new pan bolts to the manufacturer's specified torque. Over-tightening can strip threads or damage the pan; under-tightening will lead to leaks.
• Drain Pan: For collecting the old fluid.
• Basic Socket Set and Wrenches: To remove and install the pan bolts and drain plug.
• Safety Glasses and Gloves: Always protect your eyes and hands from hot fluid and chemicals.
• Vehicle Jacks and Stands: Ensure the vehicle is securely lifted and level. This is vital for accurate fluid level measurement.

The Step-by-Step Filling Procedure

Once you have all your parts and tools, and the vehicle is safely lifted and level, you can begin the filling process. Remember, patience is key, and following these steps carefully will ensure a successful outcome.

1. Drain the Old Fluid: If you're performing a full fluid change, start by draining the old transmission fluid. Place your drain pan directly under the transmission drain plug. Carefully remove the drain plug and allow all the old fluid to flow out. Be mindful that the fluid may be hot.

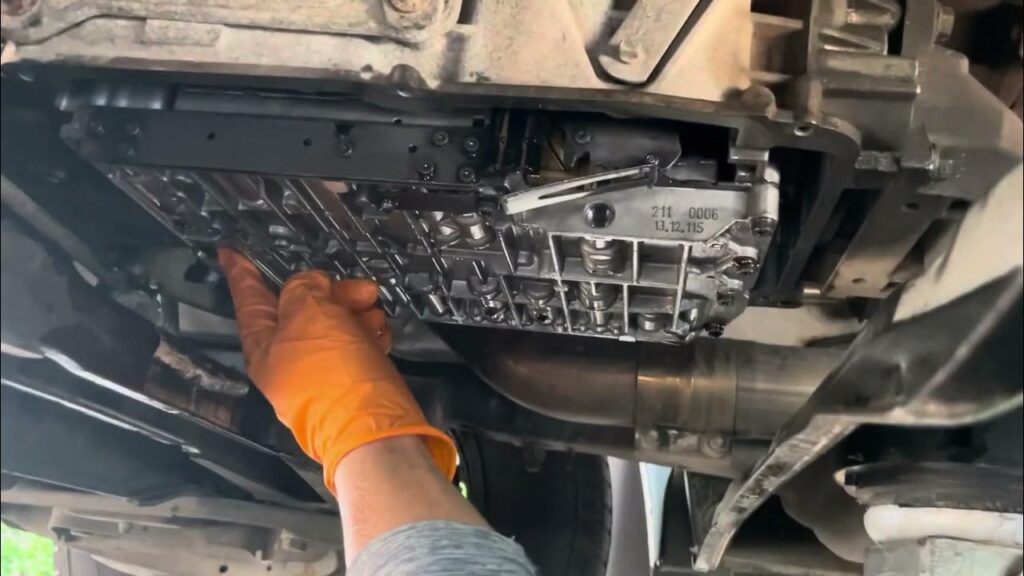

2. Remove the Transmission Pan and Filter: Once the fluid has drained, remove all the one-time use pan bolts. Carefully lower the transmission pan, as there might still be some residual fluid inside. Remove the old transmission filter.
3. Install New Filter and Gasket: Clean the transmission pan thoroughly, ensuring there's no old gasket material or debris left. Install the new transmission filter into its housing. Place the new gasket onto the pan, or onto the transmission housing if it's designed that way.
4. Reinstall the Transmission Pan: Carefully lift the cleaned pan with the new gasket and align it with the bolt holes. Start all the new one-time use pan bolts by hand to ensure they are correctly threaded.
5. Torque the Pan Bolts: Using your torque wrench, tighten the new pan bolts to the manufacturer's specified torque sequence and value. This is crucial for preventing leaks and ensuring the pan is properly sealed. Do not overtighten.
6. Prepare for Filling: With the new filter and pan installed, position your fluid transfer pump. Connect one end of the pump to the transmission's drain hole (where the drain plug was) and the other end into your container of new, correct transmission fluid.
7. Begin Filling: Start pumping the new transmission fluid into the transmission. Pump steadily and observe the drain hole. You will see the fluid level rise inside the transmission until it reaches the top of the internal standpipe.
8. Observe for Overflow: Continue pumping until you see a steady stream of fluid begin to flow back out of the drain hole. This indicates that the fluid level has reached the top of the standpipe, meaning the transmission is filled to the correct preliminary level.
9. Allow to Drain Off: Once you see the overflow, stop pumping. Allow the excess fluid to drain off until it slows to a trickle. This ensures that only the correct amount of fluid, up to the standpipe's height, remains in the transmission.
10. Reinstall the Drain Plug: Once the fluid has slowed to a trickle, quickly reinstall the drain plug. Ensure it's tightened to the manufacturer's specified torque.
11. Final Level Check (Crucial): For many automatic transmissions, the final fluid level check is performed with the engine running and the transmission at operating temperature. This is because fluid expands when hot, and the pump and torque converter fill with fluid. Consult your VS30's service manual for the exact procedure, which typically involves running through the gear selections (P, R, N, D) while holding the brake, then re-checking the level at a specified temperature (often using a diagnostic tool to read transmission temperature). If a final top-up is required, you would repeat the filling steps through the drain plug.

Common Pitfalls and Tips for Success

While the process is unique, it's manageable for a competent DIY mechanic. However, being aware of common mistakes can save you a lot of hassle.

• Incorrect Fluid: We cannot stress this enough. Using the wrong type of transmission fluid is a recipe for disaster. Always verify the exact specification required for your VS30 model.
• Reusing Bolts: Ignoring the one-time use nature of the pan bolts can lead to leaks, which can quickly escalate into more serious problems if the fluid level drops too low.
• Not Level: If your vehicle isn't perfectly level, your fluid level reading will be inaccurate, leading to either underfilling or overfilling.
• Rushing the Overflow: Don't rush the overflow step. Allow the fluid to drain to a slow trickle to ensure the precise level is set by the standpipe.
• Not Checking Hot Level: The cold fill is a preliminary step. The final, accurate fluid level must be checked when the transmission is at operating temperature, as per Mercedes-Benz specifications.
• Safety First: Always use proper jack stands, wear safety glasses, and be mindful of hot fluids and components.

Frequently Asked Questions (FAQs)

Q: Is it really true that transmission fluid goes into the drain plug on a VS30?

A: Yes, it is absolutely true for the VS30. This is the official Mercedes-Benz procedure, designed around an internal standpipe within the transmission pan that dictates the correct fluid level.

Q: What kind of transmission fluid should I use for my VS30?

A: You must use the specific, latter revision transmission fluid recommended by Mercedes-Benz for the VS30. Check your owner's manual or a reputable parts supplier for the exact specification.

Q: Do I need special tools to fill the transmission fluid?

A: While you don't need highly specialised diagnostic tools for the filling itself, a fluid transfer pump is essential. A torque wrench is also critical for correctly tightening the pan bolts.

Q: Why are the transmission pan bolts one-time use?

A: These bolts are designed to stretch slightly when properly torqued, creating a precise and durable seal. Reusing them can compromise this seal, leading to leaks.

Q: How do I know when the transmission is full?

A: During the initial fill, you'll know it's at the correct preliminary level when fluid starts to overflow steadily from the drain hole, then slows to a trickle. The final, accurate level check is typically done with the engine running and the transmission at operating temperature.

Q: Can I just top up the transmission fluid if it's low?

A: While a top-up might seem simple, it's often better to perform a full fluid change if you suspect a significant drop in level, as this could indicate a leak or an issue with the fluid's condition. The VS30's design makes precise topping up challenging without the full overflow procedure.

Q: What about the transfer case and differentials? Do they also fill through the drain plug?

A: No, the unique drain-plug-fill method is specific to the VS30 automatic transmission. Transfer cases and differentials typically have separate fill and drain plugs, and their fluid types and service procedures are different. Always consult your vehicle's specific service information for these components.

Conclusion

Servicing the transmission fluid on your Mercedes-Benz VS30 might seem daunting due to its unconventional filling method, but with the right knowledge, parts, and tools, it's a perfectly achievable DIY task. Understanding the ingenious design of the internal standpipe and adhering strictly to the procedure for filling through the drain plug will ensure your transmission receives the correct amount of fluid, promoting its longevity and smooth operation. Always prioritise safety, use the specified fluid and new bolts, and don't hesitate to consult official service information for your specific vehicle. Happy wrenching!
